 WHEEL ALIGNMENT  2B-9

GENERAL DESCRIPTION AND SYSTEM OPERATION

FOUR WHEEL ALIGNMENT

CASTER

Caster is the tilting 91 the uppermost point of the steering
axis either forward or backward from the vertical when
viewed from the side of the vehicle. A backward tilt is
positive, and a forward tilt is negative. Caster influences
directional control of the steering but does not affect
tire wear. Weak springs or overloading a vehicle will affect
caster. One wheel with more positive caster will pull
toward the center of the car. This condition will cause
the car to move or lean toward the side with the least
amount of positive caster. Caster is measured in degrees.

CAMBER

Camber is the tilting of the top of the tire from the vertical
when viewed from the front of the vehicle. When the
tires tilt outward, the camber is positive. When the tires
tilt inward, the camber is negative. The camber angle is
measured in degrees from the vertical. Camber
influences both directional control and tire wear.

If the vehicle has too much positive camber, the outside
shoulder of the tire will wear. If the vehicle has too much
negative camber, the inside shoulder of the tire will wear.

The first responsibility of engineering is to design safe
steering and suspension systems. Each component
must be strong enough to withstand and absorb extreme
punishment. Both the steering system and the front and
the rear suspension must function geometrically with
thebody mass.

The steering and the suspension systems require that
the front wheels self-return and that the tire rolling effort
and the road friction be held to a negligible force in order
to allow the customer to direct the vehicle with the least
effort and the most comfort.

A complete wheel alignment check should include
measurements of the rear toe and camber.

Four-wheel alignment assures that all four wheels will
be running in precisely the same direction.

When the vehicle is geometrically aligned, fuel economy
and tire life are at their peak, and steering and
performance are maximized.

TOE

Toe-in is the turning in of the tires, while toe-out is the
turning out of the tires from the geometric centerline or
thrust line. The toe ensures parallel rolling of the wheels.

The toe serves to offset the small deflections of the wheel
support system which occur when the vehicle is rolling
forward. The specified toe angle is the setting which
achieves 0 degrees of toe when the vehicle is moving.

Incorrect toe-in or toe-out will cause tire wear and
reduced fuel economy. As the individual steering and
suspension components wear from vehicle mileage,
additional toe will be needed to compensate for the wear.

Always correct the toe dimension last.

SECTION 2C

FRONT  SUSPENSION

TABLE OF CONTENTS

SPECIFICATIONS

GENERAL SPECIFICATIONS

Type

Spring Type

Torsion Bar

Shock Absorber

Stabilizer Type

Double Wishbone

Torsion Bar Spring

1,040 mm

24.5 mm

Cylindrical Reciprocation Type

Torsion Bar Spring

Specifications . . . . . . . . . . . . . . . . . . . . . . . .  2C-1

General Specifications . . . . . . . . . . . . . . . . . .  2C-1

Fastener  Tightening  Specifications . . . . . . . . .  2C-2

Component Locator . . . . . . . . . . . . . . . . . . .  2C-3

Front  Suspension . . . . . . . . . . . . . . . . . . . . . .  2C-3

Maintenance and Repair . . . . . . . . . . . . . . .  2C-4

On-Vehicle Service . . . . . . . . . . . . . . . . . . . . .  2C-4

Front Stabilizer Bar . . . . . . . . . . . . . . . . . . . . .  2C-4

Application

Description

Torsion Bar . . . . . . . . . . . . . . . . . . . . . . . . . . .  2C-6

Front Lower and Upper Arm . . . . . . . . . . . . . .  2C-8

Front Shock Absorber . . . . . . . . . . . . . . . . .  2C-10

Axle Vertical Acceleration Sensor

(Wheel G Sensor) . . . . . . . . . . . . . . . . . . .  2C-12

Vertical and Lateral Sensor . . . . . . . . . . . . . .  2C-13

ECS (ECU) . . . . . . . . . . . . . . . . . . . . . . . . . .  2C-14

Length

Outer Diameter(

f

)

2C-2   FRONT SUSPENSION

Application

Torque Arm Bolt

N

l

m

40 - 60

60 - 80

FASTENER TIGHTENING SPECIFICATIONS

Stabilizer Bar

Application

Stabilizer Bar Retaining Nut

Stabilizer Bar Link Nut

Lower Arm Nut

N

l

m

30 - 45

60 - 80

16 - 22

Torsion Bar

Lower and Upper Arm

Application

Upper Arm Nut

Upper Arm End Castle Nut

Lower Arm Nut

Lower Arm End Castle Nut

N

l

m

120 - 140

80 - 150

150 - 180

120 - 180

Steering Knuckle and Drive Shaft

Application

Brake Caliper Hose Bolt

Brake Caliper Mounting Bolt

Tie Rod Retaining Nut

Upper Arm Retaining Nut

Lower Arm Retaining Nut

N

l

m

25 - 35

85 - 105

35 - 45

80 - 150

120 - 180

M10

M12

FRONT SUSPENSION  2C-3

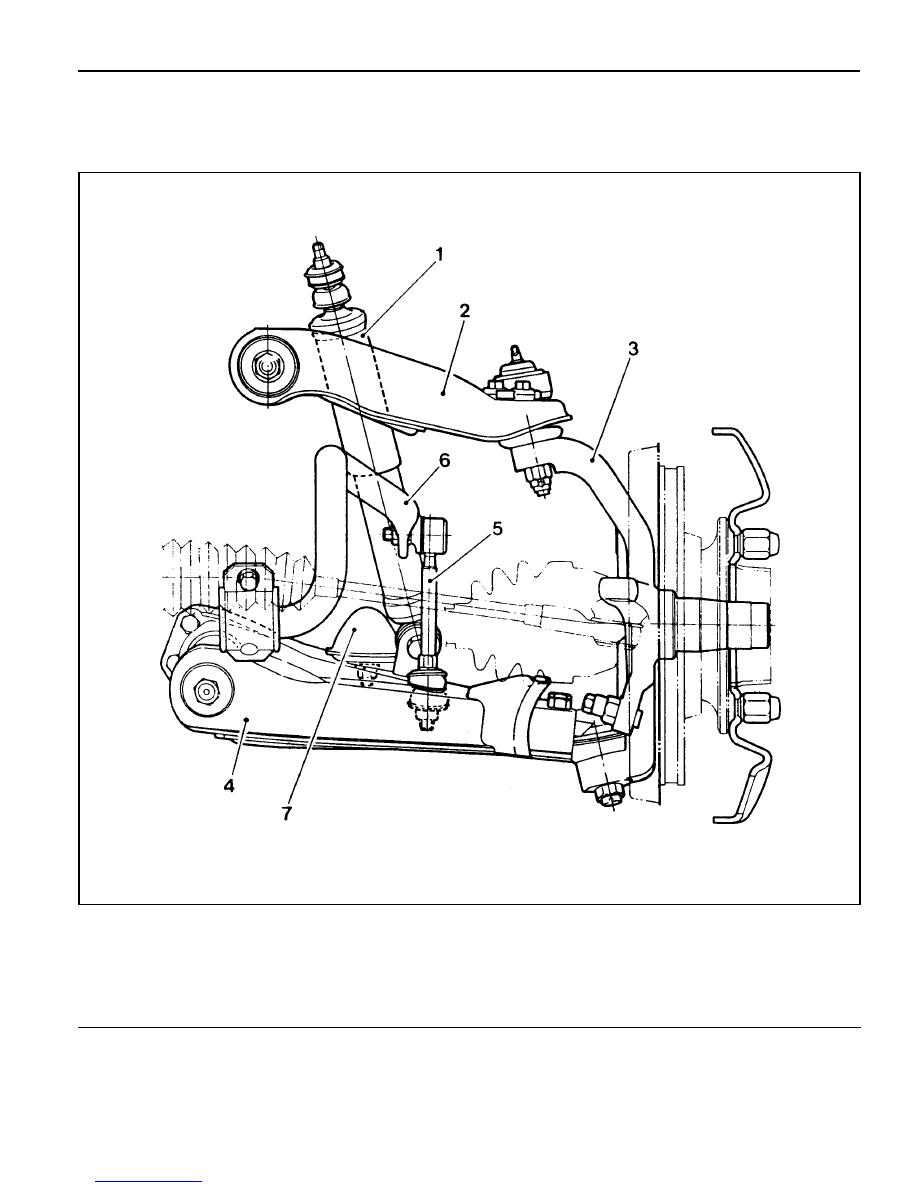

COMPONENT LOCATOR

FRONT SUSPENSION

1 Shock Absorber
2 Upper Arm
3 Steering Knuckle
4 Lower Arm

5 Stabilizer Bar Link
6 Stabilizer Bar
7 Suspension Bumper
