M162 ENGINE CONTROLS  1F1-3

SPECIAL TOOLS

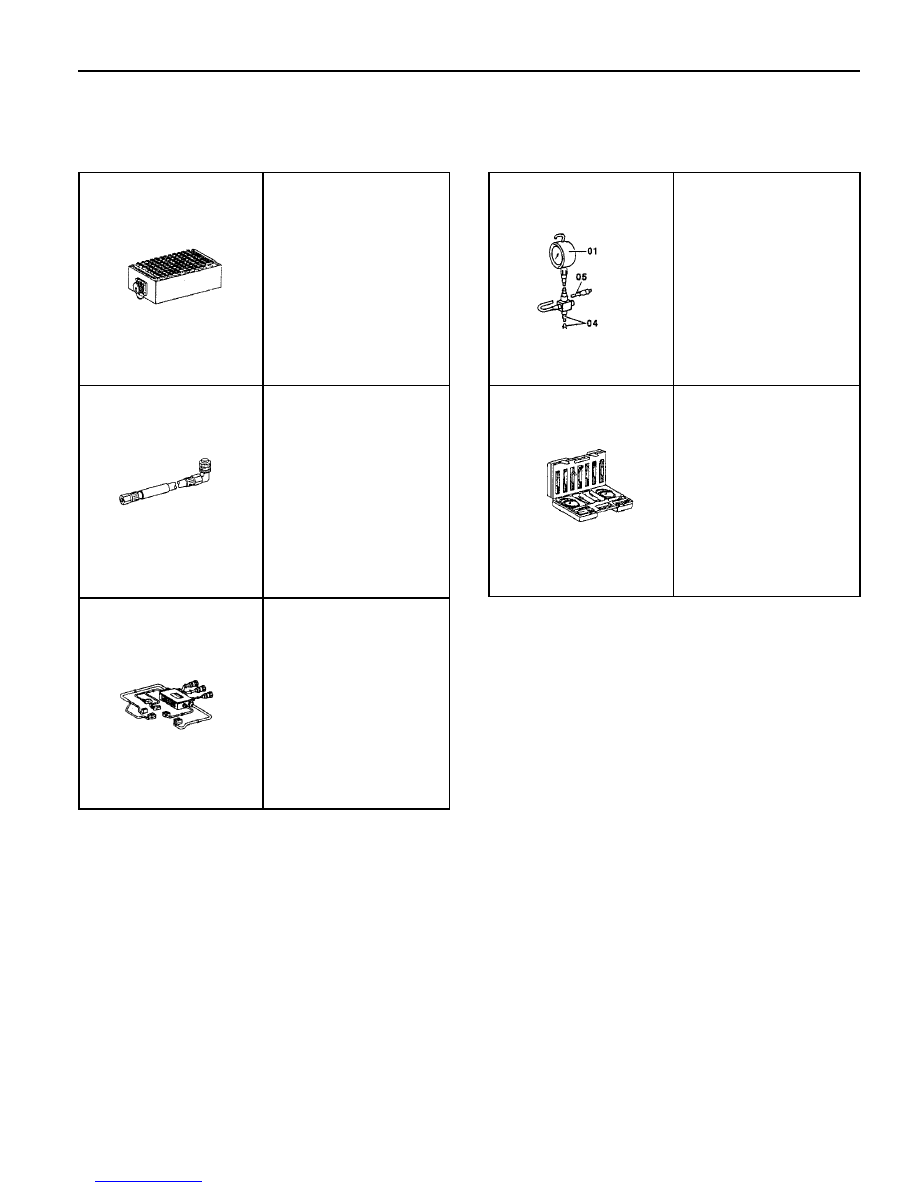

SPECIAL TOOLS TABLE

129 589 00 21 00

Test Box

119 589 04 63 00

Pressure Hose

106 589 00 21 00

Pressure Tester

210 589 08 63 00

ECU Test Cable

210201Adaptor line

1F1-4  M162 ENGINE CONTROLS

E32 ECU (HFM)

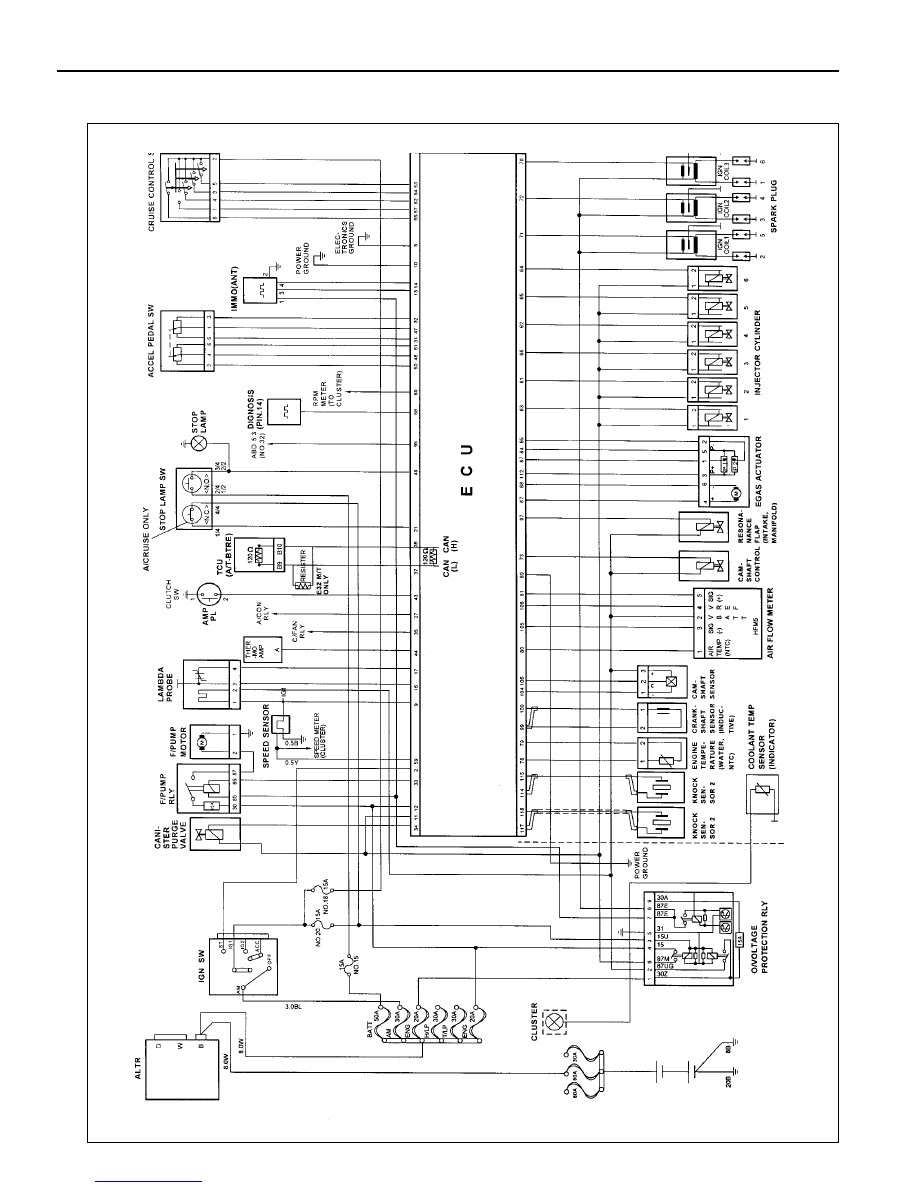

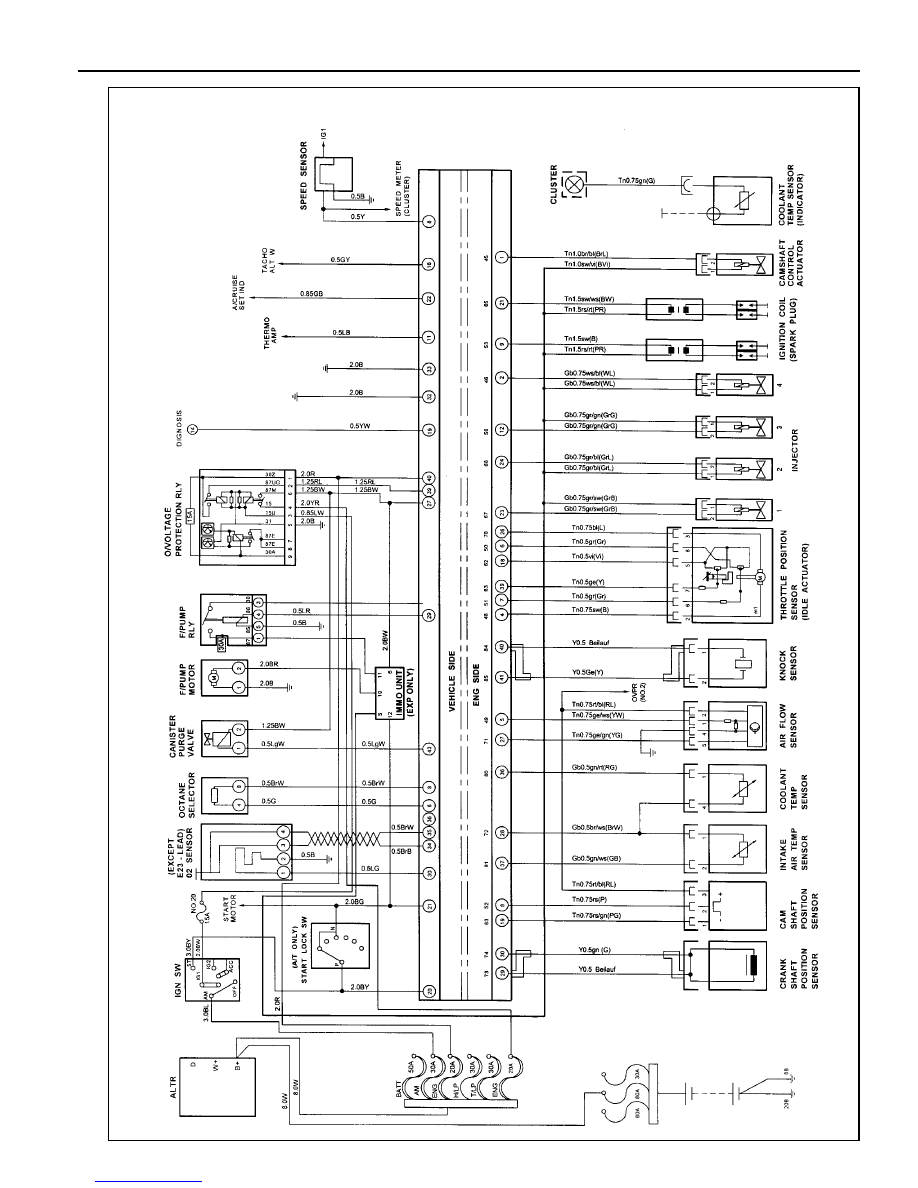

SCHEMATIC AND ROUTING DIAGRAMS

M162 ENGINE CONTROLS  1F1-5

E32 ECU (MSE)

1F1-6  M162 ENGINE CONTROLS

DIAGNOSIS

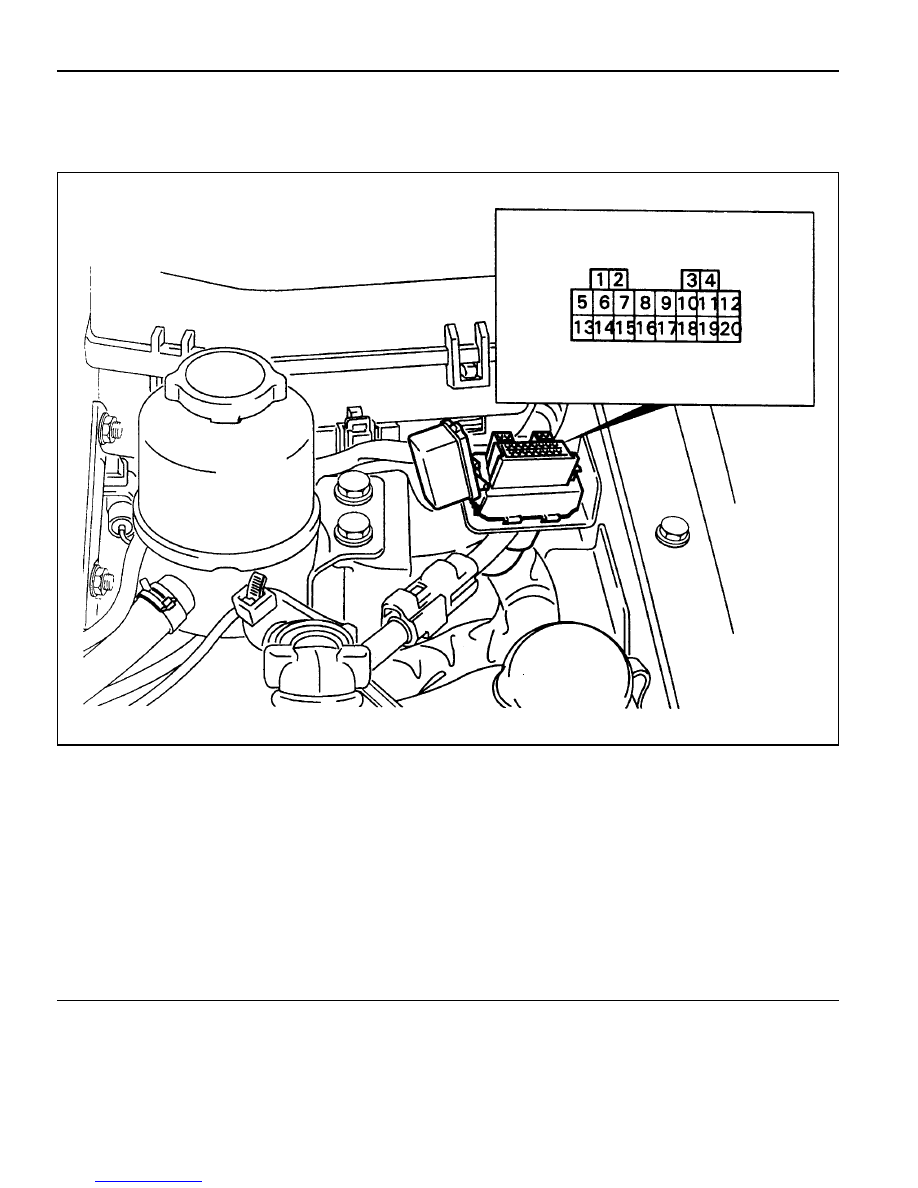

SELF DIAGNOSIS SOCKET PIN NUMBERS AND DESCRIPTIONS

1 Ground
2 Ignition 1
3 Battery Power Supply (Fuse NO.17)
4 REKES :PIN 6
5 Engine Speed Signal :MSE PIN 60
6 TCCU(Part-time)
7 STICS(PIN 26)
8 -
9 -

10 Air Bag(PIN 20)

11 Remote Engine Start Unit(PIN 10)

12 -
13 Brake System

(ABS 5.3:PIN 11, ABS/ABD 5.3:PIN 46)

14 MSE 3.62S/3.53S(ECU Data Output:PIN 58)
15 TOD(PIN 20)
16 Immobilizer
17 -
18 TCU(PIN 23)
19 -
20 K-LINE(ECS:PIN 23)
