OM600 ENGINE MECHANICAL  1B3-71

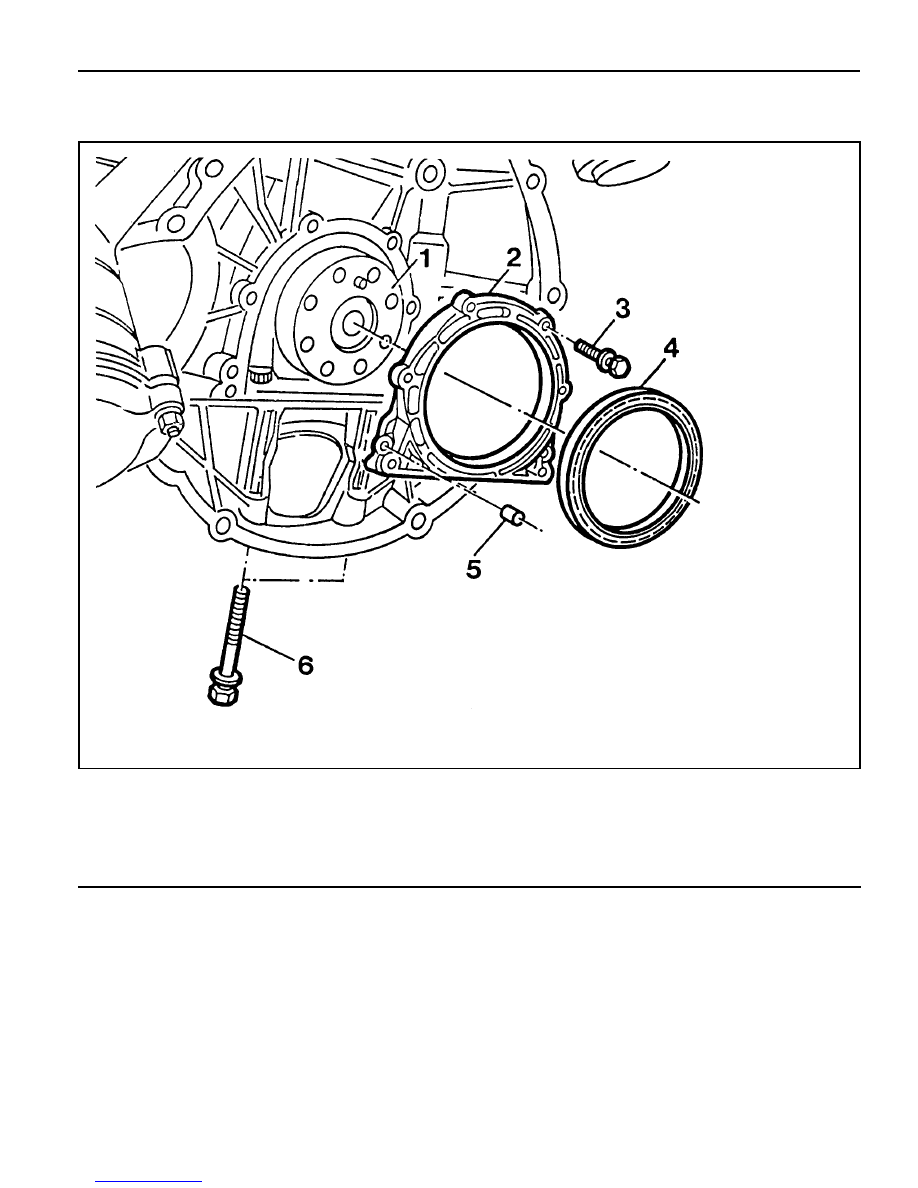

CRANKSHAFT END COVER

Preceding Work : Removal of flywheel and driven plate.

1 Crankshaft Flange
2 End Cover .............................. Clean, Loctite 573
3 Bolt ......................................... 10Nm, Loctite 573

4 Radial Seal ............................................ Replace
5 Dowel Sleeve
6 Bolt ......................................... 10Nm, Loctite 573

1B3-72  OM600 ENGINE MECHANICAL

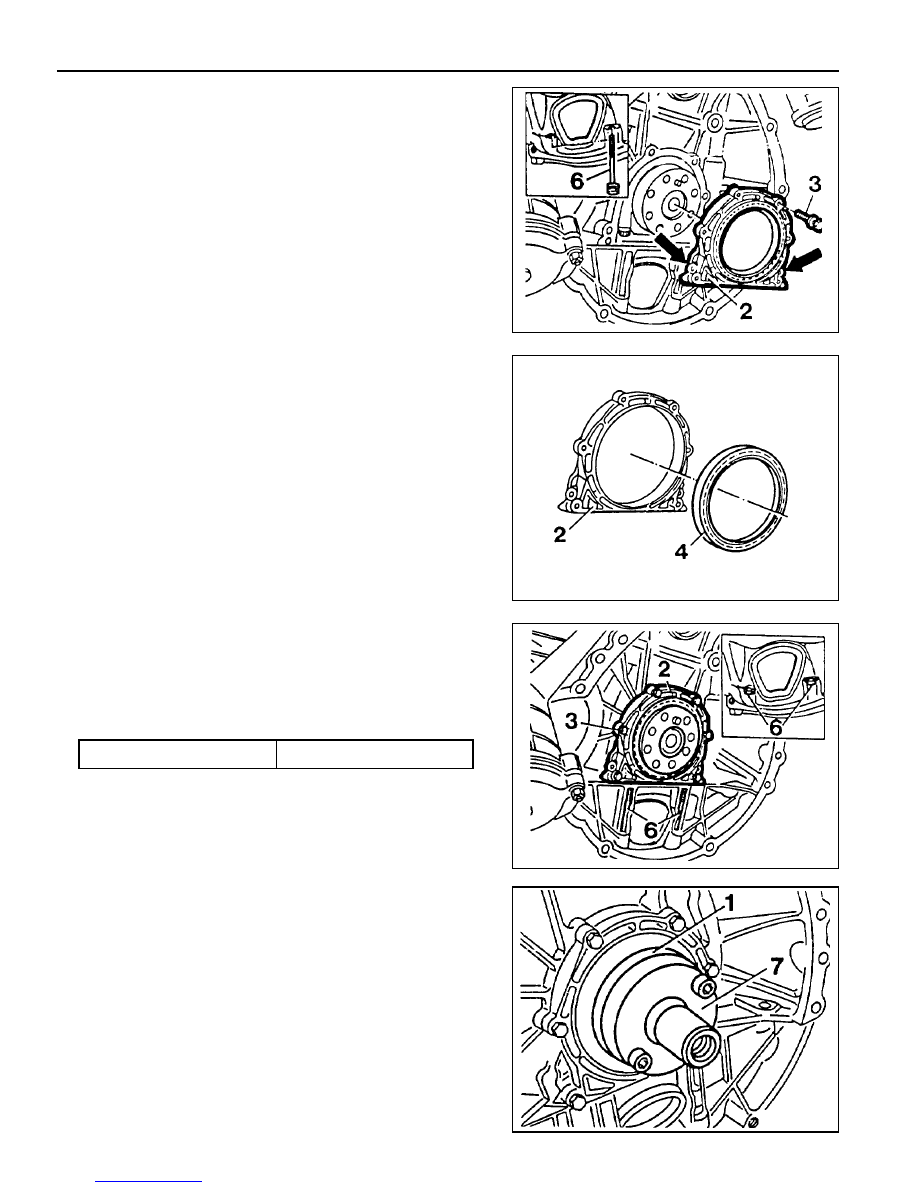

Tools Required

601 589 03 43 00  Oil Seal Assmbler

Removal Procedure

1. Remove the bolts (3, 6) from end cover, By pulling out the

lugs (arrow), remove the cover.

Notice

Be careful not to damage the oil pan gasket.

2. Remove the radial seal (4) with care not to damage the

sealing surface.

Installation Procedure

1. Thoroughly clean the sealing surface of end cover and apply

Loctite 573.

2. Clean the groove of radial seal.

3. Apply Loctite 573 on the bolts and install the end cover.

Tightening Torque

10 Nm

Notice

Be careful not to damage the oil pan gasket.

4. Install the inner oil seal assembler to the crankshaft flange.

Oil Seal Assembler 601 589 03 43 00

OM600 ENGINE MECHANICAL  1B3-73

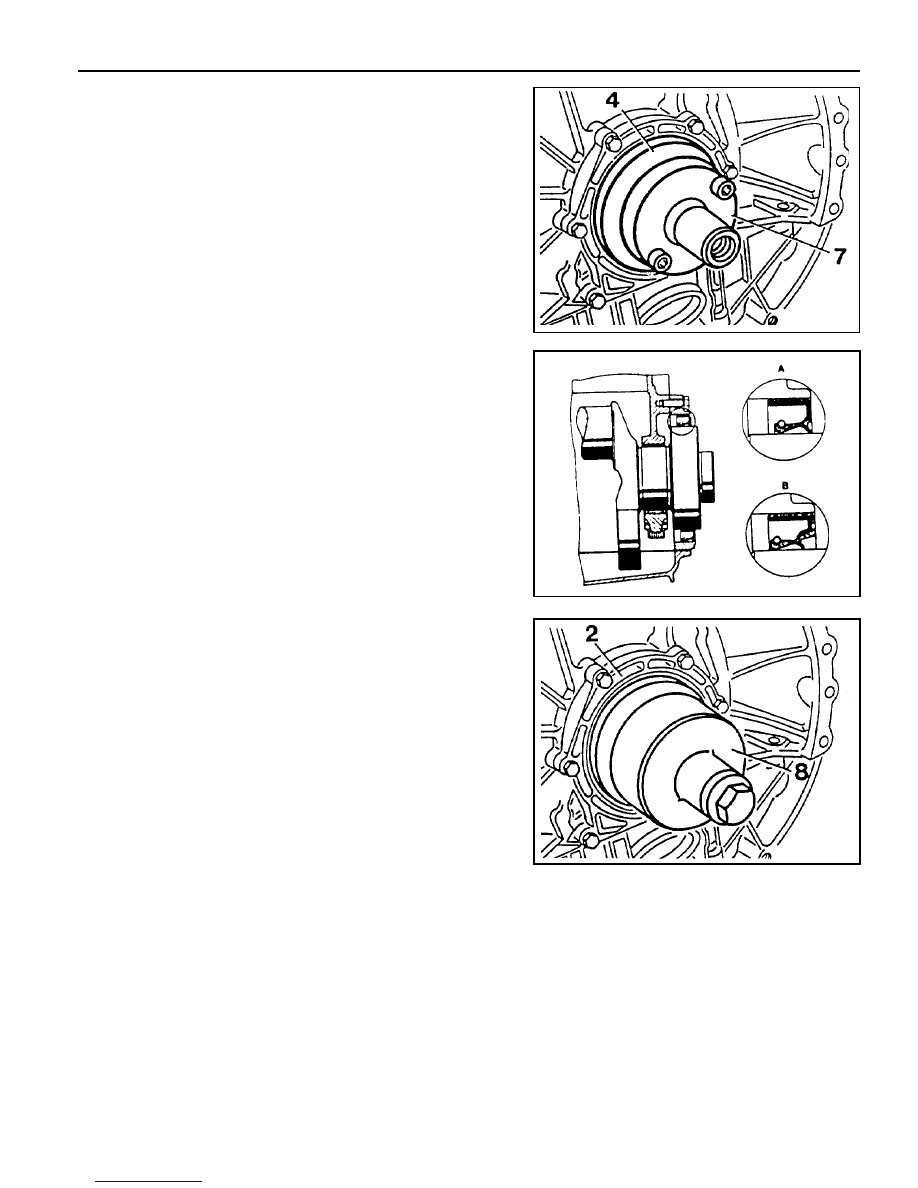

Notice

The sealing lip of the repair radial seal is offset to the inside
by 3mm to ensure that it does not run in any groove which
the standard radial seal may have left on the crankshaft
flange.

7. Install the outer oil seal assembler on he seal and by

tightening the bolts, press the radial seal into the end cover
as far as the stop.

Notice

The seal must be positioned exactly at right angles in the
end cover to ensure that it provides a proper seal.

Oil Seal Assembler 601 589 03 43 00

 A Standard  Radial Seal

B Repair Radial Seal

5. Coat a little oil on the sealing lip of new radial seal and

contacting surface.

Notice

Don’t use grease.

6. Insert the new radial seal (4) onto the oil seal assembler

(7).

1B3-74  OM600 ENGINE MECHANICAL

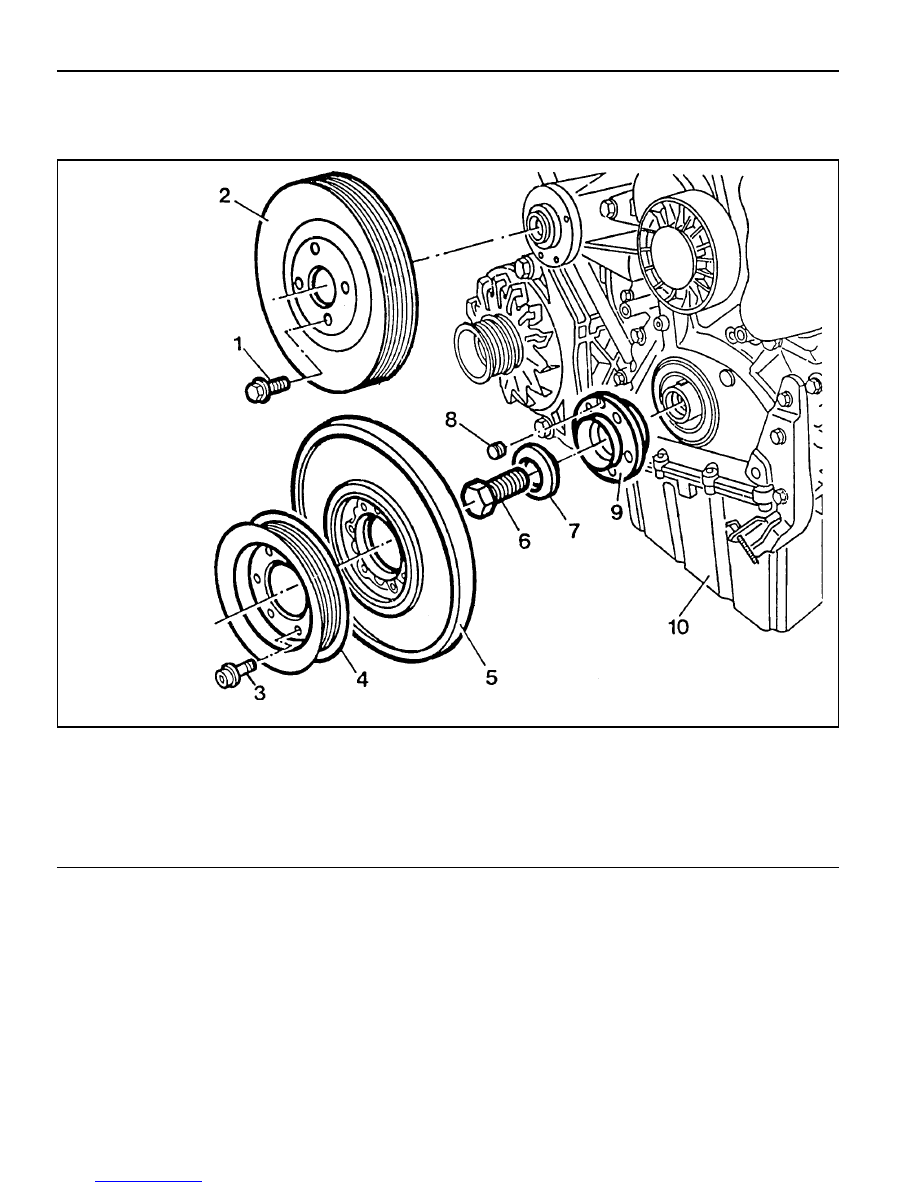

VIBRATION DAMPER AND HUB

Preceding Work : Removal of the cooling fan

Removal of poly V-belt

1 Bolt ............................................................ 10Nm
2 Cooling Fan Belt Pulley
3 Socket Bolt ................................................ 23Nm
4 Crankshaft Belt Pulley
5 Vibration Damper

6 Bolt ................................................ 200Nm + 90°
7 Washer
8 Straight Pin
9 Hub

10 Oil Pan
