OM600 ENGINE MECHANICAL  1B3-27

Inspection Procedure

l

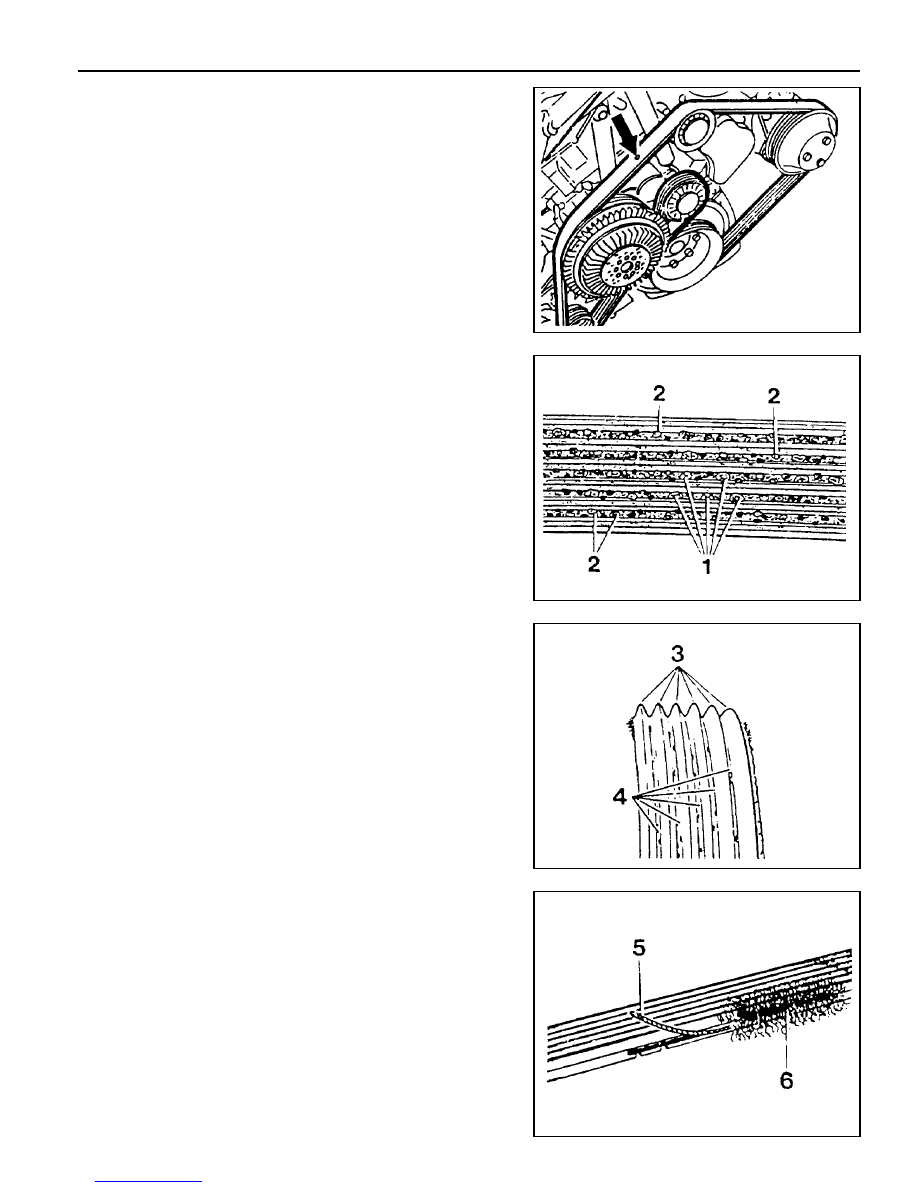

Mark poly V-belt at a clearly visible point with chalk.

l

Rotate the engine and check the belt.

Notice

If  one of the following types of  damage is found,  replace
the belt.

1. Rubber lumps in the base of rips.

2. Dirt or grit ingrained.

5. Cord torn out at the side.

6. Outer cords frayed.

3. Pointed rips.

4. Belt cord visible in the base of rips.

1B3-28  OM600 ENGINE MECHANICAL

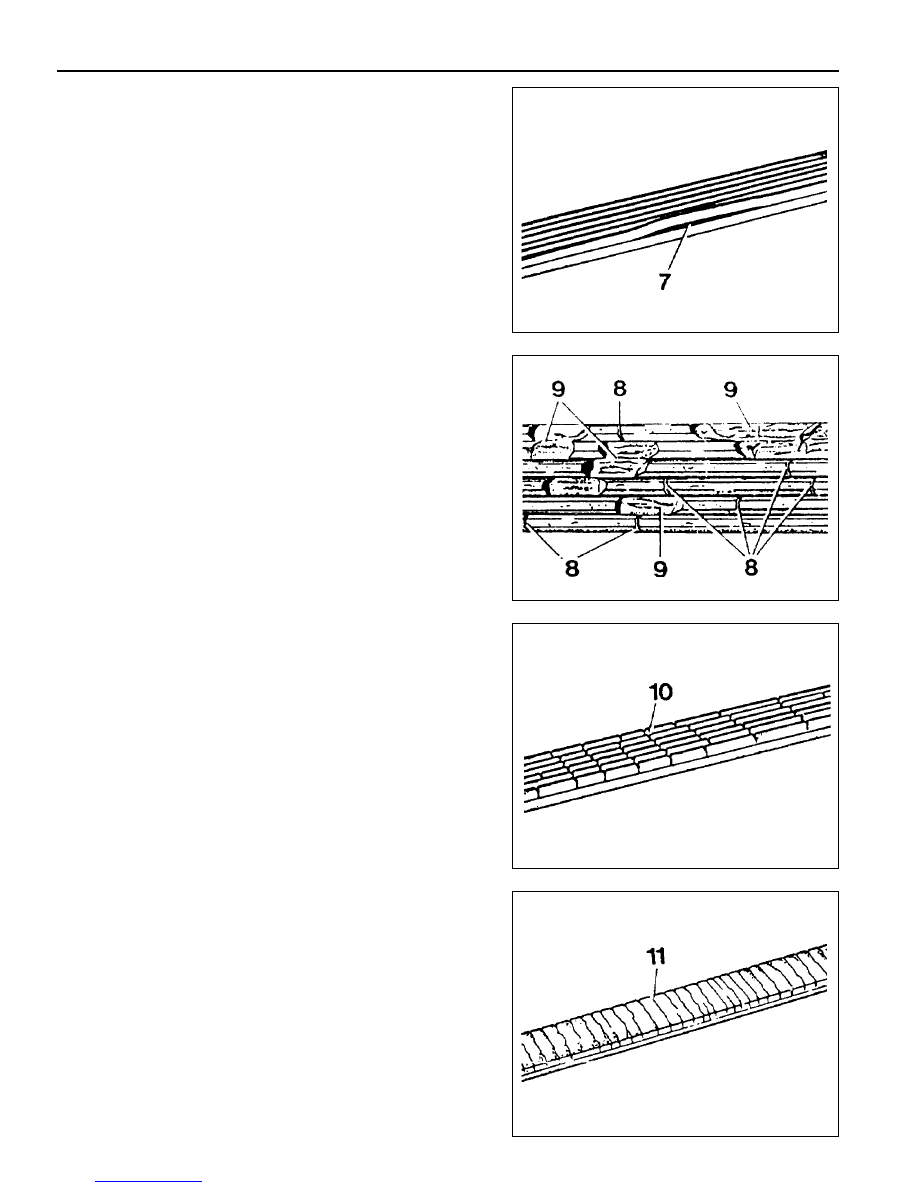

7. Belt detached from the base of rip.

8. Splits across the rips.

9. Sections of rip torn out.

10. Splits across several rips.

11. Splits across the back.

OM600 ENGINE MECHANICAL  1B3-29

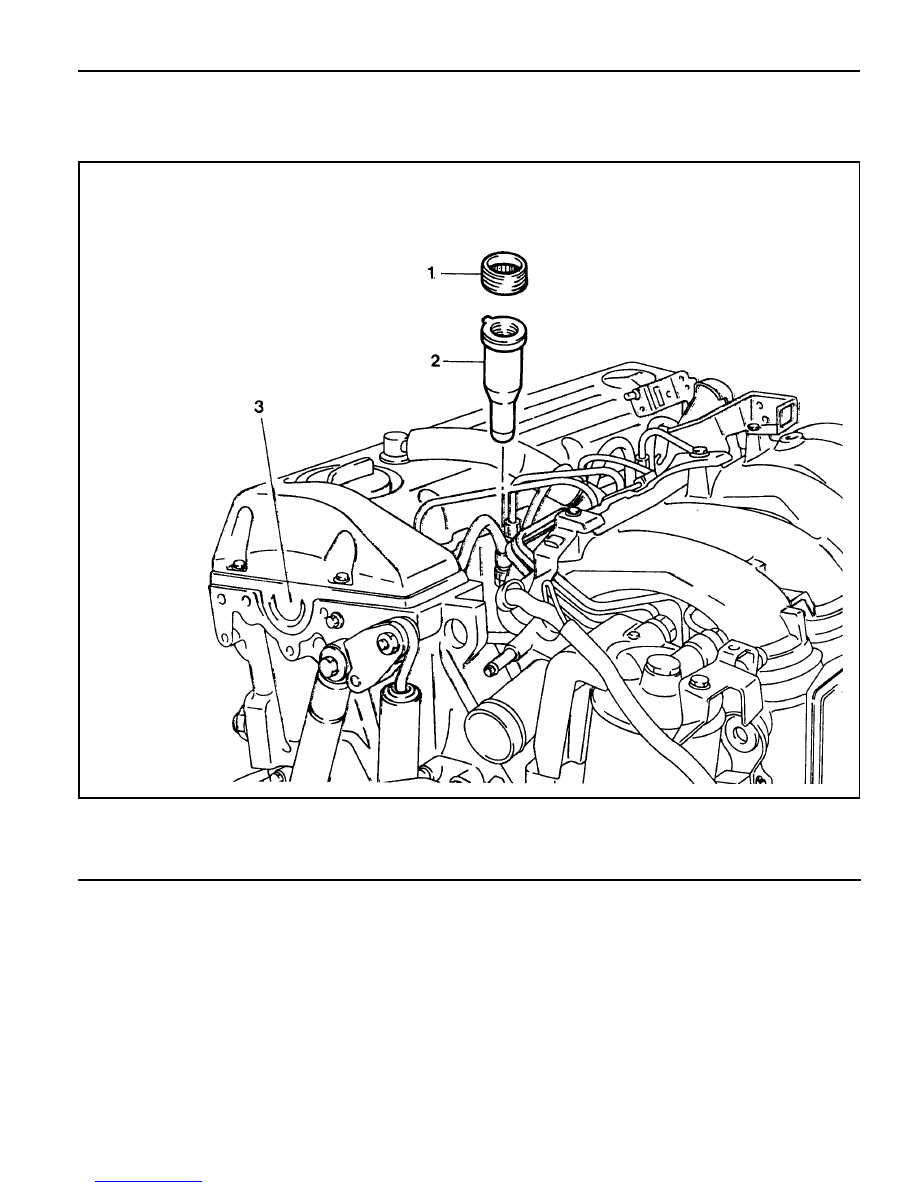

1 Threaded Ring ........................................ 130 Nm
2 Prechamber

PRECHAMBER

Preceding Work : Removal of glow plug

Removal of fuel injection nozzle

3 Cylinder Head

1B3-30  OM600 ENGINE MECHANICAL

Tools Required

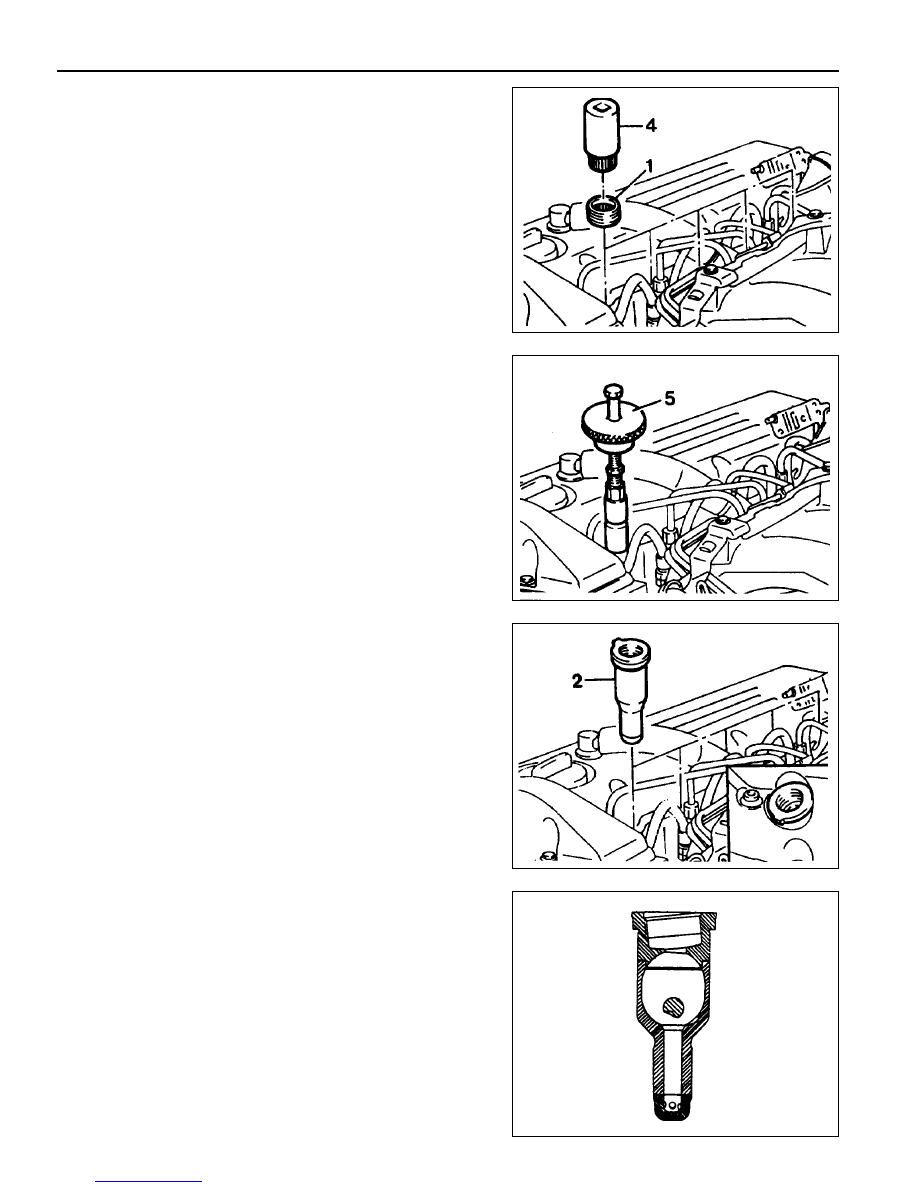

2. Install the sliding hammer into the prechamber.

Sliding Hammer 667 589 03 63 00

Removal & Installation Procedure

1. Using the serration wrench (4), remove the threaded ring

(1).

Serration Wrench 603 589 00 09 00

3. Remove the perchamber (2).

Notice

After removing the prechamber, cover over the bores with
clean rag.

603 589 00 09 00  Serration Wrench

667 589 03 63 00  Sliding Hammer

4. Inspect the prechamber.

Notice

If the prechamber seats in the cylinder head are leaking or
if the prechambers are replaced, the sealing surfaces in
the cylinder head must be remachined.
