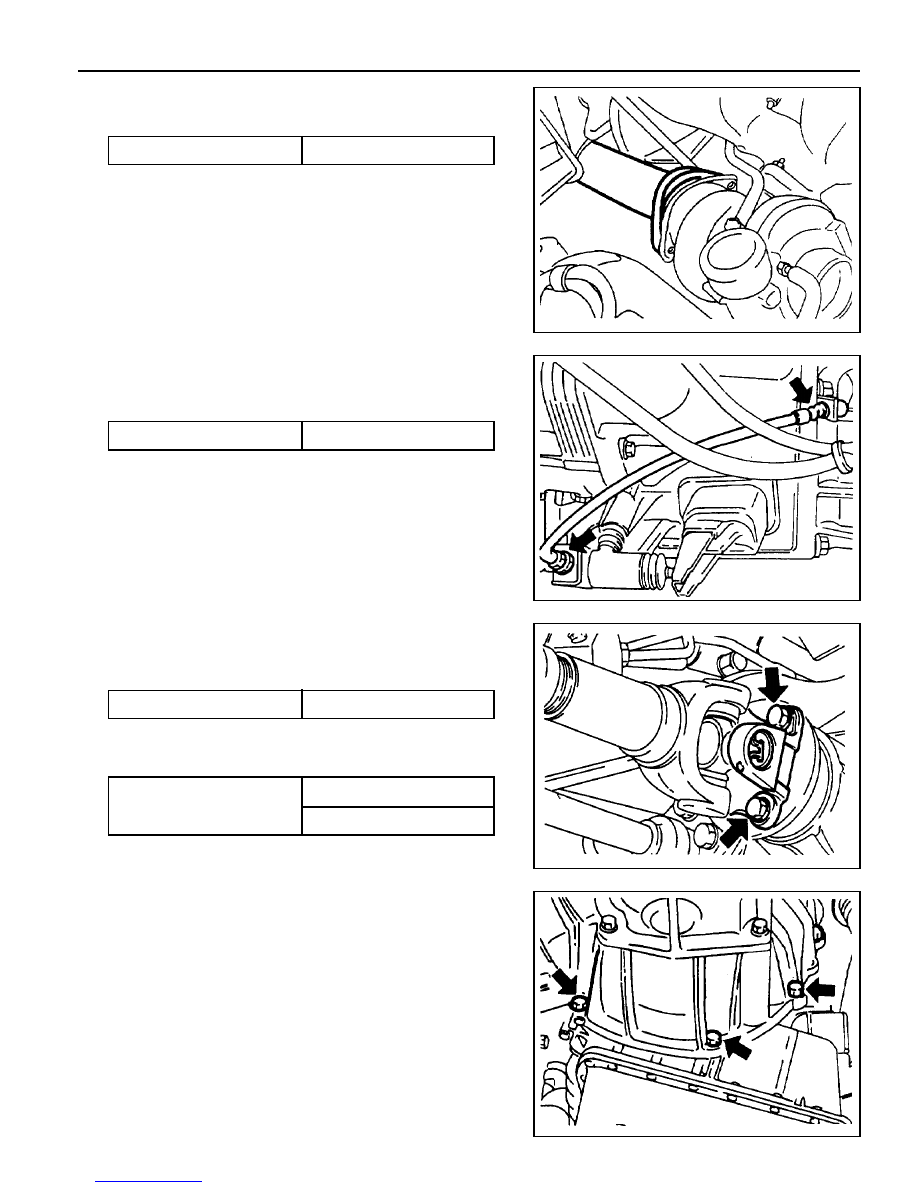

OM600 ENGINE MECHANICAL  1B3-19

33. Disconnect the exhaust pipe flange from the exhaust

manifold.

Installation Notice

35. Remove the shift control cable.

36. Remove the transmission.

Tightening Torque

Axle  70 ~ 80 Nm

T/C  81 ~ 89 Nm

Tightening  Torque

20 - 34 Nm

31. Separate the exhaust pipe flange from the turbo charger.

Installation Notice

32. Loosen the installing bolt of clutch release cylinder and

remove the clutch release cylinder.

Installation Notice

Tightening Torque

30 Nm

Tightening Torque

30 Nm

34. Remove the propeller shaft from the transmission.

Installation Notice

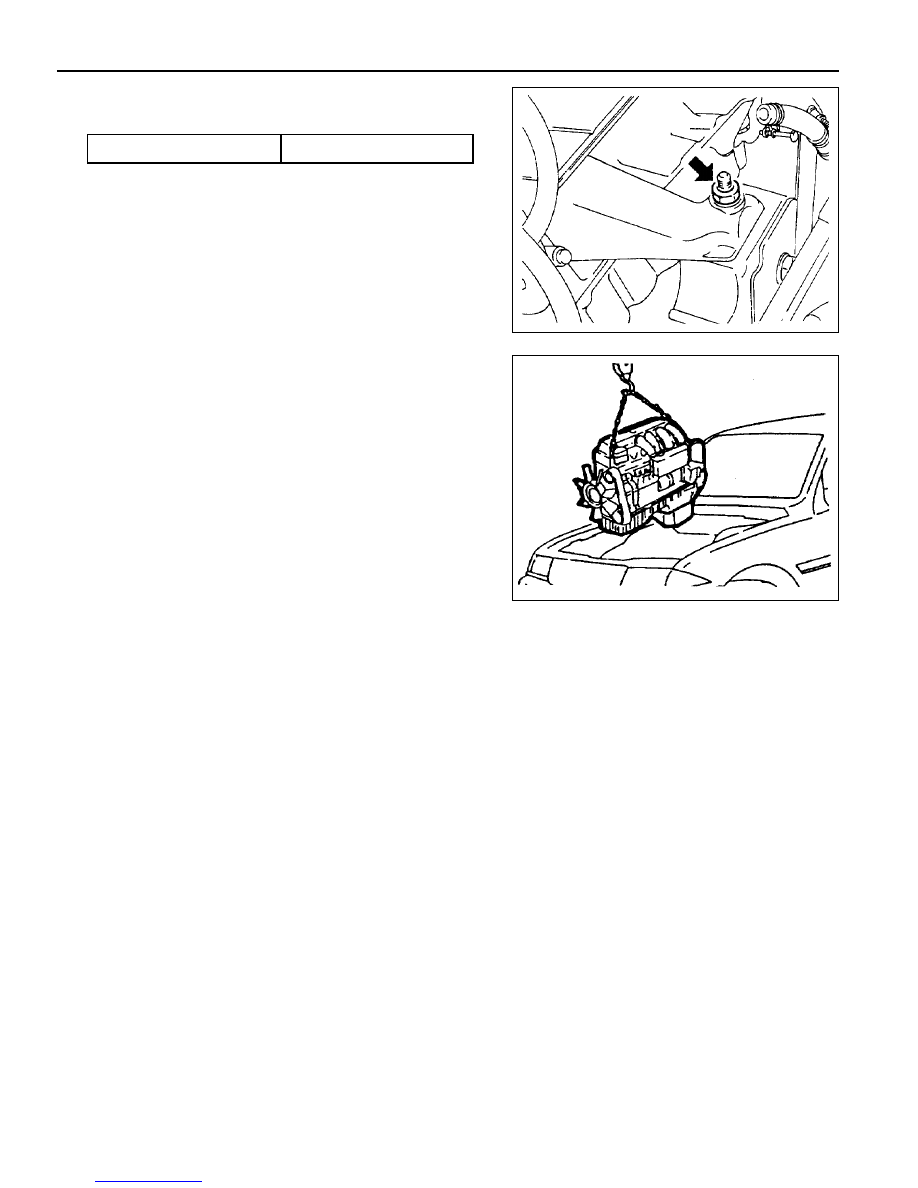

1B3-20  OM600 ENGINE MECHANICAL

37. Loosen the engine mounting bracket nut.

Installation Notice

38. Remove the engine assembly from the vehicle by using a

hoist or crane.

39. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

50 - 75 Nm

OM600 ENGINE MECHANICAL  1B3-21

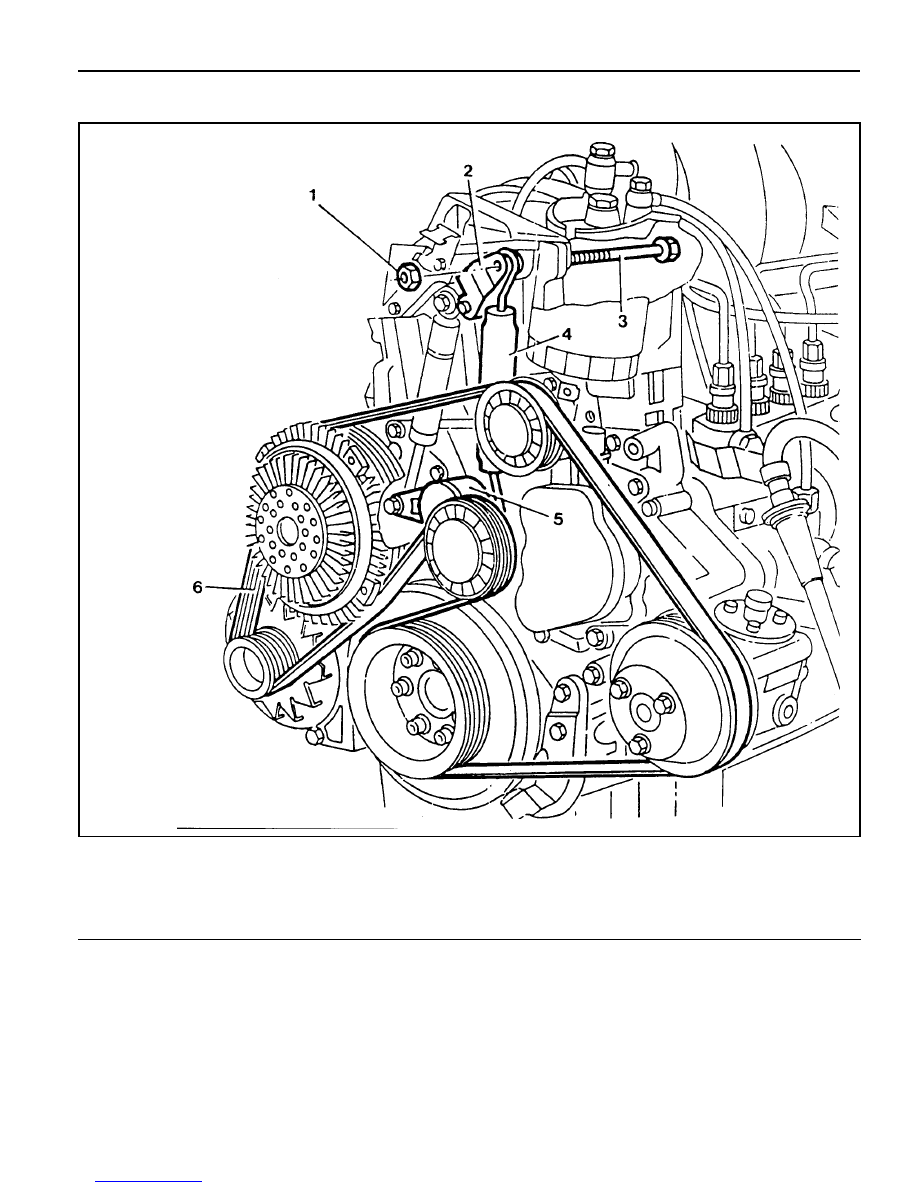

POLY V-BELT

1 Nut ............................................................. 23Nm
2 Tensioning Lever
3 Bolt

4 Spring
5 Tensioning Lever
6 Poly V-Belt

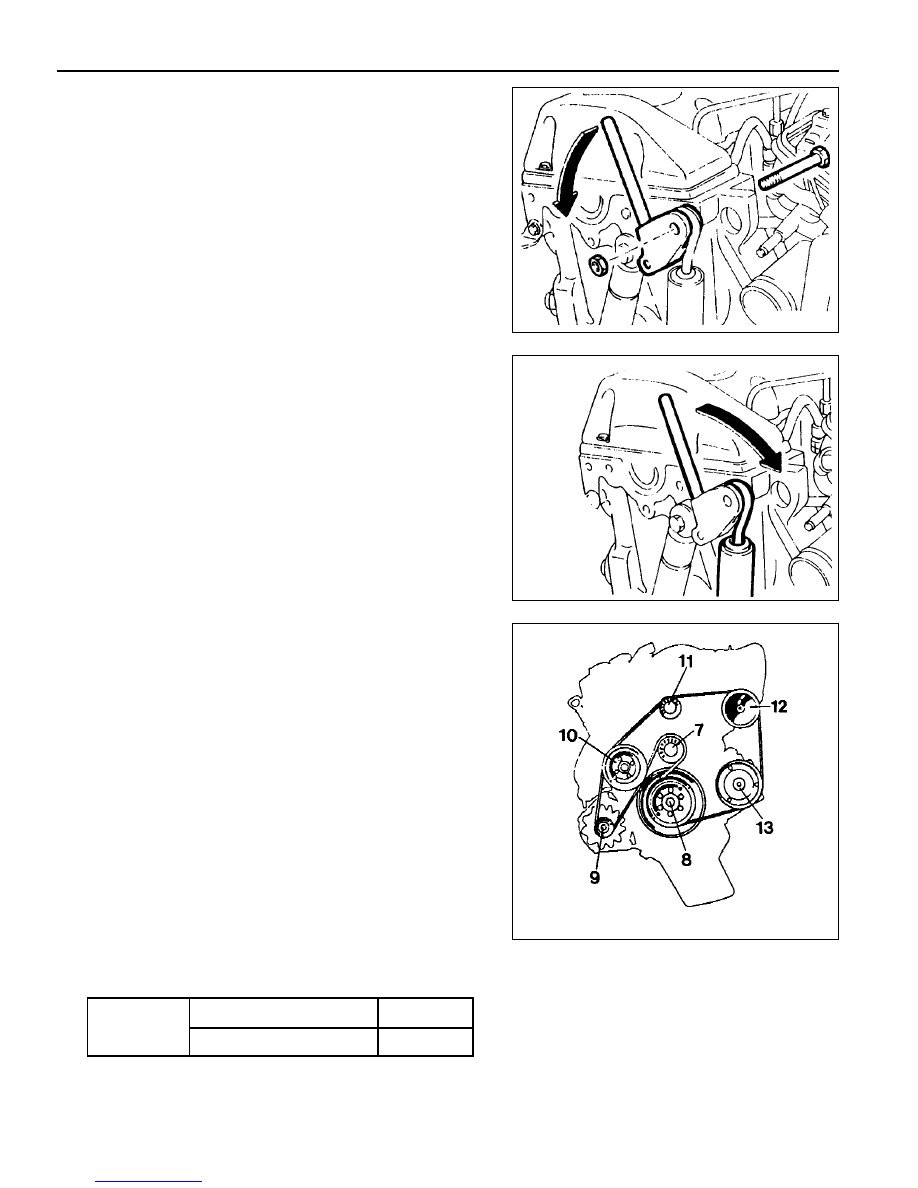

1B3-22  OM600 ENGINE MECHANICAL

With Air Conditioner

Removal & Installation Procedure

1. Remove the nut.

2. Push the tensioning lever in direction of arrow with a rod

(F12 ´ 180mm) and pull out the bolt to the rear.

3. Push back the tensioning lever (arrow direction) to release

the spring tension and remove the belt.

4. Install the poly V-belt beginning at the tensioning pulley (7).

7 Tensioning Pulley
8 Crankshaft
9 Alternator

10 Coolant Pump

11 Guide Pulley

12 Power Steering Pump
13 Aircon. Compressor

Lengthe of Belt

Length (L)

Without Air Conditioner

2,100 mm

2,040 mm
