OM600 ENGINE MECHANICAL  1B3-15

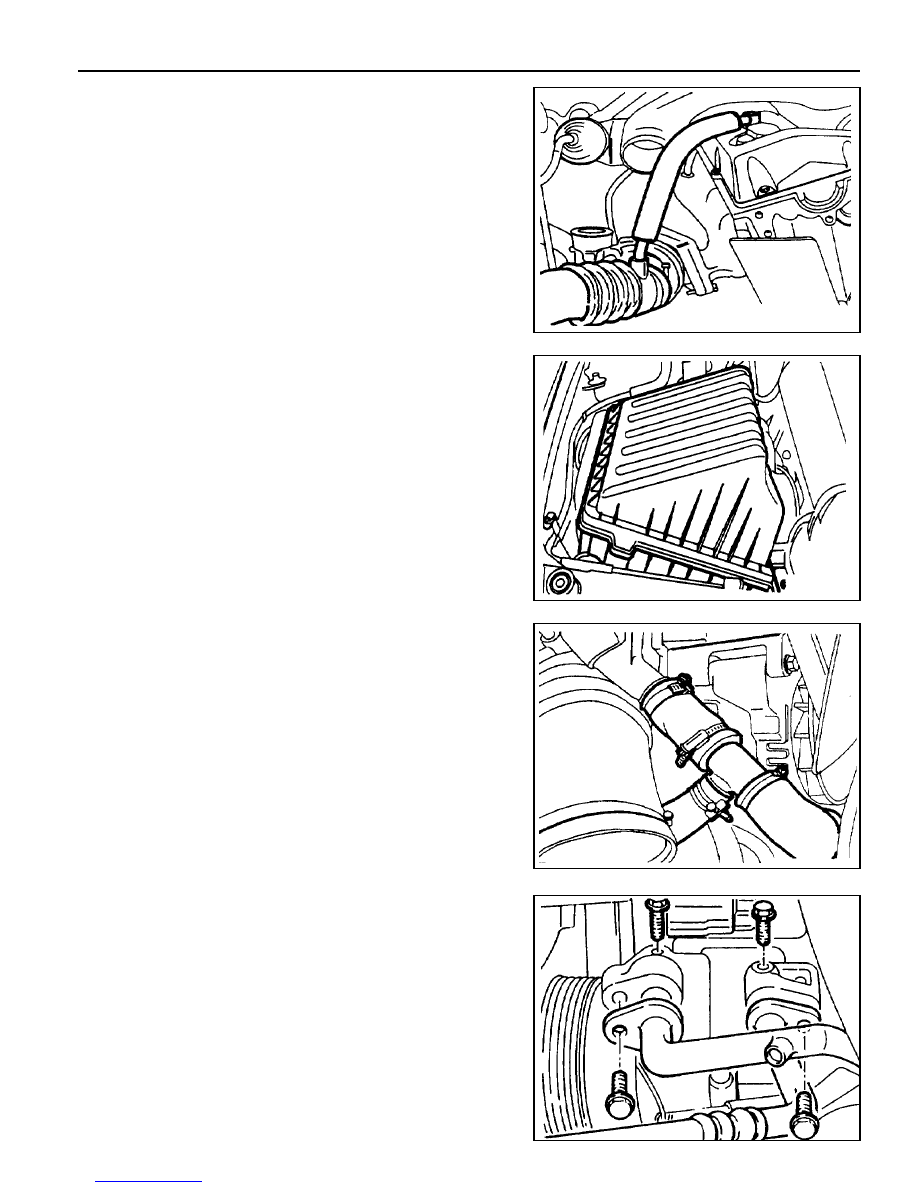

15. Remove the air-conditioner lines from the compressor.

Notice

Evacuate the refrigerant before removal.

12. Remove the hose(air cleaner to turbocharger) with blow

by hose.

13. Disconnect the air cleaner intake hose and remove the air

cleaner cover and element.

14. Disconnect the coolant hose from the water inlet.

1B3-16  OM600 ENGINE MECHANICAL

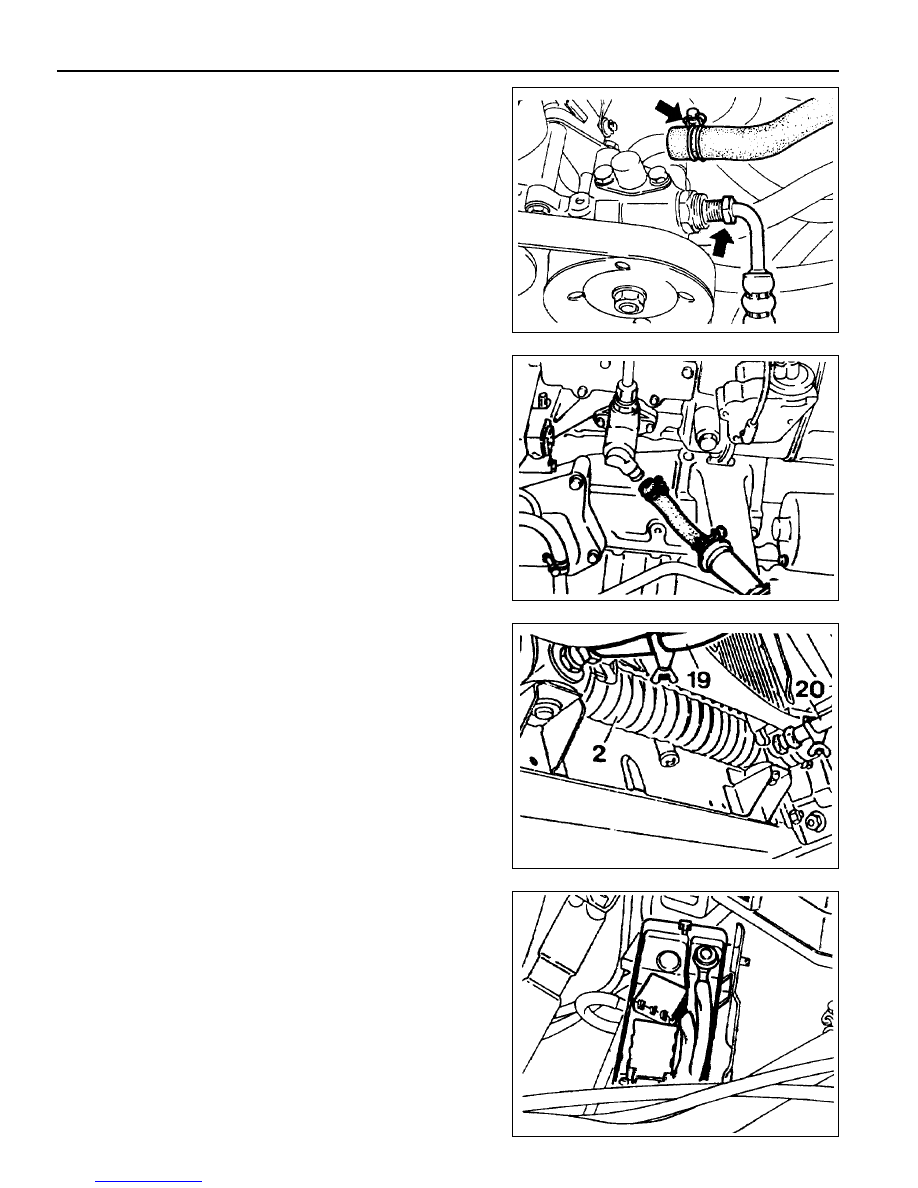

16. Remove the power steering pump lines.

Notice

Completely drain the fluid.

17. Disconnect the fuel feed line with prefilter from the feed

pump on injection pump.

18. Vehicle with automatic transmission.

Remove the hydraulic lines (19, 20) from oil cooler (2).

19. Disconnect the engine harness.

20. Disconnect the preheating time relay cable.

OM600 ENGINE MECHANICAL  1B3-17

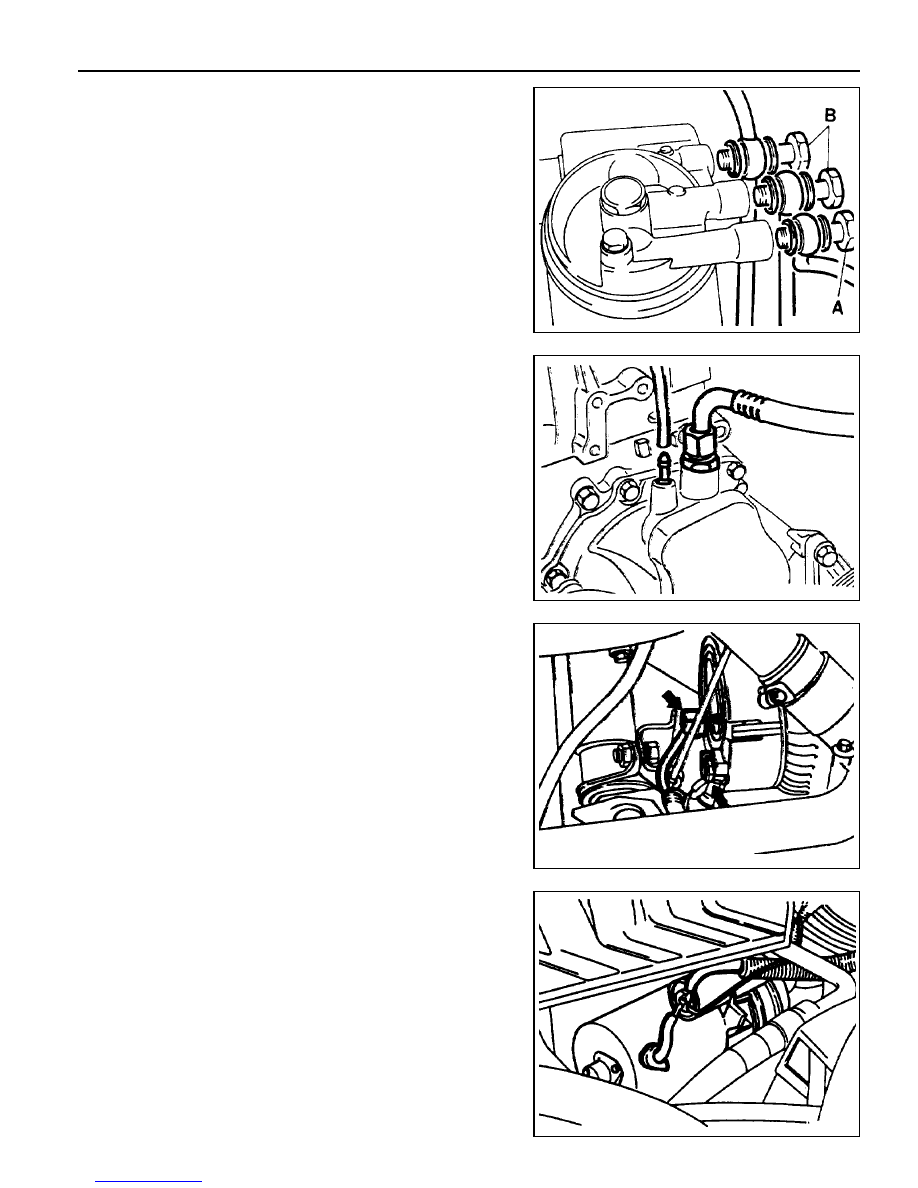

26. Disconnect the starter motor wires and remove the starter

motor.

21. Remove the fuel lines from the fuel filter and cover the

filter with plug.

22. Disconnect the brake booster hose from vacuum pump.

23. Disconnect the other vacuum lines.

24. Disconnect the ground cable.

25. Disconnect the alternator wires.

1B3-18  OM600 ENGINE MECHANICAL

27. Disconnect the preheating time relay sensor plug.

28. Disconnect the coolant temperature sensor plug.

29. Disconnect the accelerator cable from the control linkage.

Installation Notice

Tightening  Torque

8 - 18 Nm

30. Loosen the connection of control pressure cable (an arrow)

used in auto transmission.
