1B2-32 M161 ENGINE MECHANICAL

3. Pointed rib.

4. Belt cord visible in the base of rib.

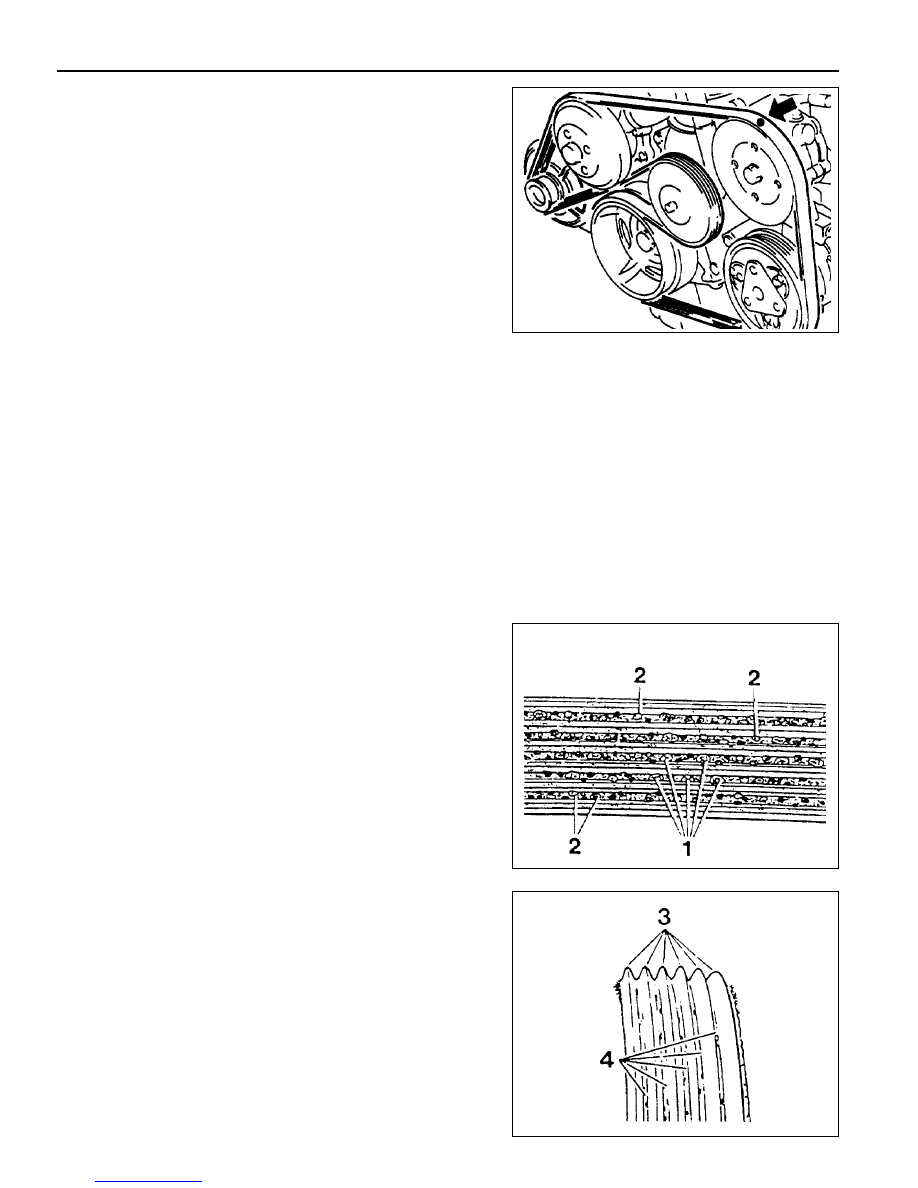

POLY V-BELT INSPECTION

Make marks on the belt with chalk.

Rotate the engine and check the belt for damage.

Notice

If one of the following types of damages is found, replace
the belt.

1. Rubber lumps in the base of rib.

2. Dirt or grit ingrained.

M161 ENGINE MECHANICAL 1B2-33

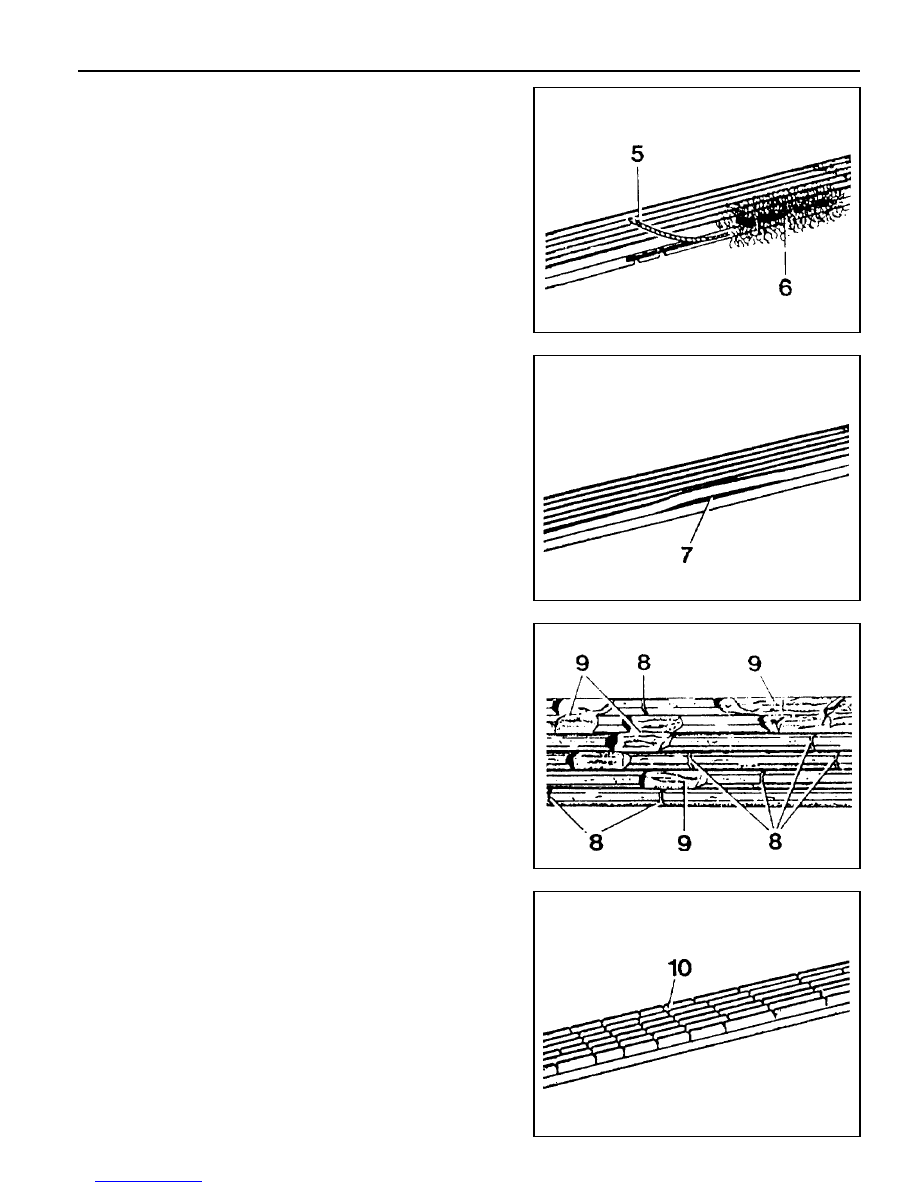

5. Cord torn out at the side.

6. Outer cords frayed.

7. Rib detached from the base of belt.

8. Splits across the rib.

9. Sections of rib torn out.

10. Splits across several ribs.

1B2-34 M161 ENGINE MECHANICAL

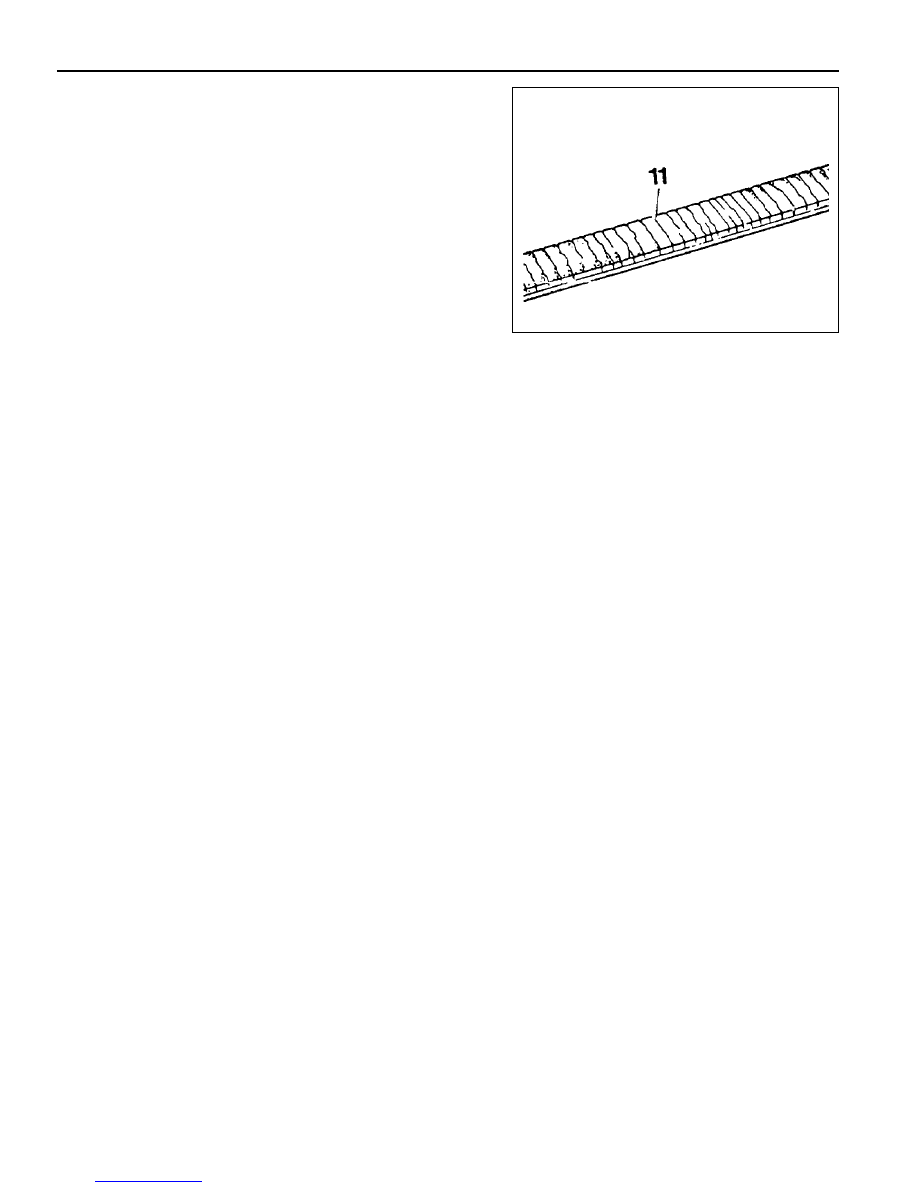

11. Splits across the back of the belt.

M161 ENGINE MECHANICAL 1B2-35

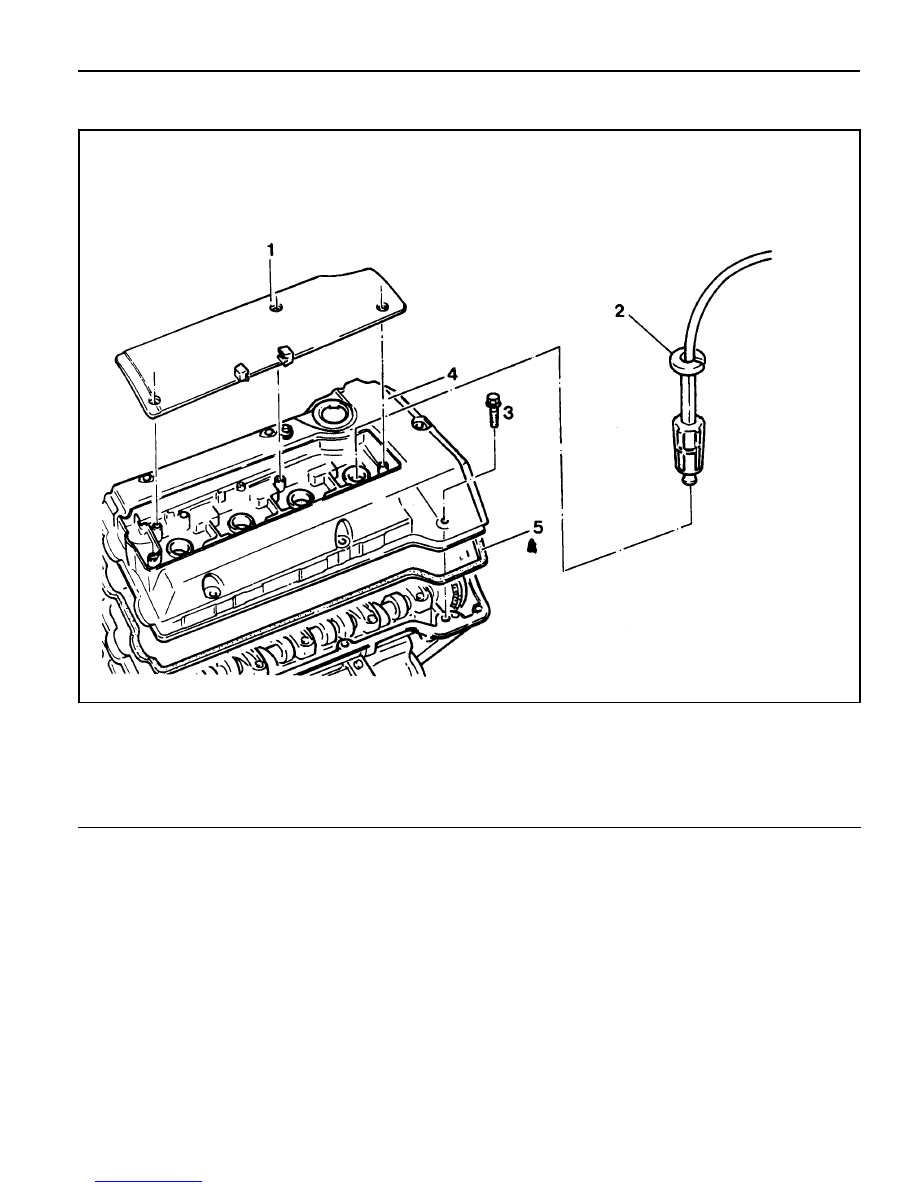

CYLINDER HEAD COVER

1 Ignition Coil Cover
2 Spark Plug Connector
3 Bolt (M6 X 45 : 4 pieces, M6 X 60 :

6 pieces) ............................................. 10 ± 1 Nm

4 Cylinder Head Cover
5 Gasket ................................................... Replace
