1B2-24  M161 ENGINE MECHANICAL

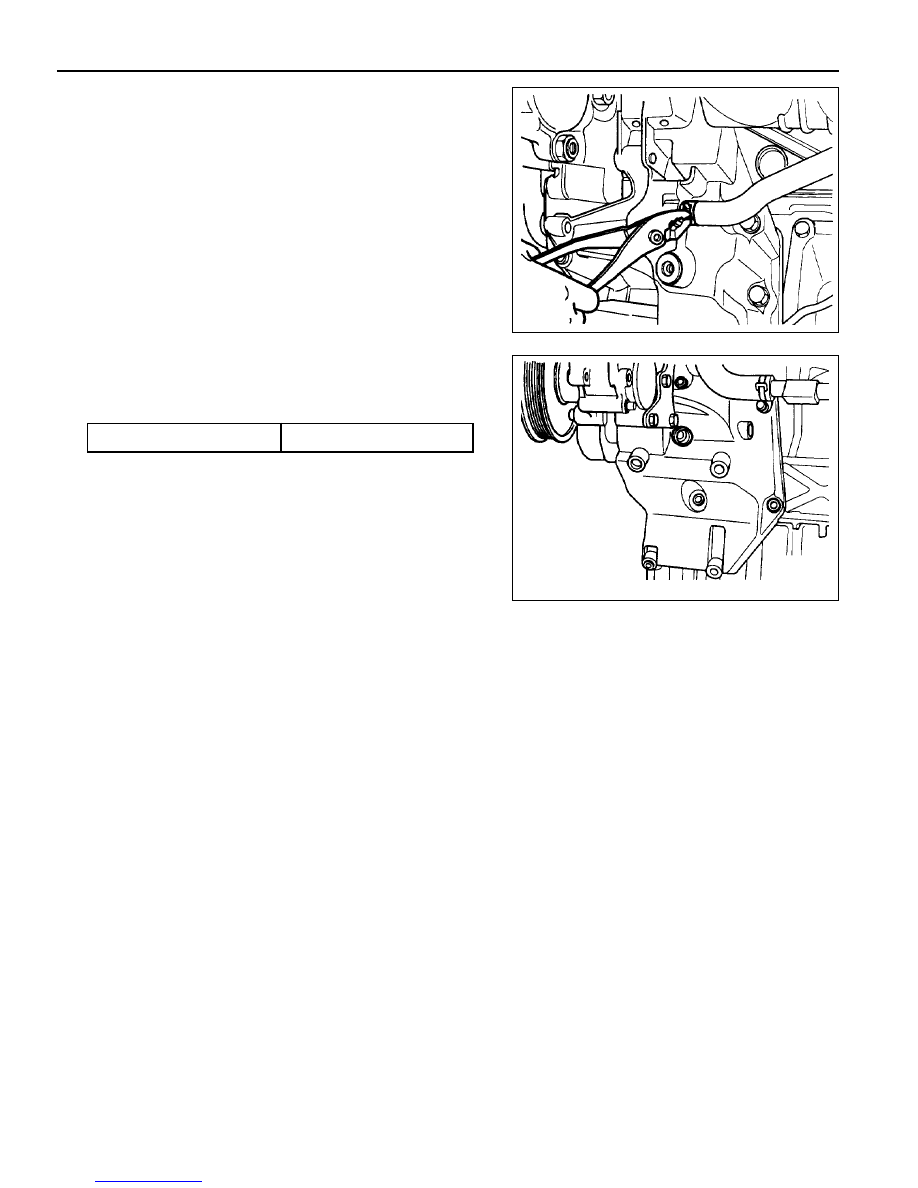

5. Disconnect the vent hose from the A/C bracket.

6. Unscrew all the mounting bolts (arrows) and remove the

A/C bracket and the gasket.

Installation Notice

7. Clean the sealing surface.

8. Replace the gasket with new one.

9. Installation should follow the removal procedure in the

reverse order.

10. Check the oil leakage by operating the engine after

installation.

Tightening  Torque

22.5 - 27.5 Nm

M161 ENGINE MECHANICAL  1B2-25

HYDRAULIC ENGINE MOUNTING INSULATOR

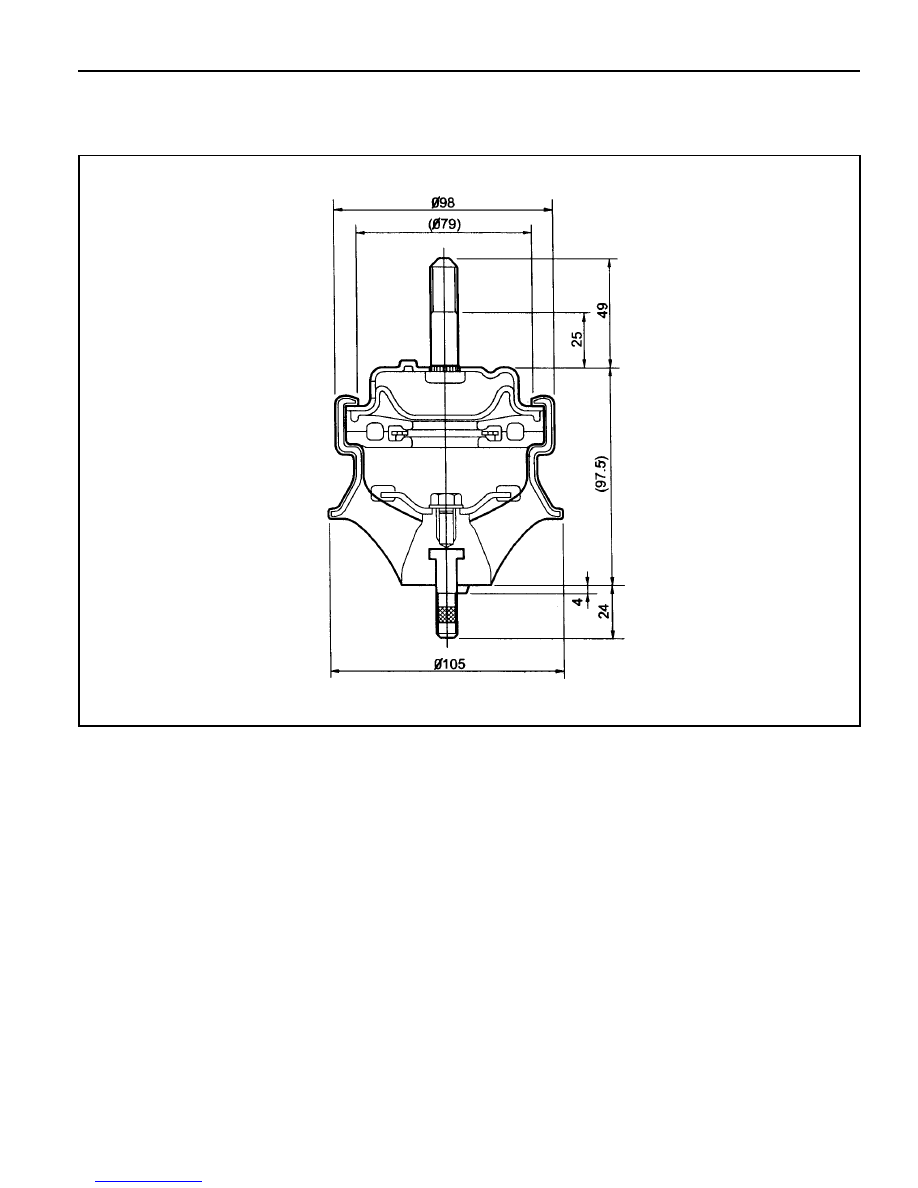

Service Data

1B2-26  M161 ENGINE MECHANICAL

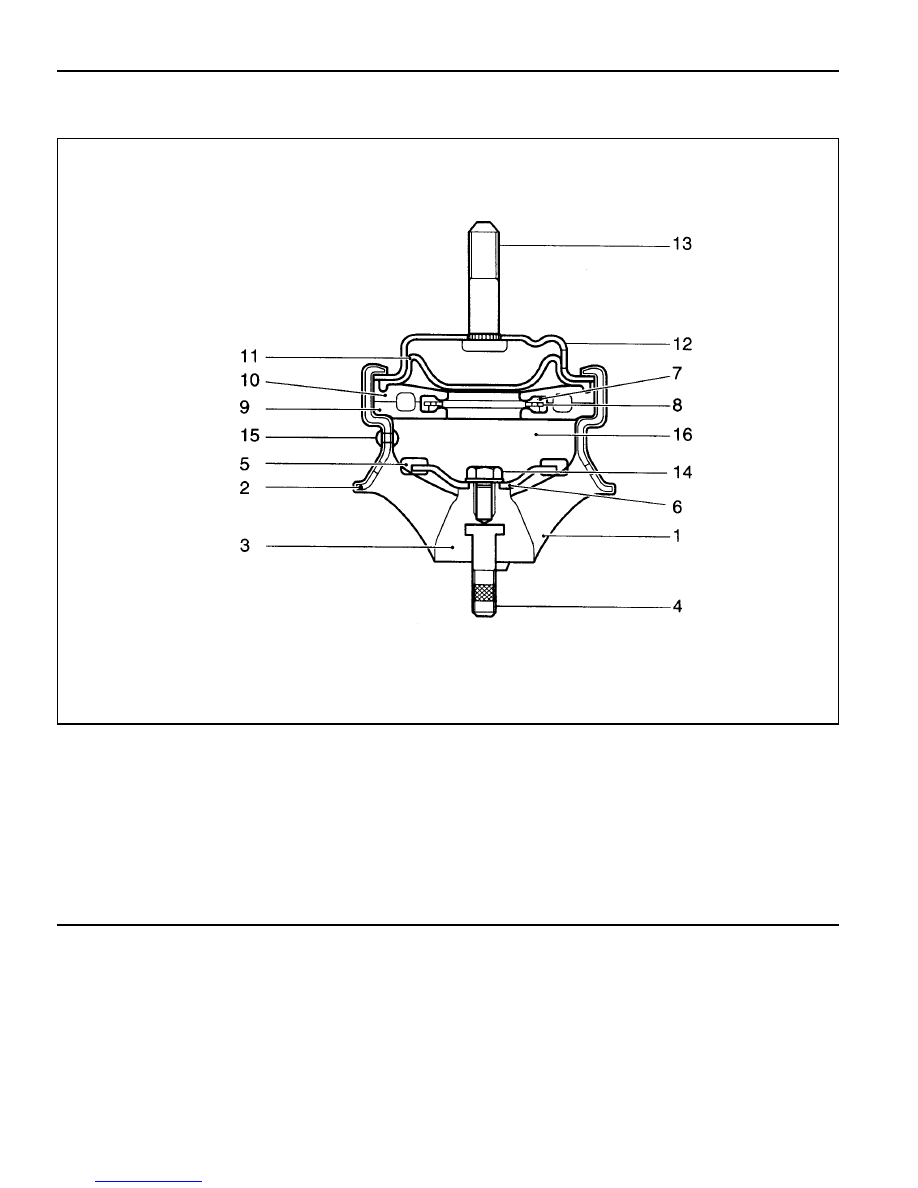

Sectional View

1 Rubber Body
2 Brackek
3 Core
4 Lower Bolt
5 Rubber Plunger
6 Plunger Plate
7 Rubber
8 Plate

9 Lower Orifice

10 Upper Orifice

11 Diaphram

12 Cover Plate
13 Upper Bolt
14 Flange Bolt
15 Rivet
16 Fluid

M161 ENGINE MECHANICAL  1B2-27

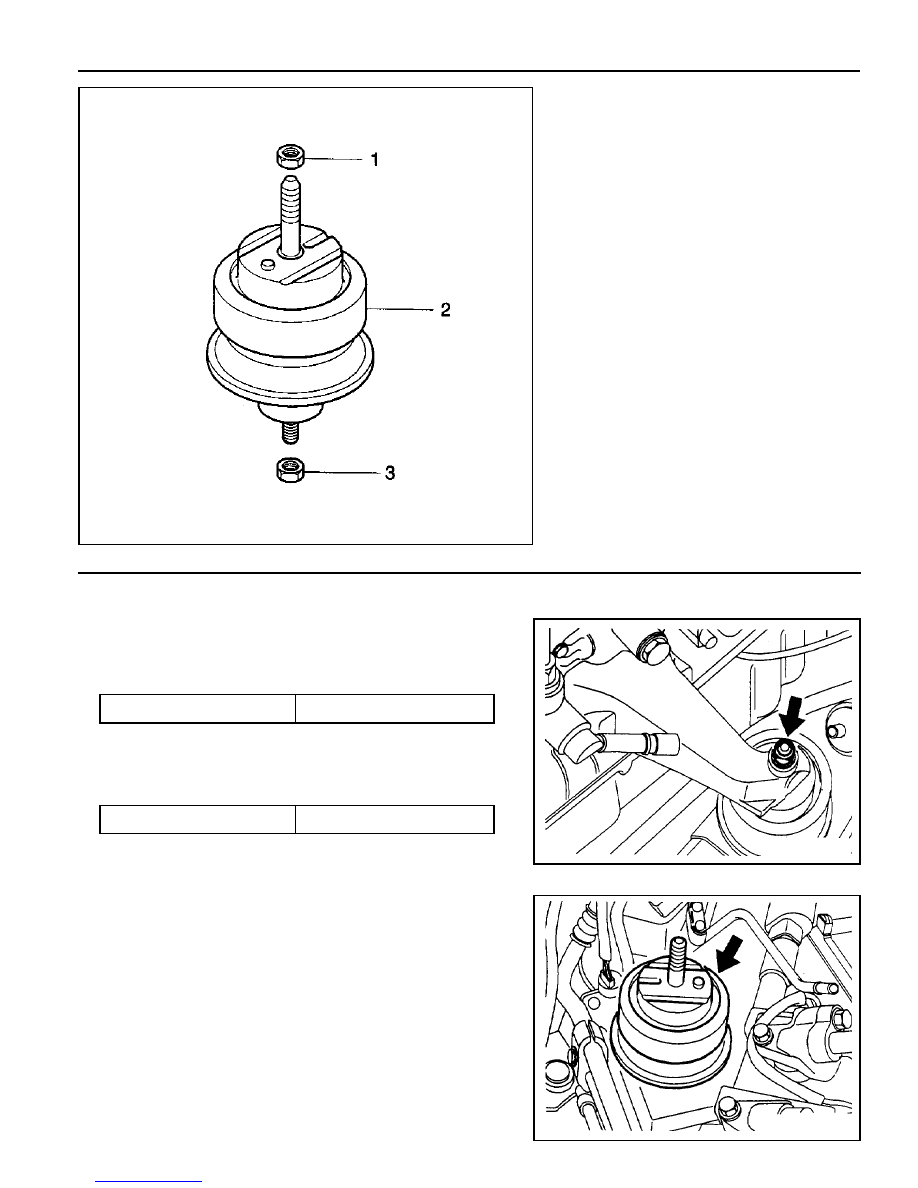

1 Upper Nut
2 Hydraulic Installer ................. 62~93 Nm
3 Lower Nut ............................. 28~47 Nm

Removal and Installation Procedure

1. Unscrew the upper nut(1) on engine mounting and remove

the engine.

Installation Notice

3. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

62 - 93 Nm

2. Unscrew the lower nut(3) and remove the hydraulic engine

mounting insulator.

Installation Notice

Tightening  Torque

28 - 47 Nm

Notice

If the insulator is spotted with oil, replace the hydraulic
insulator assembly.
