1B2-20  M161 ENGINE MECHANICAL

Operation When Full-Load at Partial Load

l

The throttle valve (6) is partially opened or fully opened.

The air flows very rapidly through the vent line(5)s
connection(D) and the intake air duct when full-load at partial
load.

Consequently, most of the low-by gases are supplied to the
combustion chamber through the timing gear case
cover(15), chain housing(17), oil separation chamber(3),
vent line(5), throttle valve(6), and intake manifold(8).

M161 ENGINE MECHANICAL  1B2-21

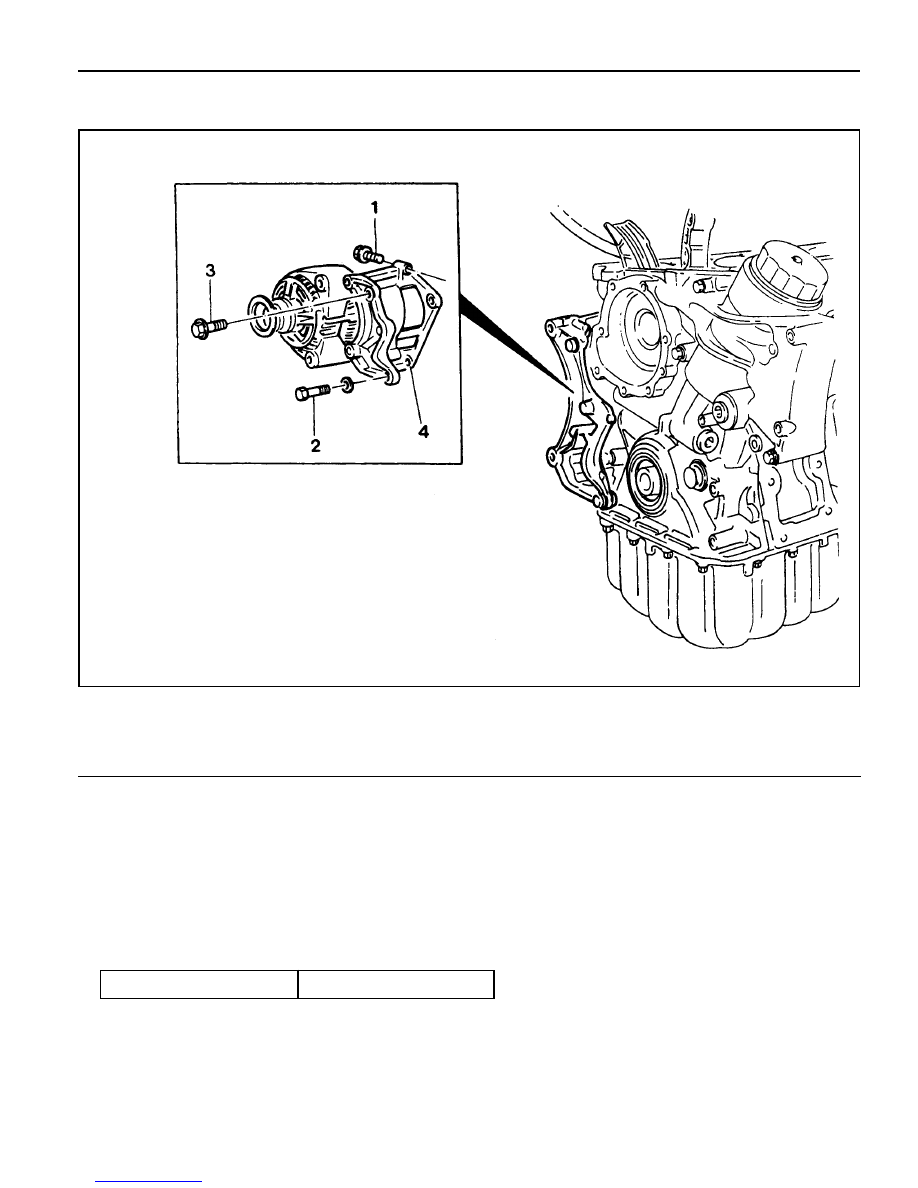

ALTERNATOR

Removal & Installation Procedure

1. Remove the drive belt.

2. Remove the alternator.

3. Unscrew the alternator carrier bolts (1,2,3) and remove the

carrier (4).

Installation Notice

Tightening  Torque

22.5 - 27.5 Nm

Notice

Apply 3Nm of torque when mounting the bolt (1); apply 25 ±
2.5Nm of torque when mounting the bolts (2), and (3); and
then tighten the bolt (1) with 25 ± 2.5Nm of torque.

4. Installation should follow the removal procedure in the

reverse order.

1 Bolt (M8 X 40, 3 pieces) ................. 22.5-27.5 Nm
2 Bolt (M8 X 70, 2 pieces) ................. 22.5-27.5 Nm

3 Bolt (M8 X 85, 1 piece) ................... 22.5-27.5 Nm
4 Alternator Bracket

1B2-22  M161 ENGINE MECHANICAL

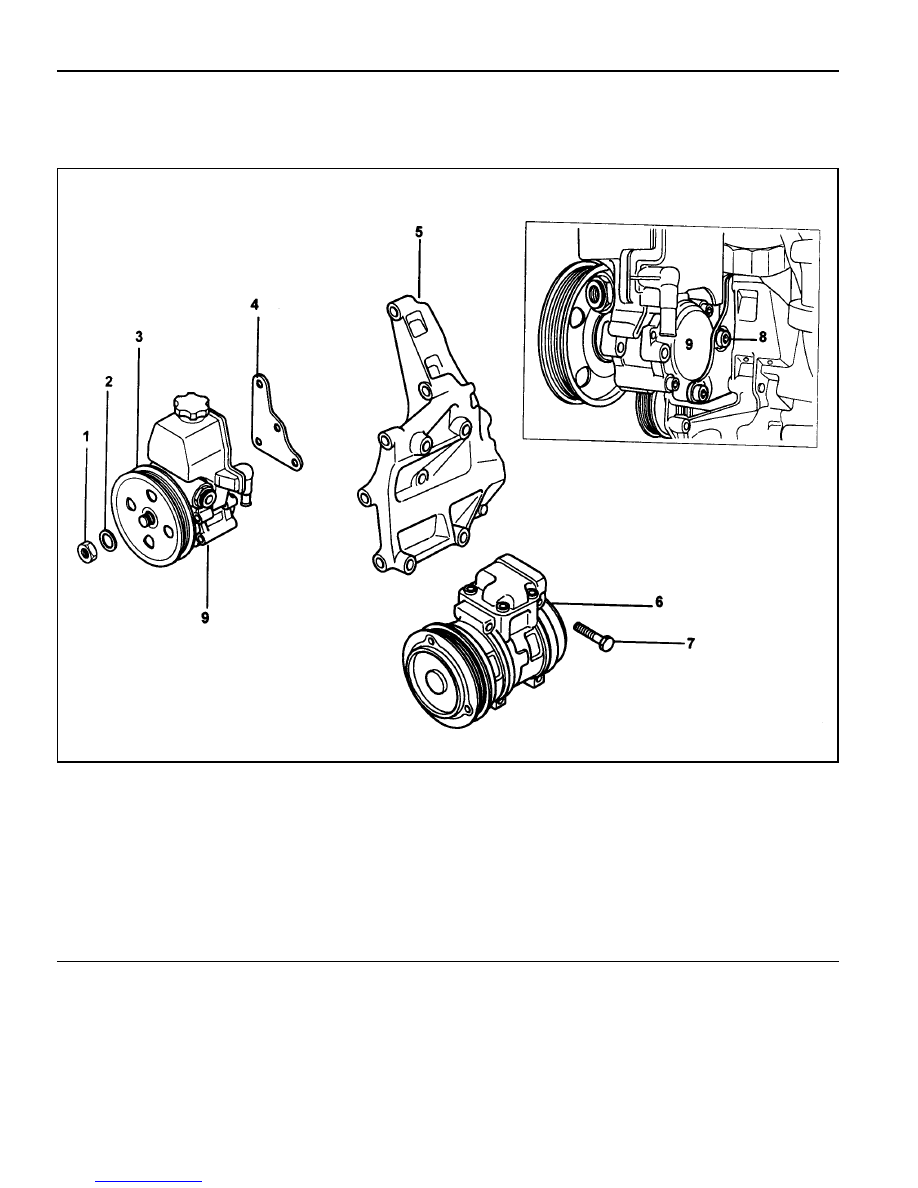

POWER STEERING PUMP AND A/C BRACKET

Preceding Work : Removal of cooling fan and shroud

Removal of drive belt

1 Nut ................................................. 35.2-28.8 Nm
2 Washer
3 Belt Pulley
4 Bolt (M8 X 91, 2 pieces) ................. 22.5-27.5 Nm
5 Power Steering Pump
6 Bracket
7 Washer
8 Bolt (M8 X 20, 2 pieces) ................. 22.5-27.5 Nm

9 Washer

10 Bolt (M8 X 105,4 pieces) ................ 22.5-27.5 Nm

11 A/C Compressor

12 Bolt (M8 X 50, 5 pieces, M8 X 80,

5 pieces) ........................................ 22.5-27.5 Nm

13 A/C Bracket
14 Vent Hose
15 Bracket Gasket ...................................... Replace

M161 ENGINE MECHANICAL  1B2-23

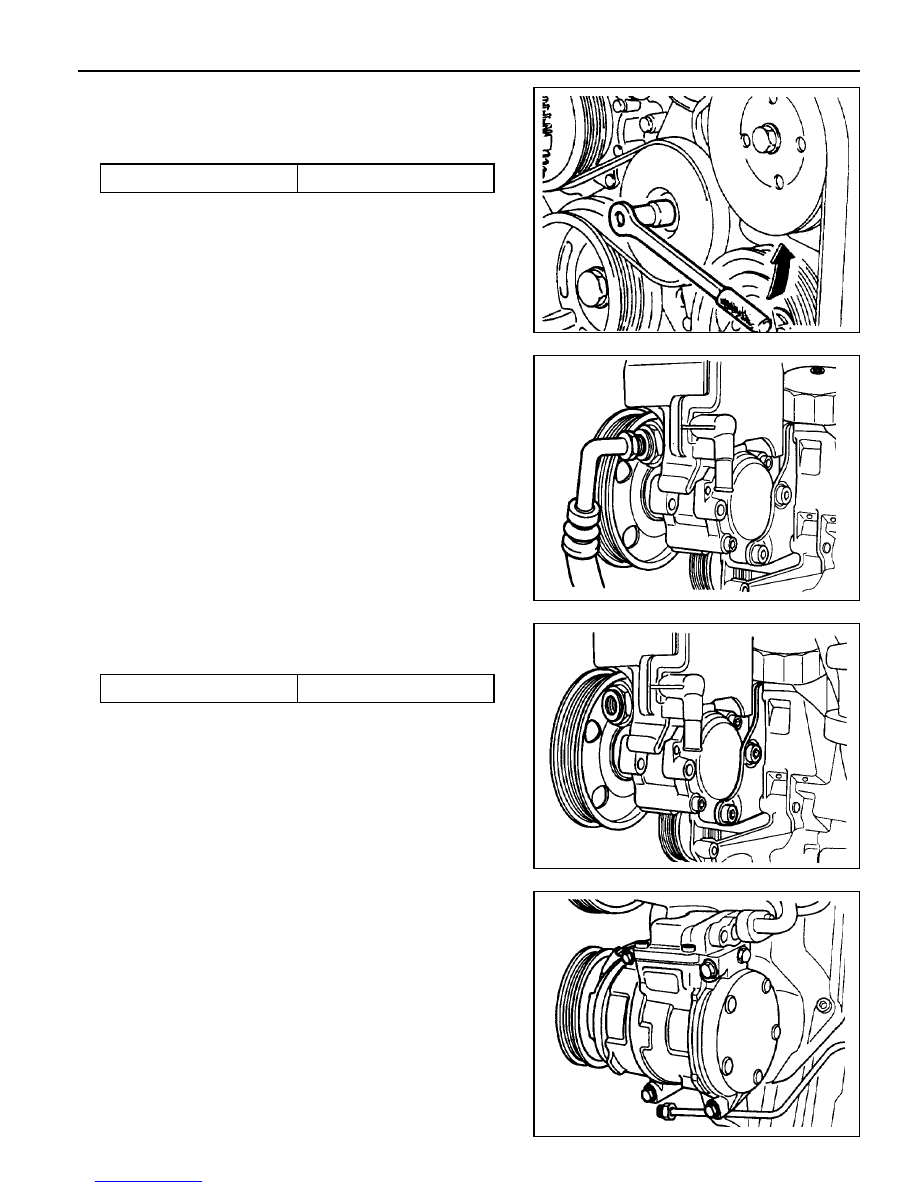

Removal & Installation Procedure

1. Remove the belt pulley after removal of poly v-belt.

Installation Notice

2. Disconnect the hydraulic pipe of the power steering pump

and drain the oil.

3. Unscrew the bolts (arrows) and remove the steering pump.

Installation Notice

Notice

Pull the tensioning pulley counterclockwise as shown in the
figure.

4. Remove the compressor after disconnecting the wiring

connector and refrigerant pipe of A/C compressor.

Notice

Discharge all the refrigerant before removing the pipes.

Tightening  Torque

40.5 - 49.5 Nm

Tightening  Torque

22.5 - 27.5 Nm
