1B1-52  M162 ENGINE MECHANICAL

Service Data Standard (Crankshaft Main Bearing Gap)

(Connecting Rod Bearing Gap)

Item

Main Bearing Journal

( NO. 1, 5, 7)

Main Bearing Journal

( NO. 3, 4, 6)

Measuring Position

Radial

Axial

Radial

Axial

Gap (mm)

Static condition :0.015 - 0.039

Dynamic condition: 0.031 - 0.051

(Consider the expansion 0.011 - 0.016)

0.010 - 0.254

Static condition :0.011 - 0.039

Dynamic condition: 0.031 - 0.051

(Consider the expansion 0.015 - 0.022)

0.010 - 0.254

Item

Connecting Rod Bearing

Measuring Position

Radial

Gap (mm)

0.030 - 0.050

M162 ENGINE MECHANICAL  1B1-53

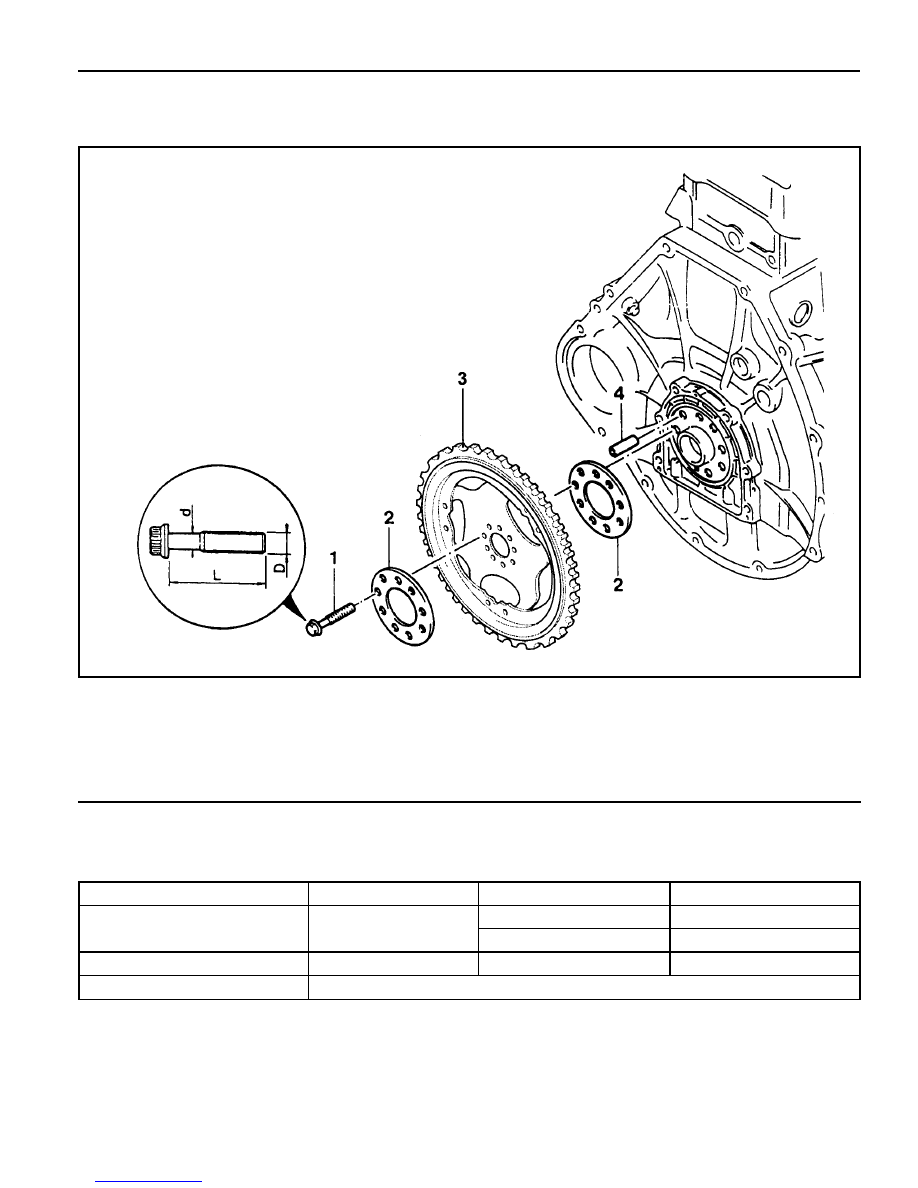

FLYWHEEL / DRIVEN PLATE

Preceding Work : Removal of manual or automatic transmission

1 Flywheel Mounting Bolt (M10 x 22, 8 pieces)

............................................... 1st step  45+5 Nm

2nd step +90° +10°

2 Plate

3 Driven Plate (A/T)
4 Dowel Pin

Service Data Standard (Stretch Bolt)

Nominal Size

Stretch Side Diameter

Bolt Length

Tightening Torque

M x 1.5

8.5 - 0.2 mm

8.0 mm

21.8 - 22.2 mm

-

When New

Min. Diameter

When New

D

d

L

1st step 50 Nm, 2nd step 90°

1B1-54  M162 ENGINE MECHANICAL

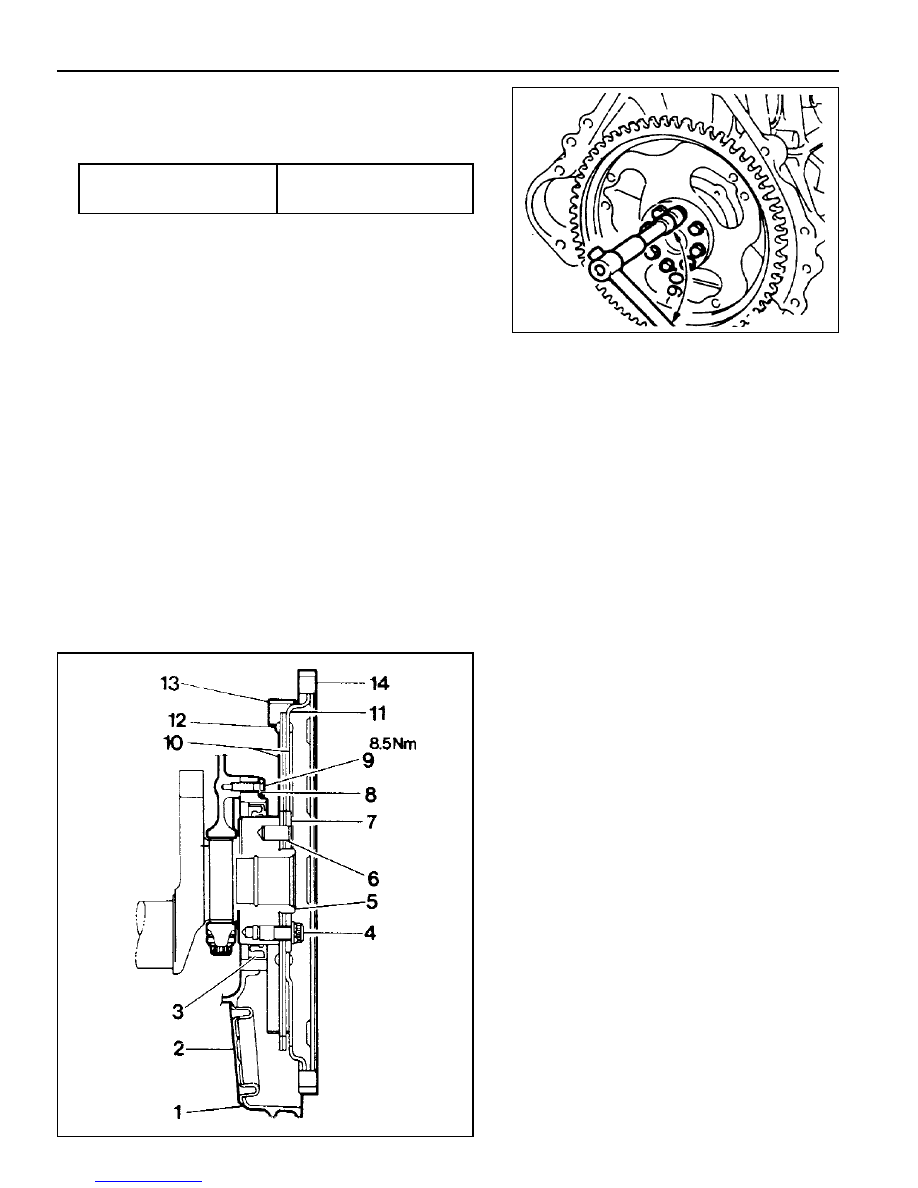

Removal & Installation Procedure

1. Unscrew the stretch bolt.

Installation Notice

Sectional View

1 Oil Pan
2 Cover
3 Crankshaft Front Seal
4 Flywheel MTG Bolt
5 Crankshaft
6 Dowel Pin
7 Plate
8 TGCC
9 Bolt

10 Front Drive Plate

11 Rear Drive Plate

12 Rivet
13 Segment
14 Ring Gear

l

Replace the bolt when the stretch side diameter (d) of

the flywheel mounting bolt is less than 8.0mm.

l

For the stretch bolt tightening, keep the socket wrench

and Tommy-bar to be 90° and tighten as specified.

2. Remove the flywheel for manual transmission vehicles, or

the driven plate (3), and plate (2) for Auto. transmission
vehicle.

3. Installation should follow the removal procedure in the

reverse order.

Tightening Torque

1st step 45+5 Nm

2nd step 90° + 10°

M162 ENGINE MECHANICAL  1B1-55

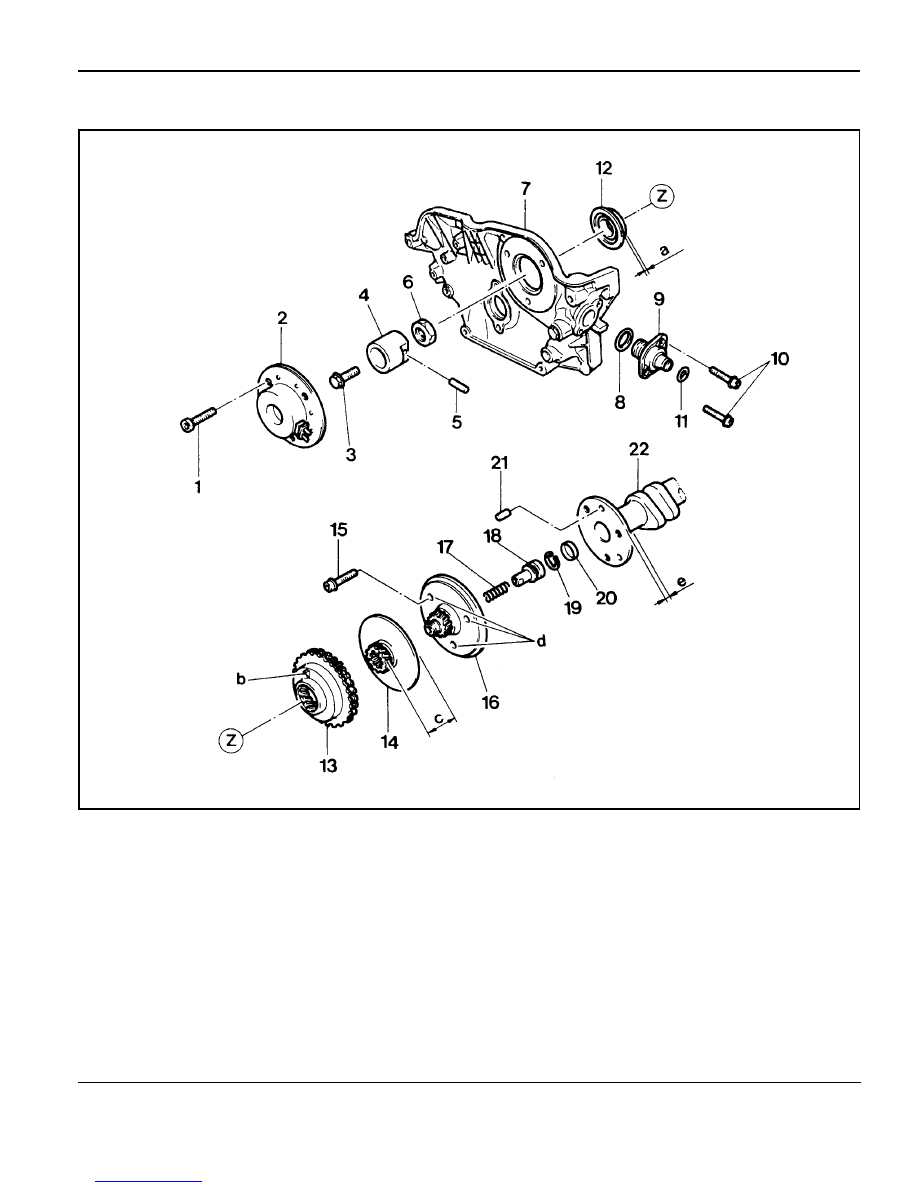

CAMSHAFT ADJUSTER

1 Bolt (M6 x 16, 3 pieces) ........................  9-11 Nm
2 Electromagnetic Actuator (2 Pin Connector)
3 Bolt ........................................................... 35 Nm
4 Armature
5 Roll Pin
6 Nut (M20 x 1.5) .................................... 60-70 Nm
7 Front Cover
8 Seal
9 Camshaft Position Sensor

10 Bolt (M6 x 16, 2 pieces) ......................... 9-11 Nm

11 Seal

12 Seal Cover

13 Camshaft Sprocket and Position Indicator (b)
14 Adjuster piston
15 Flange bolt (M7 x 13, 3 pieces)

.............................................. 1st step 18-22 Nm

2nd step 90° ±  5°

16 Flange Shaft
17 Compression Spring
18 Control Piston
19 Circlip
20 Oil Gallery
21 Pin
22 Intake Camshaft
