1B1-28  M162 ENGINE MECHANICAL

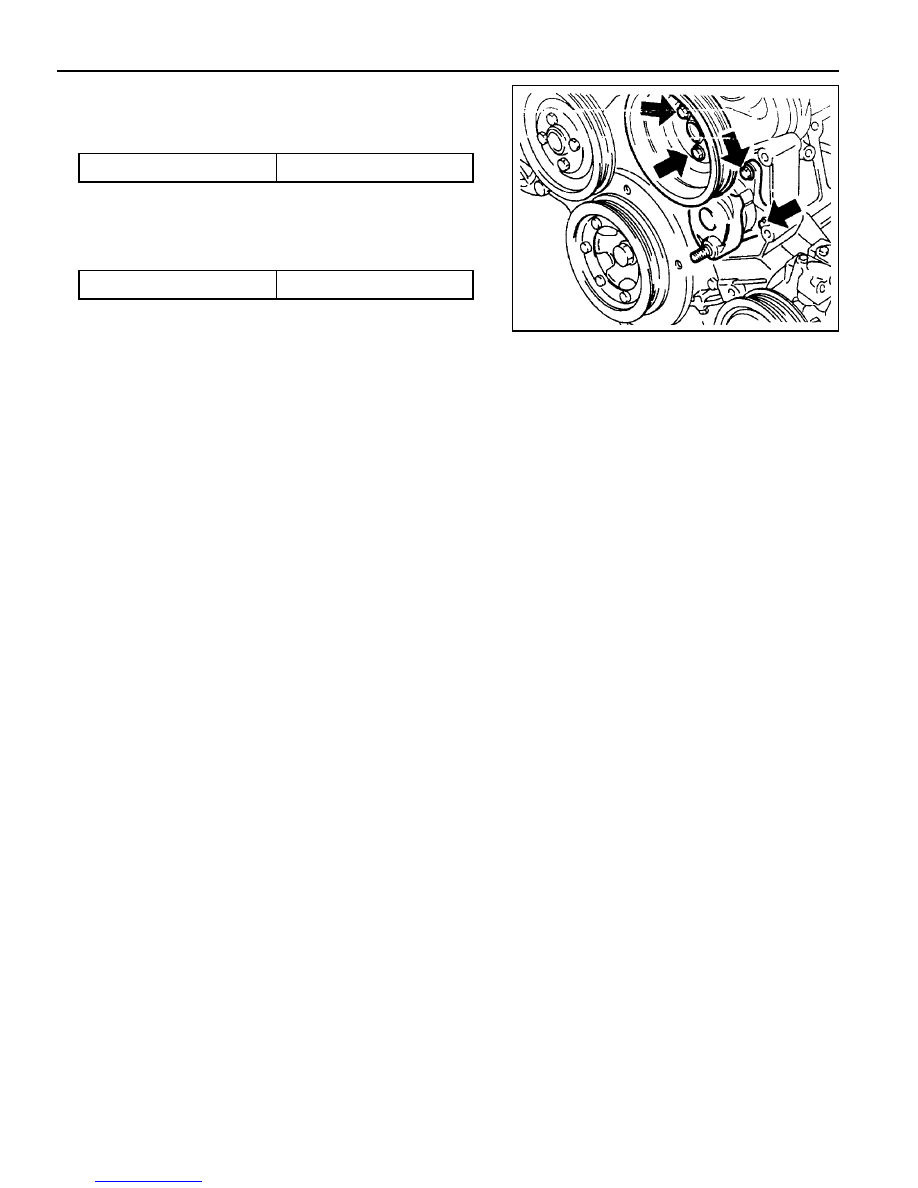

4. Remove the mounting bolts(M8 x 30, 3 pieces) at the

tensioning device, and remove the tensioning device (arrow).

Installation Notice

3. Remove the 3 bolts (2) and remove the water pump pulley

(arrow).

Installation Notice

5. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

22.5 - 27.5 Nm

Tightening  Torque

26 - 32 Nm

M162 ENGINE MECHANICAL  1B1-29

3. Pointed rib.

4. Belt cord visible in the base of rib.

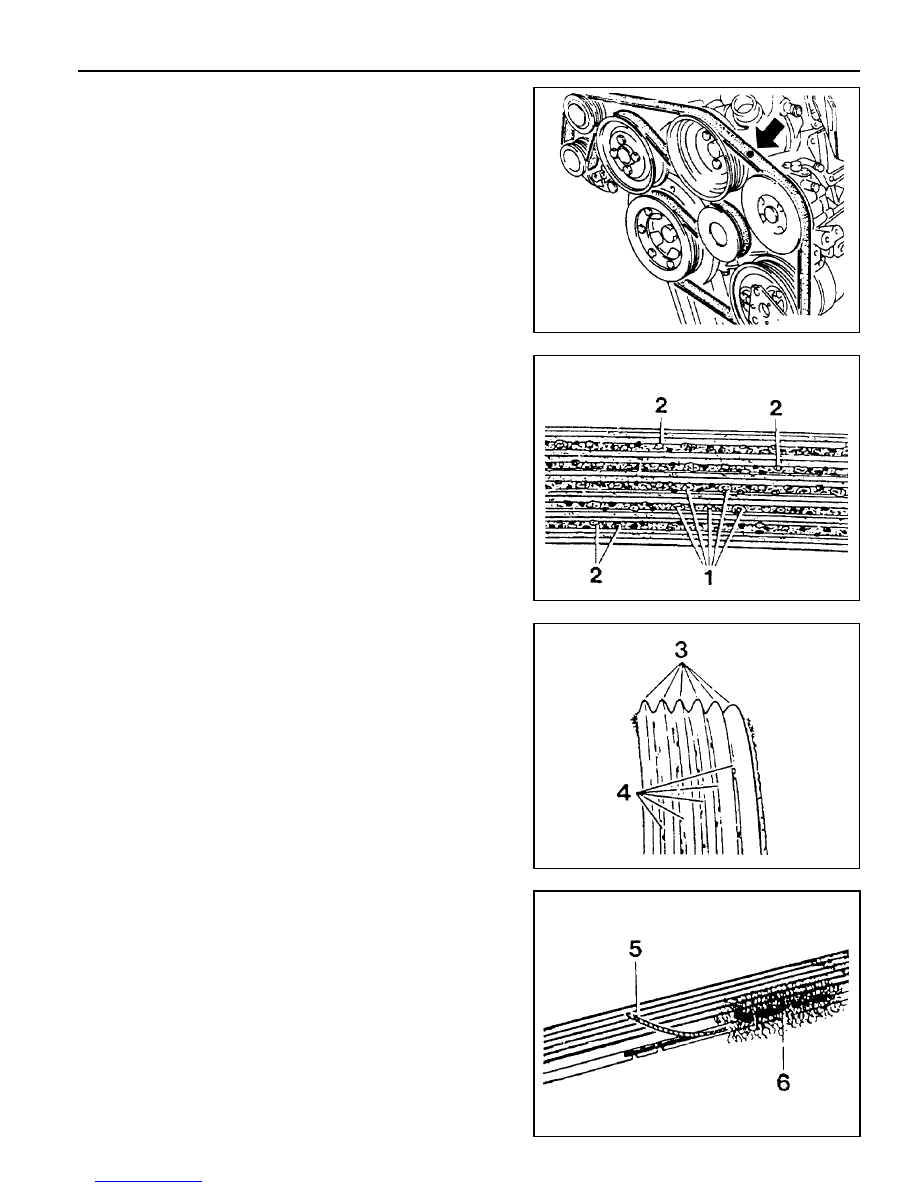

POLY V - BELT INSPECTION

l

Make marks on the belt with chalk.

l

Rotate the engine and check the belt for damage.

Notice

If one of the following types of damages is found, replace
the belt.

1. Rubber lumps in the base of rib.

2. Dirt or grit ingrained.

5. Cord torn out at the side.

6. Outer cords frayed.

1B1-30  M162 ENGINE MECHANICAL

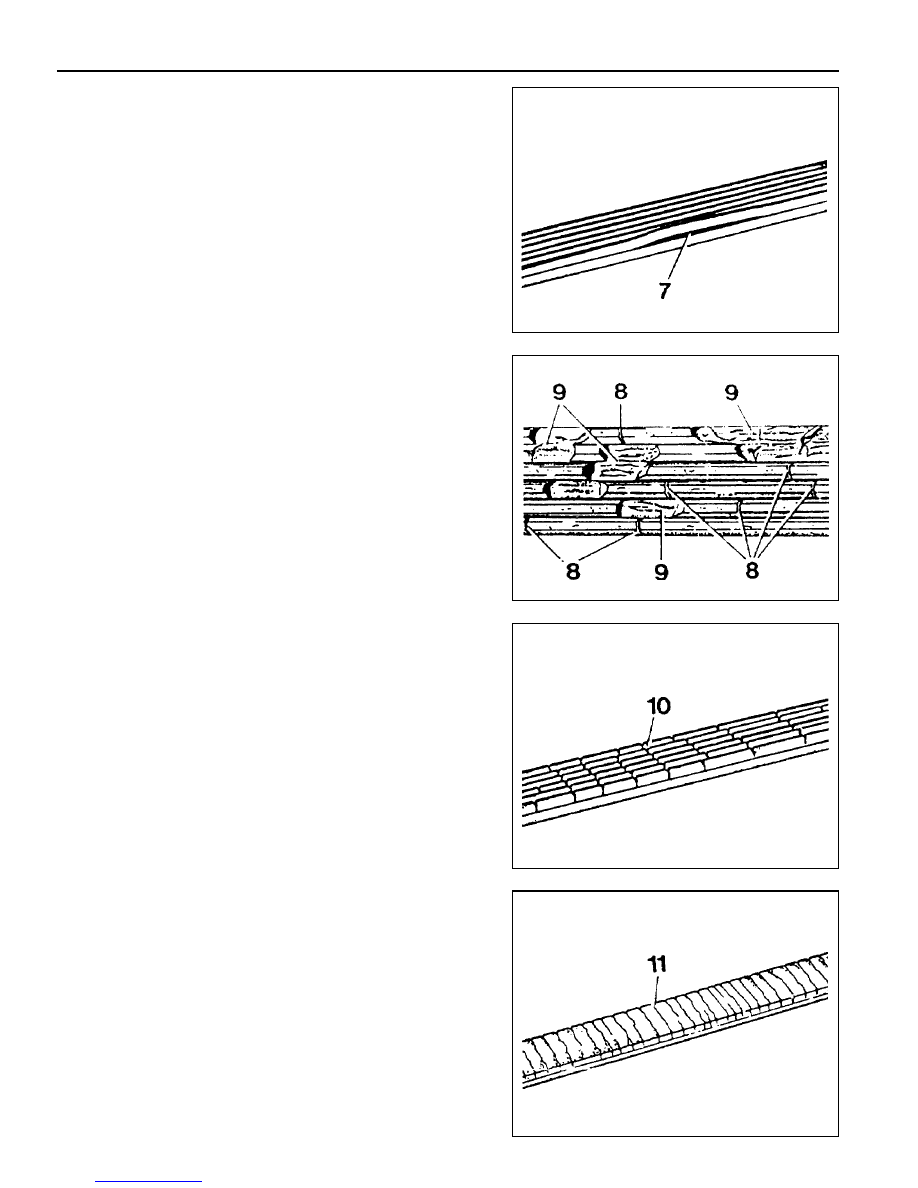

7. Rib detached from the base of belt.

8. Splits across the rib.

9. Sections of rib torn out.

10. Splits across several ribs.

11. Splits across the back of the belt.

M162 ENGINE MECHANICAL  1B1-31

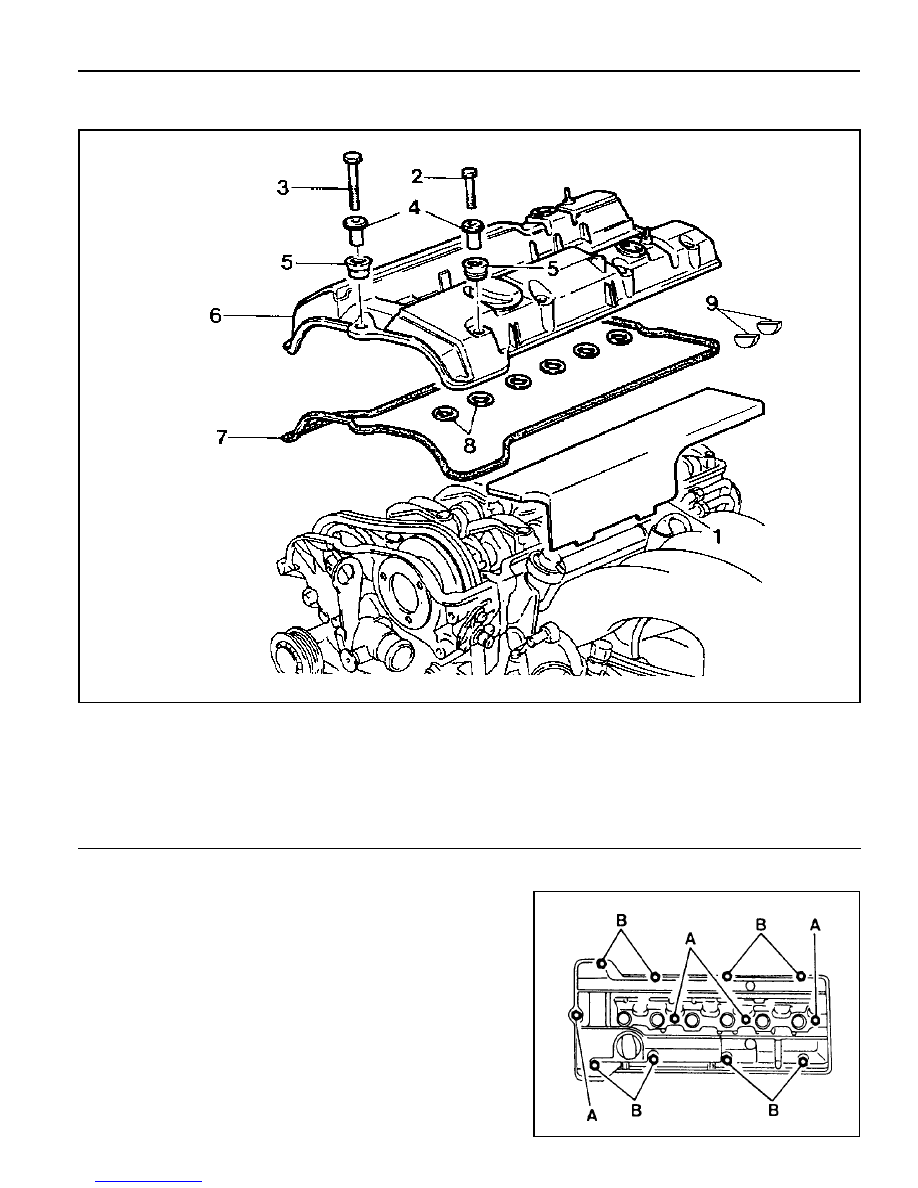

CYLINDER HEAD COVER

1 Ignition Cable Dust Cover
2 Bolt (M6 x 65, 8 pieces) ......................... 9-11 Nm
3 Bolt (M6 x 50, 4 pieces) ......................... 9-11 Nm
4 Spacer Sleeve
5 Thrust Piece

Composition of The Cylinder Head Cover Bolts

A. M6 x 50, 4 Pieces - Bolts + Washers
B. M6 x 65, 8 Pieces - Bolts + Washers

6 Cylinder Head Cover
7 Gasket ................................................... Replace
8 Spart Plug Hole Seal .............................. Replace
9 Camshaft Seal ....................................... Replace
