1B1-20  M162 ENGINE MECHANICAL

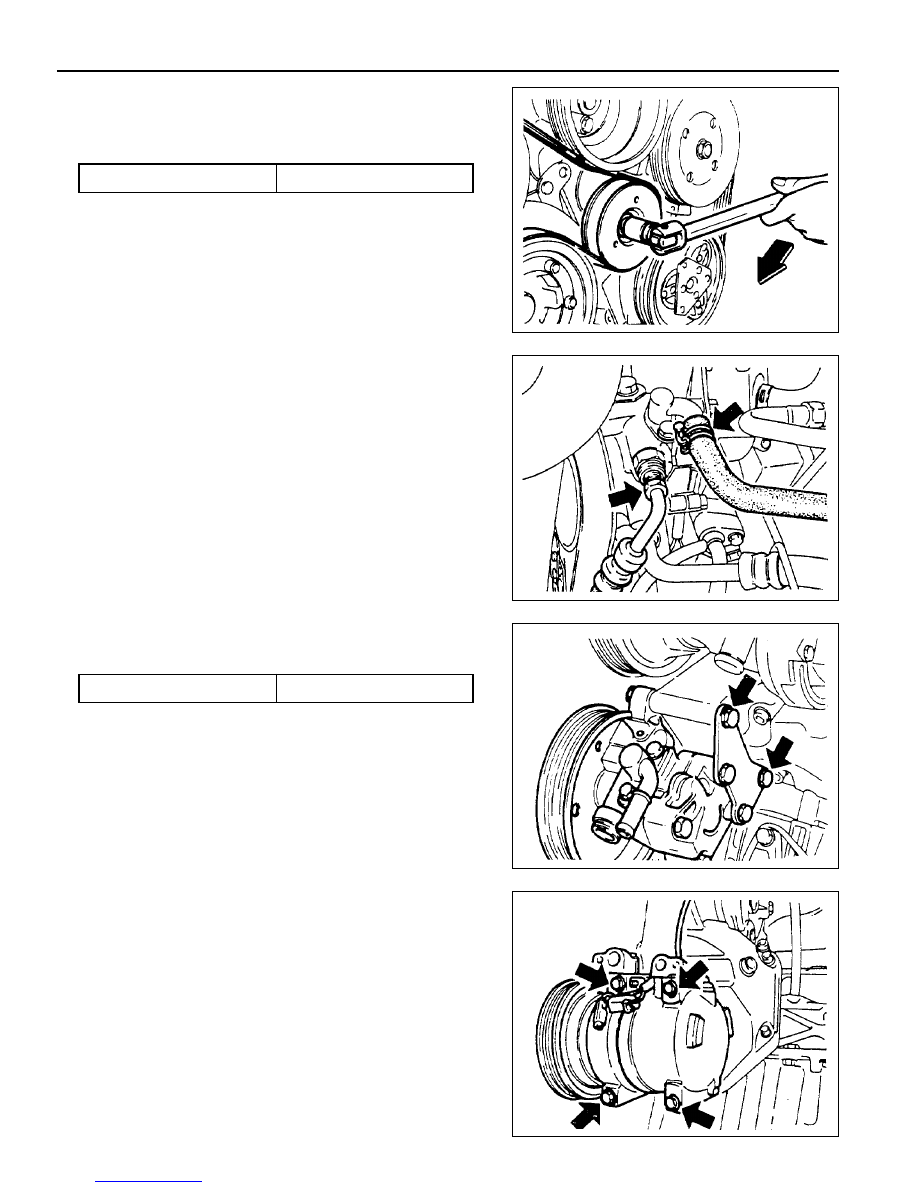

Removal & Installation Procedure

1. Remove the belt pulley.

Installation Notice

2. Disconnect the hydraulic pipe of the power steering pump

and drain the oil.

3. Unscrew the bolts (arrows) and remove the steering pump.

Installation Notice

Notice

Pull the tensioning pulley clockwise as shown in the figure.

4. Remove the compressor after disconnecting the wiring

connector and refrigerant pipe of A/C compressor.

Notice

Discharge all the refrigerant before removing the pipes.

Tightening  Torque

40.5 - 49.5 Nm

Tightening  Torque

22.5 - 27.5 Nm

M162 ENGINE MECHANICAL  1B1-21

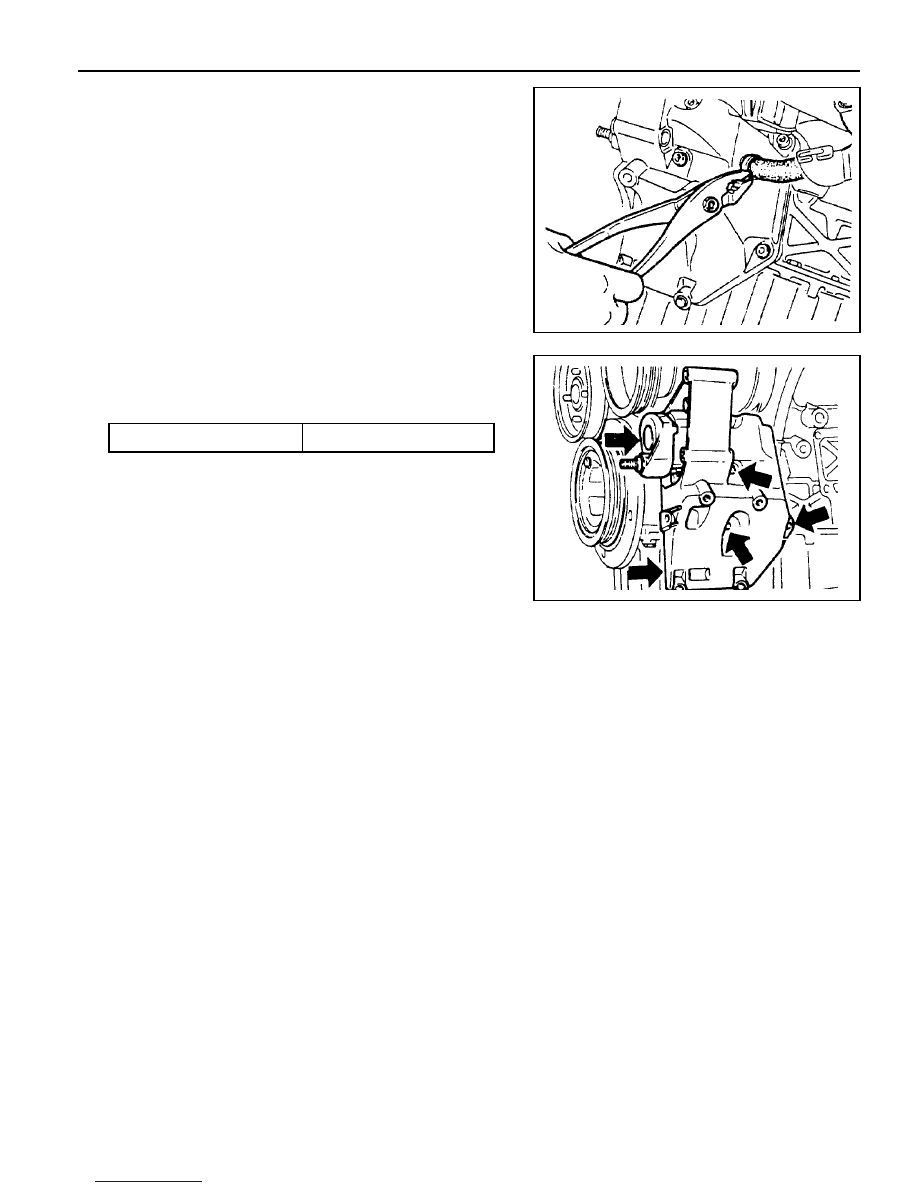

5. Disconnect the vent hose from the A/C bracket.

6. Unscrew all the mounting bolts (arrows) and remove the

A/C bracket and the gasket.

Installation Notice

7. Clean the sealing surface.

8. Replace the gasket with new one.

9. Installation should follow the removal procedure in the

reverse order.

10. Check the oil leakage by operating the engine after

installation.

Tightening  Torque

22.5 - 27.5 Nm

1B1-22  M162 ENGINE MECHANICAL

HYDRAULIC ENGINE MOUNTING INSULATOR

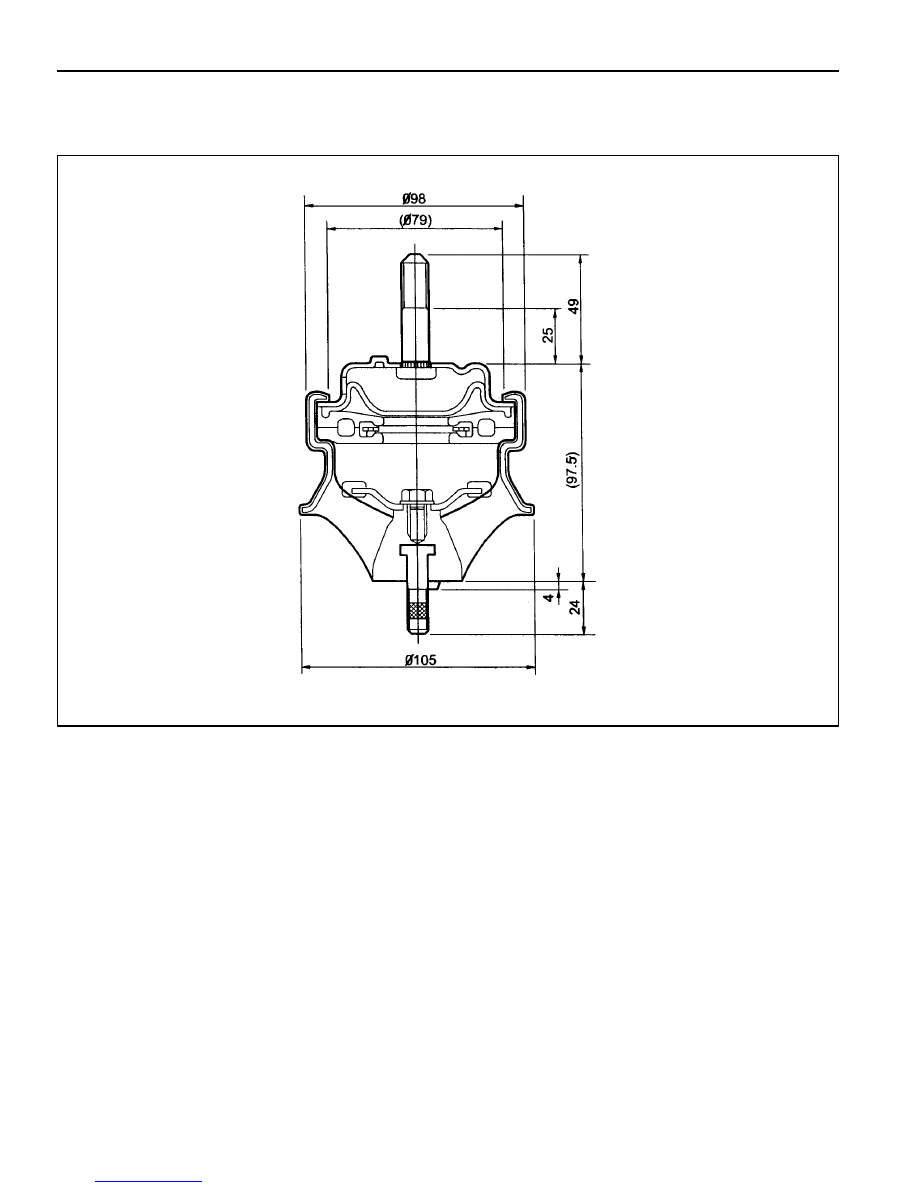

Service Data

M162 ENGINE MECHANICAL  1B1-23

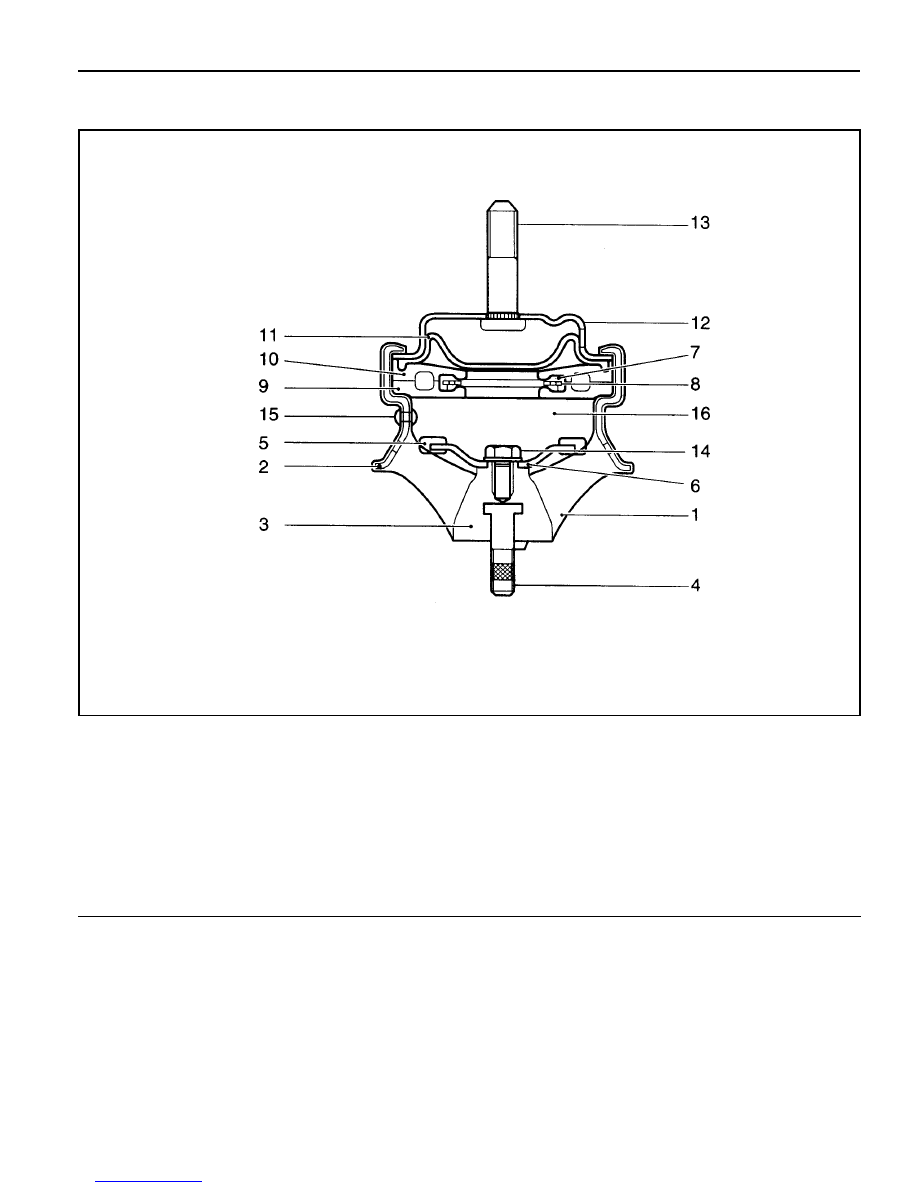

Sectional View

1 Rubber Body
2 Brackek
3 Core
4 Lower Bolt
5 Rubber Plunger
6 Plunger Plate
7 Rubber
8 Plate

9 Lower Orifice

10 Upper Orifice

11 Diaphram

12 Cover Plate
13 Upper Bolt
14 Flange Bolt
15 Rivet
16 Fluid
