9R – 10  BODY FRONT END

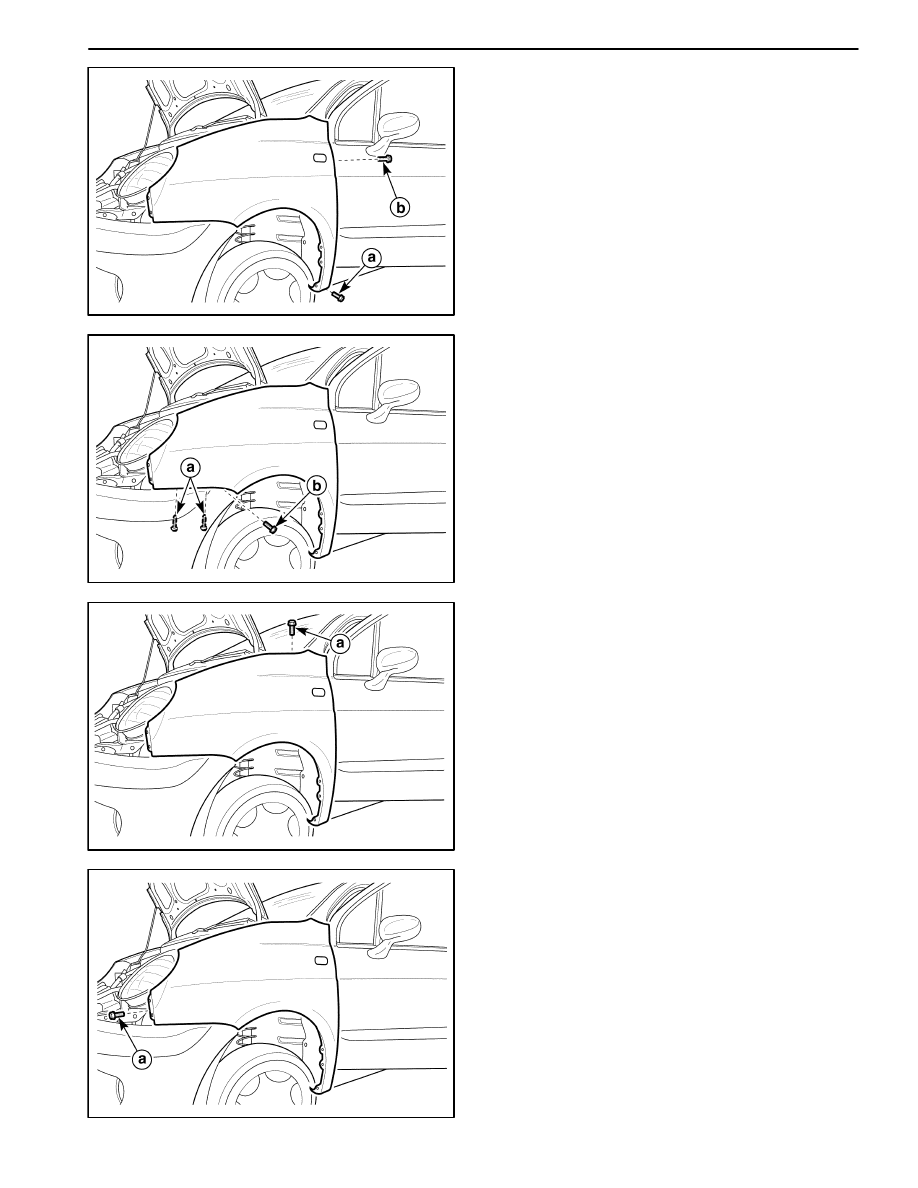

D19C540A

 3. Remove the bolt at the base of the fender.

a. Fender mounting lower bolt.

 4. Open the front door. Remove the bolt on the A–pillar.

b. Fender mounting bolt.

D19C541A

 5. Remove the screws on the side of the front bumper

fascia.

a. Bumper fascia side bolts.

 6. Remove the bolt under the fender.

b. Fender mounting bolt.

D19C542A

 7. Lower the vehicle.

 8. Take off the cowl vent grille. Remove the bolt on the

top of the fender.

a. Fender mounting bolt.

D19C543A

 9. Remove the front bumper spacer. Refer to Section

9M, Exterior Trim.

10. Remove the fender front bolt.

a. Fender front bolt.

BODY FRONT END  9R – 11

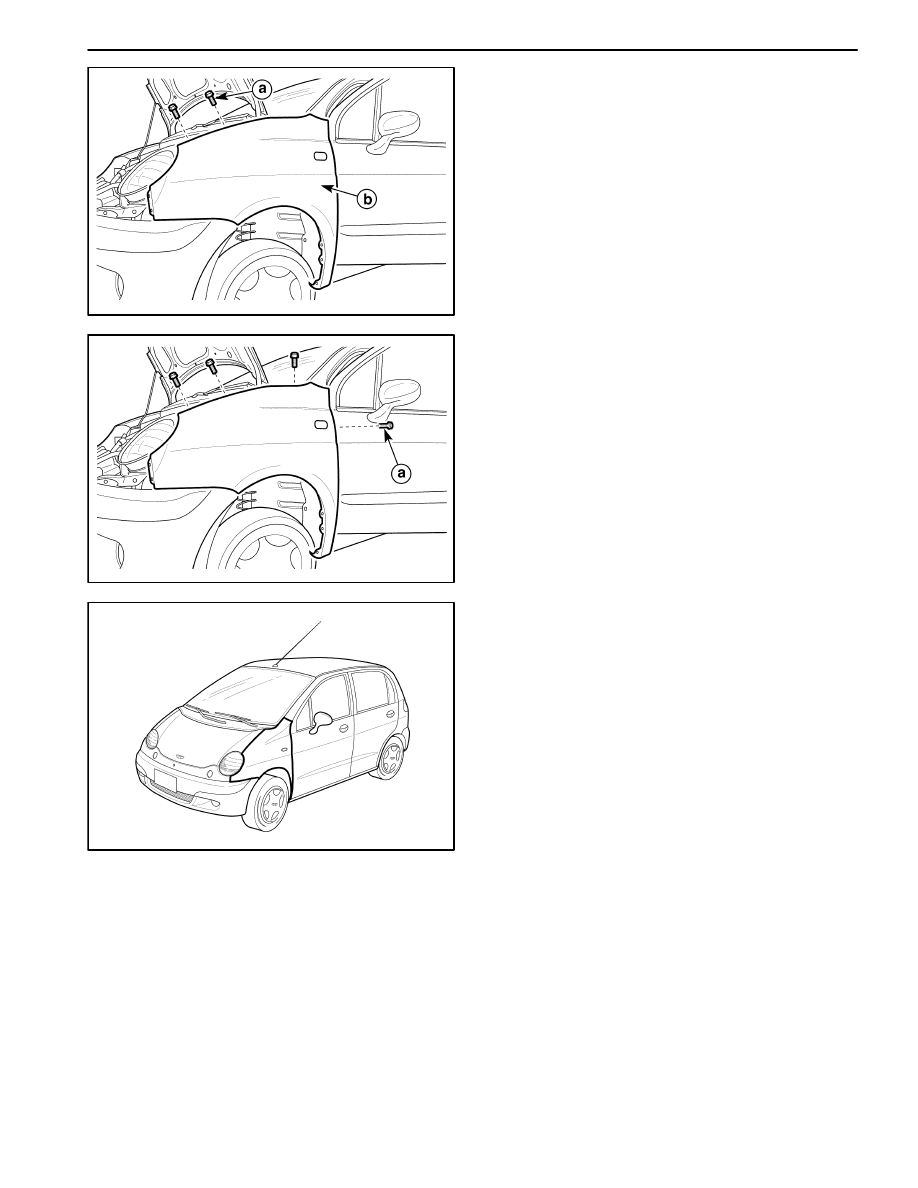

D19C544A

11. Remove the bolts along the top of the fender.

a. Bolt.

12. Remove the fender.

b. Fender.

D19C527A

Installation Procedure

 1. Install the fender.

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.

 2. Install the bolts along the top of the fender.

D19C545A

 3. Install the front bumper spacer.

 4. Install the cowl vent grille.

 5. Raise and suitably support the vehicle.

 6. Install the bolts under the fender.

 7. Install the screws on the side of the front bumper

fascia.

 8. Open the front door Install the bolt on the A–pillar.

 9. Install the bolt at the base of the fender.

10. Install the wheelhouse splash shield with the

screws.

11. Lower the vehicle.

SECTION 9S

BODY REAR END

TABLE OF CONTENTS

Description and Operation

9S-2

. . . . . . . . . . . . . . . . . .

Fuel Filler Door

9S-2

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Repair Instructions

9S-3

. . . . . . . . . . . . . . . . . . . . . . . . .

On-Vehicle Service

9S-3

. . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Filler Door

9S-3

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Filler Door Remote Cable and Handle

9S-3

. . . .

Tailgate Remote Cable and Handle

9S-5

. . . . . . . . . .

9S – 2  BODY REAR END

DESCRIPTION AND OPERATION

FUEL FILLER DOOR

The fuel filler door attaches to the fuel tank pocket on the
right side of the vehicle.
