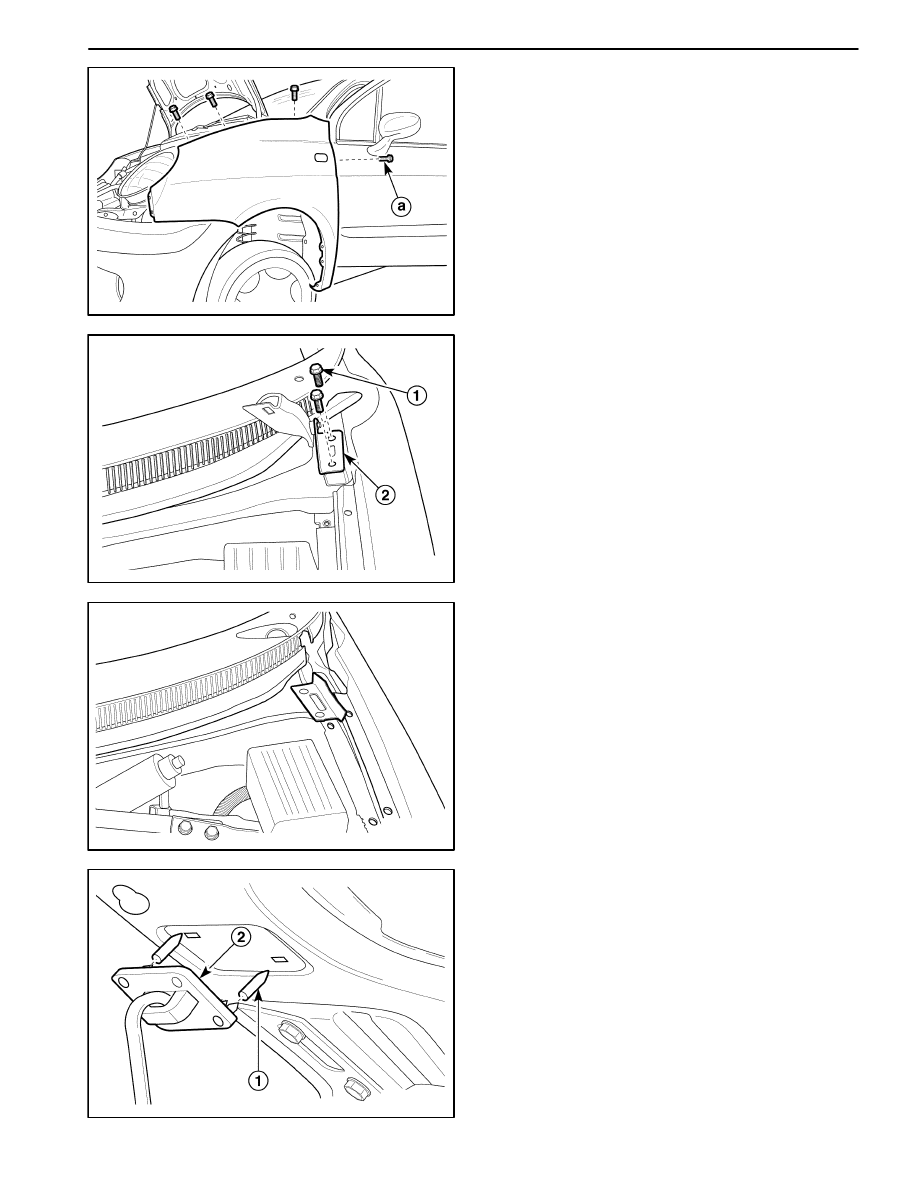

3. Remove the bolts on the top of the fender.

a. Fender upper mounting bolt.

D109C528

4. Remove the hood hinge.

D

Remove the bolts (1).

D

Remove the hood hinge (2).

D109C529

Installation Procedure

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.

1. Install the hood hinge with the bolts.

2. Install the bolts along the top of the fender.

3. Install the cowl vent grille with the screws and the

caps.

4. Install the hood. Refer to “Hood” in this section.

D109C530

HOOD PROP ROD

Removal Procedure

1. Support the hood in the open position.

2. Remove the hood prop from the hood.

D

Using a sharp gimlet, press the pins (1).

D

Remove the hood prop (2).

BODY FRONT END  9R – 7

D109C531

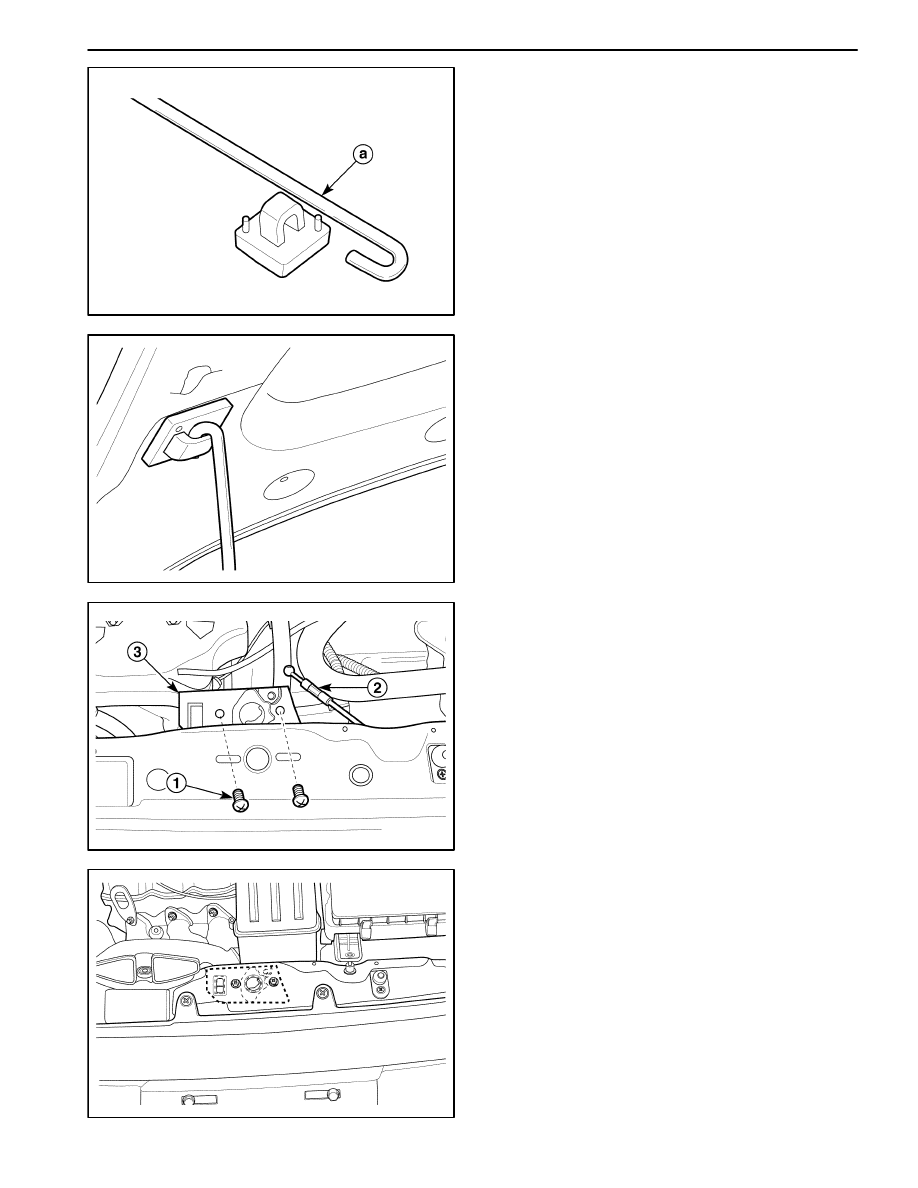

3. Remove the hood prop rod from the hood prop.

a. Hood prop rod.

D109C532

Installation Procedure

1. Install the hood prop rod to the hood prop.

2. Install the hood prop to the hood with the pins.

D109C533

HOOD LATCH

Removal Procedure

1. Open the hood.

2. Remove the hood latch.

D

Remove the screws (1).

D

Disconnect the hood latch release cable (2).

D

Remove the hood latch (3).

D109C534

Installation Procedure

1. Connect the hood latch release cable to the latch.

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.

2. Install the hood latch with the screws.

9R – 8  BODY FRONT END

D109C535

HOOD LATCH RELEASE LEVER

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Removal Procedure

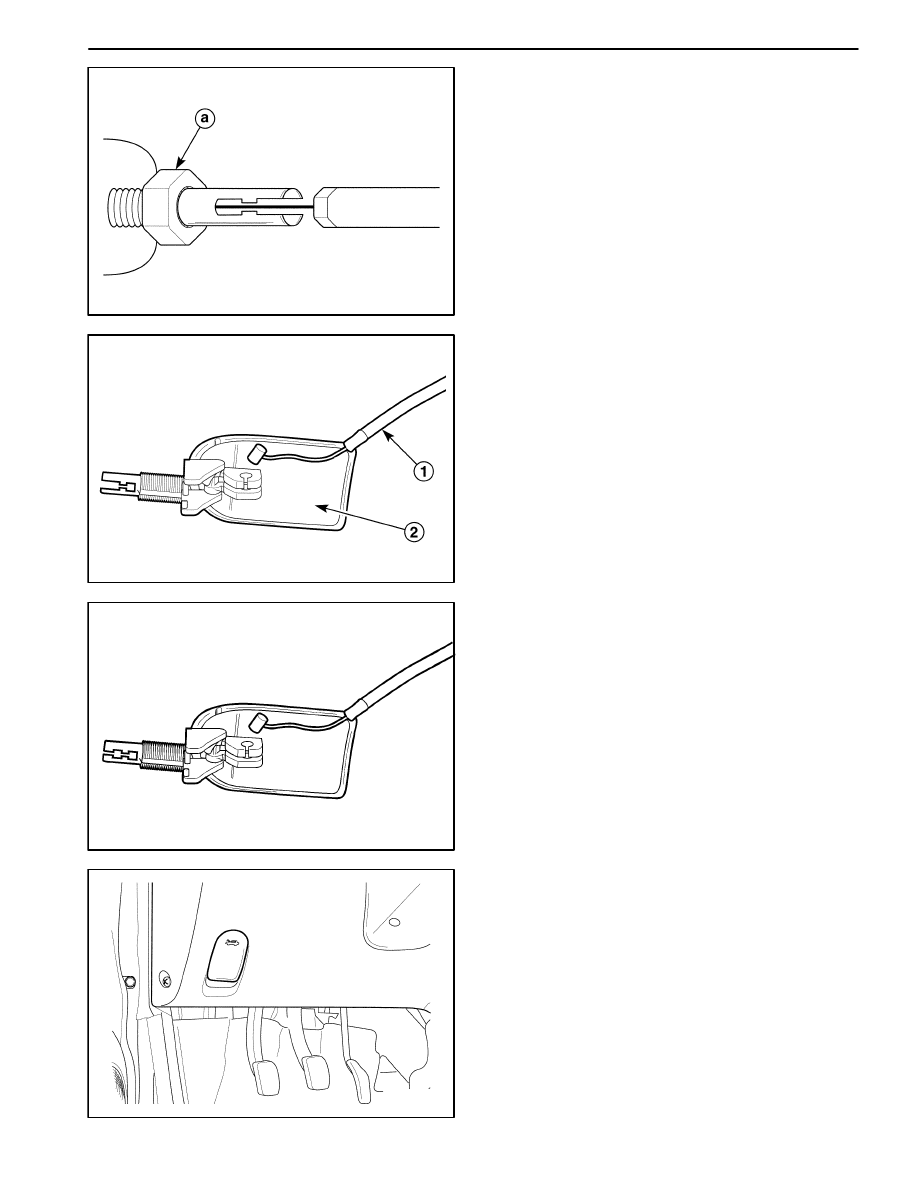

1. Remove the hood latch nut into the instrument panel.

a. Hood latch nut.

D109C536

2. Remove the hood latch release lever.

D

Disconnect the cable (1).

D

Remove the hood latch release lever (2).

D19C536A

Installation Procedure

1. Connect the hood latch release cable to the hood

latch lever.

D109C537

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.

2. Install the hood latch lever release to the instrument

panel with the hood latch nut.

BODY FRONT END  9R – 9

D109C538

HOOD LATCH RELEASE CABLE

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Removal Procedure

1. Remove the hood latch release cable from the instru-

ment panel. Refer to “Hood Latch Release Lever” in
this section.

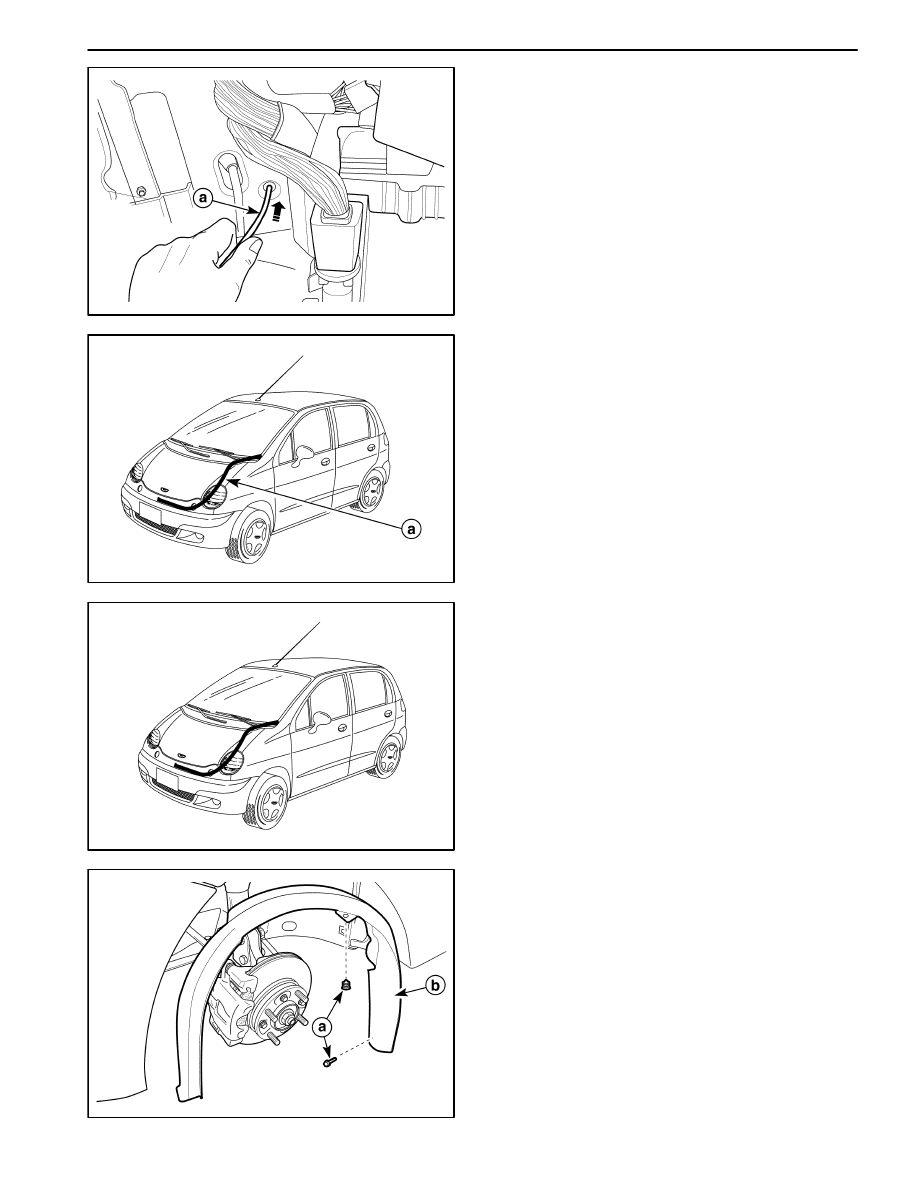

2. Push the cable toward the engine compartment

through the body hole.

a. Hood latch lever cable.

D19C539B

3. Open and suitably support the hood.

4. Disconnect the hood latch release cable from the

hood latch. Refer to “Hood Latch” in this section.

5. Remove the hood latch release cable after removing

the plastic strip.

a. Hood latch release cable.

D19C539C

Installation Procedure

1. Connect the hood latch release cable to the hood

latch. Refer to “Hood Latch” in this section.

2. Arrange the hood latch release cable with the plastic

strip.

3. Push the cable toward the passenger compartment

through the body hole.

4. Connect the hood latch release cable to the hood

latch release lever. Refer to “Hood Latch Release Le-
ver” in this section.

D19C501A

FENDER

Removal Procedure

1. Raise and suitably support the vehicle.

2. Remove the wheelhouse splash shield.

D

Remove the clip and the bolt.

a. Clip and bolt.

D

Remove the wheel house splash shield.

a. Wheel house splash shield.
