9P – 20  DOORS

D109C604

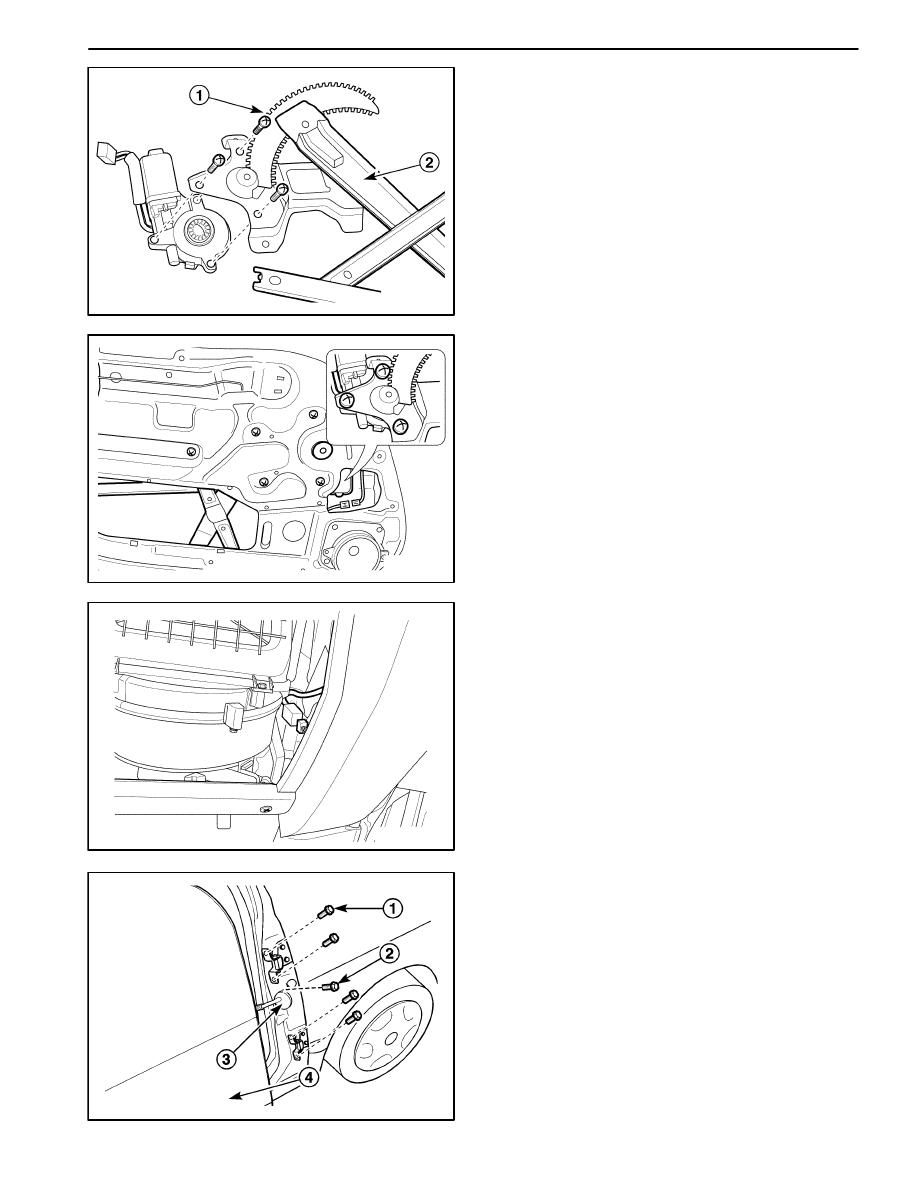

4. Remove the window motor from the window regula-

tor.

D

Remove the screws (1).

D

Remove the window regulator (2).

Caution: Be careful what you are doing when sepa-
rating the window motor and the window regulator.
You may be hurt.

D109C605

Installation Procedure

1. Install the window motor to the window regulator with

the screws.

2. Install the window regulator assembly with the screws.

3. Connect the window motor electrical connector.

4. Install the glass. Refer to Section 9L, Glass and Mir-

rors.

5. Connect the negative battery cable.

D109C606

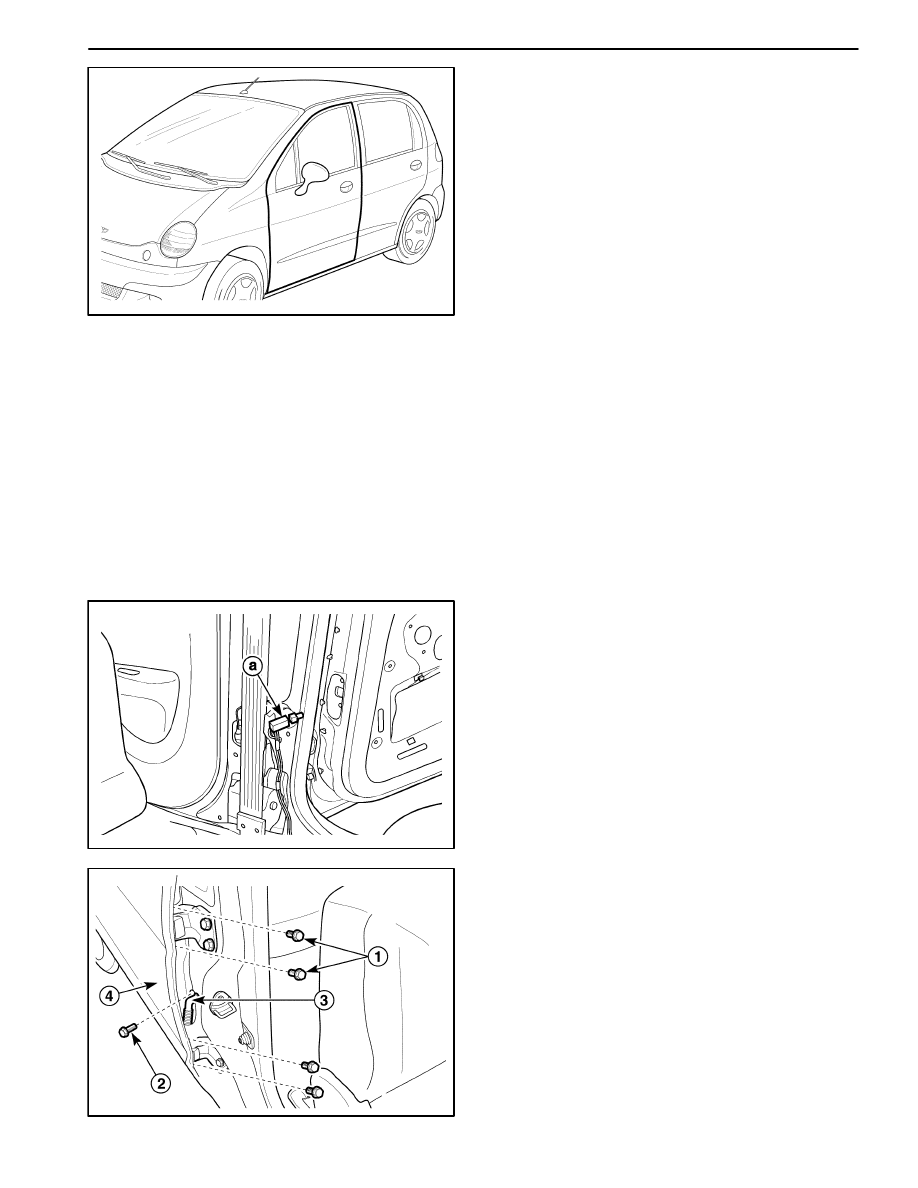

FRONT DOOR ASSEMBLY

Removal Procedure

1. Disconnect the negative battery cable.

2. Disconnect the electrical connector under the instru-

ment panel.

Important: In case of the front passenger door, remove
the glove box in advance.

D109C607

3. Remove the fender. Refer to Section 9R, Body Front

End.

4. Remove the front door assembly.

D

Remove the door hinge bolts (1).

D

Remove the door hold open bolt (2).

D

Disconnect the body–to–door rubber grommet (3).

D

Remove the front door assembly (4).

DOORS  9P – 21

D19C608A

Installation Procedure

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fastener to prevent premature corrosion.

 1. Connect the body–to–door rubber grommet.

 2. With the aid of another technician, lightly secure the

front door with the bolts.

 3. Adjust the door for proper fit.

 4. Tighten the hinge–to–body bolts.

 5. Install the door hold open link with the bolt.

 6. Install the fender. Refer to Section 9R, Body Front

End.

 7. Connect the electrical connector.

 8. Connect the negative battery cable.

 9. Perform the waterleak test. Refer to Section 9I, Wa-

terleak.

10. Check for windnoise. Refer to Section 9J, Wind-

noise.

D109C609

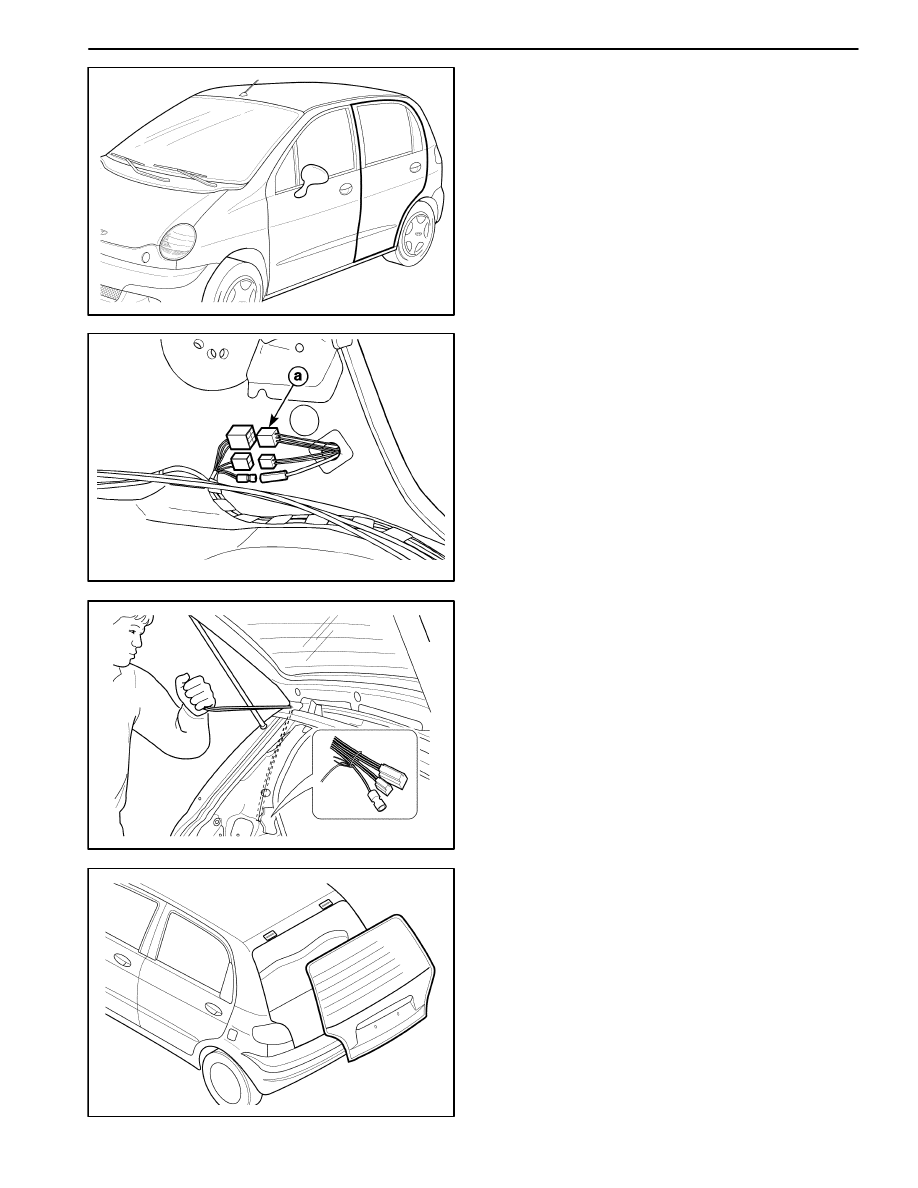

REAR DOOR ASSEMBLY

Removal Procedure

1. Disconnect the negative battery cable.

2. Pry off the lower B–pillar trim panel. Refer to Section

9G, Interior Trim.

3. Disconnect the rear door electrical connector.

a. Rear door electrical connector.

D109C610

4. Remove the rear door assembly.

D

Remove the door hinge bolts (1).

D

Remove the door hold open link bolt (2).

D

Disconnect the body–to–door rubber grommet (3).

D

Remove the rear door assembly (4).

9P – 22  DOORS

D19C611A

Installation Procedure

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fastener to prevent premature corrosion.
1.Connect the body–to–door rubber grommet.
2. With the aid of another technician, lightly secure the

rear door with the bolts.

3. Adjust the door for proper fit.
4. Install the door hold open link with the bolt.
5. Connect the rear door electrical connector.
6. Connect the negative battery cable.
7. Perform the waterleak test. Refer to Section 9I, Wa-

terleaks.

8. Check for windnoise. Refer to Section 9J, Windnoise.

D109C612

TAILGATE

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the luggage compartment wheelhouse trim

panel. Refer to Section 9G, Interior Trim.

3. Disconnect the tailgate electrical connector.

a. Tailgate electrical connector.

D109C636

4. Remove the tailgate strut. Refer to “Tailgate Strut” in

this section.

5. Remove the tailgate.

D

Remove the hinge bolts.

D

Disconnect the body–to–tailgate rubber grommet.

D

Remove the tailgate.

D19C613A

DOORS  9P – 23

D19C614A

Installation Procedure

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fastener to prevent premature corrosion.
1. Connect the body–to–tailgate rubber grommet.
2. With the aid of another technician, lightly secure the

tailgate with the bolts.

3. Adjust the tailgate for proper fit.
4. Install the tailgate strut. Refer to “Tailgate Strut” in this

section.

5. Connect the tailgate electrical connector.
6. Install the luggage compartment wheelhouse trim pan-

el. Refer to Section 9G, Interior Trim.

7. Connect the negative battery cable.

D209B113

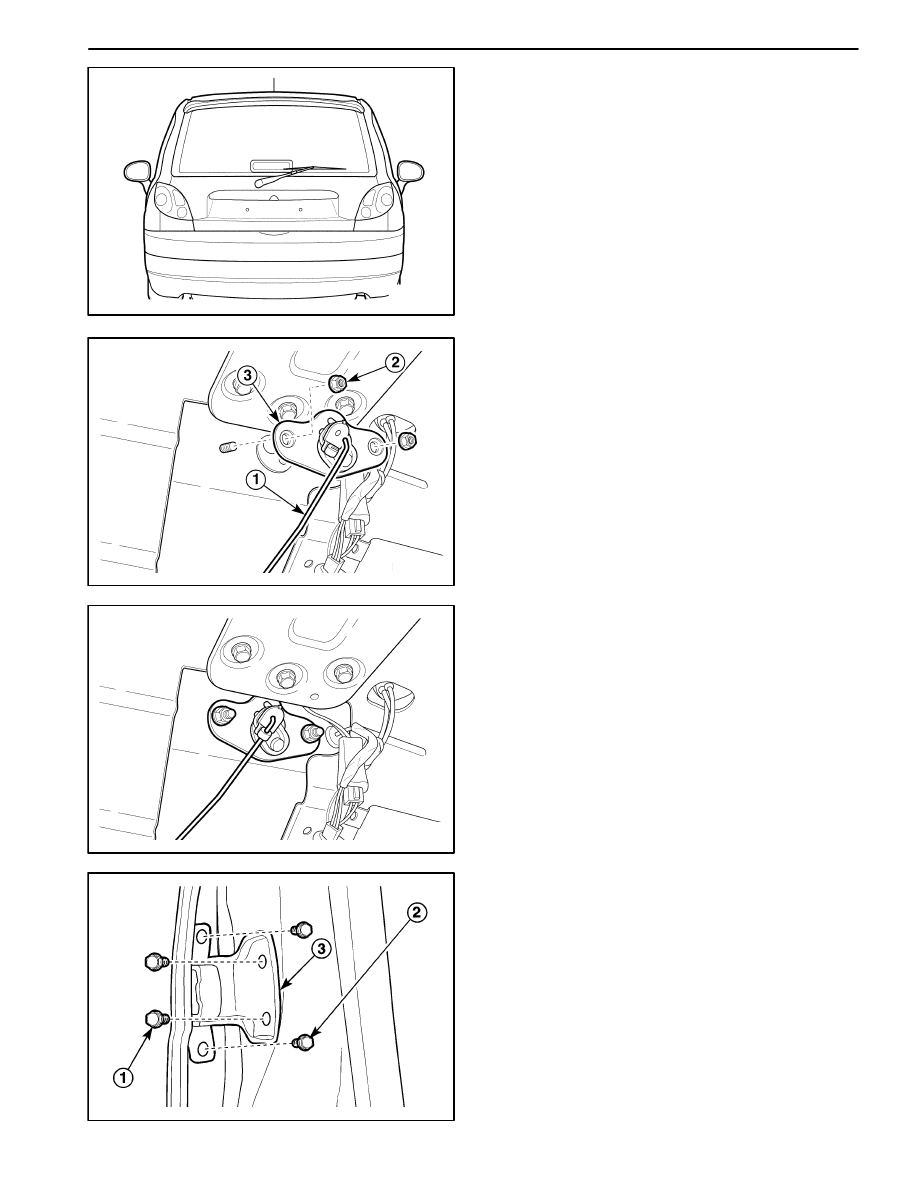

TAILGATE LOCK CYLINDER

Removal Procedure

1. Disconnect the negative battery cable.

2. Open the tailgate.

3. Remove the rear window wiper motor assembly. Re-

fer to Section 9D, Wipers/Washer Systems.

4. Remove the tailgate lock cylinder.

D

Disconnect the tailgate lock rod (1).

D

Remove the nuts from the tailgate lock cylinder (2).

D

Remove the tailgate lock cylinder (3).

D209B114

Installation Procedure

1. Install the tailgate lock cylinder.

2. Install the rear window wiper motor assembly. Refer

to Section 9D, Wipers/Washer Systems.

3. Connect the negative battery cable.

D109C615

DOOR HINGE

Removal Procedure

1. With the aid of another technician, remove the door

hinge.

D

Remove the hinge–to–body bolts (1).

D

Remove the hinge–to–door bolts (2).

D

Remove the door hinge (3).
