9P – 4  DOORS

1. Seal Trim
2. Lock Button
3. Trim Panel
4. Pocket Handle (Deluxe Type)
5. Pocket Handle Bracket (Deluxe Type)
6. Inside handle
7. Manual Regulator Handle
8. Pocket Handle (Standard Type)
9. Door Speaker Cover

10. Map Pocket

11. Contact Switch

12. Striker
13. Opening Weatherstrip
14. Door Weatherstrip
15. Glass Run
16. Front Door
17. Inside Channel Weatherstrip
18. Inside Handle Rod
19. Door Lock

20. Door Lock Cylinder Rod
21. Lock Rod
22. Actuator Rod
23. Actuator
24. Window Regulator
25. Outside Channel Weatherstrip
26. Outside Handle Rod
27. Outside Handle
28. Division Bar
29. Quarter Glass
30. Quarter Glass Run
31. Door Hinge
32. Door Hold Open Link
33. Power Window Switch Cover
34. Mirror Switch
35. Power Window Switch Assembly
36. Mirror switch Blank
37. Door Side Molding

DOORS  9P – 5

REAR DOOR

D19C404A

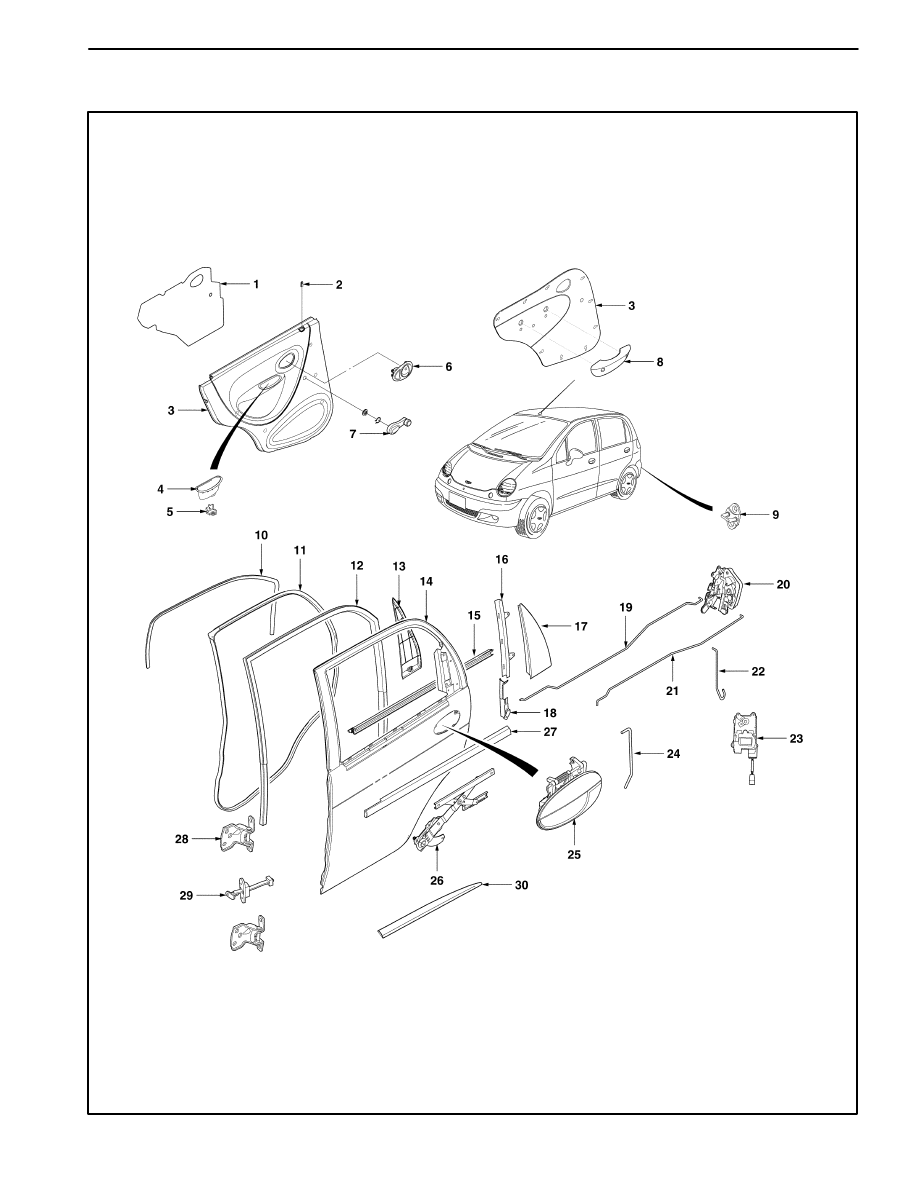

9P – 6  DOORS

1. Seal Trim
2. Lock Button
3. Trim Panel
4. Pocket Handle (Deluxe Type)
5. Pocket Handle Bracket (Deluxe Type)
6. Inside handle
7. Manual Regulator Handle
8. Pocket Handle (Standard Type)
9. Striker

10. Opening Weatherstrip

11. Door Weatherstrip

12. Glass Run
13. Interior Garnish Molding
14. Rear Door
15. Inside Channel Weatherstrip

16. Upper Guide Rail
17. Exterior Garnish Molding
18. Lower Guide Rail
19. Lock Rod
20. Door Lock
21. Inside Handle Rod
22. Actuator Rod
23. Actuator
24. Outside Handle Rod
25. Outside Handle
26. Window Regulator
27. Outside Channel Weatherstrip
28. Door Hinge
29. Door Hold Open Link
30. Door Side Molding

DOORS  9P – 7

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE

D109E521

FRONT DOOR GLASS RUN

Removal Procedure

1. Remove the front door seal trim from the front door.

Refer to “Door Seal Trim” in this section.

2. Remove the outside rearview mirror from the front

door. Refer to Section 9L, Glass and Mirrors.

3. Remove the guide rail from the door.

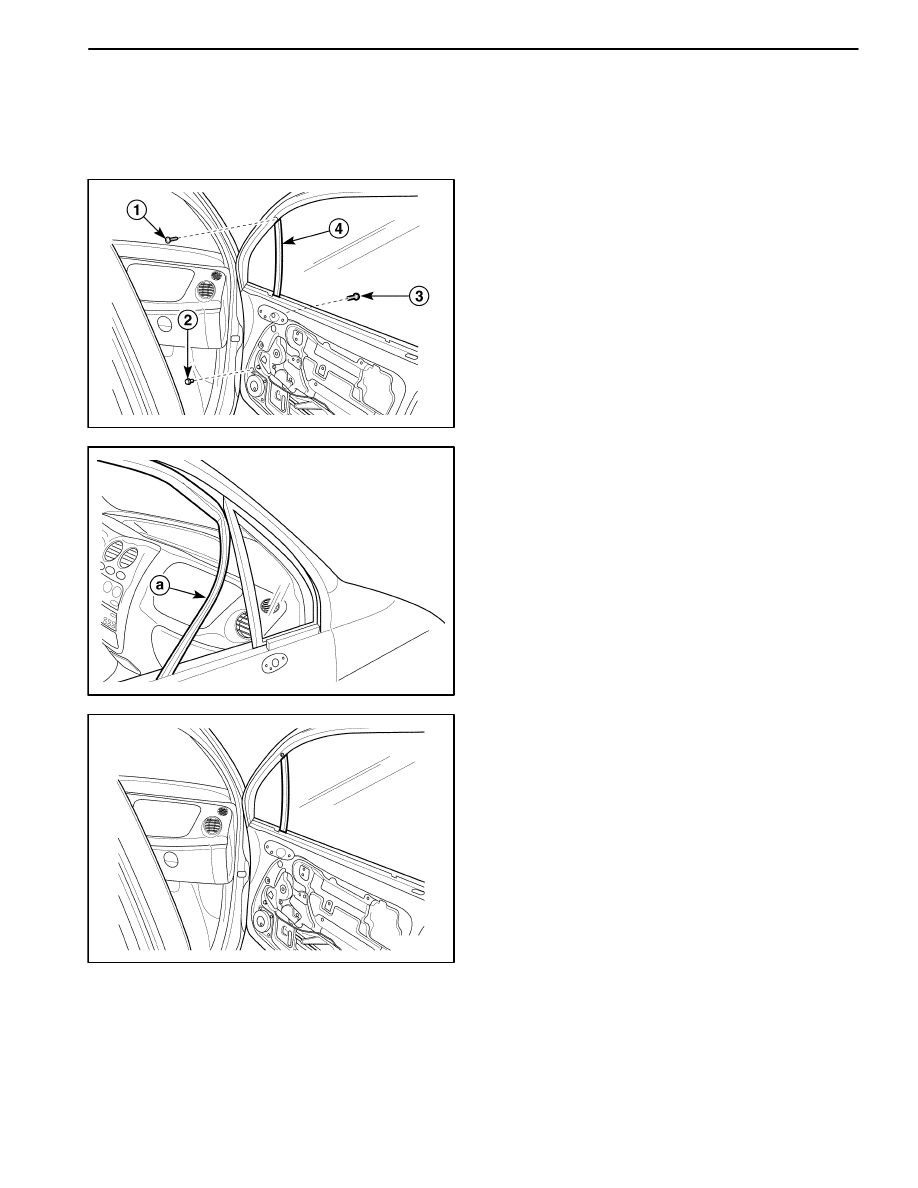

D

Remove the screws (1).

D

Remove the inside bolts (2).

D

Remove the outside bolts (3).

D

Remove the division bar (4).

D109E522

4. Remove the glass run.

a. Glass run.

D109E526

Installation Procedure

1. Install the glass run.

2. Install the division bar with the bolts and the screws.

3. Install the outside rearview mirror. Refer to Section

9L, Glass and Mirrors.

4. Install the front door seal trim. Refer to “Door Seal

Trim” in this section.
