9O – 4  BUMPERS AND FASCIAS

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE

D19C501A

FRONT BUMPER FASCIA

Removal Procedure

1. Disconnect the negative battery cable.

2. Raise and suitably support the vehicle.

3. Remove the front wheels.

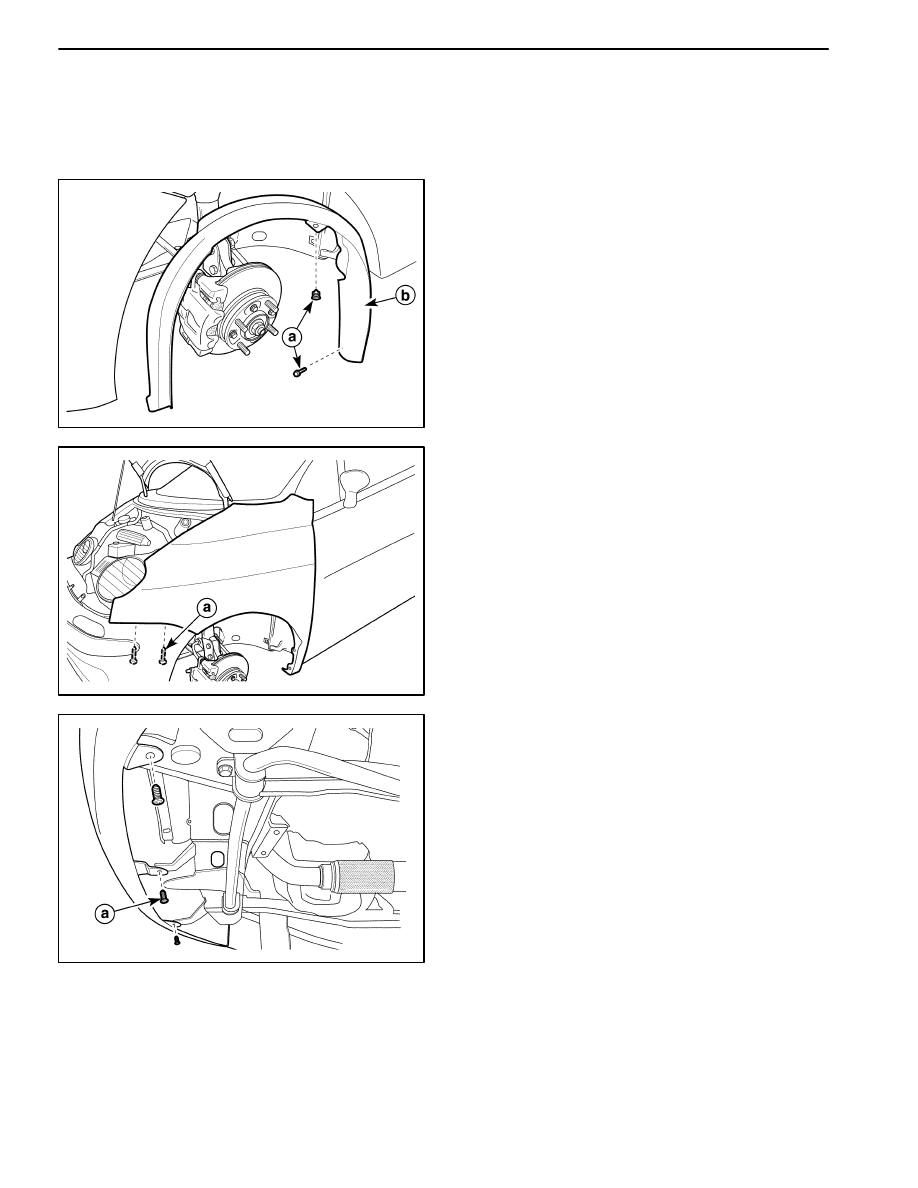

4. Remove the front wheel house splash shields.

D

Remove the clip and bolts.

a. Bolt and clip.

D

Remove the wheel house splash shield.

b. Splash shield.

D109C502

5. Remove the bolts on the both side of the fascia.

a. Bolt.

D109C503

6. Remove the clips under the fascia.

a. Clip.

BUMPERS AND FASCIAS  9O – 5

D19C504A

7.

Lower the vehicle.

8

Remove the front bumper spacer from the bumper.
Refer to Section 9M, Exterior Trim.

9.

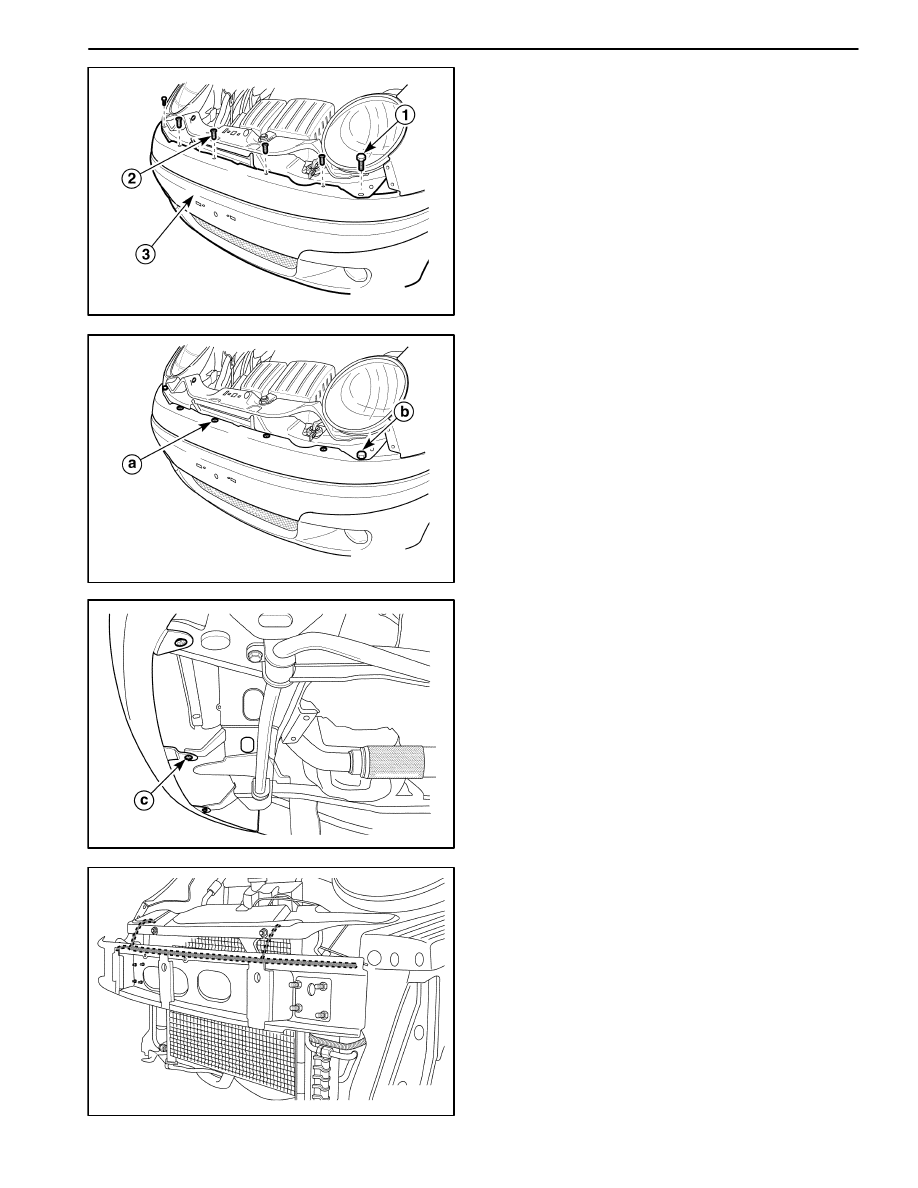

Remove the front bumper fascia.

D

Remove the bolts (1).

D

Remove the clips (2).

D

Remove the front bumper fascia (3).

10 Remove the front fog lamps. Refer to Section 9B,

Lighting Systems.

D19C505A

Installation Procedure

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.
1.

Install the front fog lamps. Refer to Section 9B,
Lighting Systems.

2.

Install the bumper fascia.

3.

Install the clips on the top of the fascia.
a. Fascia upper clip.

4.

Install the bolts on the top of the fascia.
b. Fascia upper bolt.

5.

Install the front bumper spacer. Refer to Section 9M,
Exterior Trim.

D109C506

6.

Raise and suitably support the vehicle.

7.

Install the clips under the fascia.

c. Fascia lower clip.

8.

Install the bolts on the both side of the fascia.

9.

Install the front wheelhouse splash shields with the
clips and the bolts.

10. Install the front wheels.

11. Lower the vehicle.

12. Connect the negative battery cable.

D19C507A

FRONT BUMPER IMPACT BAR

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the front bumper fascia. Refer to “Front

Bumper Fascia” in this section.

3. Remove the front wiring harness retaining clip from

the impact bar.

9O – 6  BUMPERS AND FASCIAS

D19C508A

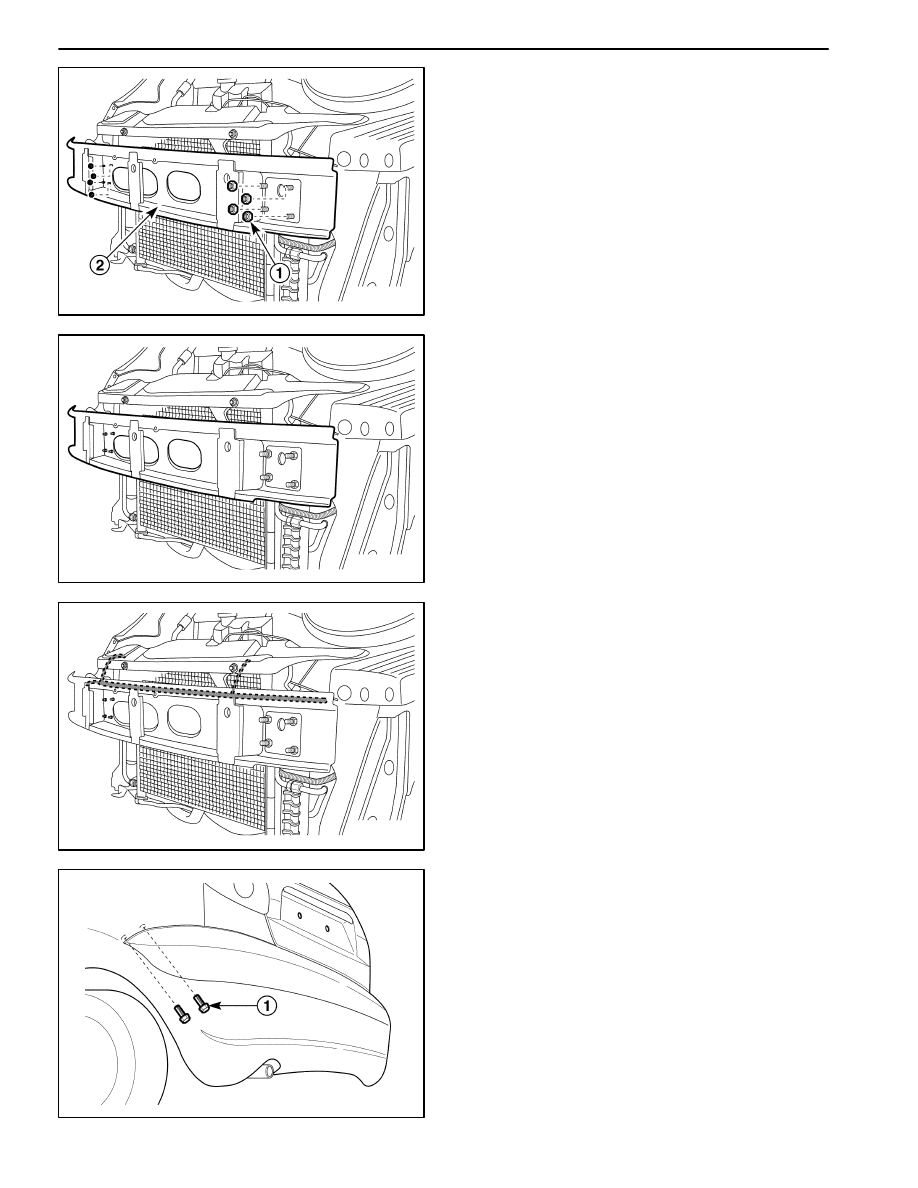

3. Remove the impact bar.

D

Remove the nuts (1).

D

Remove the impact bar (2).

D19C509A

Installation Procedure

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.

1. Install the impact bar with the nuts.

C19C507A

2. Install the front wiring harness retaining clip to the im-

pact bar.

3. Install the front bumper fascia. Refer to “Front Bump-

er Fascia” in this section.

4. Connect the negative battery cable.

D19C510A

REAR BUMPER FASCIA

Removal Procedure

1. Raise and suitably support the vehicle.

2. Remove the bolts underneath the fascia.

D

Remove the bolts (1).

BUMPERS AND FASCIAS  9O – 7

D19C511A

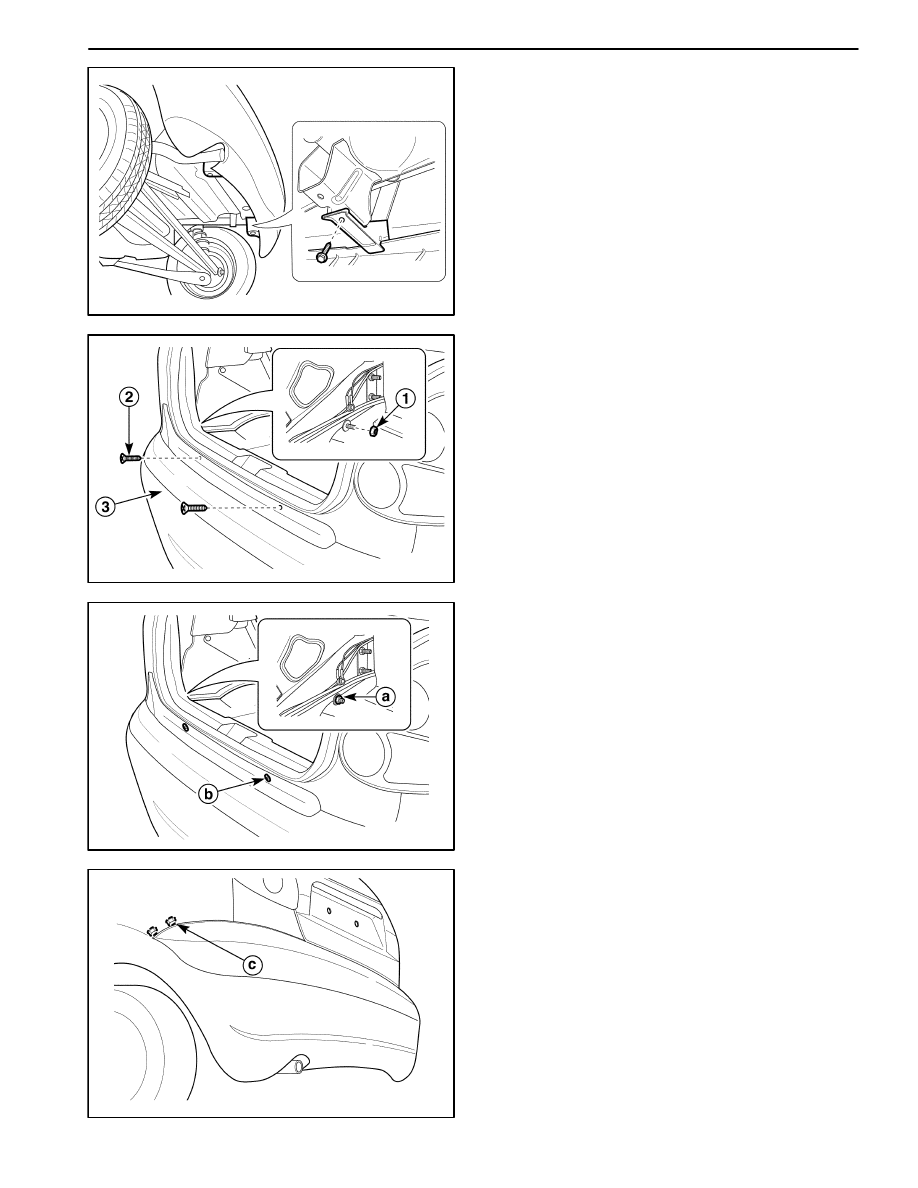

3. Remove the fascia bolts from the rear bumper brack-

et.

D19C512A

4. Lower the vehicle.

5. Remove the fascia.

D

Remove the nuts in the luggage compartment (1).

D

Remove the screws (2).

D

Remove the fascia (3).

D19C513A

Installation Procedure

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.

1.

Install the fascia.

2.

Install the fascia upper nut.

a. The fascia upper nut.

3.

Install the fascia upper screws

b. The fascia upper screws.

D19C514A

4.

Raise and suitably support the vehicle.

5.

Install the fascia lower bolts.

c. The fascia lower bolts.

6.

Lower the vehicle.
