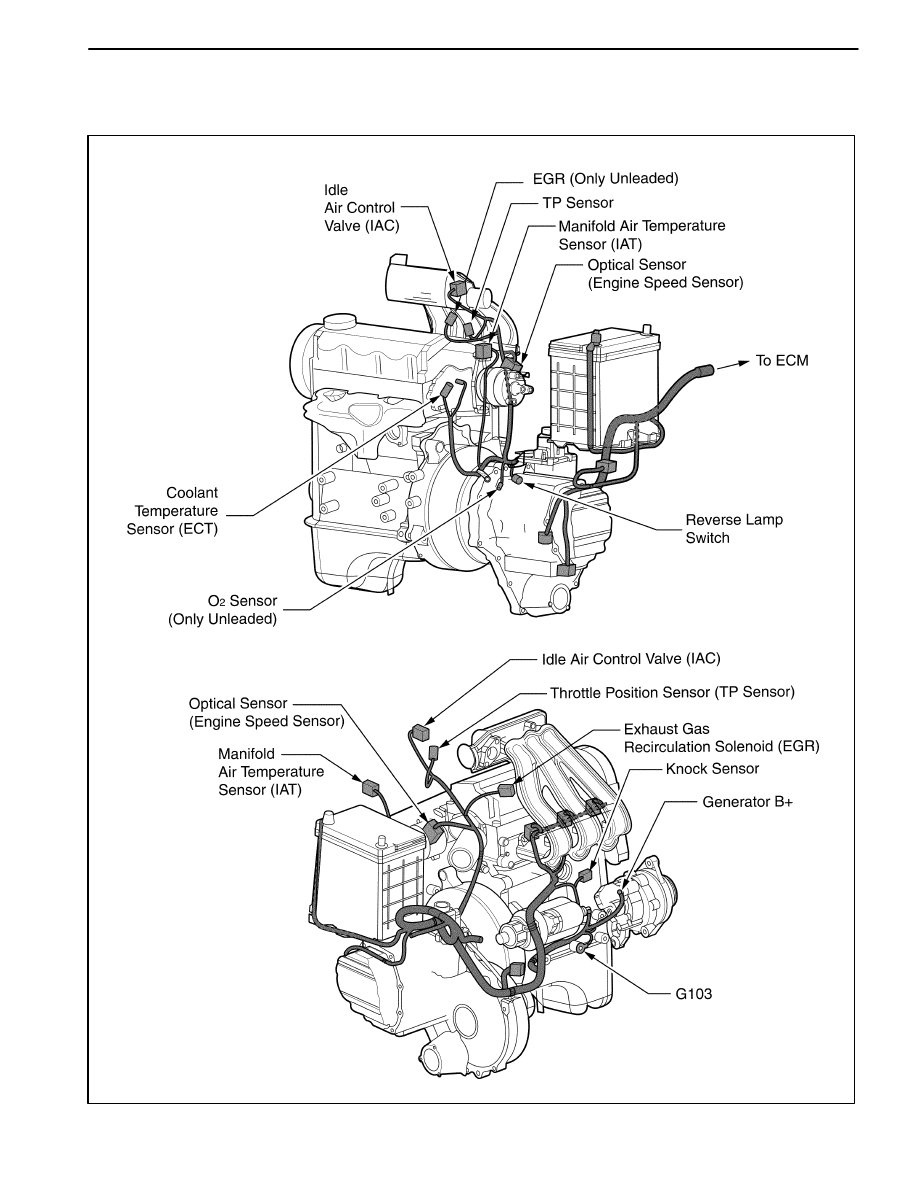

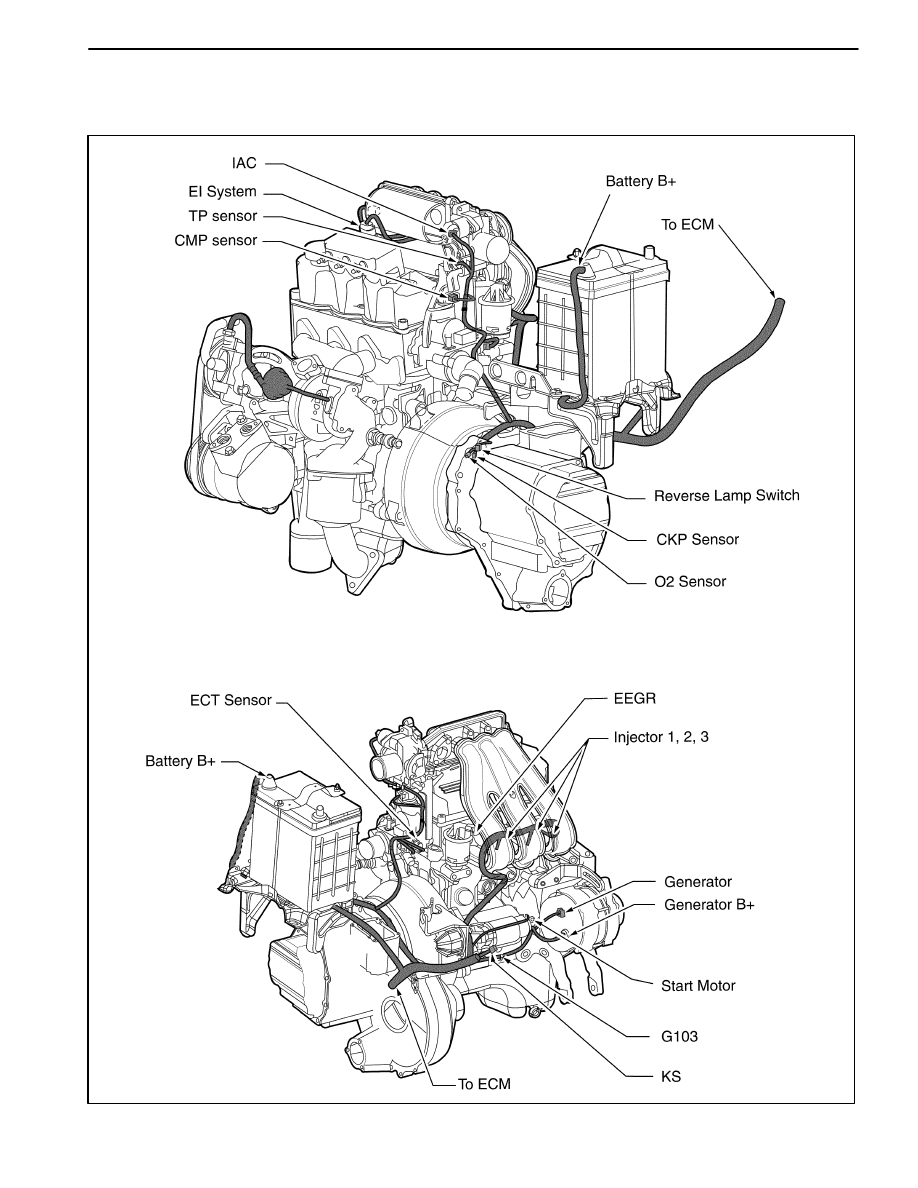

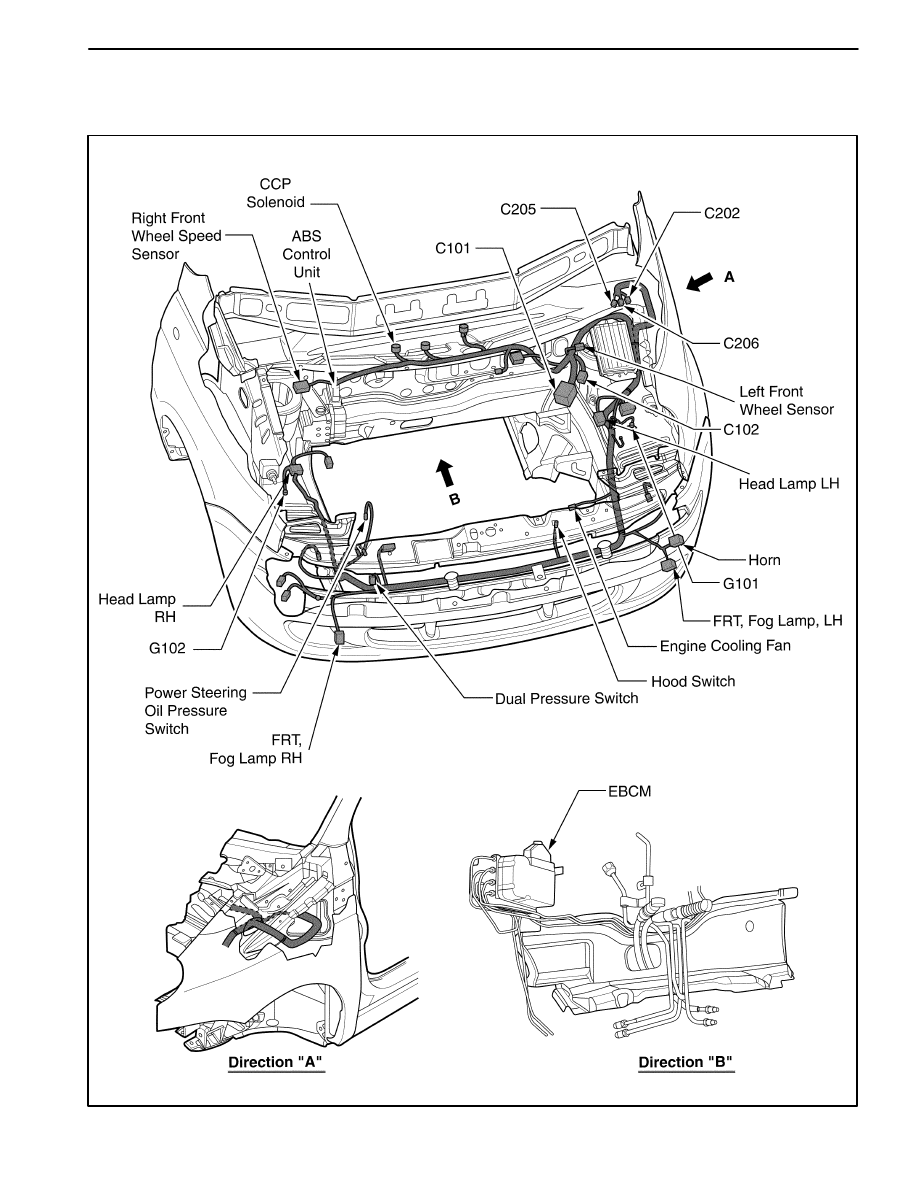

9A – 10 BODY WIRING SYSTEM
FUSE CHART
Fuse
Rating/ Source
Circuit
Ef1 (Engine Fuse)
50A
BAT
ABS
Ef2
40A
BAT
Ignition Switch, Instrument Panel Fuse Block
(F5, F11 ~ F13)
Ef3
10A
BAT
Fuel cut-off Switch (Inertia Switch)
Ef4
10A
IGN 1
Fuel, EBCM, Generator, VSS, Fuel Pump Relay, Main Relay,
Ignition Coil
Ef5
–
–
Not Used
Ef6
20A
BAT
Blower Motor
Ef7
15A
BAT
Rear Window Defogger
Ef8
10A
BAT
Headlamp Hi Beam, Right Side
Ef9
10A
BAT
Headlamp Hi Beam, Left Side
Ef10
10A
BAT
Headlamp Lo Beam, Right Side
Ef11
10A
BAT
Headlamp Lo Beam, Left Side
Ef12
10A
58
Tail and Illumination Lamps, Right Side
Ef13
10A
58
Tail and Illumination Lamps, Left Side
Ef14
10A
BAT
A/C Compressor
Ef15
30A
BAT
Radiator Fan
Ef16
10A
–
Spare
Ef17
10A
BAT
Horn
Ef18
20A
BAT
Headlamp Relay, Hi Beam Passing, DRL Module
Ef19
15A
BAT
ECM, Main Relay
Ef20
15A
BAT
Front Fog Lamp
Ef21
15A
–
Spare
F1 (Fuse)
10A
IGN 1
Cluster, Clock, IMMO, Anti-Theft Control Unit,
DRL Relay
F2
10A
IGN 1
SDM
F3
25A
IGN 1
Hazard Switch, DRL Module
F4
10A
IGN 1
Turn Signal Lamp
F5
15A
BAT
Stop Lamp
F6
10A
ACC
Audio
F7
20A
ACC
Cigar Light
F8
15A
IGN 2
Wiper
F9
15A
IGN 2
Rear Wiper Motor, Front & Rear Washer, Backup Lamp
F10
10A
IGN 2
Auto Miror Switch
F11
10A
Ef2
IMMO, Audio, Room Lamp
F12
15A
Ef2
Hazard, Clock
F13
20A
Ef2
Anti-Theft Control Unit, Door Lock
F14
20A
ST
Starter Motor
