6E – 6  STEERING WHEEL AND COLUMN

Ignition Switch

Condition

Probable Cause

Correction

Electrical System Will

D

Damaged ignition switch.

D

Replace the ignition switch.

Not Function

D

Improperly installed ignition switch.

D

Remove and inspect the ignition
switch.

D

Reinstall the ignition switch.

D

Improperly installed ignition switch electrical
connector.

D

Reconnect the ignition switch
electrical connector.

D

Replace the ignition switch electrical
connector.

Ignition Switch Will

D

Damaged ignition switch.

D

Replace the ignition switch.

Not Turn

D

Improperly installed ignition switch.

D

Remove and inspect the ignition
switch.

D

Reinstall the ignition switch.

Wiper Switch Lever

Condition

Probable Cause

Correction

Switch Inoperative :

D

Damaged wiper switch.

D

Replace the wiper switch.

No I, Low, High, Int
or Wash

D

Improperly installed wiper switch.

D

Remove and inspect the wiper
switch.

D

Reinstall the wiper switch.

STEERING WHEEL AND COLUMN  6E – 7

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE

D105A501

D15A502A

DW310–010

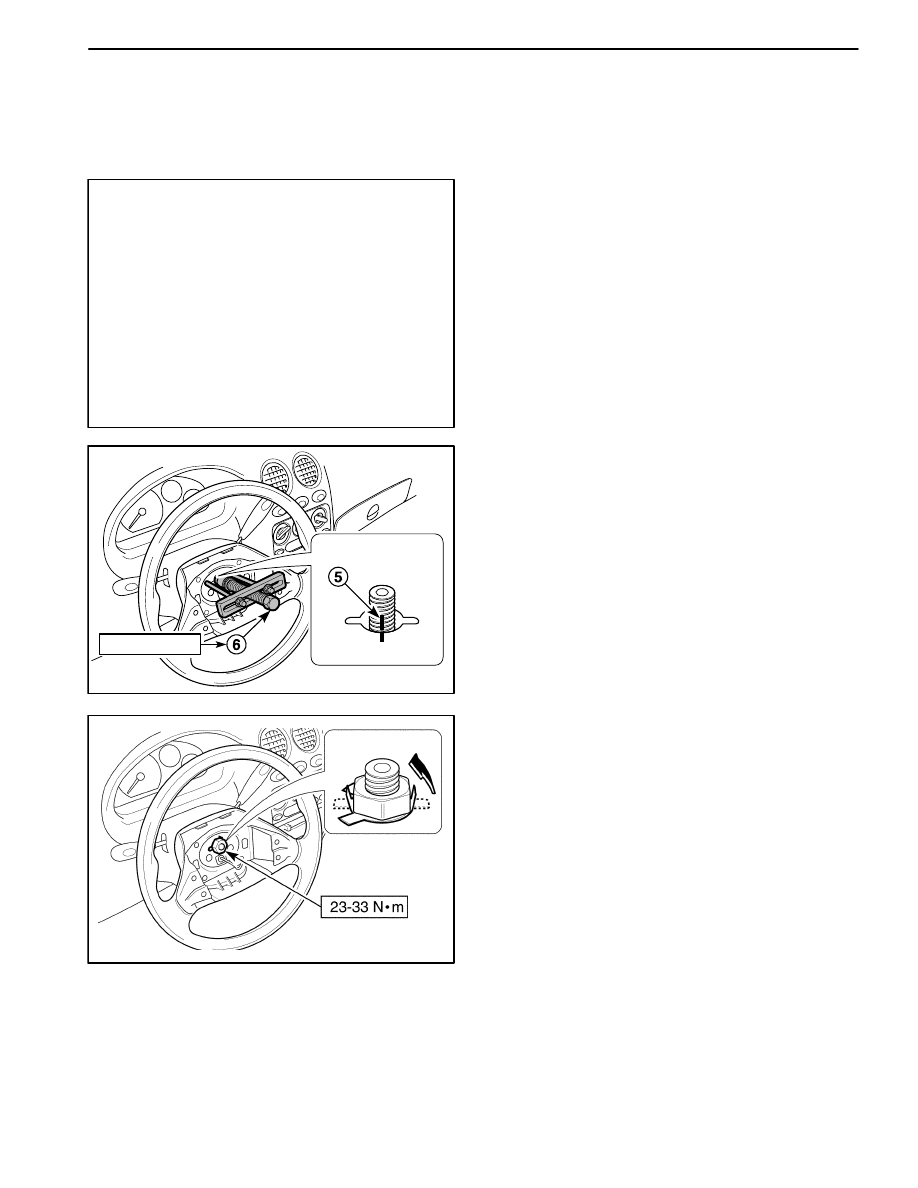

STEERING WHEEL

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Tools Required

DW310–010, Steering Wheel Puller

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the SIR module. Refer to Section 8B, Sup-

plemental Inflatable Restraints. (For vehicle with SIR)

3. Remove the steering wheel.

4. Remove the steering wheel horn cover (For vehicle

without SIR) (1).

D

Straighten the bending locking plate (2).

D

Remove the nut (3).

D

Remove the locking plate (4).

D

In order to install the steering wheel correctly,
match–mark the steering column shaft to the
steering wheel (5).

D

Remove the steering wheel using the steering
wheel puller DW310–010 (6).

Important: Be careful not to hit the top of steering col-
umn shaft with hammer during repair work.

D15A503A

Installation Procedure

1. Install the SIR module. Refer to Section 8B, Supple-

mental Inflatable Restraints (For vehicle with SIR).

Important: Align the match marks on the steering wheel
and the steering column shaft.

2. Install the steering wheel with the nut and the locking

plate.

Tighten

Tighten the steering wheel nut to 23–33 N

S

m (17–24

lb-ft).

3. Bend the tabs to secure the locking plate.

4. Install the steering wheel horn cover (For vehicle

without SIR).

5. Connect the negative battery cable.

6E – 8  STEERING WHEEL AND COLUMN

D105A504

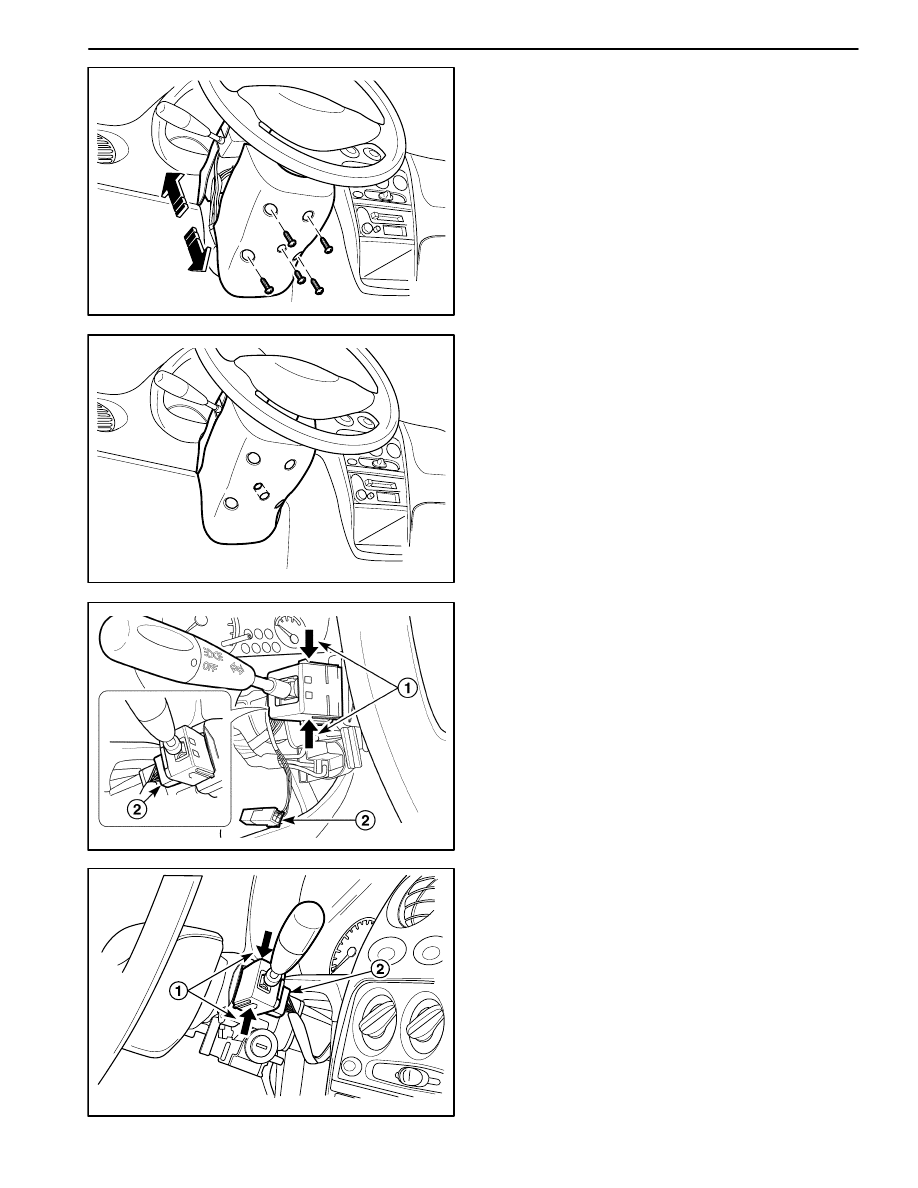

STEERING COLUMN COVER

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure

1. Remove the screws.

2. Remove the steering column lower and upper cover.

D105A505

Installation Procedure

1. Install the steering column lower and upper cover with

the screws.

D105A506

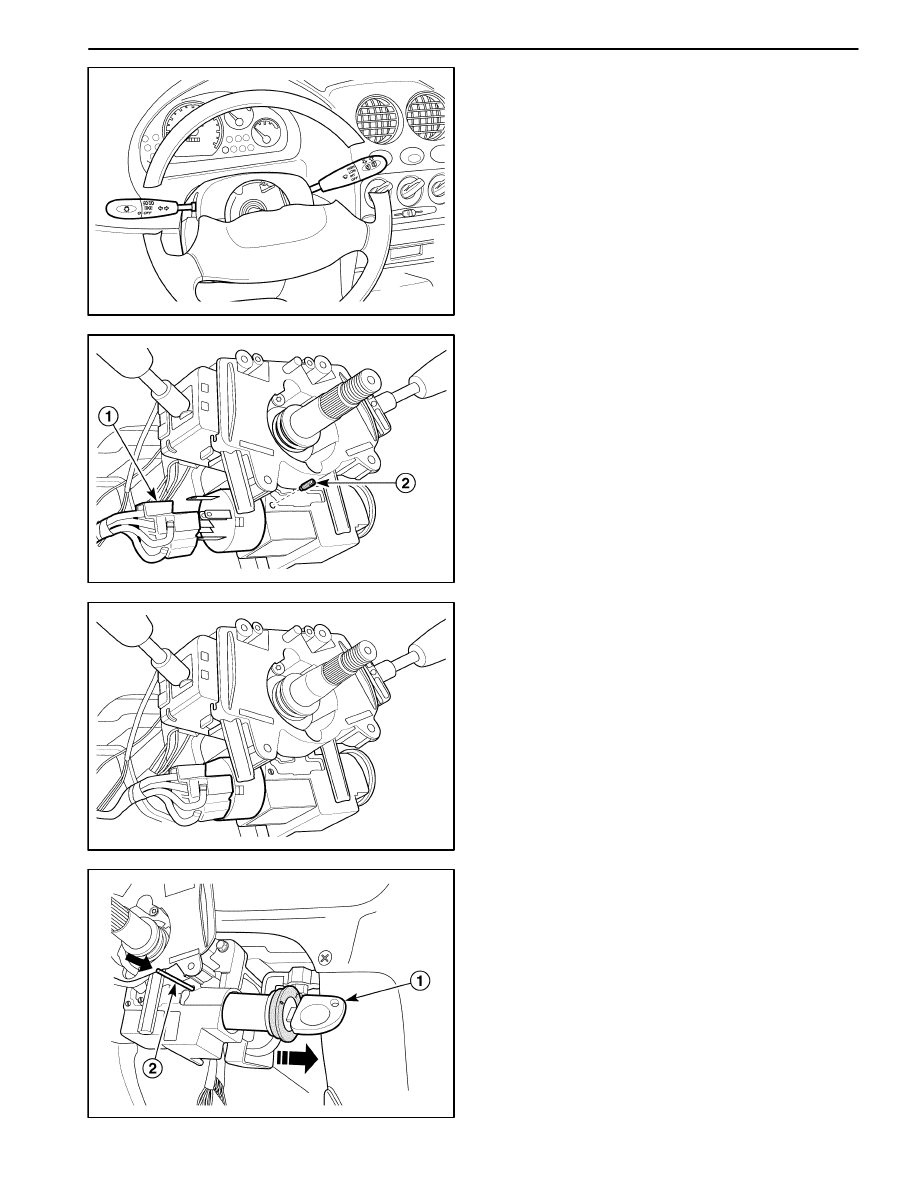

TURN SIGNAL SWITCH AND LEVER/
WIPER SWITCH AND LEVER

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure

1. Disconnect the negative battery cable.
2. Remove the steering column cover. Refer to “Steer-

ing Column Cover” in this section.

3. Remove the turn signal switch.

D

Disconnect the turn signal switch by pushing the
locking from the switch housing (1).

D

Disconnect the connector (2).

D105A507

4. Remove the wiper switch.

D

Disconnect the wiper switch by pushing the locking
from the switch housing (1).

D

Disconnect the connector (2).

STEERING WHEEL AND COLUMN  6E – 9

D105A508

Installation Procedure

1. Install the wiper switch.

2. Install the turn signal switch.

3. Install the steering column cover. Refer to “Steering

Column Cover” in this section.

4. Connect the negative battery cable.

D105A509

IGNITION SWITCH

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the steering wheel. Refer to “Steering

Wheel” in this section.

3. Remove the ignition switch.

D

Disconnect the electrical connector (1).

D

Remove the screw (2).

D105A510

Installation Procedure

1. Connect the electrical connector.

2. Install the ignition switch with the screw.

3, Install the steering wheel. Refer to “Steering Wheel”

in this section.

4. Connect the negative battery cable.

D105A511

IGNITION LOCK CYLINDER WITH
IMMOBILIZER

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure

1. Remove the steering wheel. Refer to “Steering

Wheel” in this section.

2. Disconnect the electrical connector for the immobiliz-

er detection coil.

3. Remove the lock cylinder.

D

With the key in the ignition, turn to the position des-
ignated I (1).
