1E – 12  ENGINE ELECTRICAL

BATTERY LOAD TEST

1. Check the battery for obvious damage, such as a

cracked or broken case or cover, which could permit
the loss of electrolyte. If obvious damage is noted, re-
place the battery.

Caution: Do not charge the battery if the hydrometer
is clear or light yellow. Instead, replace the battery. If
the battery feels hot or if violent gassing or spewing
of electrolyte through the vent hole occurs, discontin-
ue charging or reduce the charging rate to avoid inju-
ry.

2. Check the hydrometer. If the green dot is visible, go to

the load test procedure. If the indicator is dark but
green is not visible, charge the battery. For charging a
battery removed from the vehicle, refer to “Charging a
Completely Discharged Battery” in this section.

3. Connect a voltmeter and a battery load tester across

the battery terminals.

4. Apply a 300-ampere load for 15 seconds to remove

any surface charge from the battery.

5. Remove the load.

6. Wait 15 seconds to let the battery recover, and apply

a 270-ampere load.

Important: The battery temperature must be estimated
by touch and by the temperature condition the battery
has been exposed to for the preceding few hours.

7. If the voltage does not drop below the minimum

listed, the battery is good and should be reinstalled. If
the voltage is less than the minimum listed, replace
the battery. Refer to “Battery Specifications” in this
section.

GENERATOR OUTPUT TEST

1. Perform the generator system test. Refer to “Gener-

ator System Check” in this section.

2. Replace the generator if it fails that test. Refer to

“Generator” in the On-Vehicle Service section. If it
passes the test, perform the on-vehicle output
check which follows.

Important: Always check the generator for output be-
fore assuming that a grounded “L” terminal circuit has
damaged the regulator.

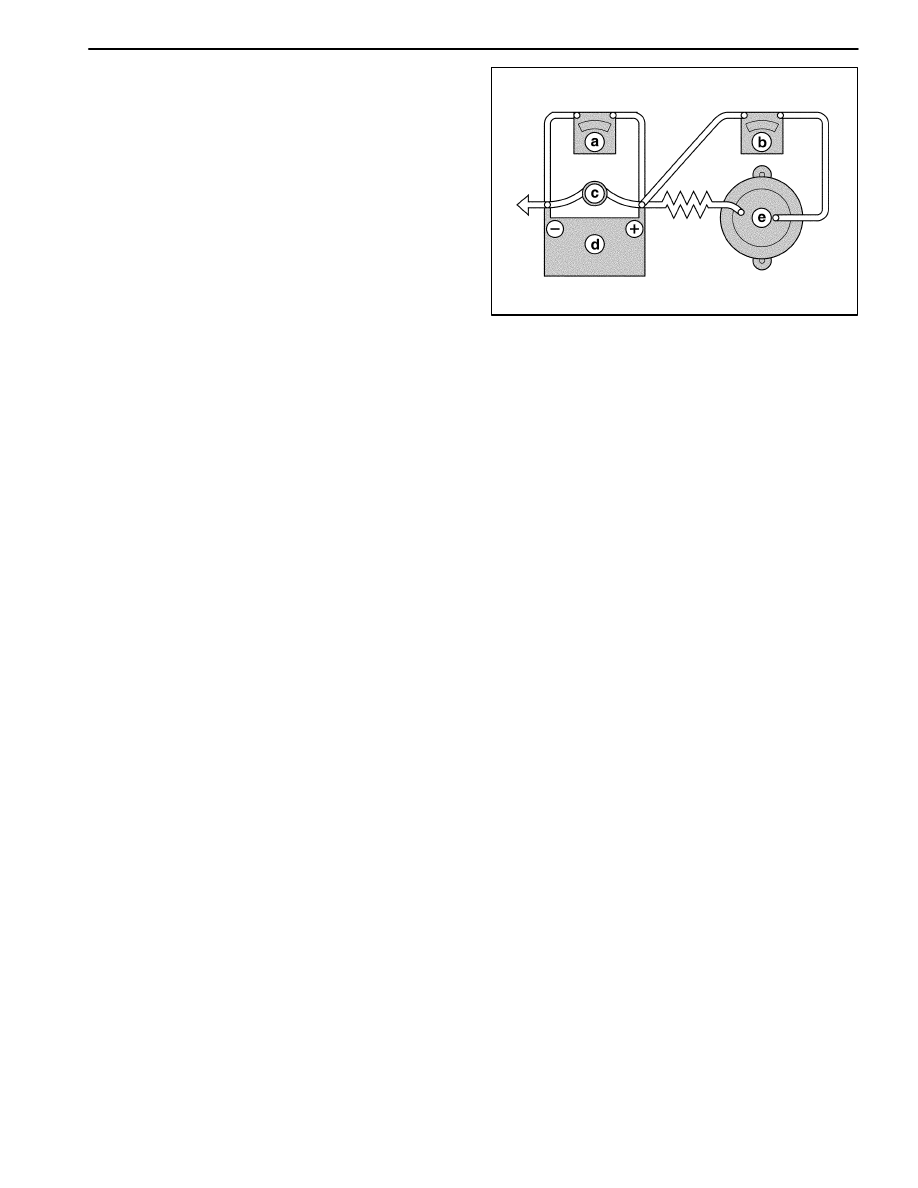

3. Attach a digital multimeter (a), an ammeter (b), and

a carbon pile load (c) to the battery (d) and the gen-
erator (e) of the rehicle.

D102E301

Important: Be sure the vehicle battery is fully charged,
and the carbon pile load is turned off.

4. With the ignition switch in the OFF position, check

and record the battery voltage.

5. Remove the harness connector from the generator.

6. Turn the ignition switch to the ON position with the

engine not running. Use a digital multimeter to
check for voltage in the harness connector “L” termi-
nal.

7. The reading should be near the specified battery

voltage of 12 volts. If the voltage is too low, check
the indicator “L” terminal circuits for open and
grounded circuits causing voltage loss. Correct any
open wires, terminal connections, etc., as neces-
sary. Refer to “Charging System” in this section.

8. Attach the generator harness connector.

9. Run the engine at a moderate idle, and measure the

voltage across the battery terminals. The reading
should be above that recorded in Step 4 but less
than 15 volts. If the reading is over 15 volts or below
the previous reading, replace the generator. Refer to
“Generator” in the On-Vehicle Service section.

10. Run the engine at a moderate idle, and measure the

generator amperage output.

11. Turn on the carbon pile, and adjust it to obtain the

maximum amps while maintaining the battery volt-
age above 13 volts.

12. If the reading is within 15 amps of the generator’s

rating noted on the generator, the generator is good.
If not, replace the generator. Refer to “Generator”
in the On-Vehicle Service section.

13. With the generator operating at the maximum out-

put, measure the voltage between the generator
housing and the battery negative terminal. The volt-
age drop should be 0.5 volt or less. If the voltage
drop is more than 0.5 volt, check the ground path
from the generator housing to the negative battery
cable.

14. Check, clean, tighten, and recheck all of the ground

connections.

ENGINE ELECTRICAL  1E – 13

GENERATOR SYSTEM CHECK

When operating normally, the generator indicator lamp
will come on when the ignition switch is in the ON posi-
tion and go out when the engine starts. If the lamp oper-
ates abnormally or if an undercharged or overcharged
battery condition occurs, the following procedure may
be used to diagnose the charging system. Remember
that an undercharged battery is often caused by acces-
sories being left on overnight or by a defective switch
that allows a lamp, such as a trunk or glove box lamp, to
stay on.

Diagnose the generator with the following procedure:

1. Visually check the belt and wiring.

2. With the ignition switch in the ON position and the en-

gine stopped, the charge indicator lamp should be on.
If not, detach the harness at the generator and
ground the ‘‘L’’ terminal in the harness with a fused,
5-ampere jumper lead.

D

If the lamp lights, replace the generator. Refer to
“Generator” in the On-Vehicle Service section.

D

If the lamp does not light, locate the open circuit
between the ignition switch and the harness con-
nector. The indicator lamp bulb may be burned out.

3. With the ignition switch in the ON position and the en-

gine running at moderate speed, the charge indicator
lamp should be off. If not, detach the wiring harness
at the generator.

D

If the lamp goes off, replace the generator. Refer to
“Generator” in the On-Vehicle Service section.

D

If the lamp stays on, check for a short to ground in
the harness between the connector and the indica-
tor lamp.

Important:  Always check the generator for output be-
fore assuming that a grounded ‘‘L’’ terminal circuit has
damaged the regulator. Refer to “Generator” in the Unit
Repair section.

1E – 14  ENGINE ELECTRICAL

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE

D12E5011

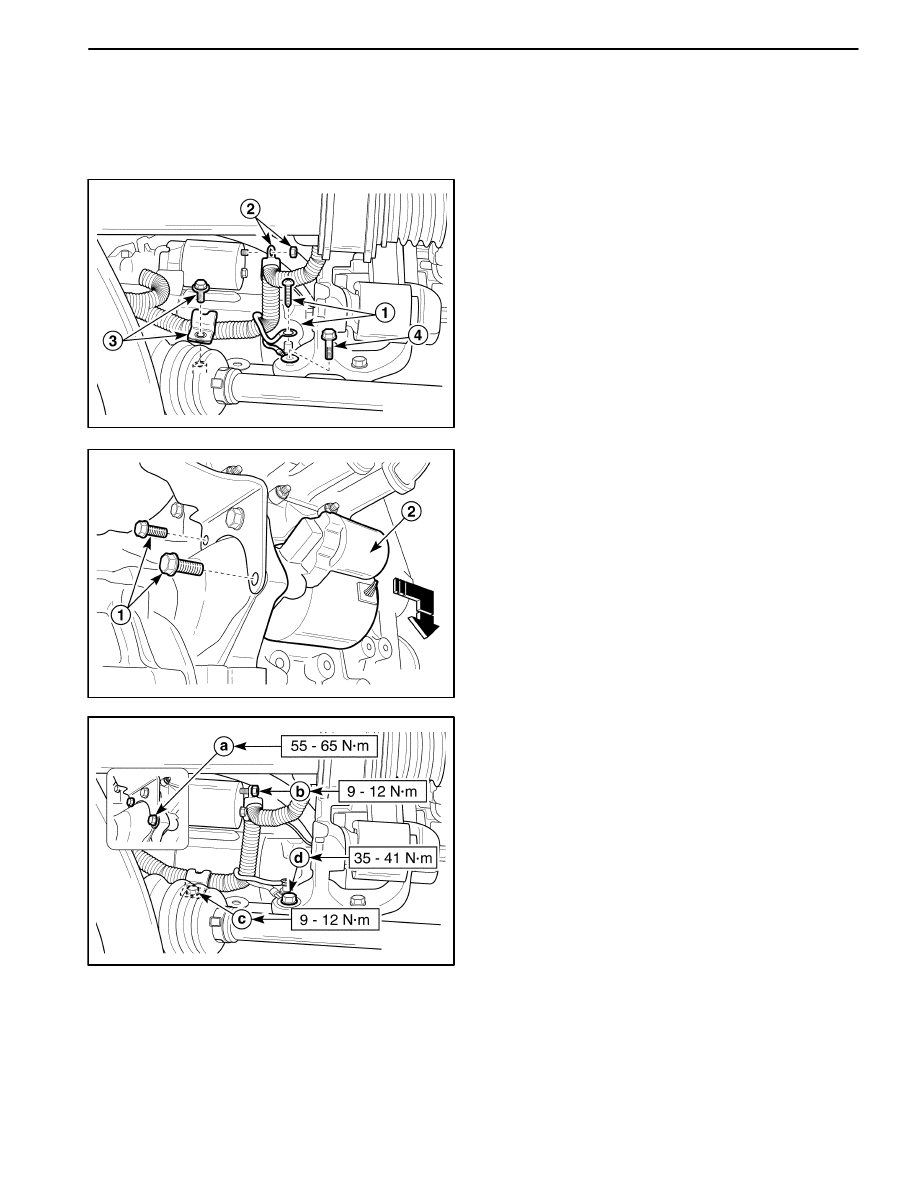

STARTER

Removal Procedure

1. Disconnect the negative battery cable.

2. Disconnect the electrical connector and clip around

the starter.

D

Remove the engine oil temperature sensor to dis-
connect the harness connector (1).

D

Remove the starter solenoid nut to disconnect the
electrical cable (2).

D

Remove the harness clip bolt to disconnect the
harness clip (3).

D

Remove the ground bolt (4).

D102E502

3. Remove the starter assembly.

D

Remove the starter mounting bolts (1).

D

Remove the starter assembly (2).

D12E5031

Installation procedure

1. Install in the reverse order of removal.

2. Install the starter mounting bolts and starter solenoid

nut.

Tighten

D

Tighten the starter mounting bolts to 55–65 N

S

m

(41–48 lb-ft) (a).

D

Tighten the starter solenoid nut to 9–12 N

S

m

(80–106 lb-in) (b).

D

Tighten the harness clip bolt to 9–12 N

S

m (80–106

lb-in) (c).

D

Tighten the ground bolt to 35–41  N

S

m (26–30 lb-ft)

(d).

ENGINE ELECTRICAL  1E – 15

D102E504

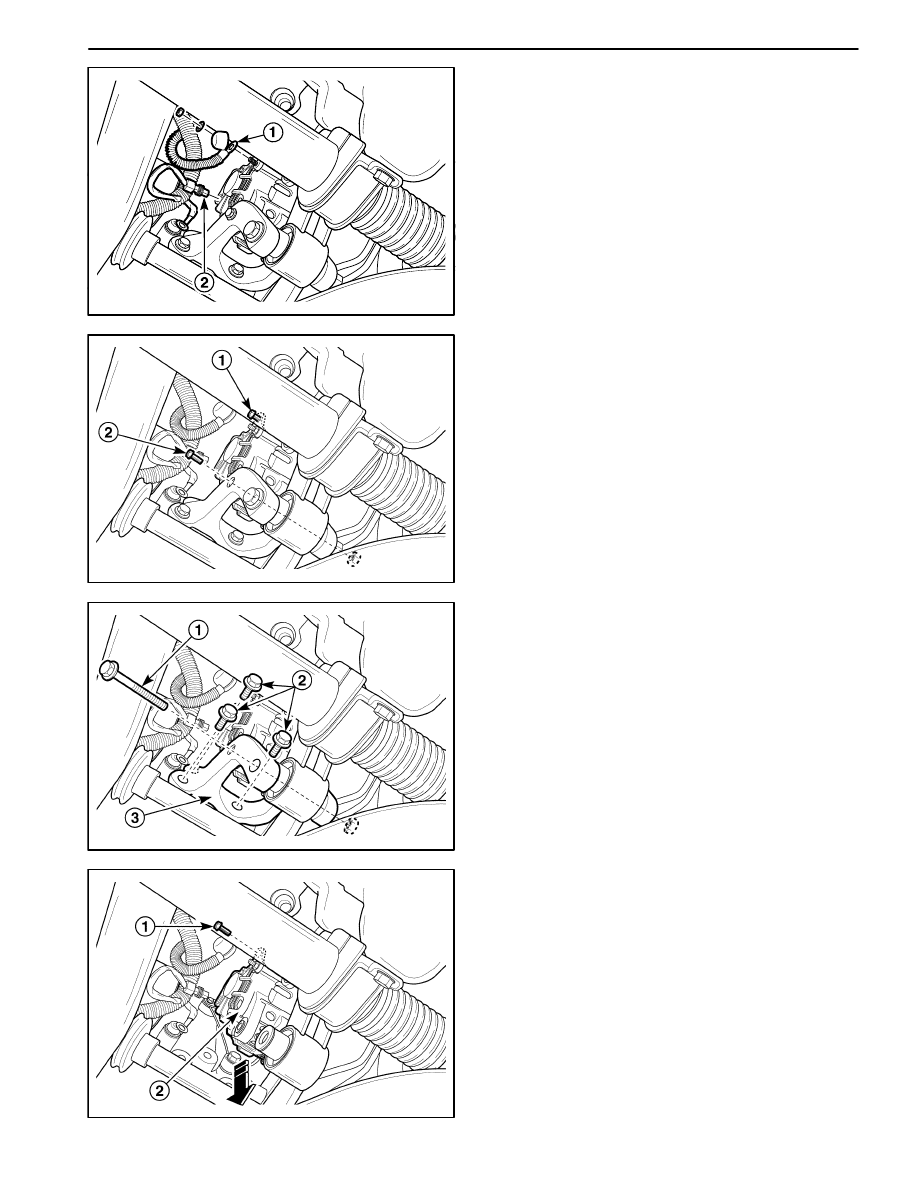

GENERATOR

Removal Procedure

1. Disconnect the negative battery cable.

2. Disconnect the harness connector.

D

Remove the battery harness connector nut to dis-
connect the battery positive connector (1).

D

Disconnect the generator harness connector (2).

D102E505

3. Remove the generator drive belt.

D

Loosen the generator adjusting bolt (1).

D

Remove the lower bracket-to-generator bolt and
nut (2).

D

Separate the generator drive belt from the genera-
tor.

D102E506

4. Remove the engine mounting lower bracket.

D

Remove the engine mounting lower bracket, at-
taching reaction rod bolt and nut (1).

D

Remove the engine mounting lower bracket bolts
(2).

D

Remove the engine mounting lower bracket (3).

D102E507

5. Remove the generator.

D

Remove the generator adjusting bolt (1).

D

Carefully remove the genrator (2).
