FATC-HAVC  7D-11

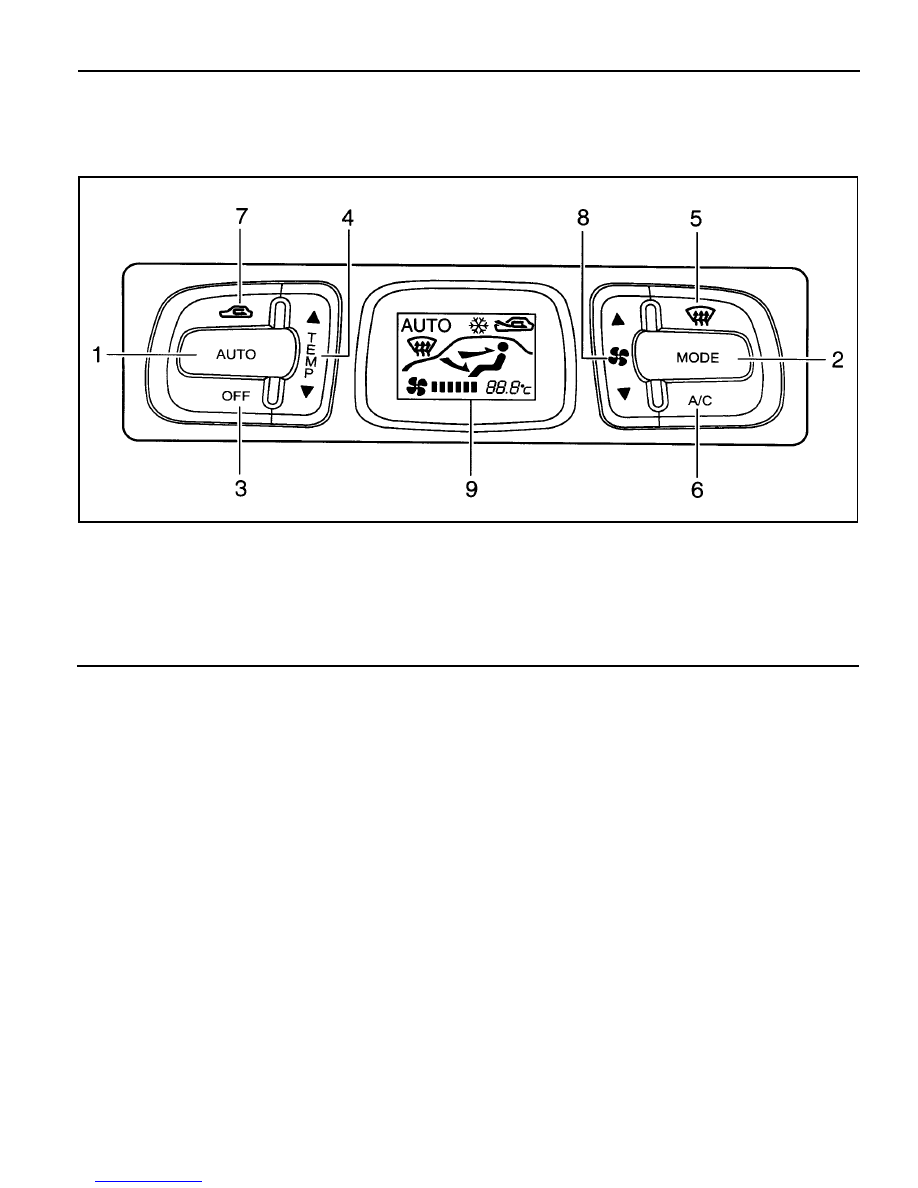

1 AUTO Switch
2 MODE Switch
3 OFF Switch
4 Temperature UP/DOWN Switch
5 Defrost Switch

6 Airconditioner Switch
7 Recirculation

•

fresh Air Switch

8 Blower Switch (UP/DOWN)
9 VFD (Vacuum Fluorescent Display)

MAINTENANCE AND REPAIR

FATC CONTROL PANEL

7D-12  FATC-HAVC

Pin Number and Connection Circuit

Pin No.

1

Connection circuit

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

Rheostat

Tail lamp

Battery (+)

Power TR (B)

Power TR (C)

Temperature actuator (CCW)

IG2

Ground

Airconditioner switch ground

HI speed relay

Photo sensor (+)

Photo sensor (-)

Temperature actuator F/B

Temperature actuator (CW)

IG2

Ground

Connector A

Pin No.

1

Connection circuit

2

3

4

5

6

7

8

9

10

11

12

13

14

15

Incar sensor (+)

Ambient sensor (+)

Coolant sensor (+)

Sensor voltage 5V

Sensor ground

Intake (ambient)

Intake (incar)

-

-

-

VENT

B/L

FLR

MIX

DEF

-

-

-

-

-

Connector B

17

18

19

20

16

20-pin (B)

16-pin (A)

1

11

2

12

3

13

4

14

5

15

6

16

7

17

8

18

9

19

10

20

1

9

2

10

3

11

4

12

5

13

6

14

7

15

8

16

FATC-HAVC  7D-13

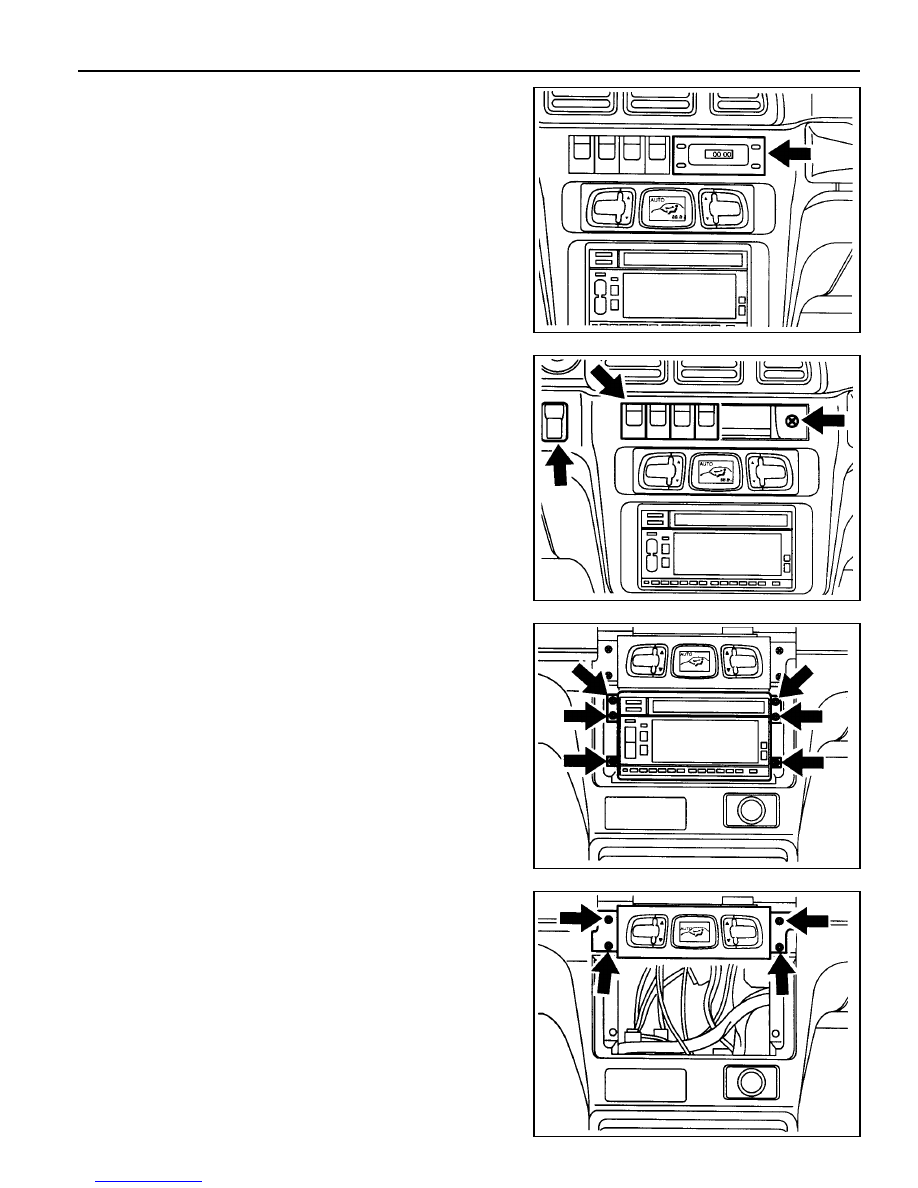

Removal & Installation Procedure

1. Turn the ignition switch to OFF position.

2. Remove the digital clock.

3. Unscrew the screw from the center panel, pull out each

switches and remove the center panel.

4. Unscrew the 6 screws and remove the audio control panel

assembly.

5. Unscrew the 4 screws and remove the airconditioner control

panel assembly.

6. Installation should follow the removal procedure in the

reverse order.

7D-14  FATC-HAVC

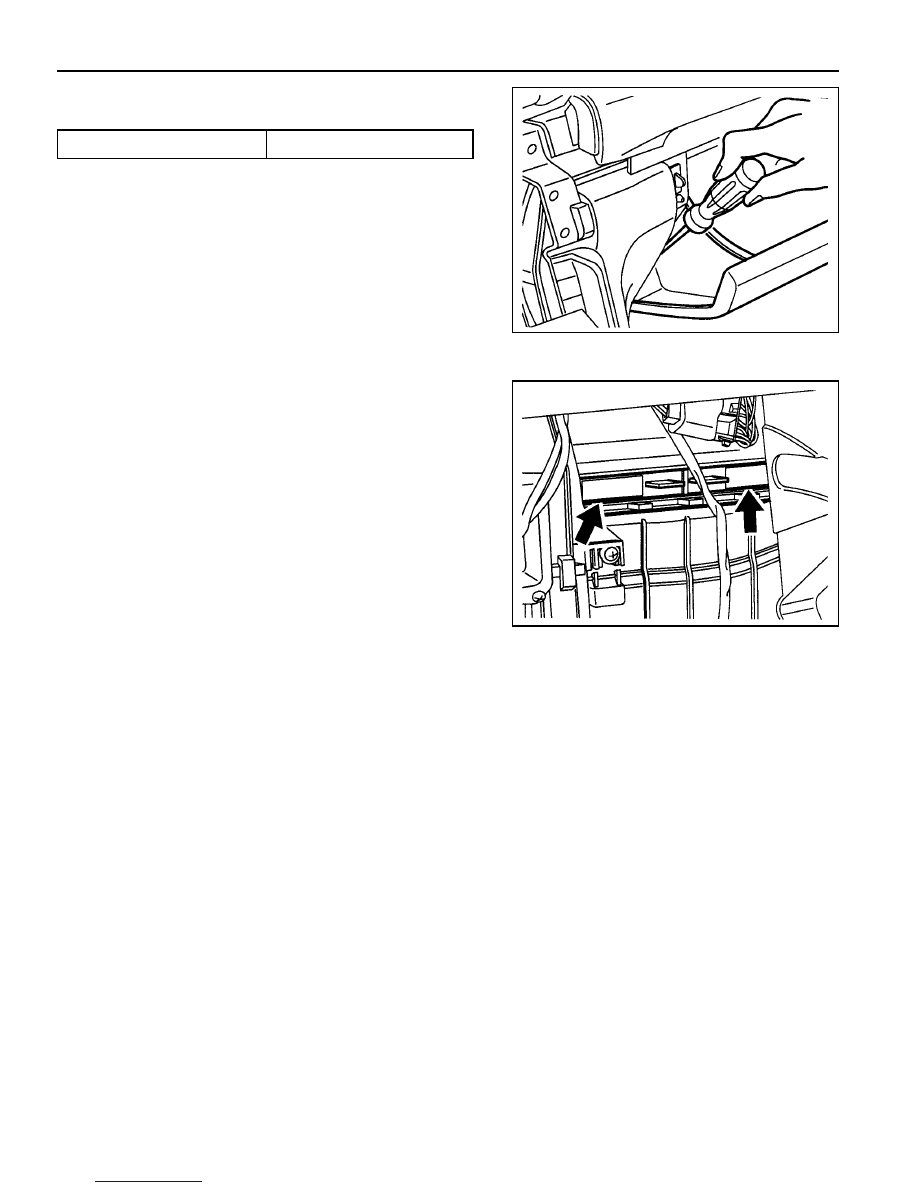

Air Filter; replace

Notice

Replace earlier if air pollution is heavy.

Replacement1.

1. Open the glove box and pull it inward to release the upper

left and right locking portion.

Notice

Remove the glove box by unscrewing lower 2 screws, if
necessary.

2. Press the 2 filter cover holds and remove the air filter cover.

3. Remove the 2 air filters.

Notice

For installation, remember the installed direction of the air
filter before removal.

Replacement Interval

Every 10,000km
