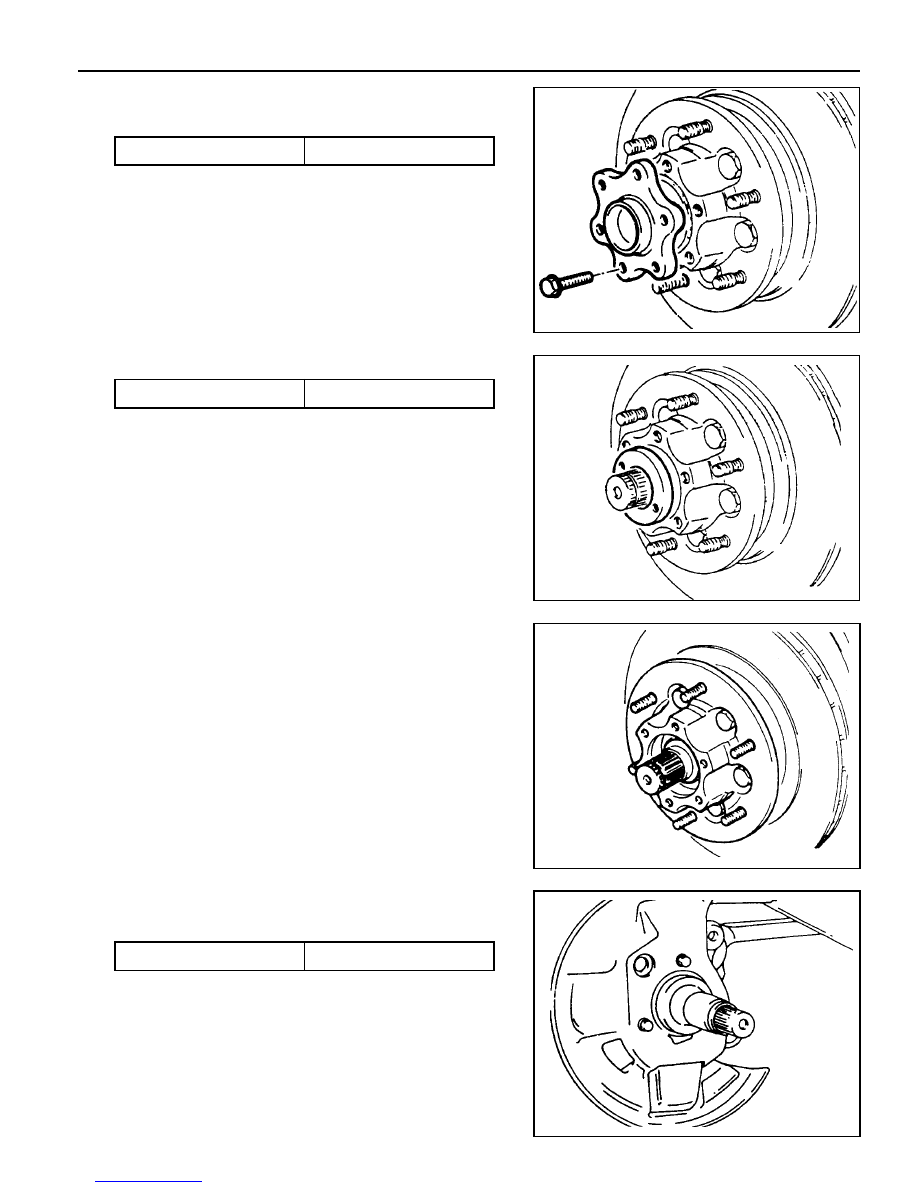

FRONT DRIVE AXLE  3A-11

8.

Remove the hub and disk assembly.

9.

Remove the disk brake dust shield.

Installation Notice

Tightening  Torque

4 - 6 Nm

6-2. Unscrew the bolts and remove hub flange.

Installation Notice

Tightening  Torque

70 - 90 Nm

Before installation, apply loctite on the mating surface.

7.

Remove the hub nut with special tool.

Tightening Torque

15 Nm

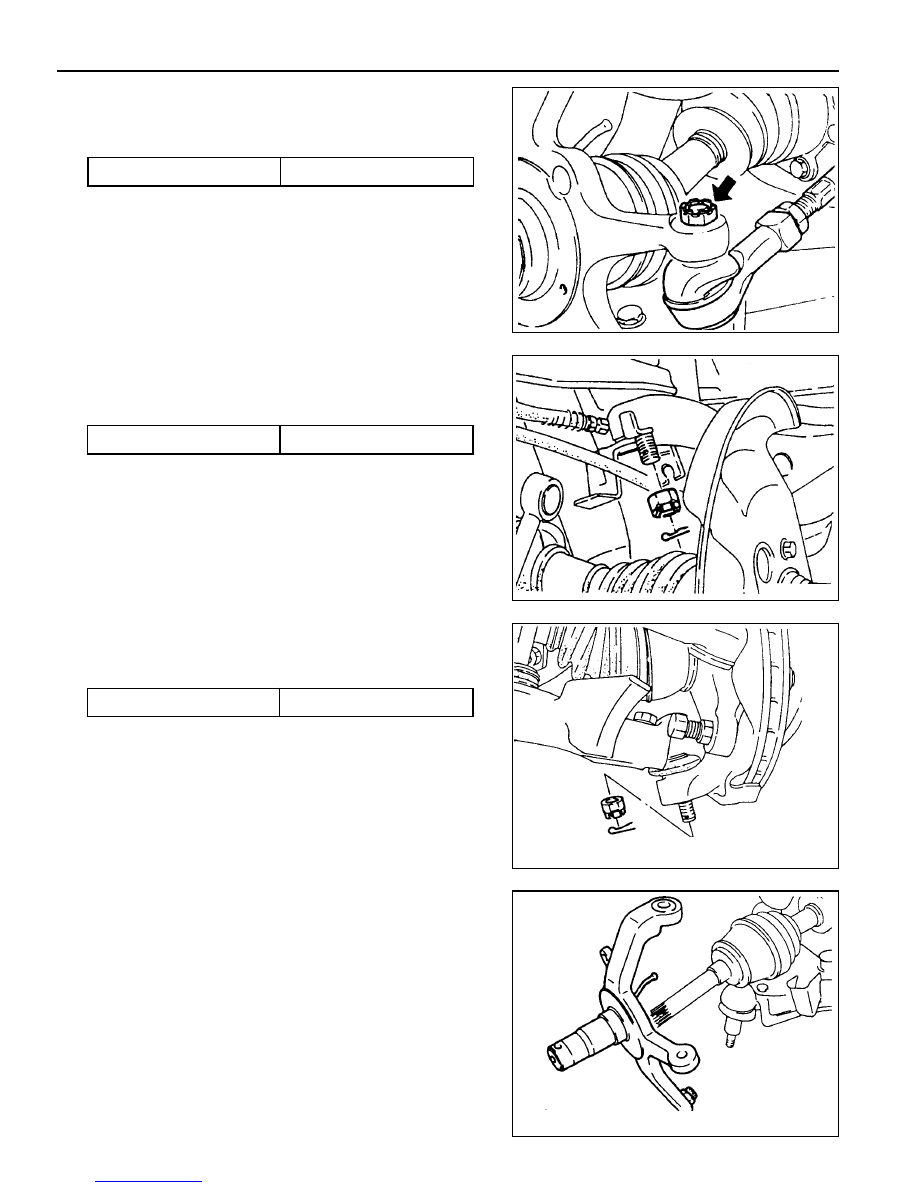

3A-12  FRONT DRIVE AXLE

10. Remove the cotter pin and slotted nut and then remove

the steering knuckle arm and tie-rod.

Installation Notice

Replace the cotter pin with new one.

Tightening  Torque

35 - 45 Nm

11. Remove the cotter pin and nut from the steering knuckle

arm and upper arm ball joint connection.

Installation Notice

Tightening  Torque

80 - 150 Nm

Replace the cotter pin with new one.

12. Remove the cotter pin and nut from the steering knuckle

arm and lower and lower arm boll joint connection.

13. Carefully remove the knuckle arm.

Installation Notice

Tightening  Torque

120 - 180 Nm

FRONT DRIVE AXLE  3A-13

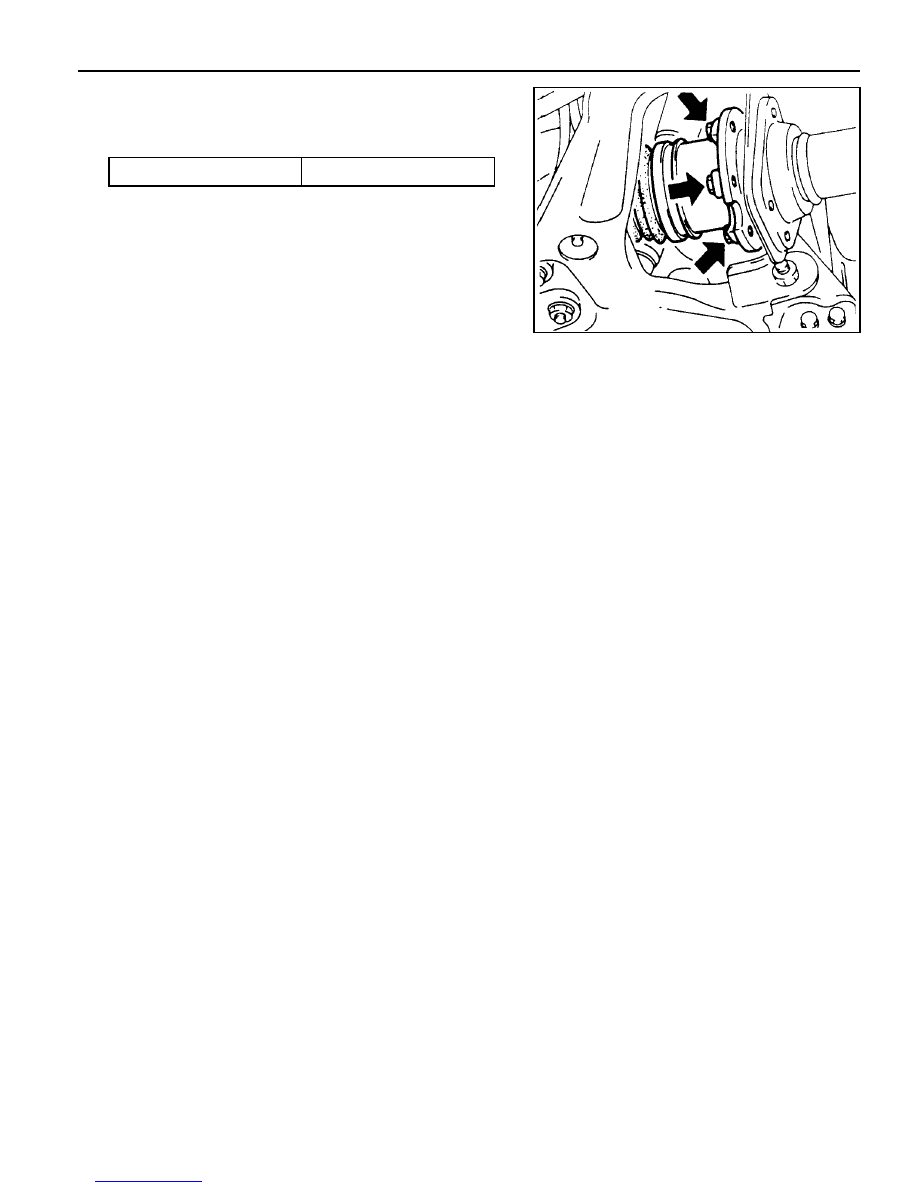

14. Remove the drive shaft mounting bolts and remove the

drive shaft.

Installation Notice

Tightening  Torque

45 - 60 Nm

15. Installation should follow the removal precedure in the

reverse order.

Observe the tighening torque and sequence.

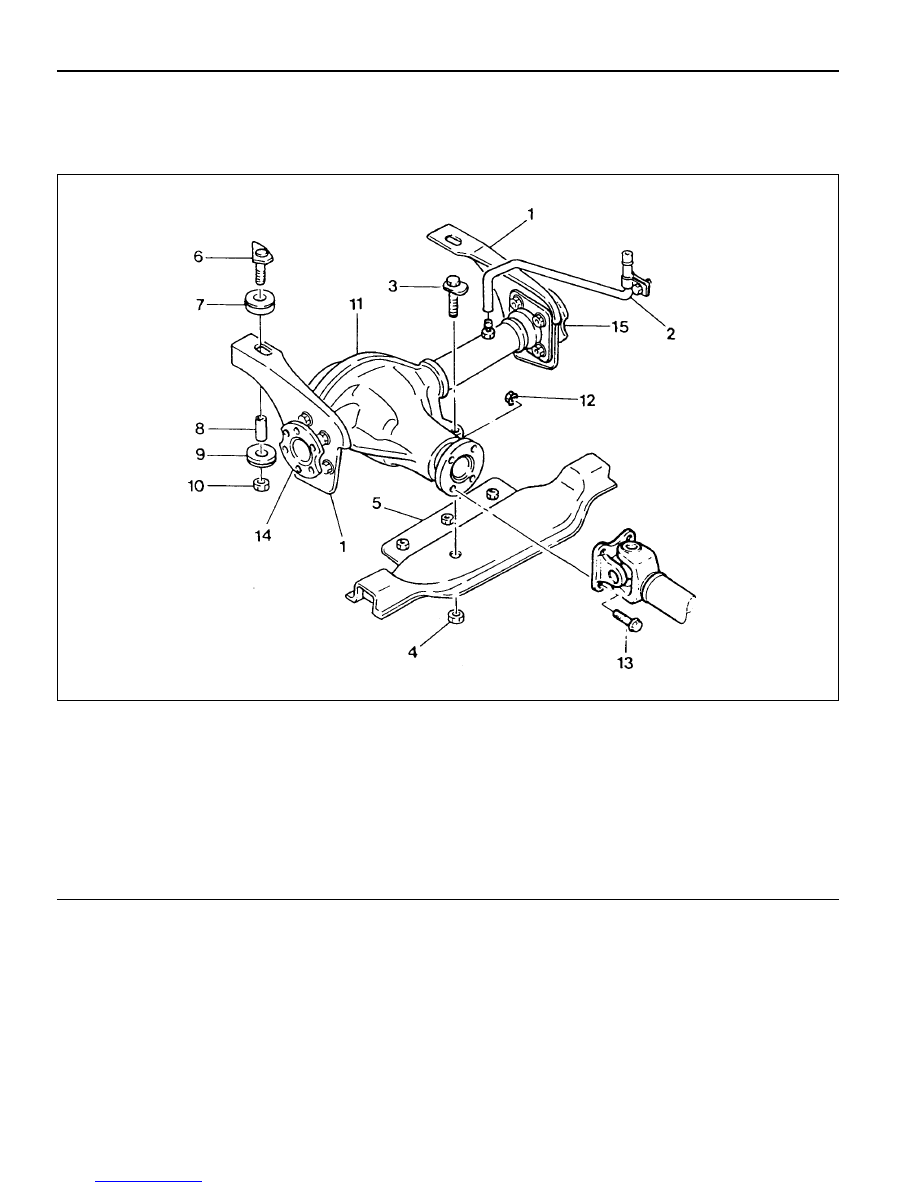

3A-14  FRONT DRIVE AXLE

1 Axle Mounting Bracket
2 Breather Hose
3 Bolt (Rear)
4 Nut ..................................................... 95-142 Nm
5 Cross Member
6 Bolt (Front)
7 Bushing
8 Spacer

FRONT AXLE

9 Bushing

10 Nut ..................................................... 95-142 Nm

11 Front Axle Assembly

12 Nut ....................................................... 70-80 Nm
13 Bolt
14 Inner Axle Shaft (LH)
15 Inner Axle Shaft (RH)

Preceding Work : Removal of the front axle drive shaft

 Removla of the steering gear box
