FRONT DRIVE AXLE  3A-3

1 Drive Shaft
2 Axle Housing Mounting Bolt
3 Axle Housing
4 Cross Member

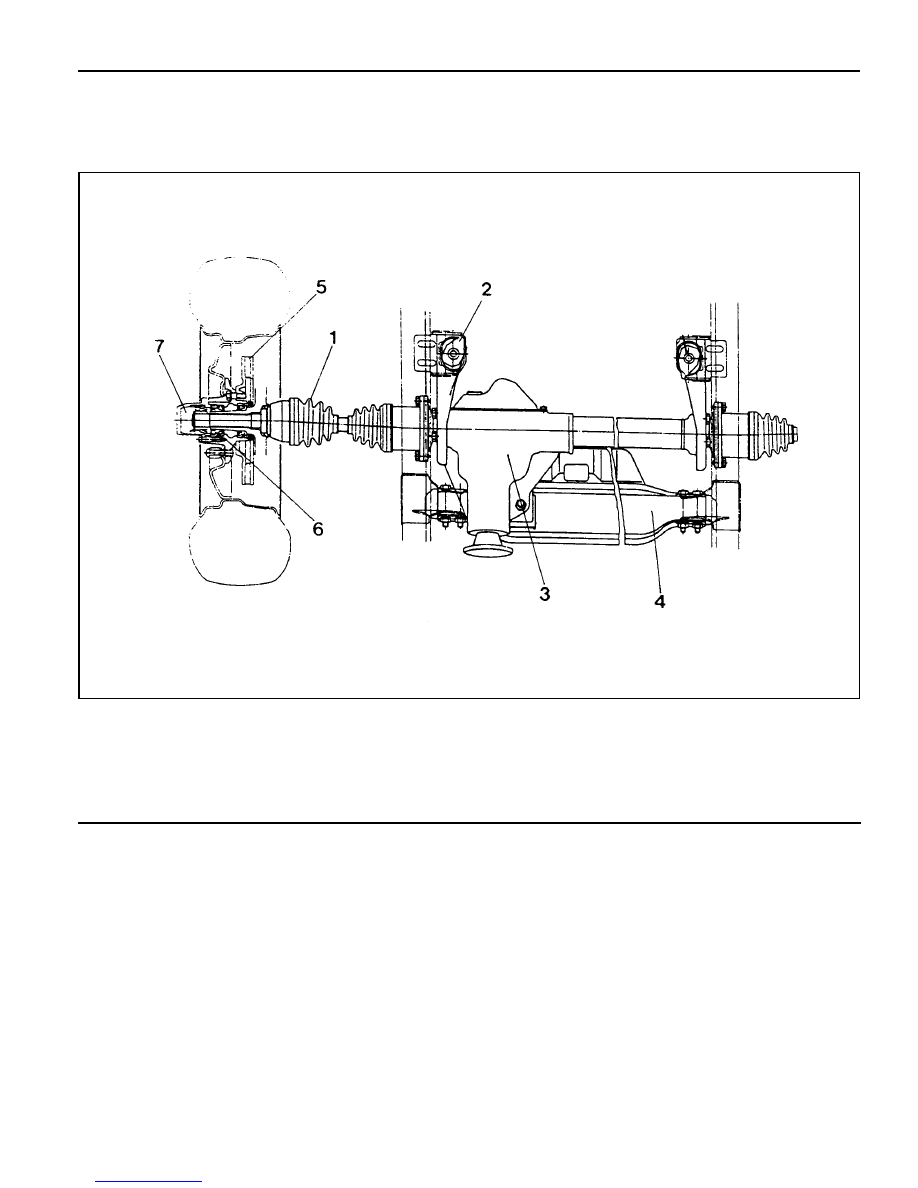

COMPONENT LOCATOR

FRONT AXLE

5 Brake Disc
6 Hub-Wheel
7 Locking Hub

3A-4   FRONT DRIVE AXLE

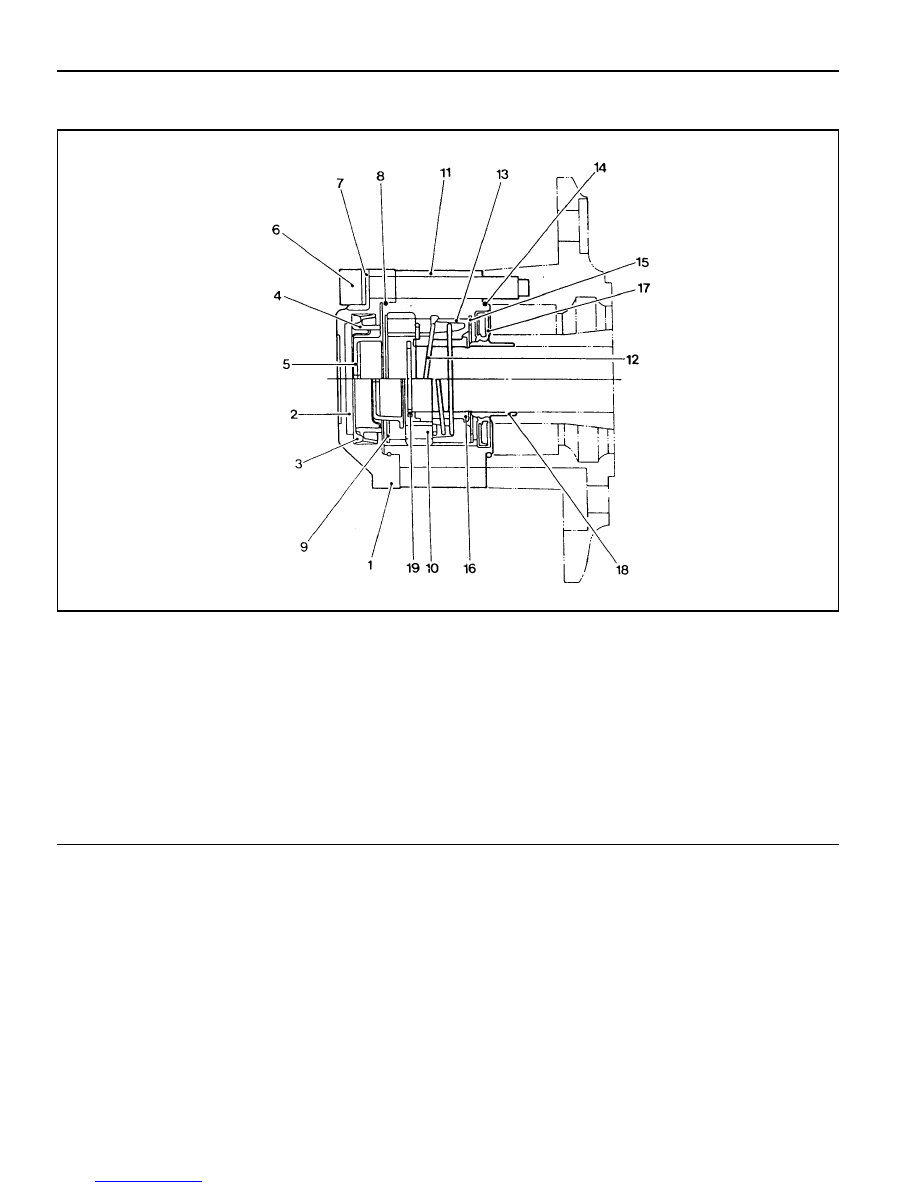

AUTO-LOCKING HUB

1 Cap
2 Filter
3 Vacuum Diaphragm
4 Diaphragm Retainer
5 Piston
6 Bolt (M10)
7 Lock Washer
8 O-ring
9 Retaining Ring

10 Clutch Ring

11 Body

12 Return Spring
13 Bearing
14 O-ring
15 Retaining Ring
16 Inner Drive Gear
17 Oil Seal
18 Oil Seal Race
19 Axle Retaining Ring

FRONT DRIVE AXLE  3A-5

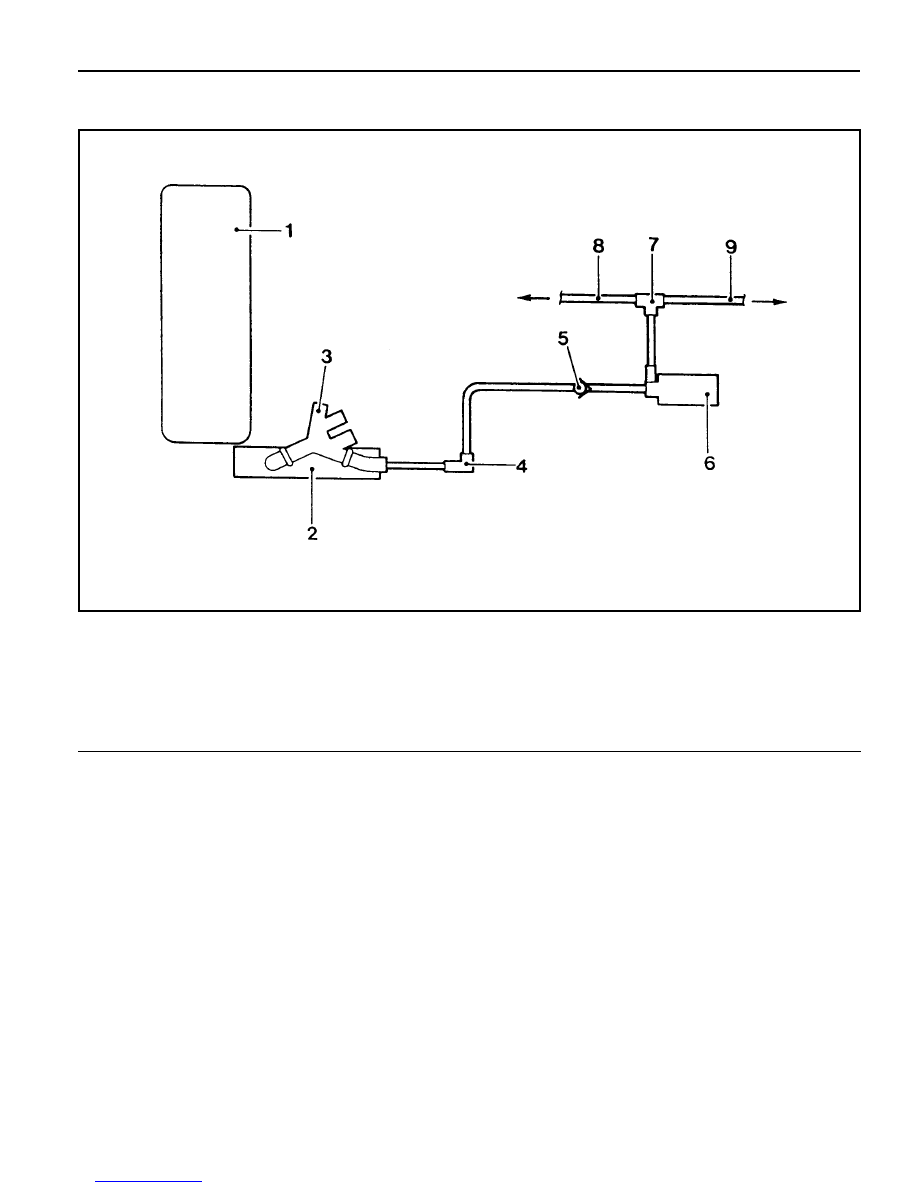

VACUUM CIRCUIT

1 Engine
2 Vacuum Pump
3 3-way Connector
4 T-connector
5 Check Valve

6 Auto locking Hub Solenoid Valve
7 T-connector Hose
8 Hub Hose (left)
9 Hub Hose (right)

3A-6  FRONT DRIVE AXLE

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

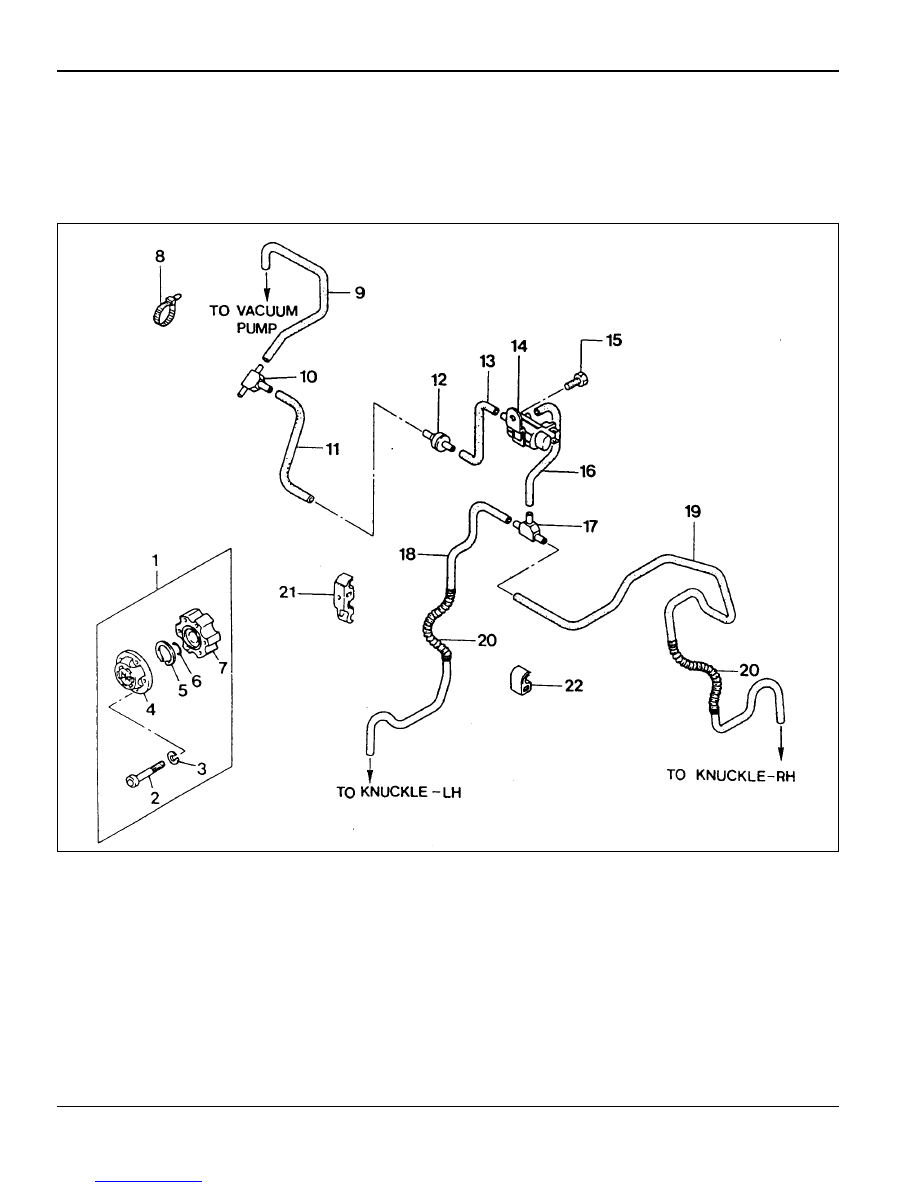

VACUUM LINE

1 Vacuum Auto-locking Hub Assembly
2 Bolt ...................................................... 50-60 Nm
3 Cam Washer
4 Auto-locking Hub Cap
5 Retainer Ring
6 Shim
7 Locking Hub
8 Band
9 Hose (L : 400)

10 T-connector

11 Hose (L : 250, white)

12 Check Valve
13 Hose (L :100, green)
14 Auto Locking Hub Solenoid Valve
15 Bolt
16 Hose (L :100, green)
17 T-connector
18 Hose (L : 720, yellow)
19 Hose (L :2, 360 , red)
20 Corrugated Tube
21 Clip
22 Clip
