1B1-12  M162 ENGINE MECHANICAL

19. Disconnect the engine ground wire.

20. Disconnect following sensors connector.

l

HFM sensor.

l

Coolant temperature sensor.

l

2 knock sensors.

l

Camshaft and crankshaft sensors.

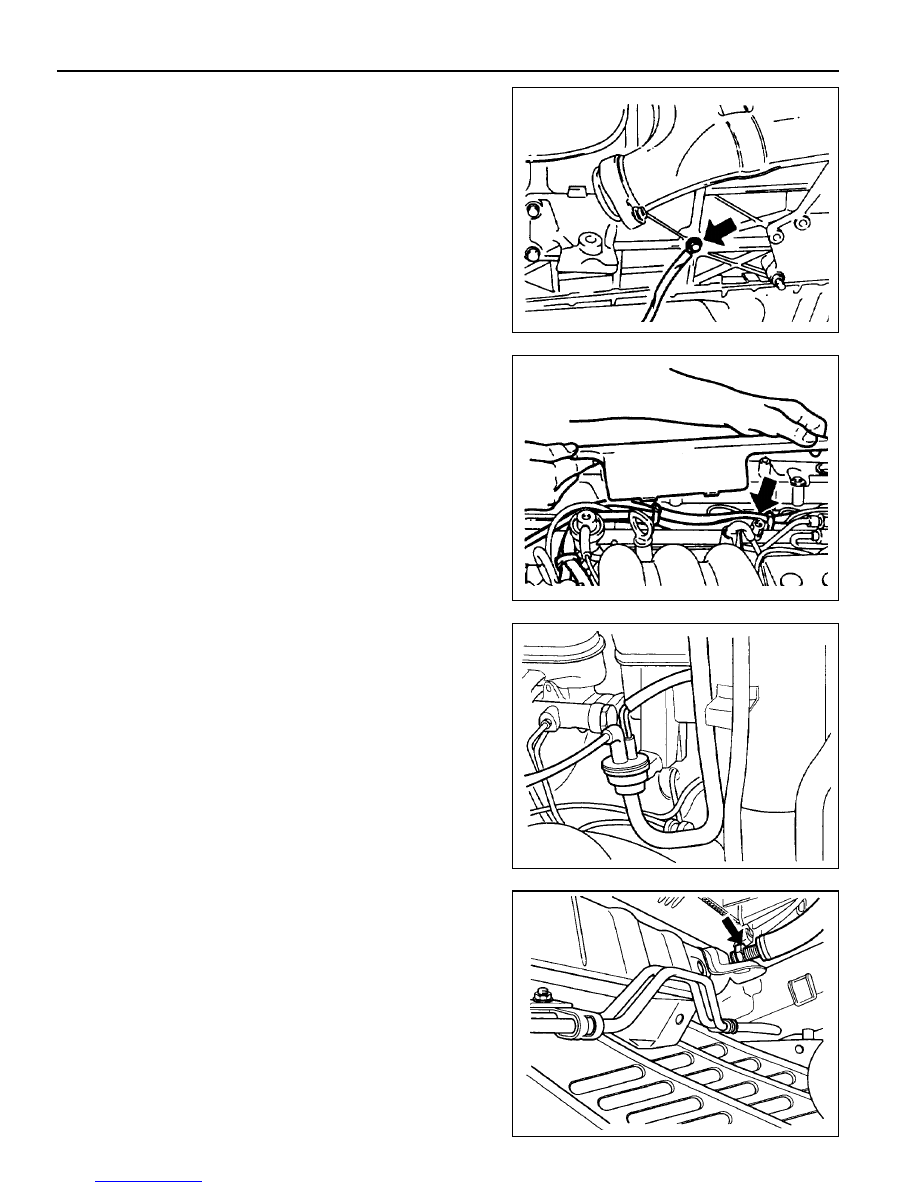

21. After removing the ignition coil cover, disconnect the ignition

coil connector.

22. Remove the harness cover and disconnect the 6 injection

valve connectors. Disconnect the main harness

23. Separate the hose toward engine from canister purge

solenoid valve.

24. Remove the automatic transmission oil cooler line.

M162 ENGINE MECHANICAL  1B1-13

Tightening Torque

30 Nm

29. Remove the exhaust manifold and exhaust pipe.

Installation Notice

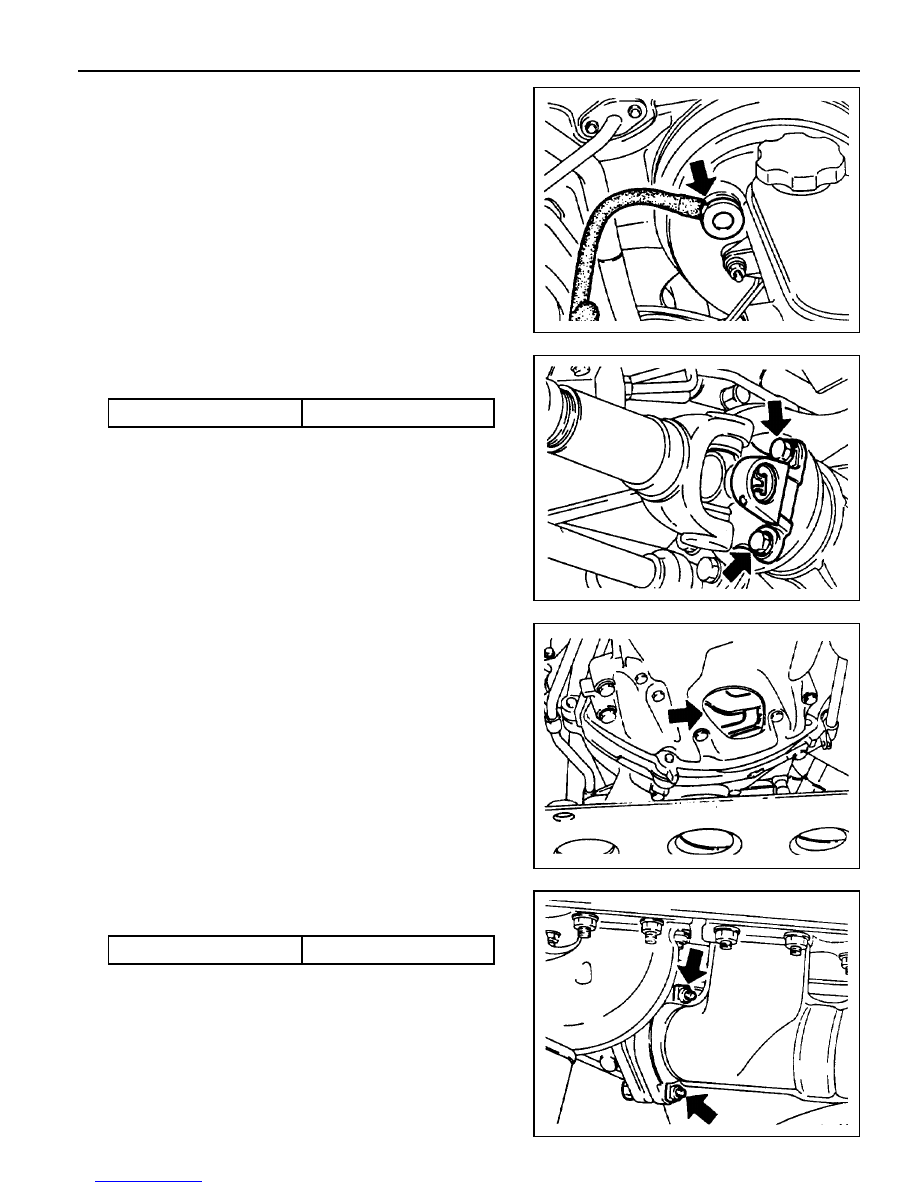

25. Separate the vacuum hose for brake booster.

26. Separate the other vacuum hoses.

27. Remove the propeller shaft from the front axle.

Installation Notice

28. By rotating the crankshaft from the front of engine, remove

the 6 torque converter mounting bolts from the engine
ring gear plate.

Tightening  Torque

81 - 89 Nm

1B1-14  M162 ENGINE MECHANICAL

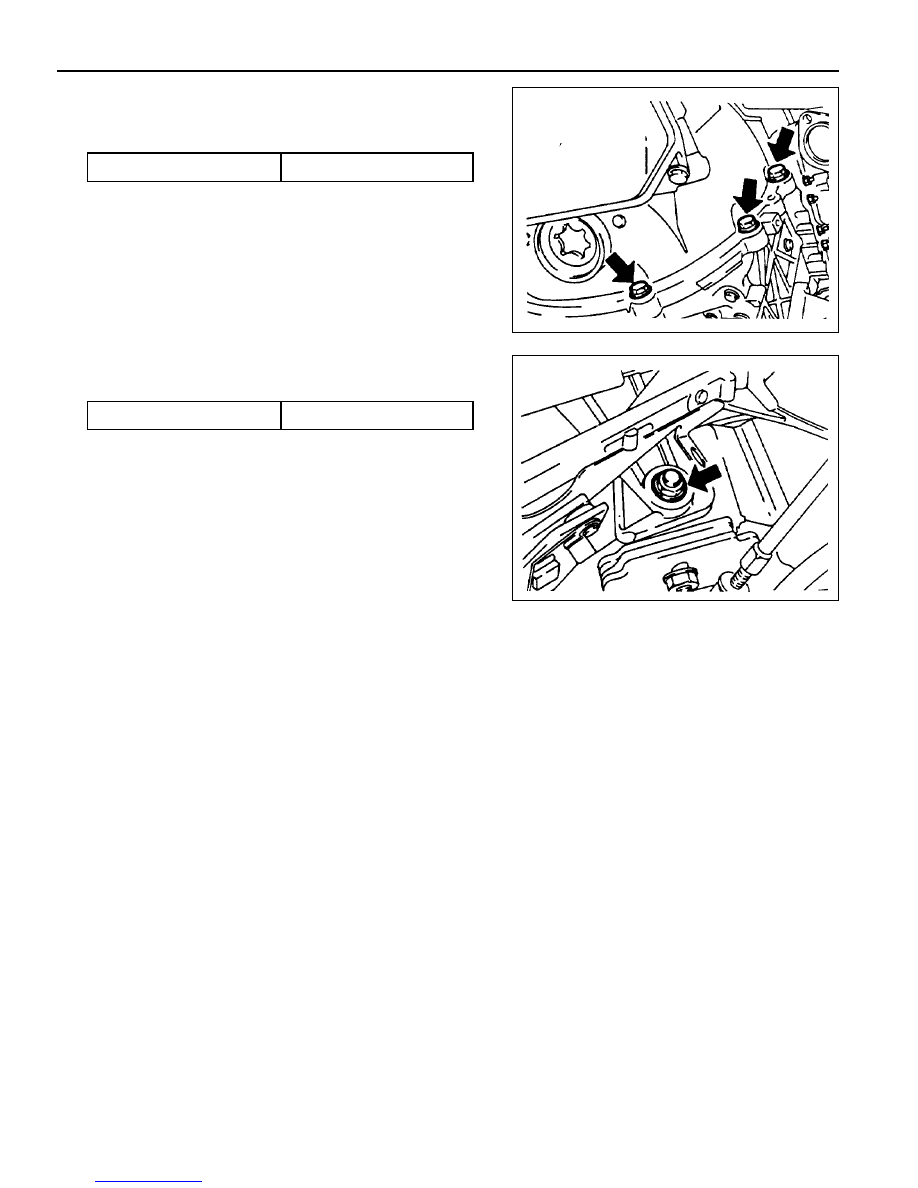

30. Remove the transmission mounting bolts and separate

the transmission from the engine.

Installation Notice

Tightening Torque

65 Nm

31. Remove the bolts for engine mounting bracket.

Installation Notice

Tightening  Torque

50 - 75 Nm

32. Hook the chain to the bracket of engine and by using a

hoist or crane, carefully separate the engine assembly
from the vehicle.

33. Installation should follow the removal procedure in the

reverse order.

M162 ENGINE MECHANICAL  1B1-15

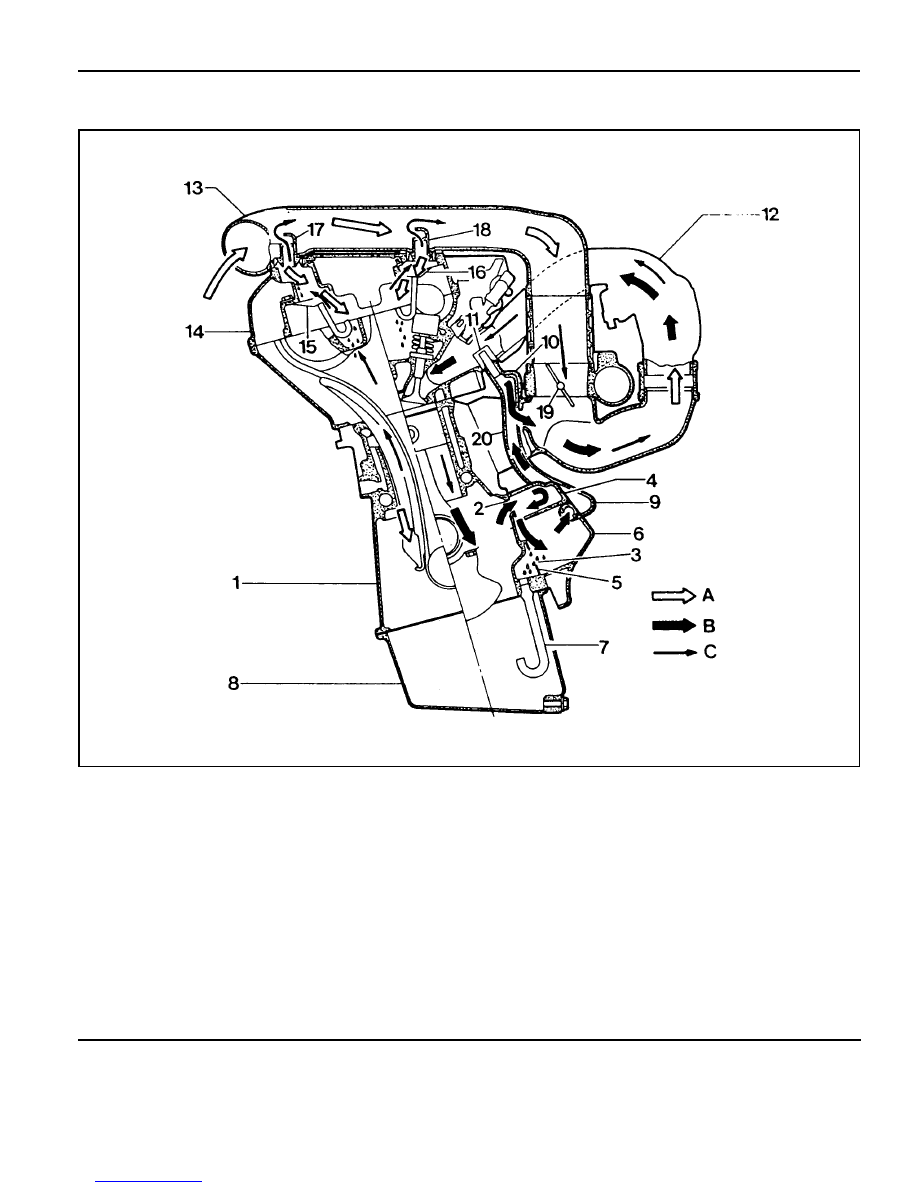

CRANKCASE VENTILATION SYSTEM

1 Crankcase
2 Air Admission Port in Crankcase
3 Oil Drain Port
4 Filter
5 Gasket
6 A/C Bracket
7 Oil Drain Pipe
8 Oil Pan
9 Air Admission Line

10 Vent Line

11 Restriction Hole (Diameter = 2 mm)

12 Intake Manifold

13 Intake Air Duct (Cross Pipe)
14 Cylinder Head Cover
15 Oil Separator
16 Oil Separator
17 Air Admission and Vent Connection
18 Air Admission and Vent Connection
19 Throttle Valve
20 Vent Line

A Fresh Air
B Blowby Gas in Partial Load

C Blowby Gas in Full Load
