1B1-8  M162 ENGINE MECHANICAL

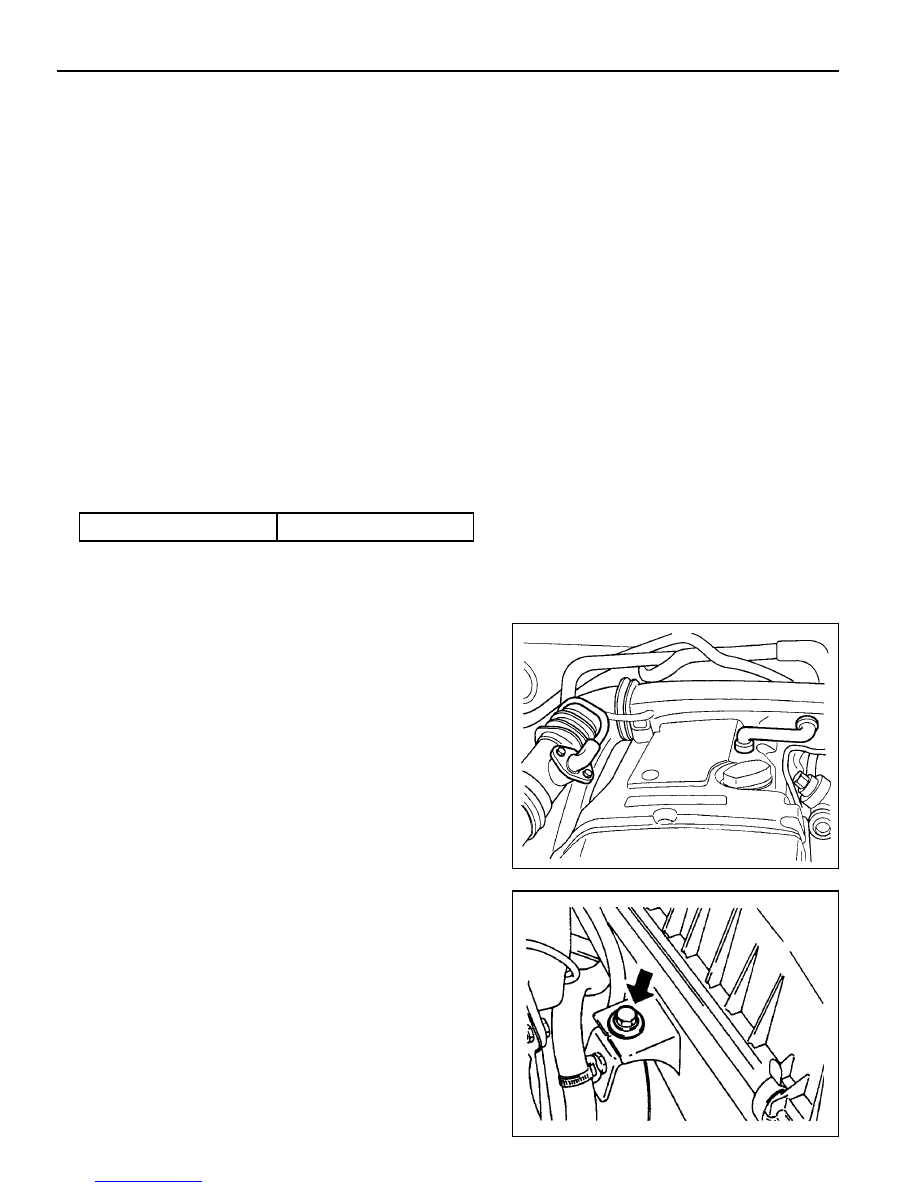

4. Disconnect the coupling of HFM sensor and remove the air

cleaner cross pipe.

5. Remove the air cleaner cover. Remove the mounting bolts

and air cleaner housing and element assembly.

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

ENGINE ASSEMBLY

Tools Required

000 589 10 99 01 Torque Wrench

000 589 40 37 00 Hose Clamp

112 589 00 72 00 Oil Extractor

000 589 72 21 00 Torque Wrench

001 589 66 21 00 Torque Wrench

124 589 15 21 00 Radiator Cap Testing Unit

Removal & Installation Procedure

1. Disconnect the negative terminal of battery.

2. Remove the hood.

3. Remove the under cover.

Installation Notice

Tightening  Torque

28 - 47 Nm

M162 ENGINE MECHANICAL  1B1-9

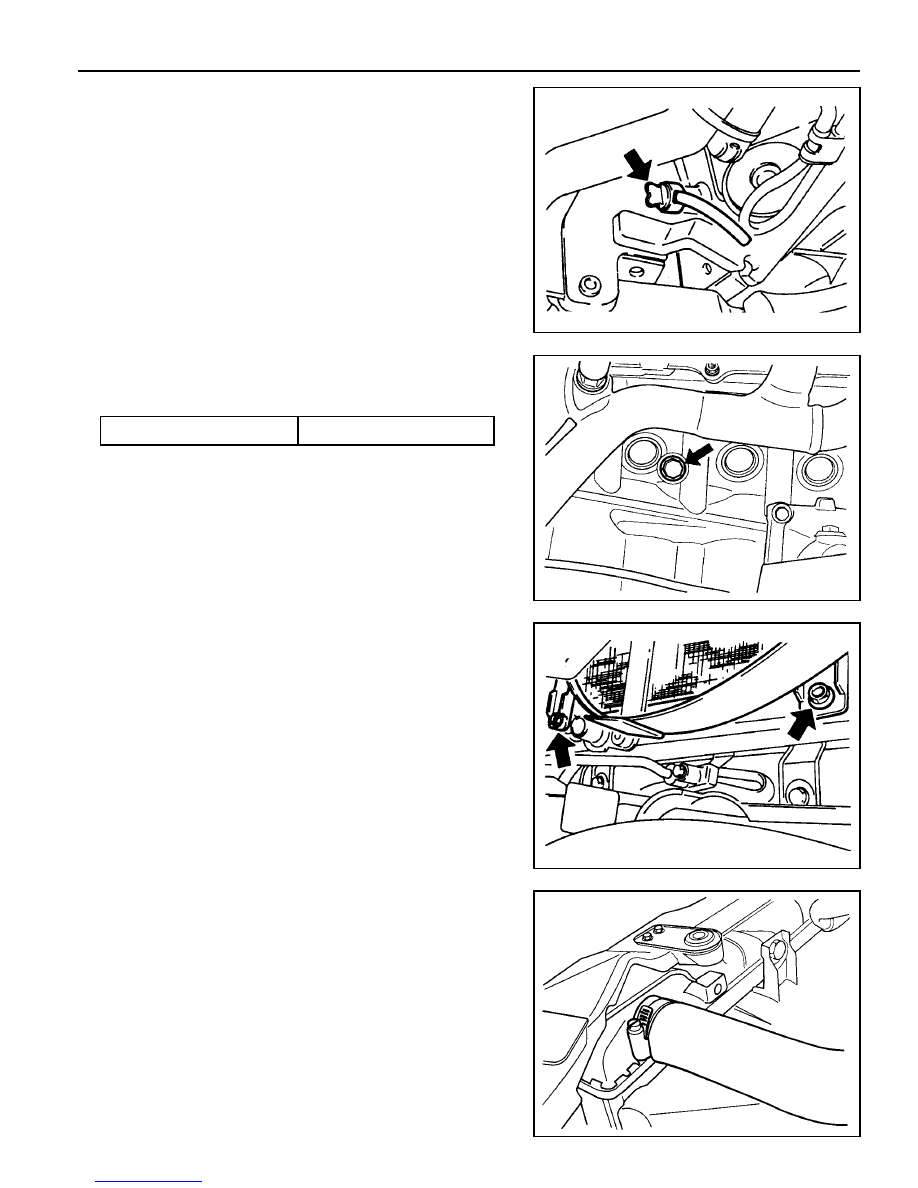

6. Loosen the radiator drain cock and drain the coolant.

Notice

Open the coolant reservoir cap.

7. Loosen the cylinder block drain plug and then drain the

coolant completely.

Installation Notice

Tightening Torque

30 Nm

Notice

Replace the seal before installation of the drain plug.

8. Remove the cooling fan shroud.

9. Disconnect the each hose from radiator.

1B1-10  M162 ENGINE MECHANICAL

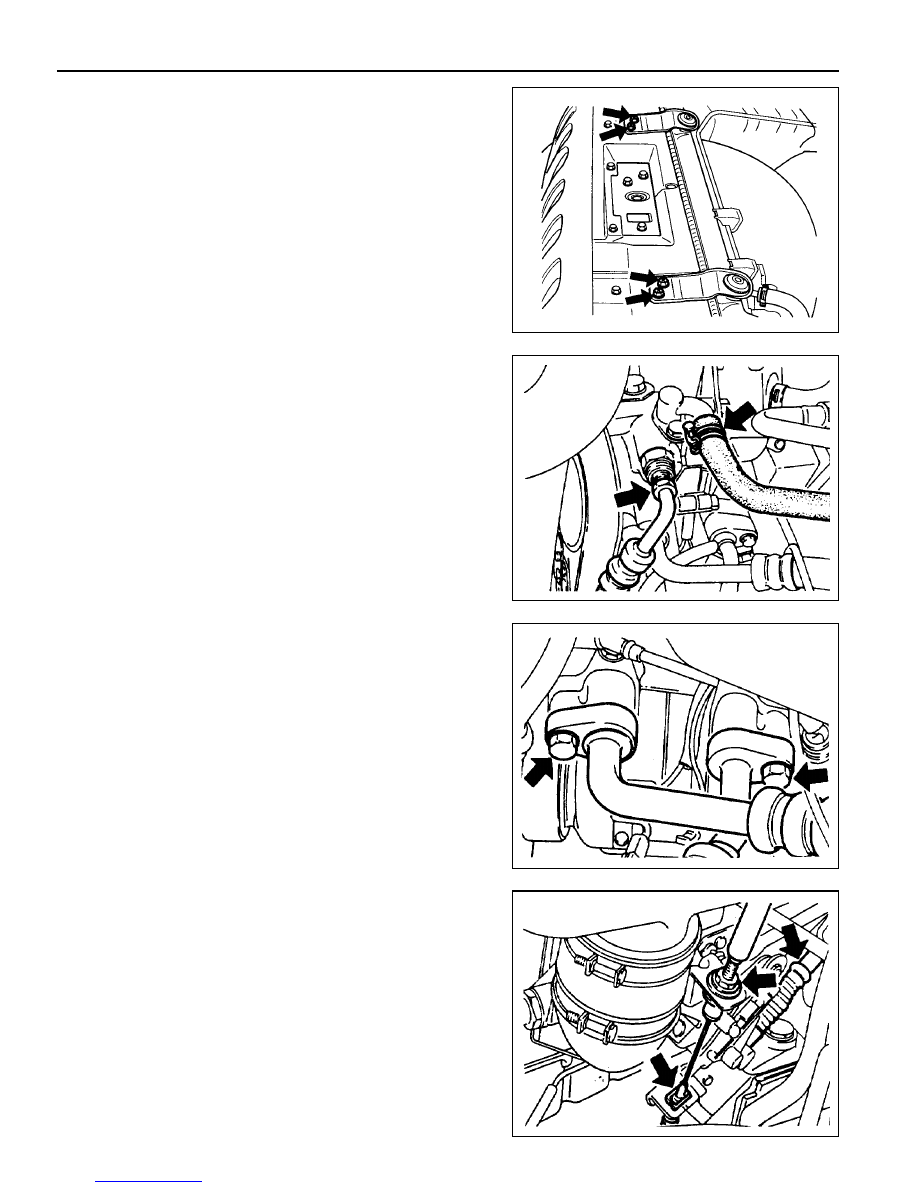

12. Discharge the refrigerant from A/C system, and disconnect

the discharge pipe and suction pipe from the compressor.

13. Remove the acceleration control cable and automatic

transmission pressure cable.

10. Remove the upper mounting bolts of radiator and then

remove the radiator.

11. Remove the hydraulic pipe of power steering.

Notice

Completely drain the oil.

M162 ENGINE MECHANICAL  1B1-11

14. Remove the fuel feed and return line.

Notice

Before removing the fuel lines, release the pressure in the
fuel system.

Installation Notice

Tightening  Torque

21 - 25 Nm

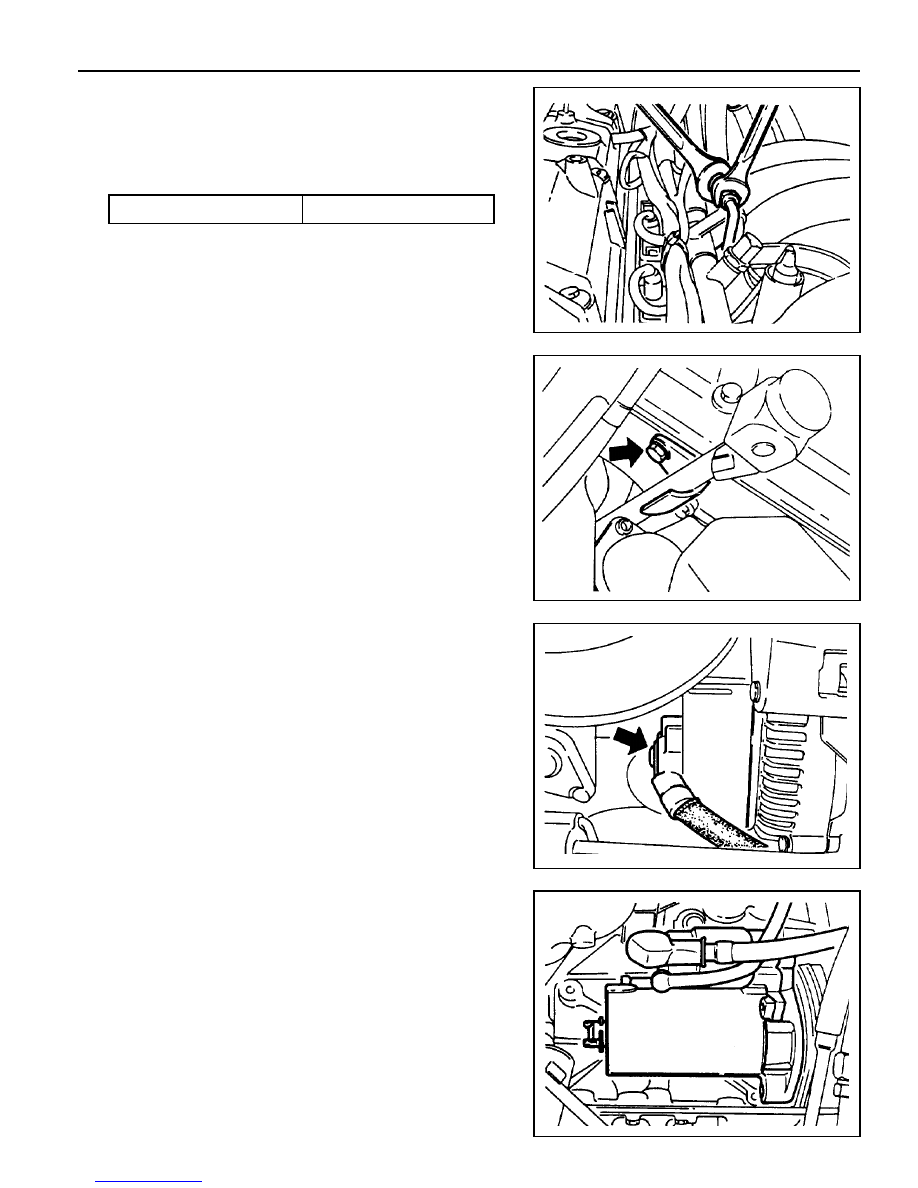

15. Remove the automatic transmission dipstick guide tube.

16. Disconnect the wire of alternator.

17. Disconnect the wire of starter motor and remove the starter

motor.

18. Disconnect the engine main harness ground.
