Daewoo Nubira. Manual - part 11

9S – 2

I

BODY REAR END

DAEWOO V–121 BL4

Application

Lb–In

Lb–Ft

N

S

m

Luggage Compartment
Lock Screws

6

–

53

Luggage Compartment
Lock Striker Bolts

8

–

71

Rear Deck Lid Bolts

10

–

89

Rear Spoiler Nuts

4

–

35

Remote Cable Handle
Screws

8

–

71

Tailgate Hinge Bolts

20

15

–

Tailgate Lock Striker Bolts

10

–

89

BODY REAR END  9S – 3

DAEWOO V–121 BL4

MAINTENANCE AND REPAIR

ON–VEHICLE SERVICE

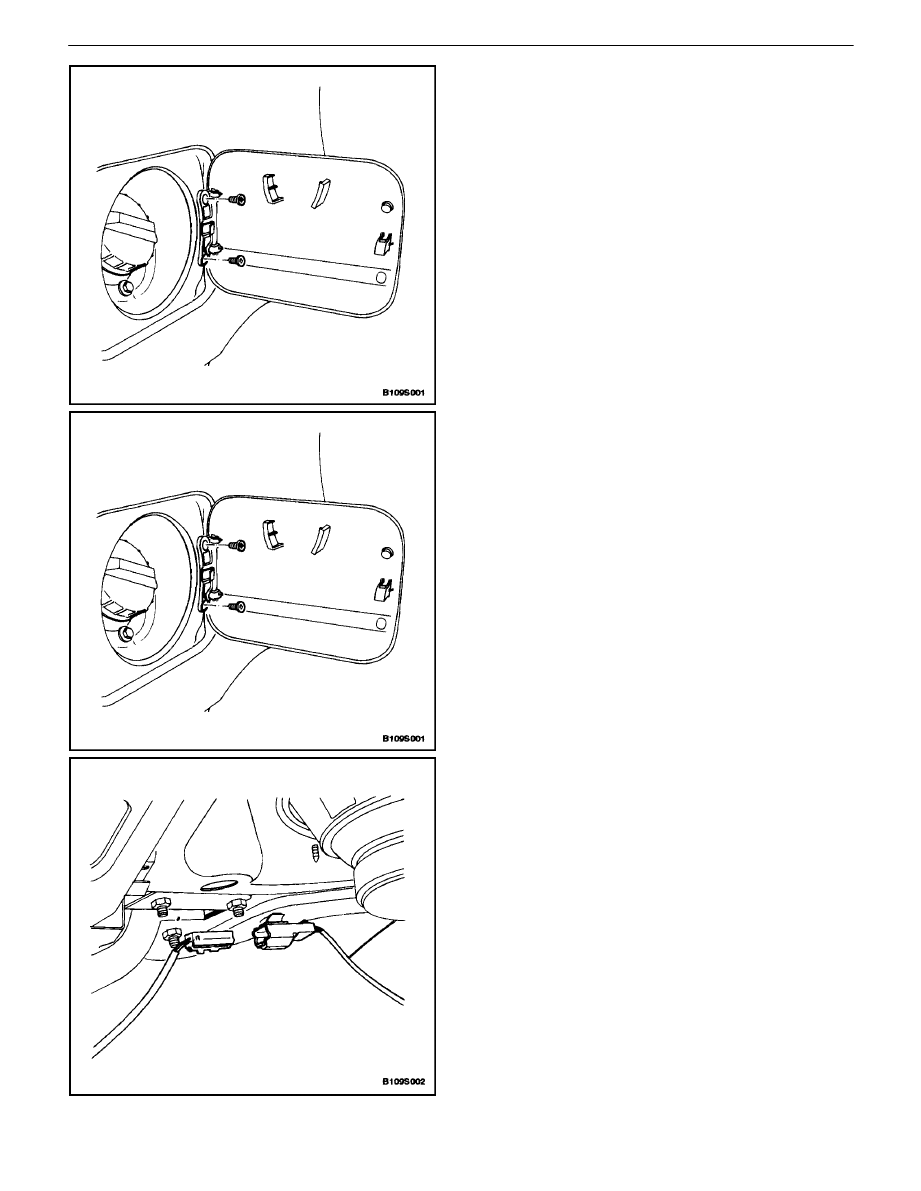

FUEL FILLER DOOR

Removal Procedure

1.  Remove the screws and the fuel filler door.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the fuel filler door with the screws.

Tighten

Tighten the fuel filler door screws to 4 N

S

m (35 lb–in).

REAR DECK LID (NOTCHBACK)

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Disconnect the electrical connector.

9S – 4

I

BODY REAR END

DAEWOO V–121 BL4

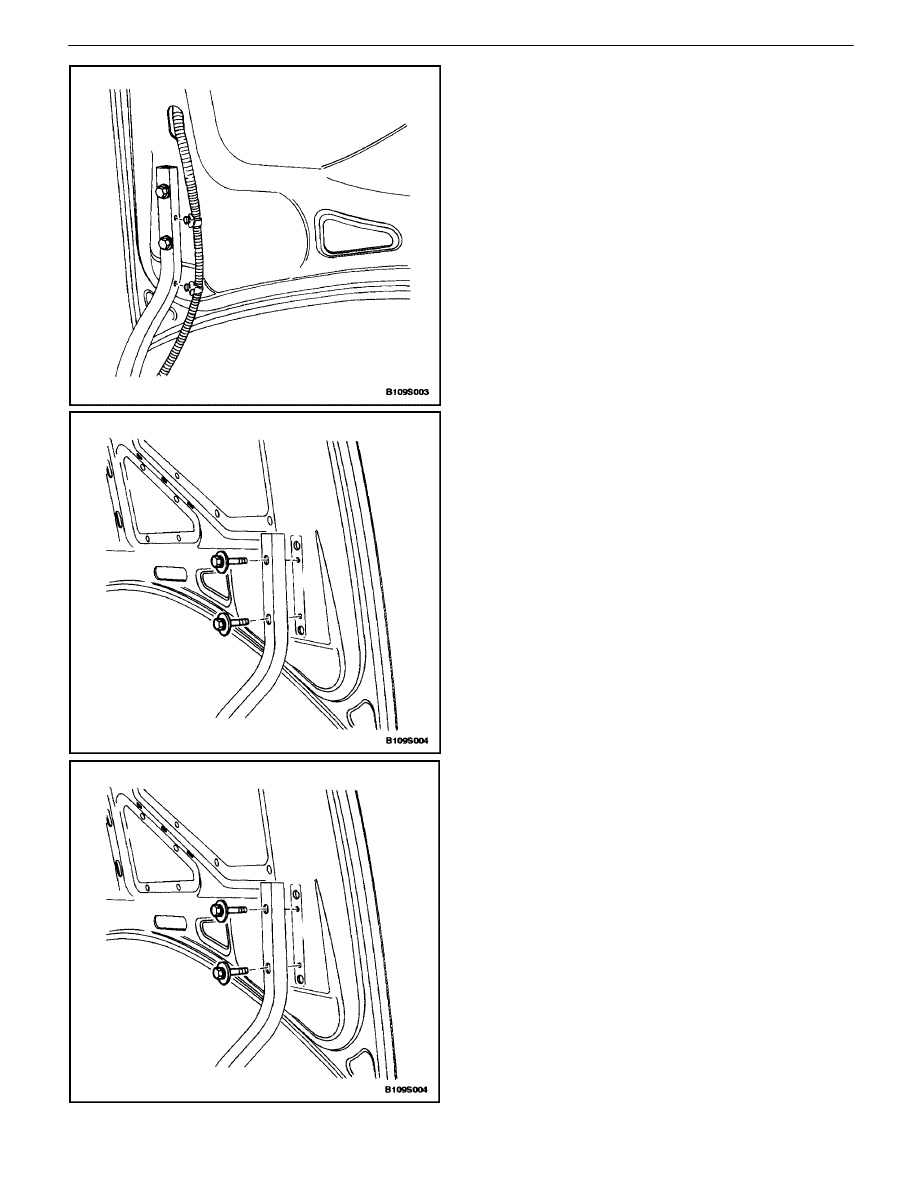

3.  Remove the electrical harness from the rear deck

lid hinge arm.

4.  Remove the bolts and the rear deck lid.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the rear deck lid with the bolts.

Tighten

Tighten the rear deck lid bolts to 10 N

S

m (89 lb–in).

BODY REAR END  9S – 5

DAEWOO V–121 BL4

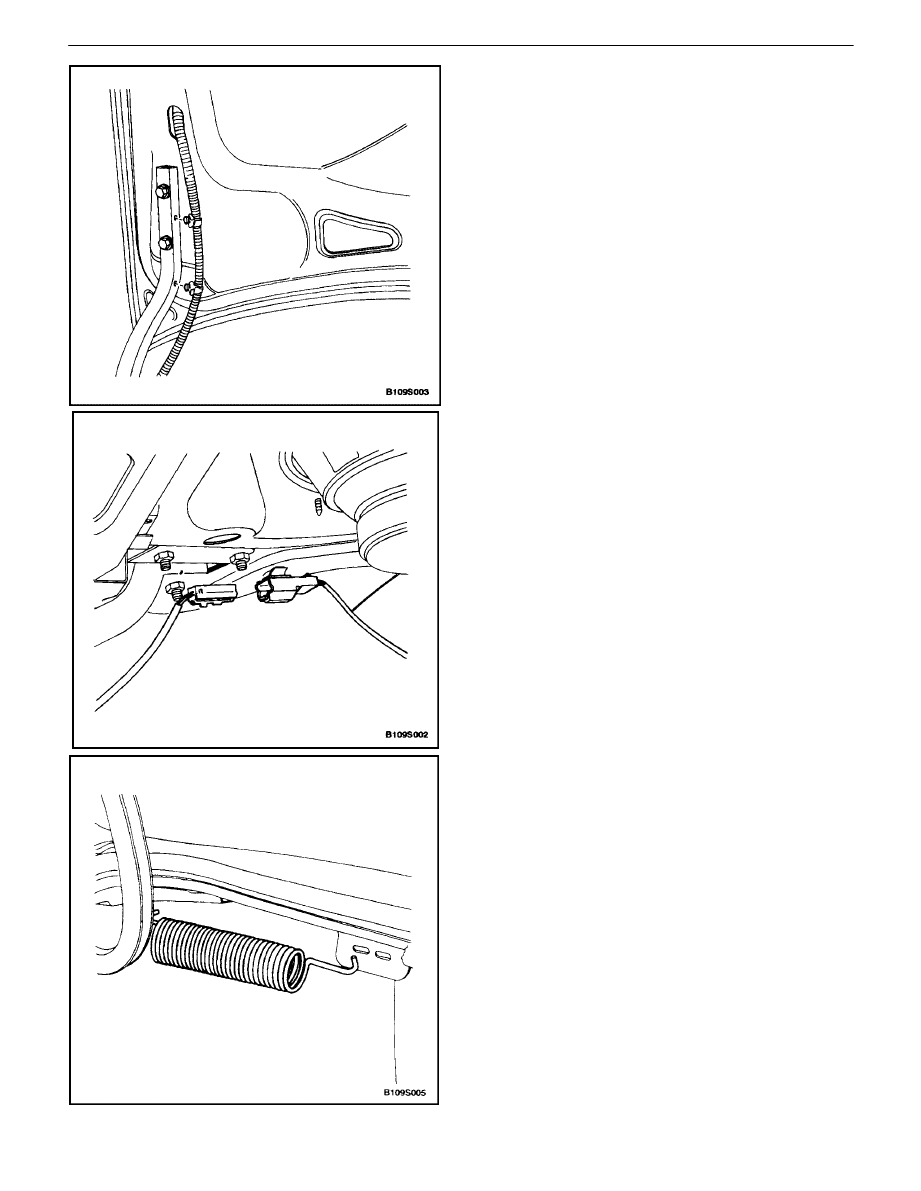

2.  Install the electrical harness to the rear deck lid

hinge arm.

3.  Connect the electrical connector.
4.  Connect the negative battery cable.

REAR DECK LID SPRINGS
(NOTCHBACK)

Removal Procedure

1.  Raise and support the deck lid in the open position.
2.  Pull the spring out of the rear mount.
3.  Remove the spring from the hinge.
