DAF LF45, LF55 Series. Manual - part 659

©

 200515

5-9

Draining and filling

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΛΦ45/55 series

5

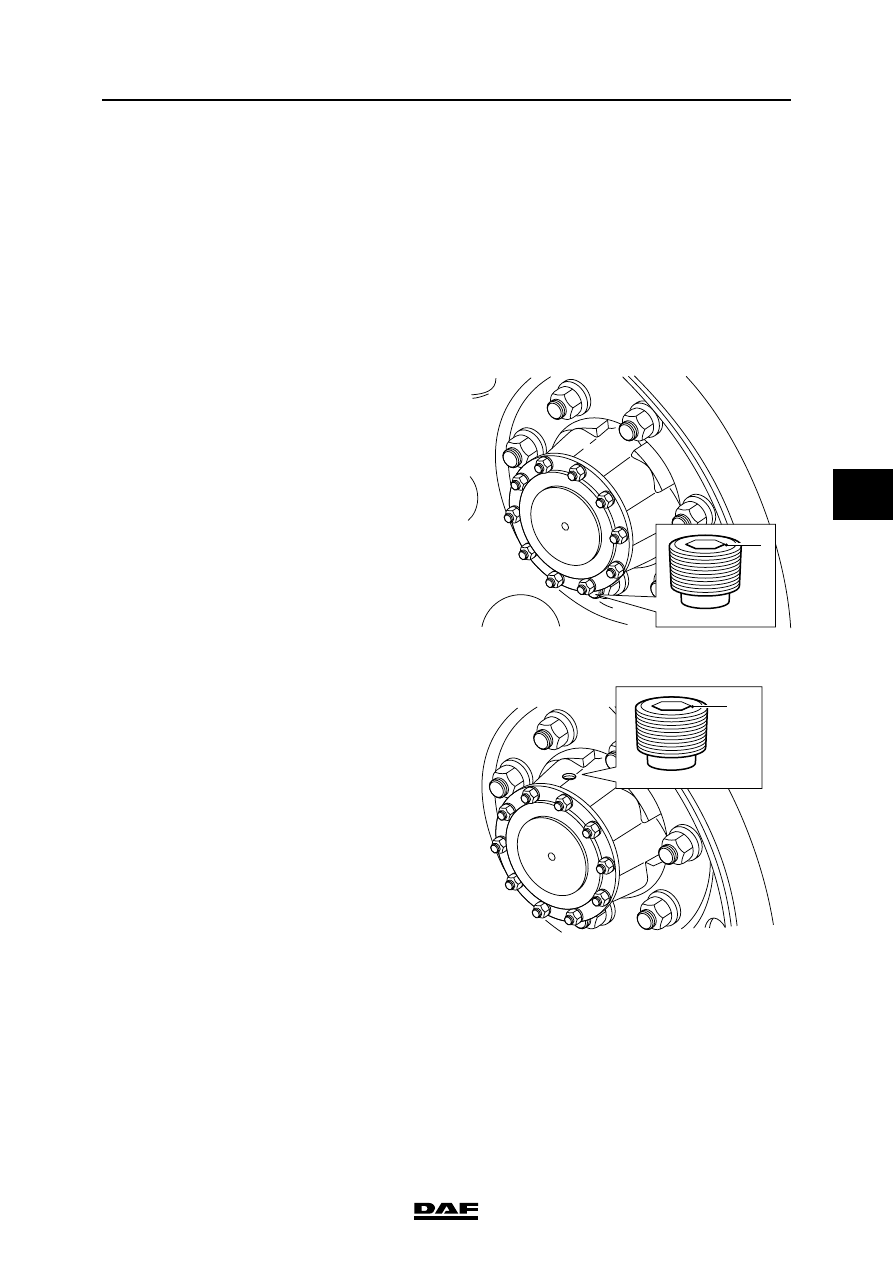

5.7 DRAINING AND FILLING, WHEEL HUB

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

Note:

The design of the hub and the location of the

drain/filler plug may differ from the illustration,

depending on the version.

Draining the wheel hub
1.

Position the vehicle on a level surface.

2.

Position the wheels in such a way that the

drain/filler plug (1) is on the underside.

3.

Place a suitable tray under the hub to collect

the oil. Remove the drain/filler plug (1).

4.

Drain the oil and let the oil leak out of the

hub.

Filling the wheel hub
1.

Position the wheels in such a way that the

drain/filler plug (1) is on the top side.

2.

Fill the wheel hub with the specified, correct

quantity of oil, see "Technical data".

3.

Apply sealant to the thread of the drain/filler

plug (1). Fit the drain/filler plug (1) into the

hub.

}

1

A8 00 427

1

A8 00 428

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

5-10

©

 200515

Draining and filling

5

ΛΦ45/55 series

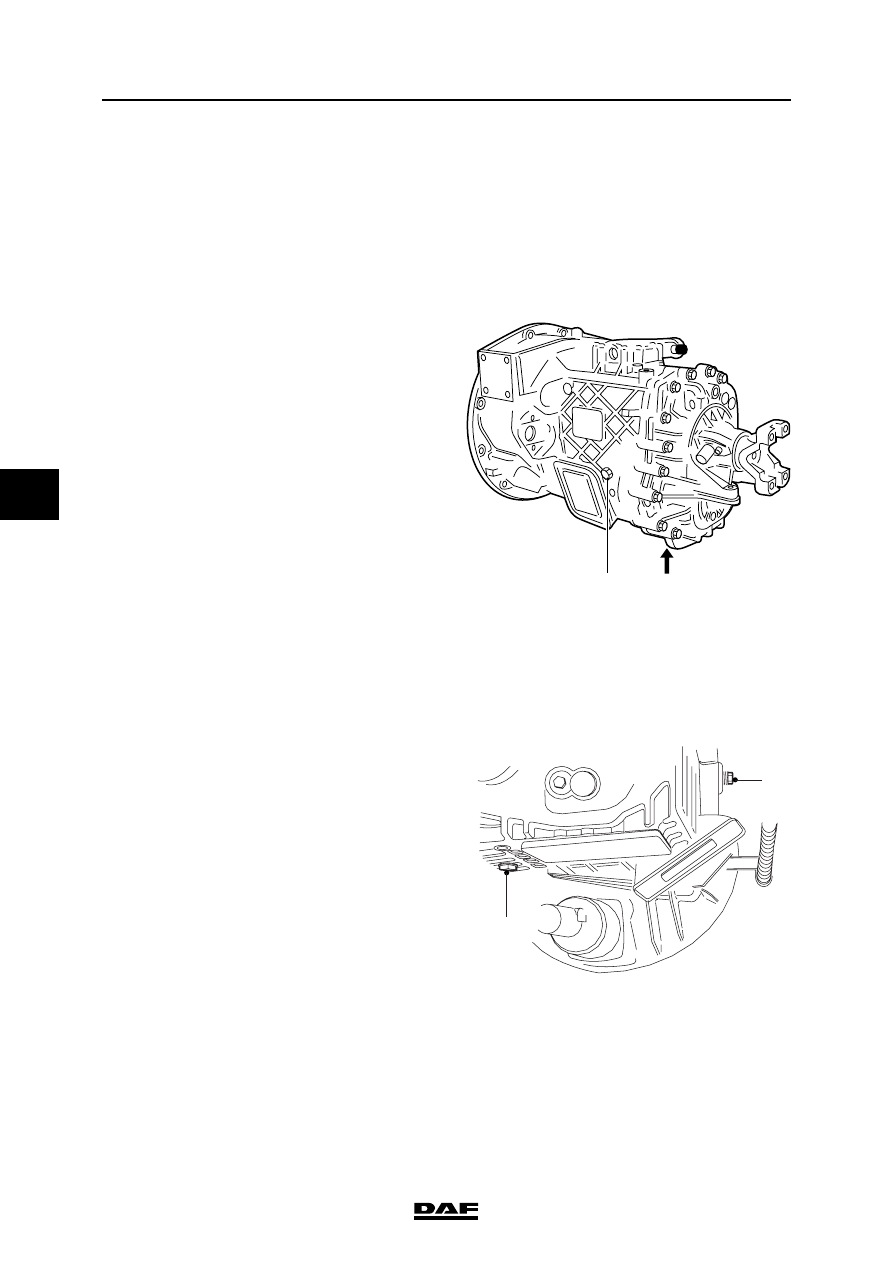

5.8 DRAINING AND FILLING, GEARBOX

ZF S5-42 gearbox

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

Draining the gearbox
1.

Place the vehicle on a flat and level surface.

2.

Drain the gearbox at operating temperature.

3.

Remove the drain plug (1) and the level

check/filler plug (2) and drain the oil.

Filling the gearbox
1.

Clean the drain plug (1) and fit it, tightening it

to the specified torque. See "Technical data".

2.

Fill the oil through level check/filler opening

(2) until the oil reaches the rim of the filling

opening.

3.

Fit level check/filler plug (2), tightening it to

the specified torque, see "Technical data".

ZF 6S850 gearbox

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

Draining the gearbox
1.

Place the vehicle on a flat and level surface.

2.

Drain the gearbox at operating temperature.

3.

Remove the drain plug (2) and the level

check/filler plug (1) and drain the oil.

Filling the gearbox
1.

Clean the drain plug (2) and fit it, tightening it

to the specified torque. See "Technical data".

2.

Fill the oil through level check/filler opening

(1) until the oil reaches the rim of the filling

opening.

3.

Fit level check/filler plug (1), tightening it to

the specified torque, see "Technical data".

}

2

1

V3 00 403

}

2

1

V3 00 884

©

 200515

5-11

Draining and filling

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΛΦ45/55 series

5

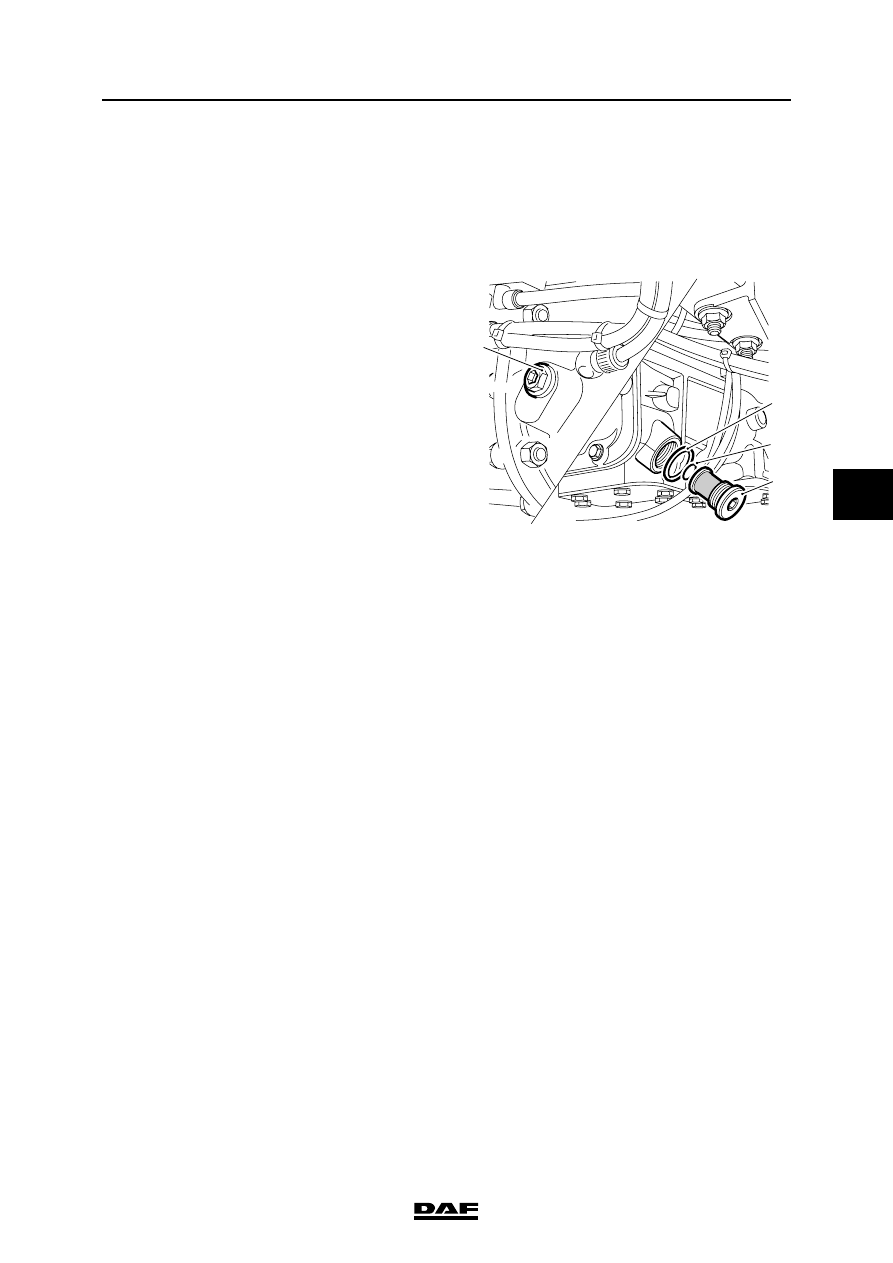

EATON 6309A gearbox

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

Draining the gearbox
1.

Place the vehicle on a flat and level surface.

2.

Drain the gearbox at operating temperature.

3.

Remove the oil strainer/drain plug (4) and

the level check/filler plug (1) and drain the oil.

4.

Clean the oil strainer (4) in a suitable solvent

and dry the oil strainer (4) thoroughly.

Filling the gearbox
1.

Check and replace the O-ring (3) and the

sealing ring (2), if necessary.

2.

Tighten the oil strainer/drain plug (4) to the

specified tightening torque. See "Technical

data".

3.

Fill the oil through level check/filler opening

(1) until the oil reaches the rim of the filling

opening.

4.

Fit level check/filler plug (1), tightening it to

the specified torque, see "Technical data".

}

1

2

3

4

V3 00 376

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

5-12

©

 200515

Draining and filling

5

ΛΦ45/55 series

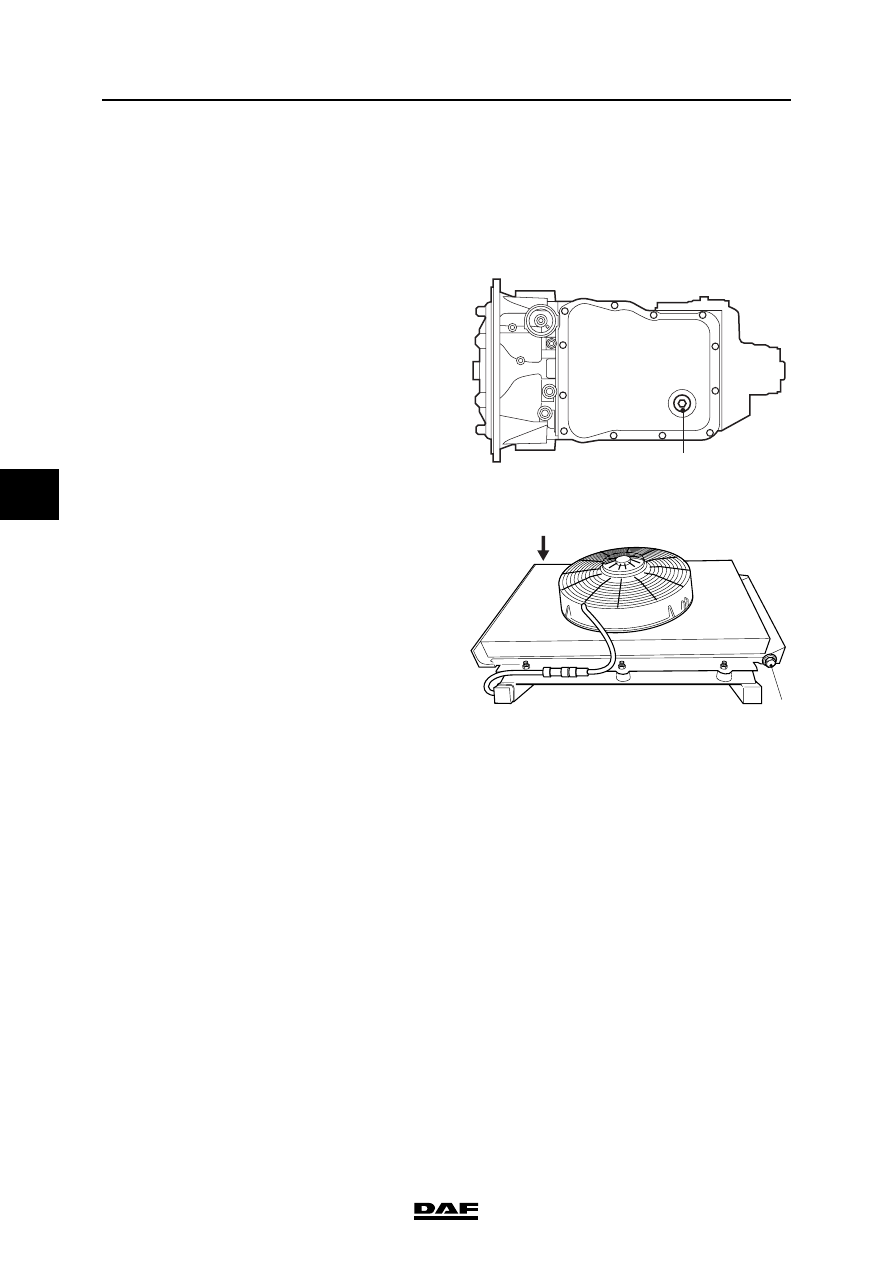

Allison 1000 & 2000 automatic gearboxes

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

Draining the gearbox
1.

Place the vehicle on a level and horizontal

surface.

2.

Bring the gearbox to operating temperature

(approx. 71

C - 93C) to allow the oil to drain

more quickly and more fully.

3.

Remove the drain plug (1) from the gearbox

oil sump.

4.

Remove the drain plug (1) from the heat

exchanger and loosen the bleed screw (2).

5.

Remove the oil filters. See "Removal and

installation".

}

1

V3 00 885

1

2

V300912
