DAF LF45, LF55 Series. Manual - part 649

©

 200515

3-25

Inspection and adjustment

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΛΦ45/55 series

5

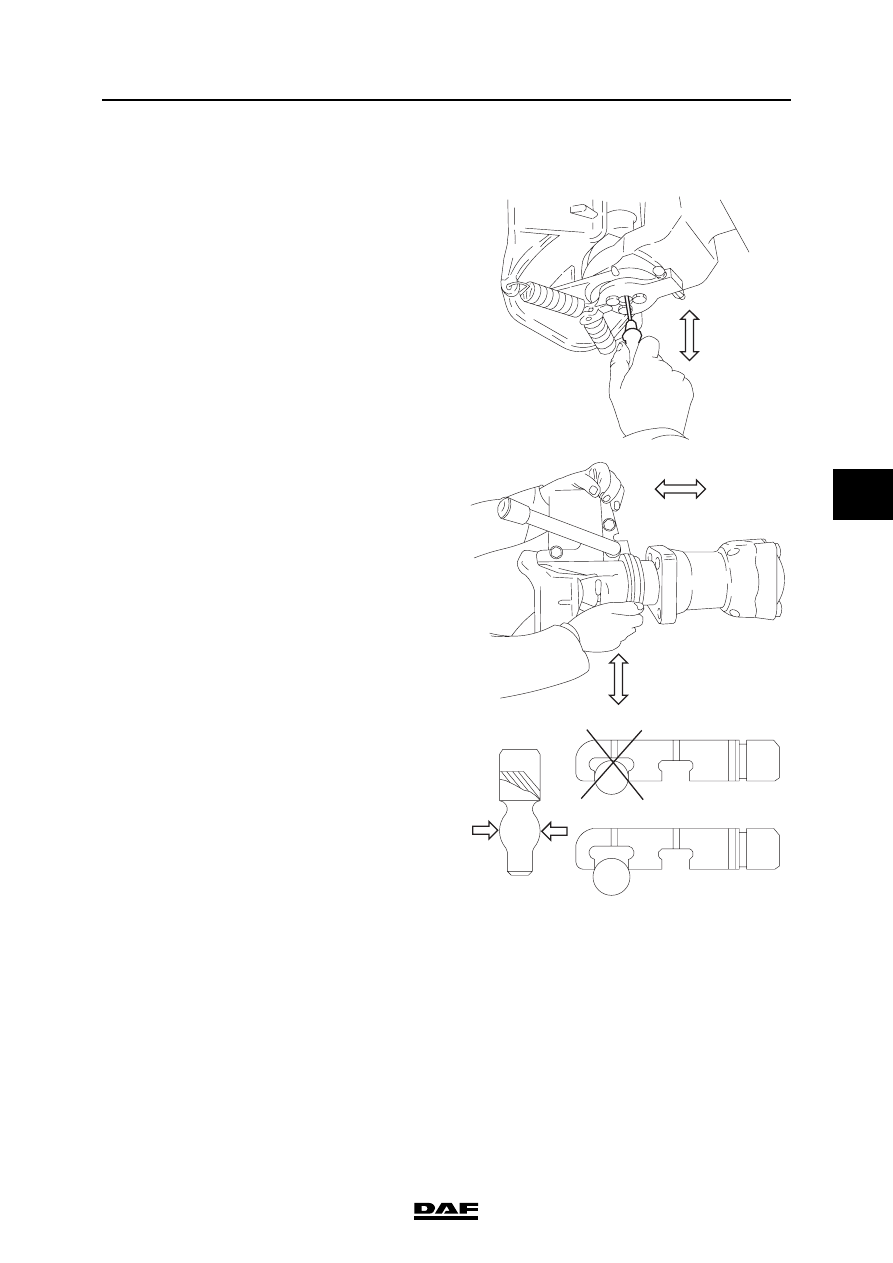

3.31 CHECKING THE TRAILER COUPLING

1.

Check the vertical play of the arched pin.

2.

Check the radial play of the arched pin.

3.

Check the vertical and horizontal play of the

coupling jaw.

4.

Check the diameter of the arched pin.

5.

Check the attachment of the trailer coupling

and the rear cross member.

Note:

For maximum play values, consult the

manufacturer’s instructions or the specified

legal requirements.

M9002

M9001

M9004

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

3-26

©

 200515

Inspection and adjustment

5

ΛΦ45/55 series

3.32 CHECK THE SUPERSTRUCTURE ATTACHMENT

1.

Check that all attachment bolts are in place.

2.

Visually check the attachment of the

superstructure for faults. See the DAF

superstructure instructions.

©

 200515

3-27

Inspection and adjustment

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΛΦ45/55 series

5

3.33 CHECK THE CLUTCH FLUID LEVEL

Hydraulic fluid is toxic and can

therefore have a damaging effect on

your health.

Hence avoid any direct or indirect

physical contact.

In the event of contact with the skin:

remove the liquid with paper or a

cloth, wash with soap and water. If

irritation persists, consult a doctor.

If swallowed: DO NOT induce

vomiting. Rinse mouth, drink two

glasses of water and consult a

doctor.

In the event of inhalation: get fresh

air and rest.

As hydraulic fluid is also a corrosive

fluid, it may damage the paintwork of

the vehicle. Avoid any contact

between hydraulic fluid and

paintwork.

Always use new and clean hydraulic

fluid which has been kept in a sealed

container and meets the

specifications.

Hydraulic fluid which has absorbed

water (from the ambient air) may

have an adverse effect on the

operation of the clutch system.

Avoid any contact with mineral oil.

Even one drop of mineral oil in the

system will damage the seals.

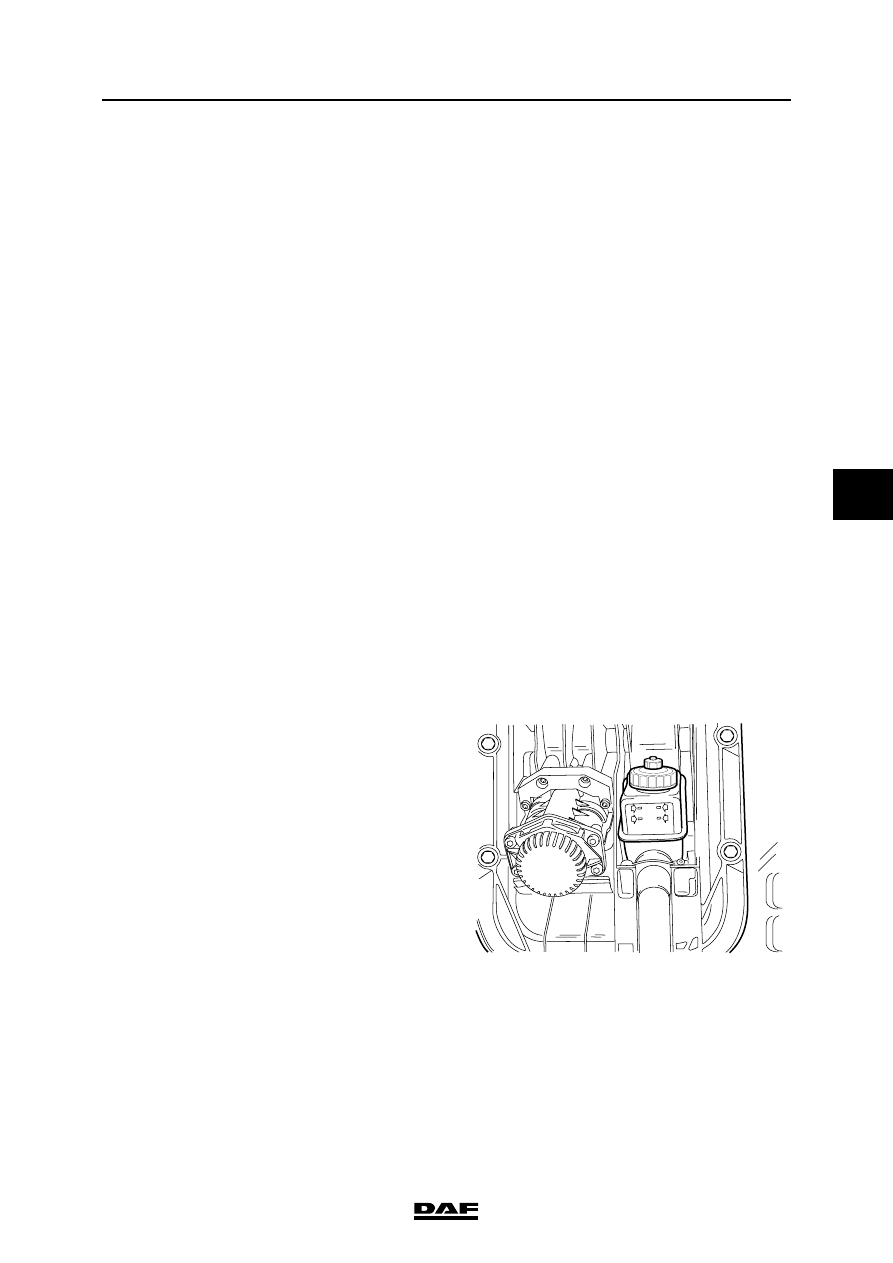

1.

Check whether the fluid level is between the

min and max marks when the cab is in the

driving position.

}

MAXI

P MAX 4 BAR

MINI

G0 00 213

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

3-28

©

 200515

Inspection and adjustment

5

ΛΦ45/55 series

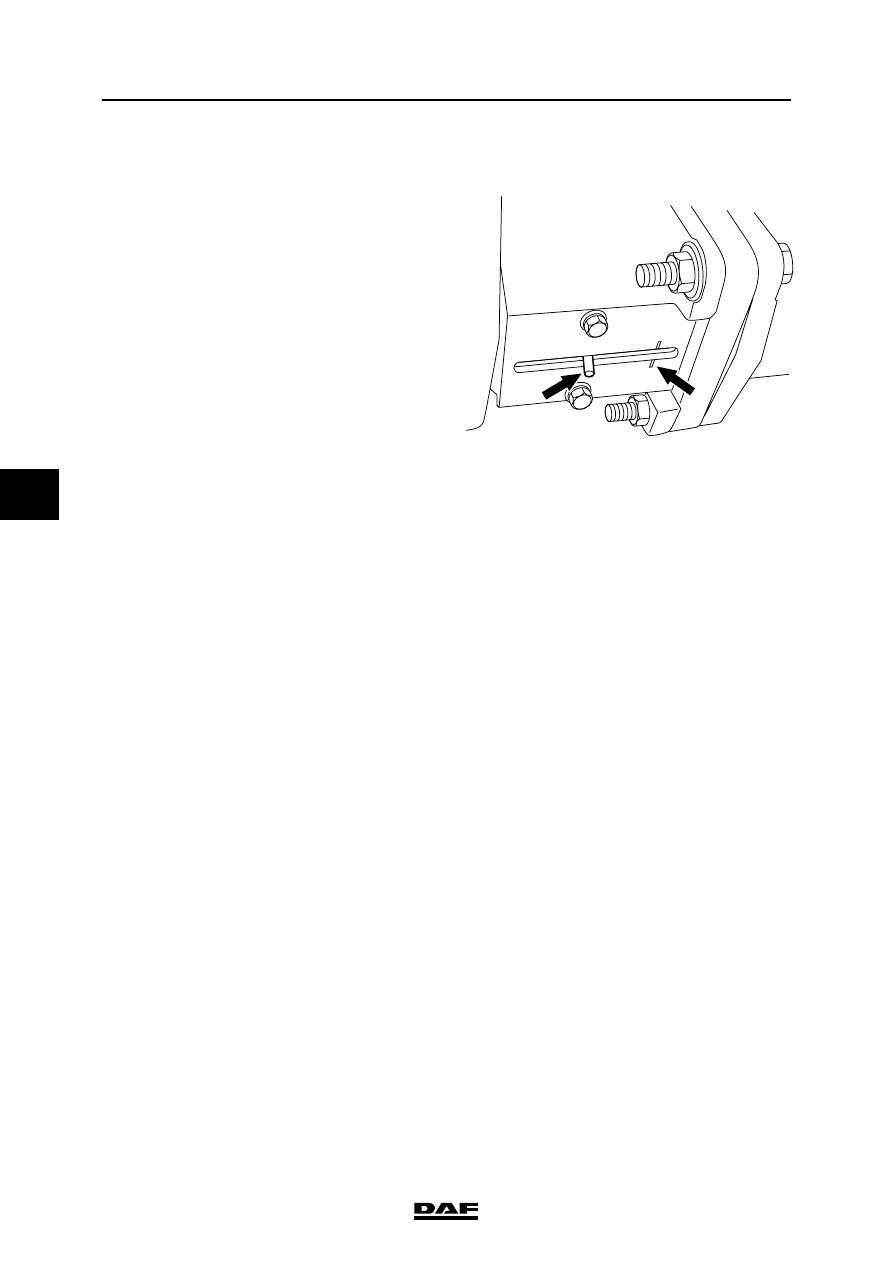

3.34 CHECK THE CLUTCH WEAR INDICATOR

1.

Check that the wear indicator on the clutch

servo has not gone past the mark on the

clutch servo plate.

2.

If the wear indicator is at the mark on the

clutch servo, replace the clutch plate.

3.35 CHECKING THE GEARBOX FOR LEAKS

1.

Visually check the gearbox for leaks.

V3 00 374
