3-1

Drive shafts, drive and chassis

TECHNICAL DATA

ΛΦ45/55 series

0

3. DRIVE SHAFTS, DRIVE AND CHASSIS

3.1 GENERAL

Allison gearbox

The oil level when cold must be on the "Cold full"

mark.

Dipstick readings:

5.12 rear axle

F36/F48 front axle

HOT

FULL

COLD

FULL

HOT

ADD

COLD

ADD

W 3 03 099

"Cold add"

add when cold

"Cold full"

full when cold

"Hot add"

add when hot

"Hot full"

full when hot

Sealant for crown wheel guide bolt

Loctite 572

Wheel bearing play (to adjust play)

0.05 - 0.20 mm

TECHNICAL DATA

3-2

©

 200515

Drive shafts, drive and chassis

0

ΛΦ45/55 series

3.2 TIGHTENING TORQUES

The tightening torques stated in this section are

different from the standard tightening torques

stated in the overview of the standard tightening

torques. The other threaded connections not

specified must therefore be tightened to the

torque stated in the overview of standard

tightening torques.

When attachment bolts and nuts are to be

replaced, it is important - unless stated otherwise -

that these bolts and nuts are of exactly the same

length and property class as the removed ones.

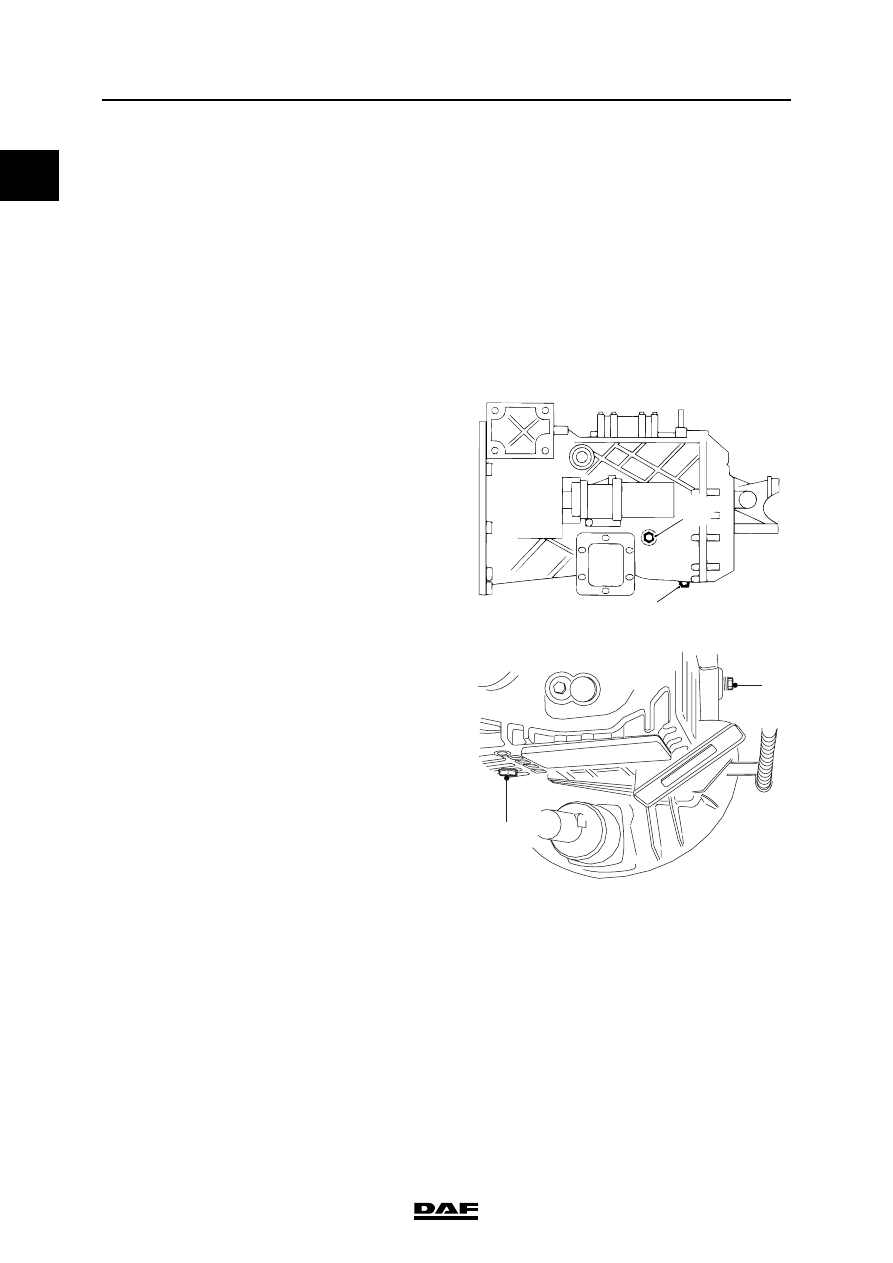

ZF S5-42 gearbox

ZF 6S-850 gearbox

2

1

V3 00 395

Level check/filler

plug (2)

50 Nm

Drain plug (1)

50 Nm

2

1

V3 00 884

Level check/filler

plug (1)

50 Nm

Drain plug (2)

60 Nm

©

 200515

3-3

Drive shafts, drive and chassis

TECHNICAL DATA

ΛΦ45/55 series

0

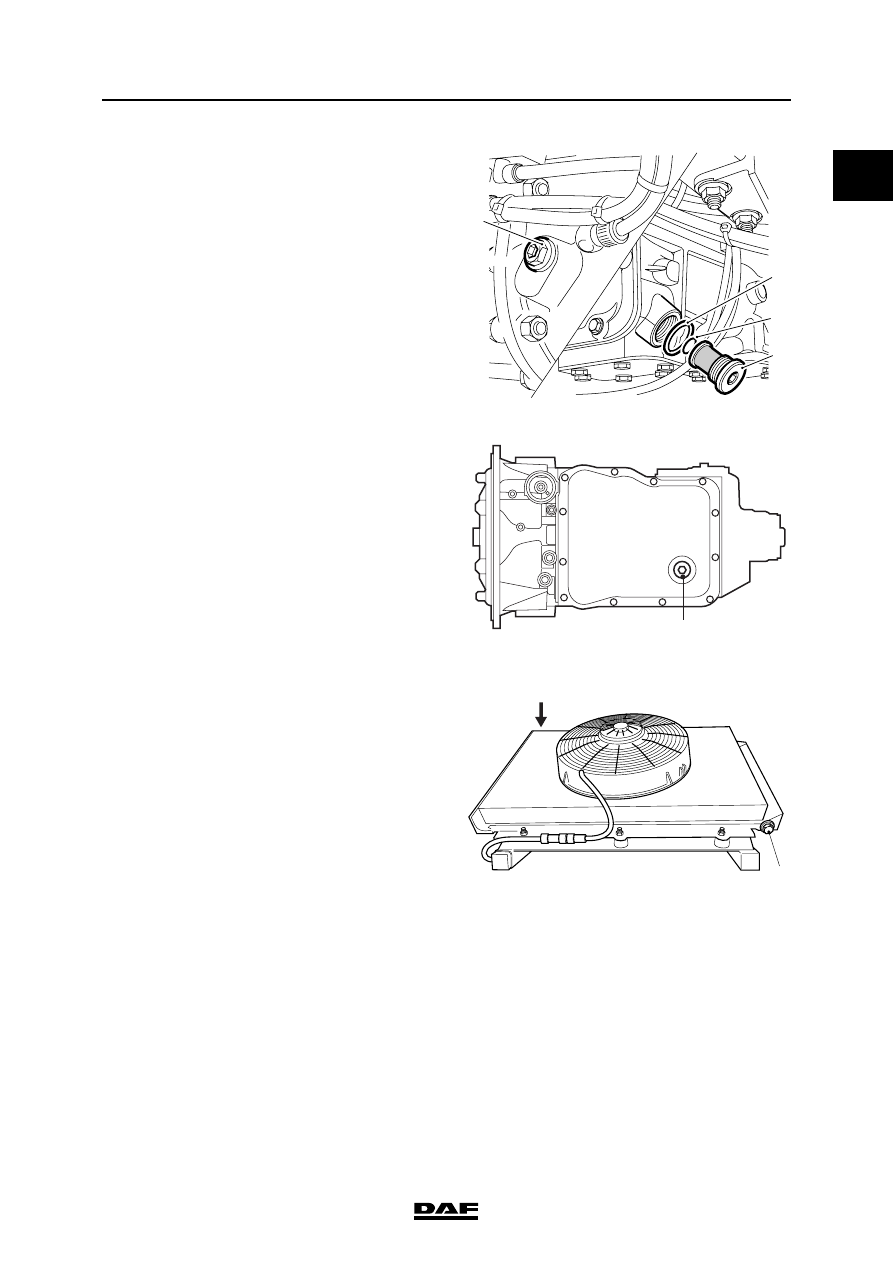

Eaton FS6309A gearbox

Allison 1000 & 2000 automatic gearboxes

1

2

3

4

V3 00 376

Level check/filler

plug (1)

50 Nm

Drain plug/oil

strainer (4)

50 Nm

1

V3 00 885

Gearbox drain

plug (1)

35 Nm

2

1

V3 00 883

Oil cooler air bleed

plug (1)

28 Nm

Oil cooler drain

plug (2)

28 Nm

TECHNICAL DATA

3-4

©

 200515

Drive shafts, drive and chassis

0

ΛΦ45/55 series

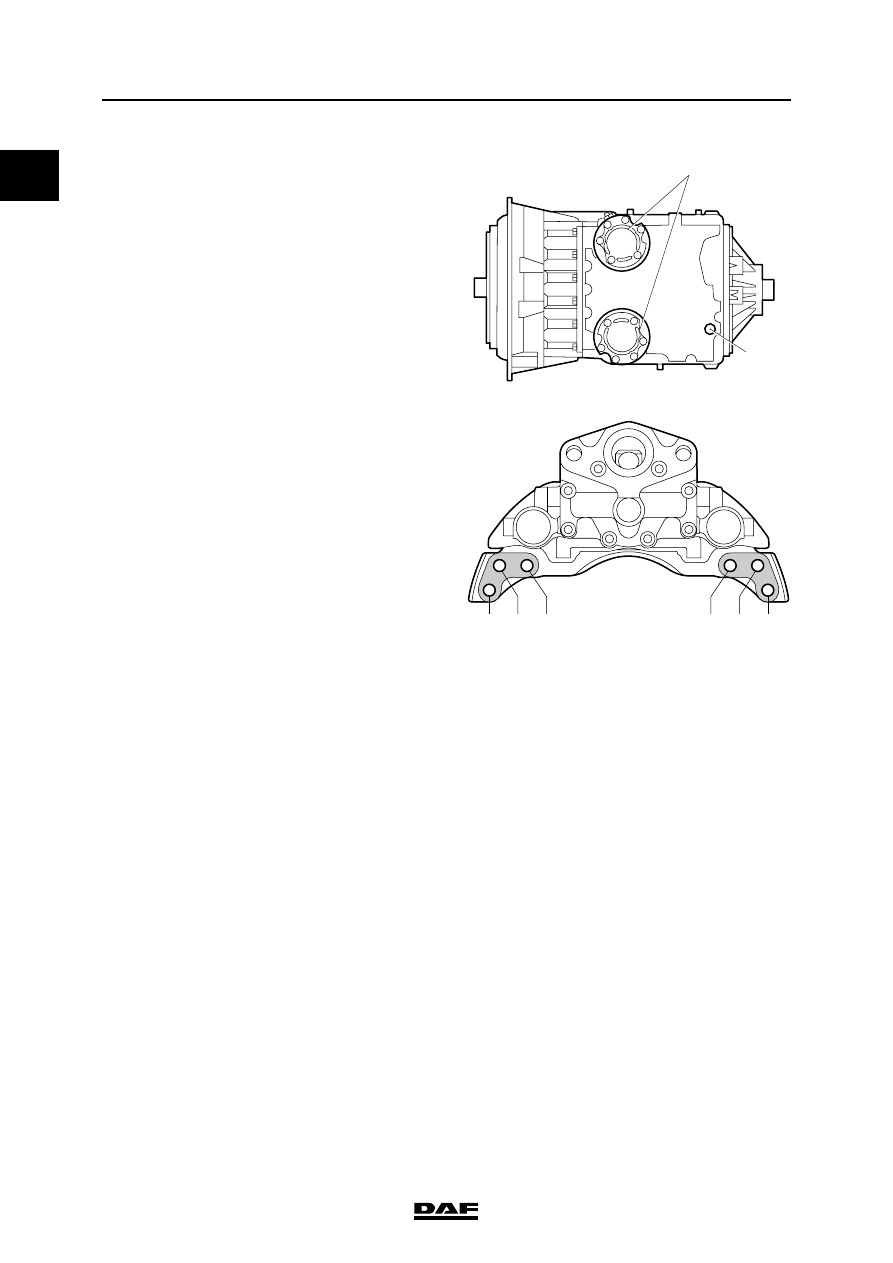

Allison MD3060 automatic gearbox

F36/F48 front axle

Front axles

(1) Retighten after 100 km.

(2) Evenly tighten the two U-bolt nuts alternately.

V300371

2

1

Drain plug (1)

28 Nm

Oil filter cover

attachment bolts (2)

55 Nm

R600520

6

2

3

1

5

4

Tightening torque for

brake calliper

attachment bolts

213 Nm

Tightening sequence

for attachment bolts
Hub lock nut

75 Nm

M18 x 1.5 wheel nut

(LF 45 version 6/8 ton GVW)

370 Nm

(1)

M20 x 1.5 wheel nut

(LF 45 version 10/11/12 ton GVW)

485 Nm

(1)

M20 x 1.5 wheel nut

(LF 55 version 13/14/15 ton GVW)

485 Nm

(1)

M22 x 1.5 wheel nut

(LF 55 version 18 ton GVW)

700 Nm

(1)

LF 45 U-bolt nut

215 Nm

(2)

U-bolt nut, LF 55 version 13/14/15 ton GVW

470 Nm

(2)

U-bolt nut, LF 55 version 18 ton GVW

535 Nm

(2)
