Removal and installation
FRONT AXLE, 152N
3-21
3.
To fit the needle bearings in the top of the
swivel axle, proceed as follows:
Fit the oil seal (2) to the bush (C) with the
open side pointing towards the bush collar.
Fit both needle bearings (1) to the bush (C).
4.

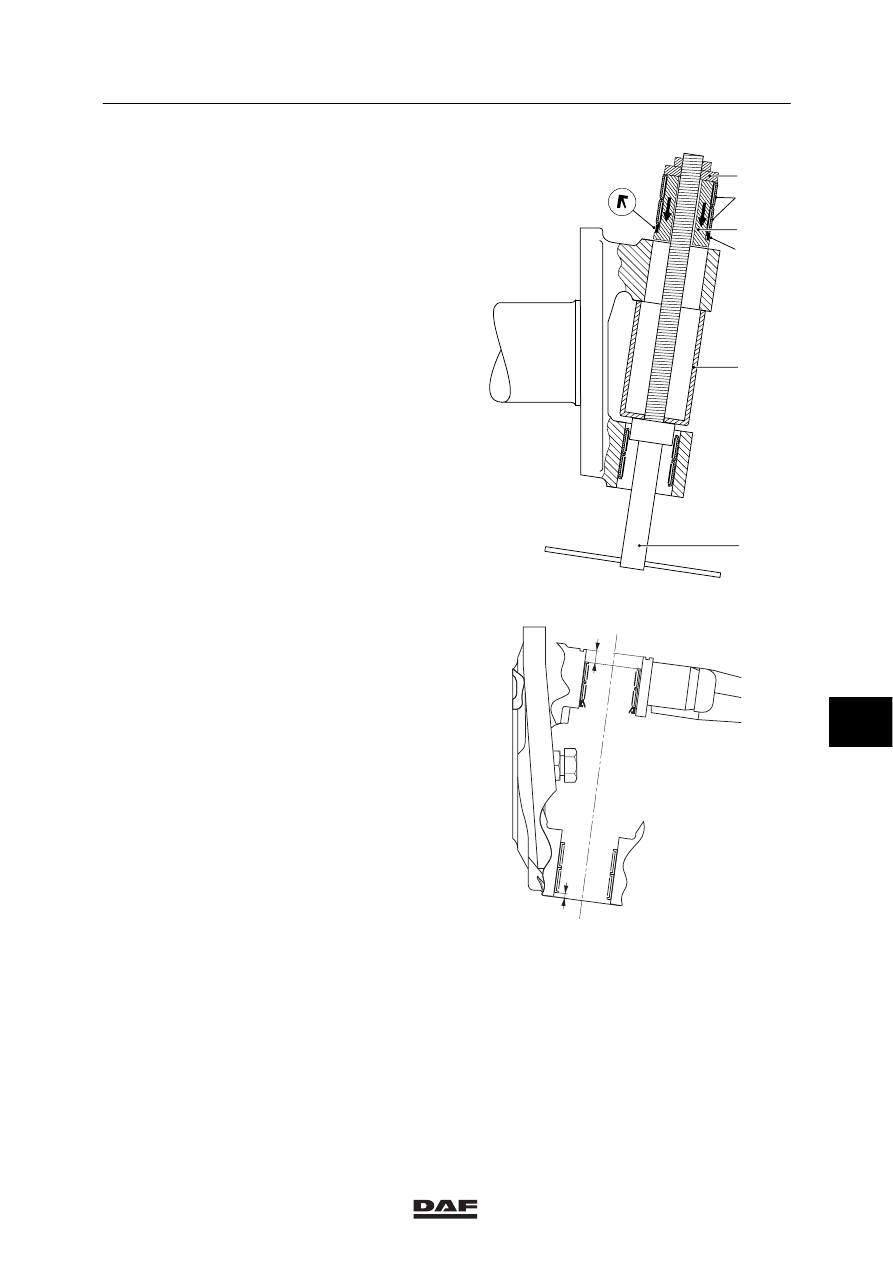

Assemble the special tool
(DAF no. 0694827). Press the needle
bearings into the swivel axle from the
outside to the inside, because of the
bevelled sides of the swivel axle.
S7 00 548
1
2
B
C
D
A
5.
Press the needle bearings into the swivel
axle to the specified depth (a), see
“Technical data”.
Note:
The marked lines on the thrust piece (D)
are not applicable.
6.
The bottom needle bearings are fitted to the
swivel axle in the same way (from the
outside to the inside).
7.
Press the needle bearings into the swivel
axle to the specified depth (b), see
“Technical data”.
8.
Fit the thrust bearing.
9.
Fit the swivel axle to the axle end.
;;
;;
;;
;;
;;
;;;;;;
;;;;;;
;
;
;;
;;
;;
;;
;;
;;
;
;
;
;
;;;
;;;
;;;
;;;
;;;
;;;
;
;;
;;
;
;
;
;;;
;;;
;;;
;;;
;
;;
;;
;;
;;
;;
;;
;;
;;
;;
S7 00 710
a
b
