DAF LF45, LF55 Series. Manual - part 470





©

 200436

3-31

Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΛΦ45/55 series

6

4

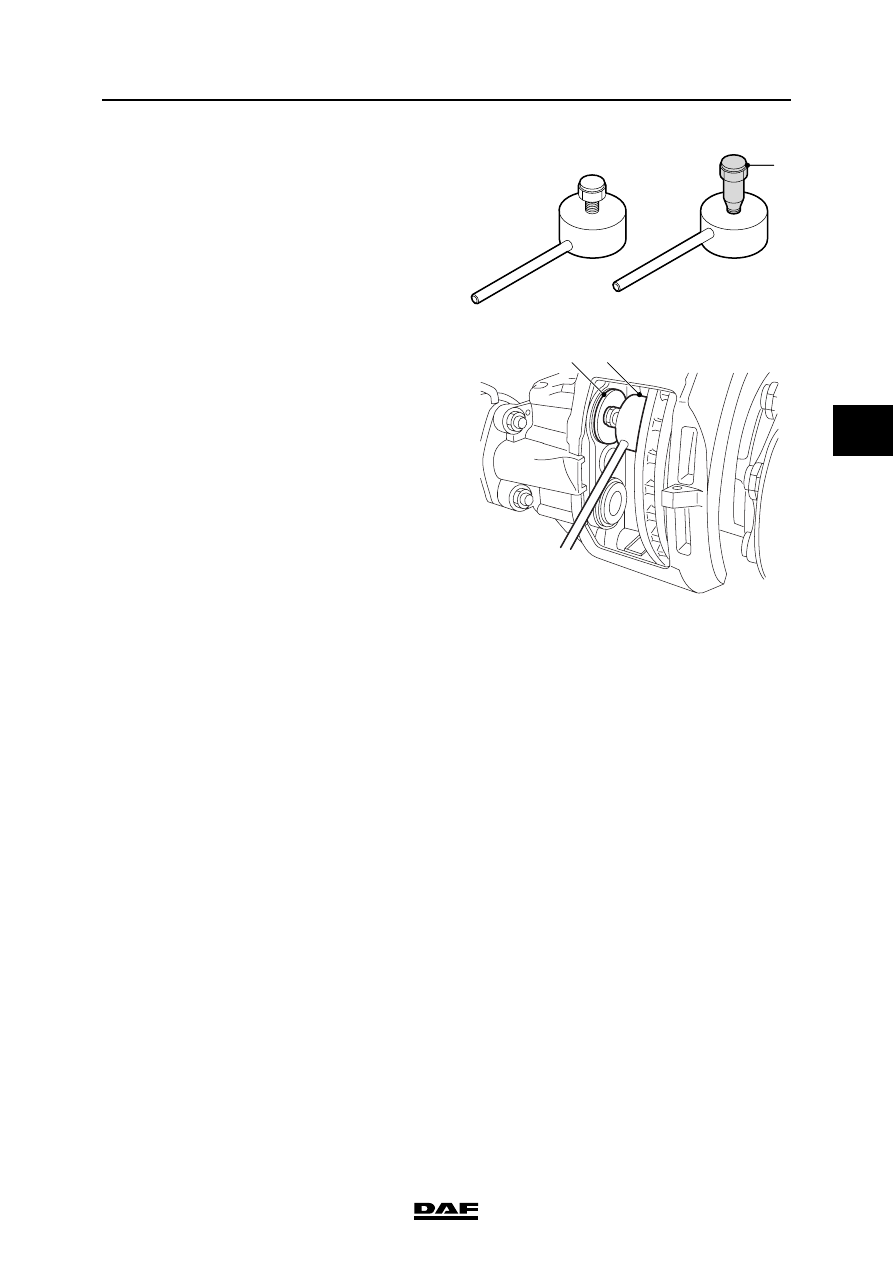

Fitting bellows with SN7000 brake calliper
thrust piece
1.

Clean the adjuster.

2.

Fit the new inner seal (1) on the adjuster.

R600715

3

3

2

1

BRAKE SYSTEM AND COMPONENTS

3-32

©

 200436

Removal and installation

4

ΛΦ45/55 series

6

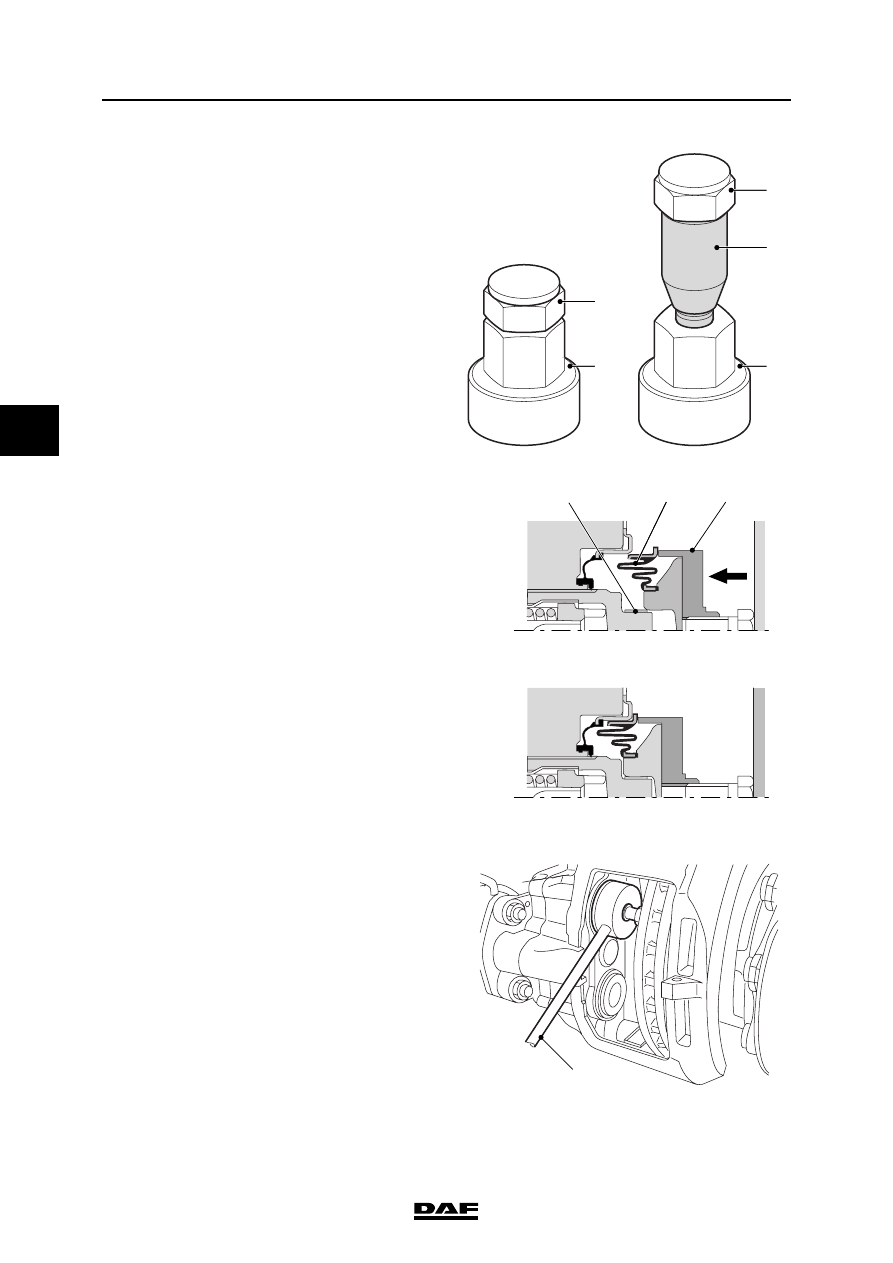

3.

Assemble the press from the special tool set

(DAF no. 1329495), by means of T3 and T9.

If the brake calliper has been removed, T4

must be screwed in between.

4.

Using the assembled press (3), push the

inner seal (1) onto the adjuster (2).

5.

Check that the inner seal is seated correctly

by rotating the adjuster 4 or 5 turns out of the

brake calliper using the hexagonal adjusting

bolt. The inner seal must not turn with it.

6.

Grease the screw thread of the adjusters.

See "Technical data".

7.

Screw the adjusters back into the brake

calliper.

8.

Fit new bearing bushes (4) on the adjusters.

9.

Fit the thrust pieces and bellows (5) on the

adjusters.

T9

R600788

T4

T3

T9

T3

R600716

6

5

4

6

©

 200436

3-33

Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΛΦ45/55 series

6

4

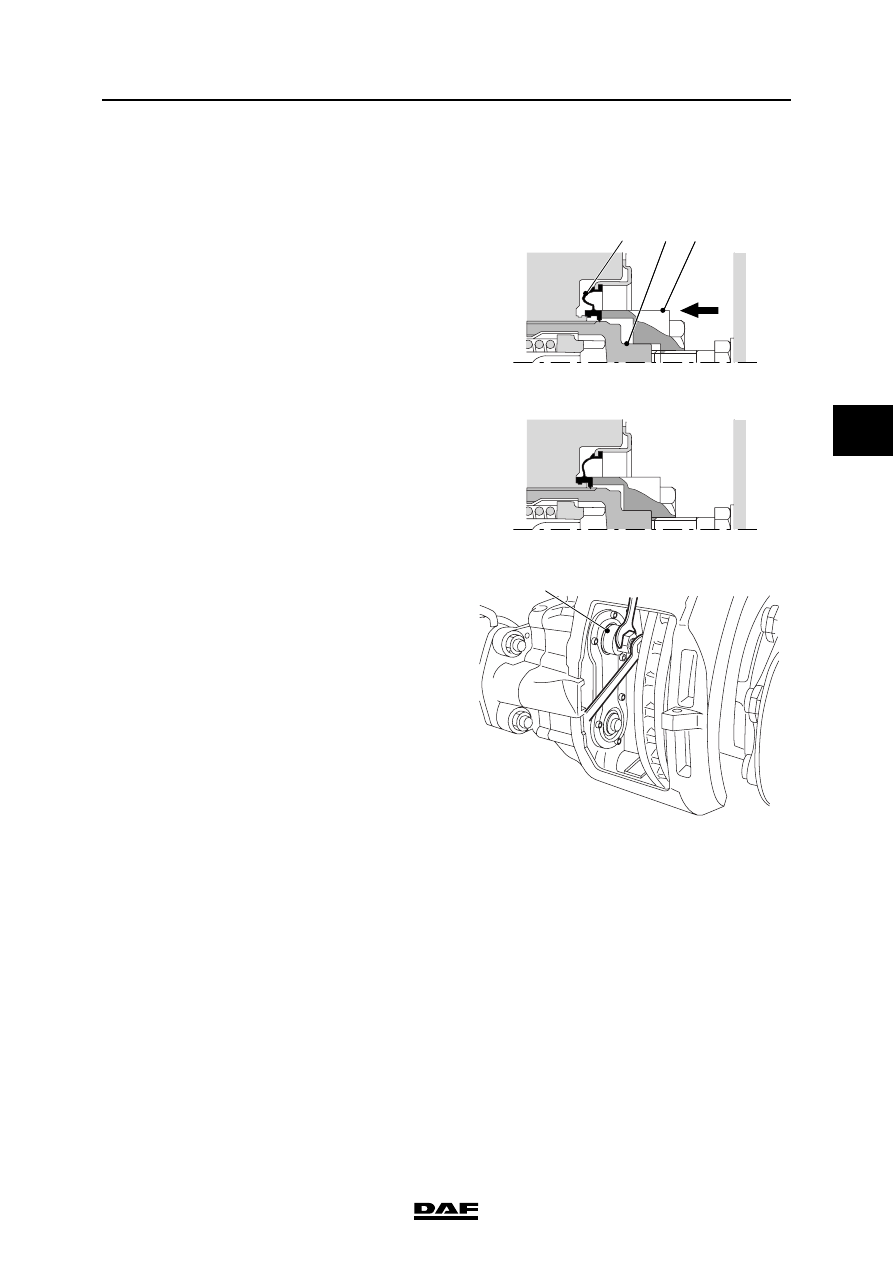

10. Assemble the press (6) from the special tool

set (DAF no. 1329495), by means of T1, T2

and T3. If the brake calliper has been

removed, T4 (8) must be screwed in

between.

11. Using the pressure tool (6), push the bellows

(5) into its seat.

12. Turn the pressure tool (6) round and press

the thrust pieces (7) onto the adjusters.

R600718

8

R600717

7

6

BRAKE SYSTEM AND COMPONENTS

3-34

©

 200436

Removal and installation

4

ΛΦ45/55 series

6

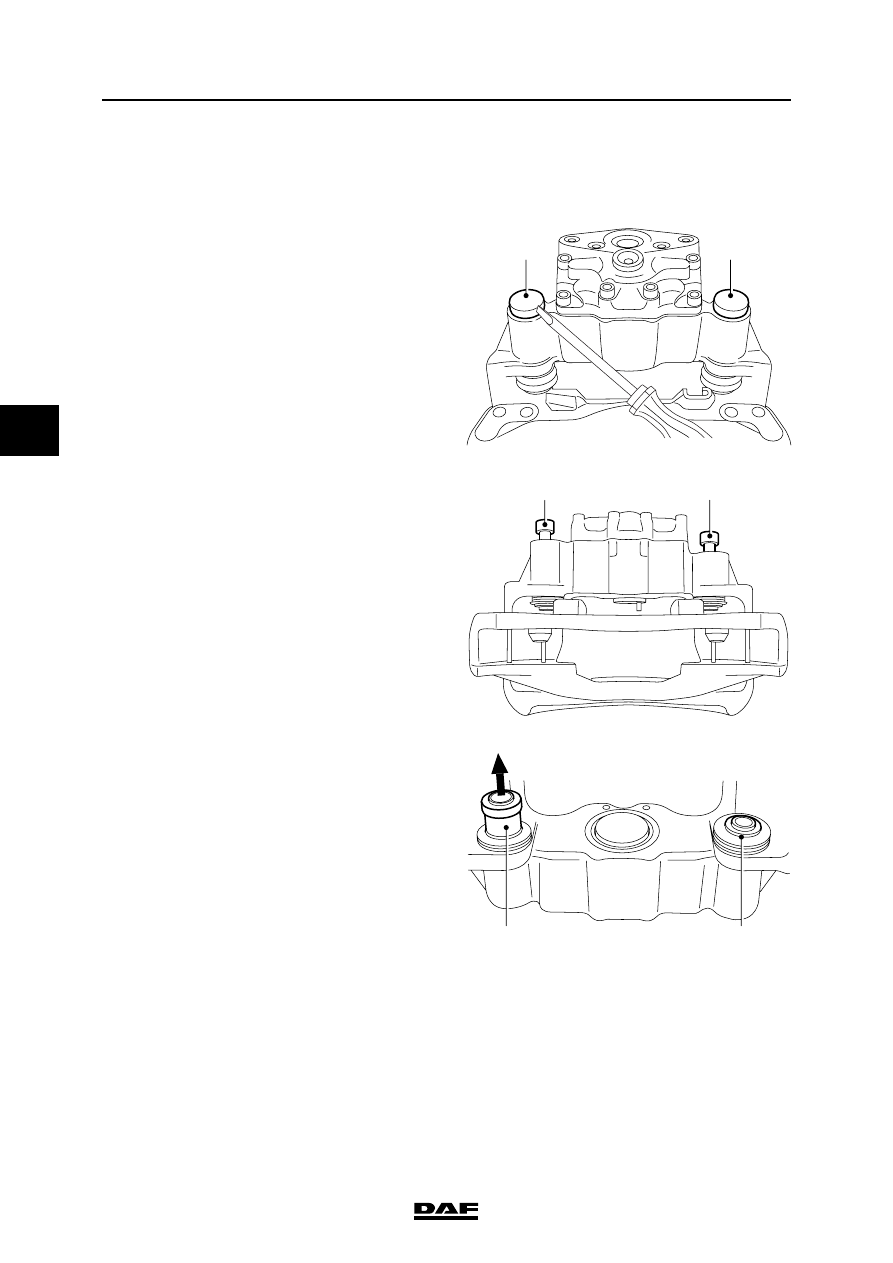

3.18 REMOVAL AND INSTALLATION, BEARING BUSHES, WABCO MODEL

Removal, bearing bushes
1.

Remove the brake cylinder from the brake

calliper.

2.

Remove the brake calliper from the hub.

3.

Remove both covers from the brake calliper

using a screwdriver.

4.

Unscrew the Allen screws (2).

5.

Remove the brake carrier from the brake

calliper.

6.

Remove the guide bushes (3) from the brake

calliper.

7.

Remove the guide bush dust covers from the

brake calliper.

R600589

1

1

R600590

2

2

R600591

3

3
