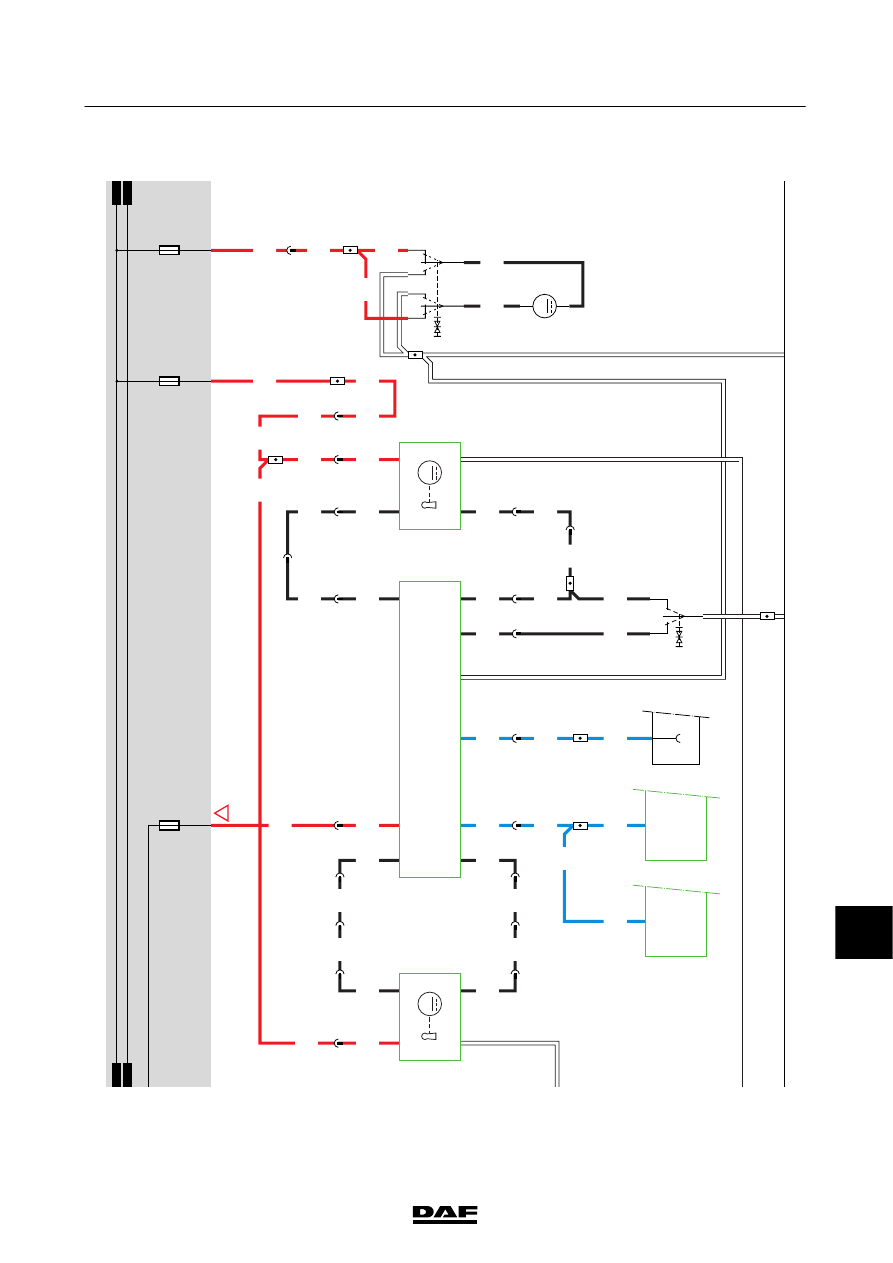

11 However ,during the locking operation the CDS electronic unit (D905) will connect pins 12 and 15 to earth. T his w ill activate the motors (B199 and B200). T he CDS electronic unit (D905) then checks the status of the outputs to the motors (B199 and B200). It uses this information to determine whether the doors have been successfully locked. The CDS unit (D905) will then send a m essage to the V IC (D900) via pin 2 stating that the doors have been successfully locked. As a result, the V IC (D900) will switch of ft he interior lighting. If the doors are not locked properly after three attempts, a message will be sent to the V IC (D900), stating that the locking operation w as not successful. Initialisation When the CDS electronic unit is supplied w ith power for the first time (on installing or replacing the electronic unit) or when new hand-held transmitters are used (up to 8), the unit m ust recognise these hand-held transmitters. To enable the hand-held trans mitters to co mmunic ate with the CDS unit, the unit and the hand-held transmitters must be taught using D AV IE. ROOF HA TCH Opening roof hatch When the roof hatch switch (C736) is operated and a connection is made between contacts 2 and 6 and therefore between contacts 1 and 3, a voltage is applied to pin 1 of the roof hatch motor (B009) through fuse E163, switch C736 and wire 4761. The roof hatch will open. Closing roof hatch When the roof hatch switch (C736) is operated and a connection is made between contacts 8 and 6 and therefore between contacts 7 and 3, a voltage is applied to pin 2 of the roof hatch motor (B009) through fuse E163, switch C736 and wire 4760. The roof hatch will now close. VARIANTS Location 68 If the vehic le is fitted w ith CDM, see section diagram 32 200440 2-65 Changes in the electrical system from chassis number 0L247507 5 CHANGES IN THE ELECTRICAL SYSTEM LF45/55 series |
