2-1

General

CE ENGINE FUEL SYSTEM

ΛΦ45/55 series

4

5

2. GENERAL

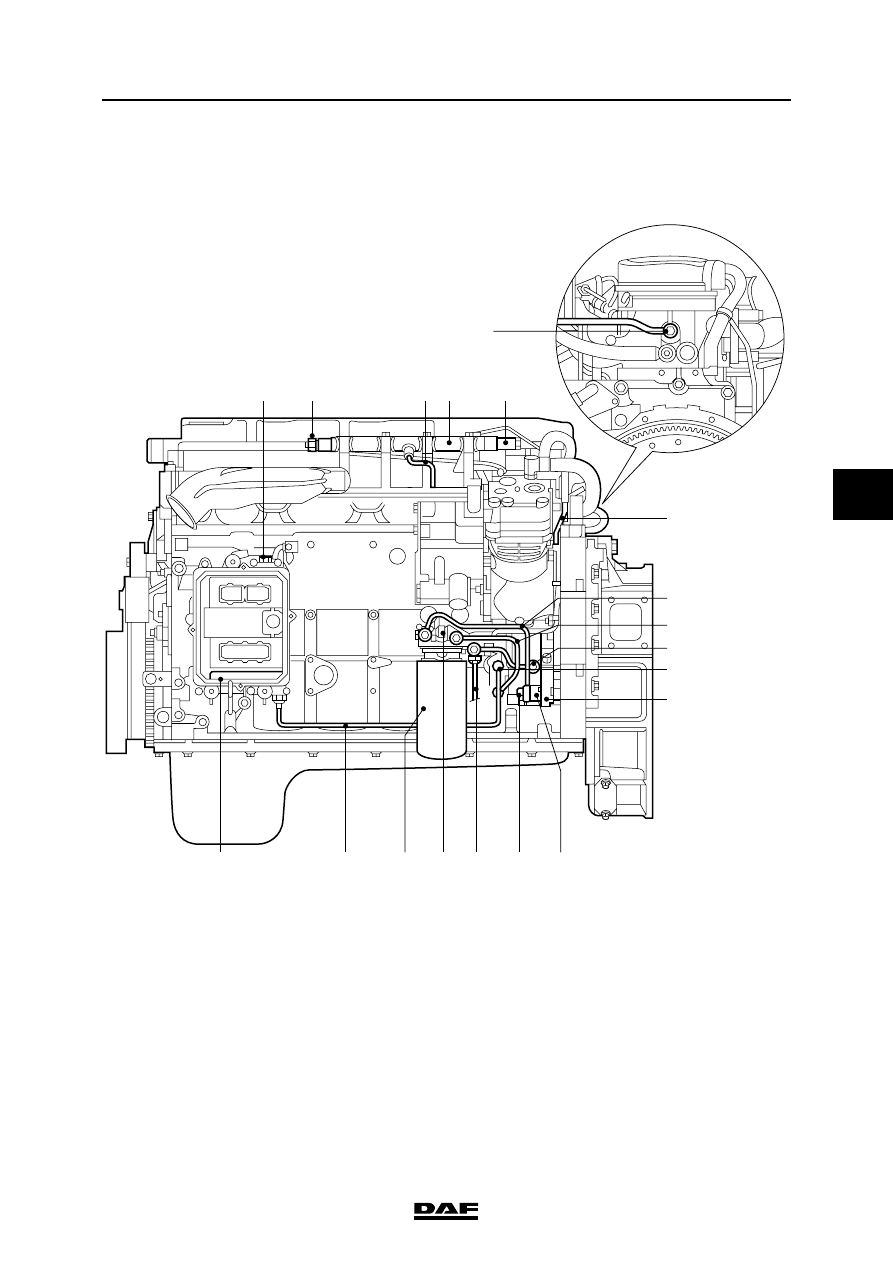

2.1 LOCATION OF COMPONENTS

Location of components, production date
< 2003-21 (chassis number < 0L248550)

1

2

3

4 5

6

7

8

13

14

15

16

17

19

20

18

12

11

10

9

i400870

CE ENGINE FUEL SYSTEM

2-2

©

 200416

General

5

ΛΦ45/55 series

4

1.

Suction pipe to electronic unit cooling plate

2.

Injector pipe

3.

Fuel rail pressure sensor

4.

Fuel pipe to fuel rail

5.

Fuel rail

6.

Fuel return overflow valve

7.

Fuel rail pressure-limiting valve

8.

Return pipe from fuel return overflow valve

9.

Fuel pipe to high-pressure pump

10. Fuel pipe to fuel fine filter

11. High-pressure pump leak-off pipe

12. Fuel pipe to fuel lift pump

13. High-pressure pump

14. Fuel pump control solenoid valve

15. Fuel pipe to high-pressure pump

16. Return pipe to fuel tank

17. Fuel temperature sensor

18. Fuel fine filter

19. Fuel pipe from electronic unit cooling plate

20. ECS-DC3 electronic unit

©

 200416

2-3

General

CE ENGINE FUEL SYSTEM

ΛΦ45/55 series

4

5

Location of components, production date

 2003-21 (chassis number  0L248550) and
production date < 2003-49 (chassis number
< 0L253643)

1

2

3 4

5

6

7

12

13

14

15

16

18

19

17

11

10

9

8

i400880

CE ENGINE FUEL SYSTEM

2-4

©

 200416

General

5

ΛΦ45/55 series

4

1.

Suction pipe to electronic unit cooling plate

2.

Fuel rail pressure sensor

3.

Fuel pipe to fuel rail

4.

Fuel rail

5.

Fuel return overflow valve

6.

Fuel rail pressure-limiting valve

7.

Return pipe from fuel return overflow valve

8.

Fuel pipe to high-pressure pump

9.

Fuel pipe to fuel fine filter

10. High-pressure pump leak-off pipe

11. Fuel pipe to fuel lift pump

12. High-pressure pump

13. Fuel pump control solenoid valve

14. Fuel pipe to high-pressure pump

15. Return pipe to fuel tank

16. Fuel temperature sensor

17. Fuel fine filter

18. Fuel pipe from electronic unit cooling plate

19. ECS-DC3 electronic unit
