DAF LF45, LF55 Series. Manual - part 273

©

 200508

1-1

General

PROP SHAFTS

ΛΦ45/55 series

3

10

1. GENERAL

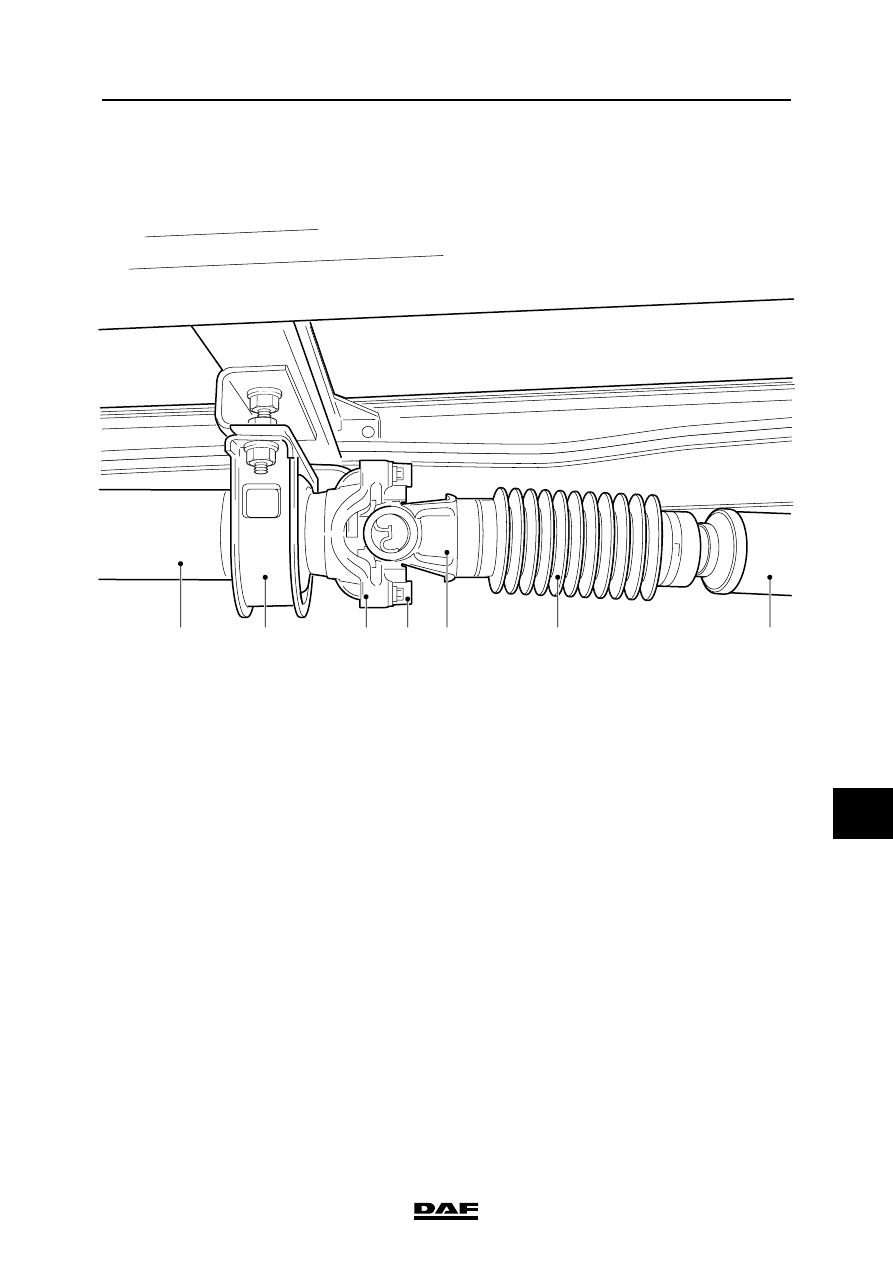

1.1 OVERVIEW DRAWING, SPICER PROP SHAFT

1

2

3

4

5

6

7

V3 00 747

1.

Intermediate shaft

2.

Suspension bearing

3.

Prop shaft

4.

Clamping piece

5.

Fork

6.

Slider

7.

Prop shaft

PROP SHAFTS

1-2

©

 200508

General

10

ΛΦ45/55 series

3

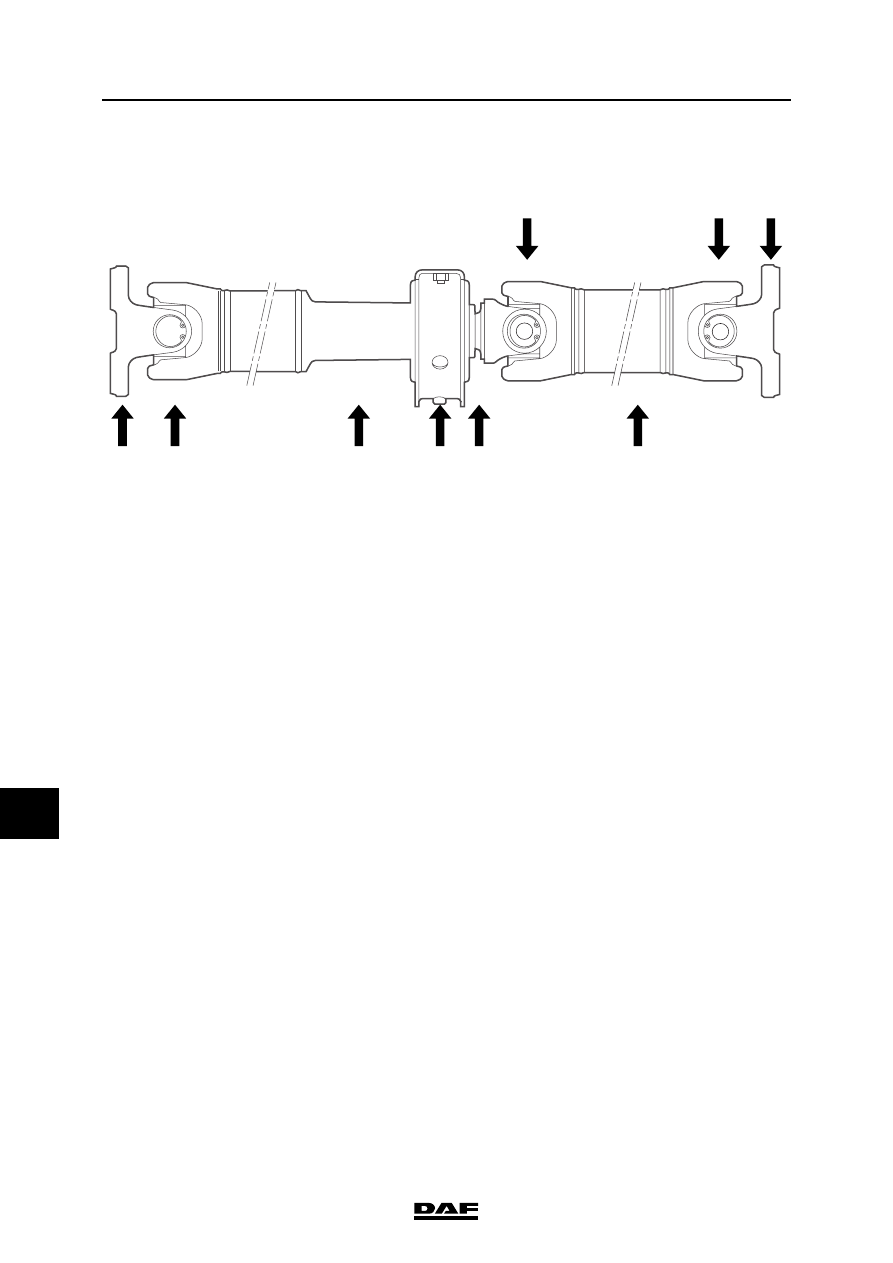

1.2 OVERVIEW DRAWING, MONOTRON PROP SHAFT

V300999

A

B

C

E

F

A

B

B

D

A

Drive flange

B

Fork

C

Intermediate shaft

D

Suspension bearing

E

Slider

F

Prop shaft

©

 200508

2-1

Inspection and adjustment

PROP SHAFTS

ΛΦ45/55 series

3

10

2. INSPECTION AND ADJUSTMENT

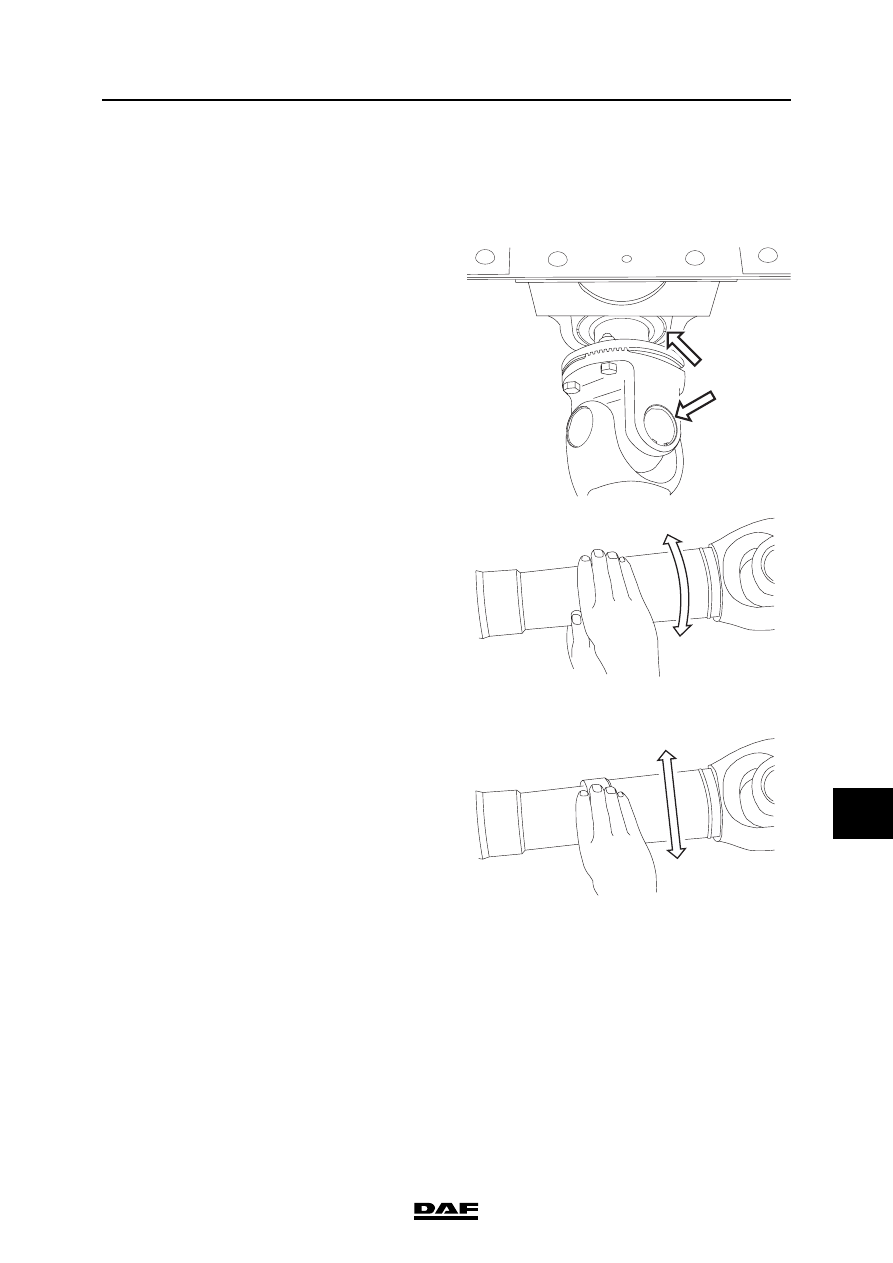

2.1 INSPECTION, PROP SHAFT

Inspection, prop shaft
1.

Check the universal joints and suspension

bearing for play and damage.

2.

Check the slide coupling for radial play.

3.

There must be no clearly perceptible play on

universal joints and suspension bearing.

M3032

M3019

M3020

PROP SHAFTS

2-2

©

 200508

Inspection and adjustment

10

ΛΦ45/55 series

3
