DAF LF45, LF55 Series. Manual - part 253

©

 200508

3-5

Removal and installation

EATON FS/6309A GEARBOX

ΛΦ45/55 series

3

6

3.4 REMOVAL AND INSTALLATION, GEARBOX FRONT COVER OIL SEAL

Removing gearbox front cover oil seal
1.

Remove the gearbox.

2.

Remove the attachment bolts from the

gearbox front cover. Remove the gearbox

front cover. Clean the contact surfaces of the

gearbox front cover and the gearbox

housing.

3.

Remove the oil seal from the gearbox front

cover.

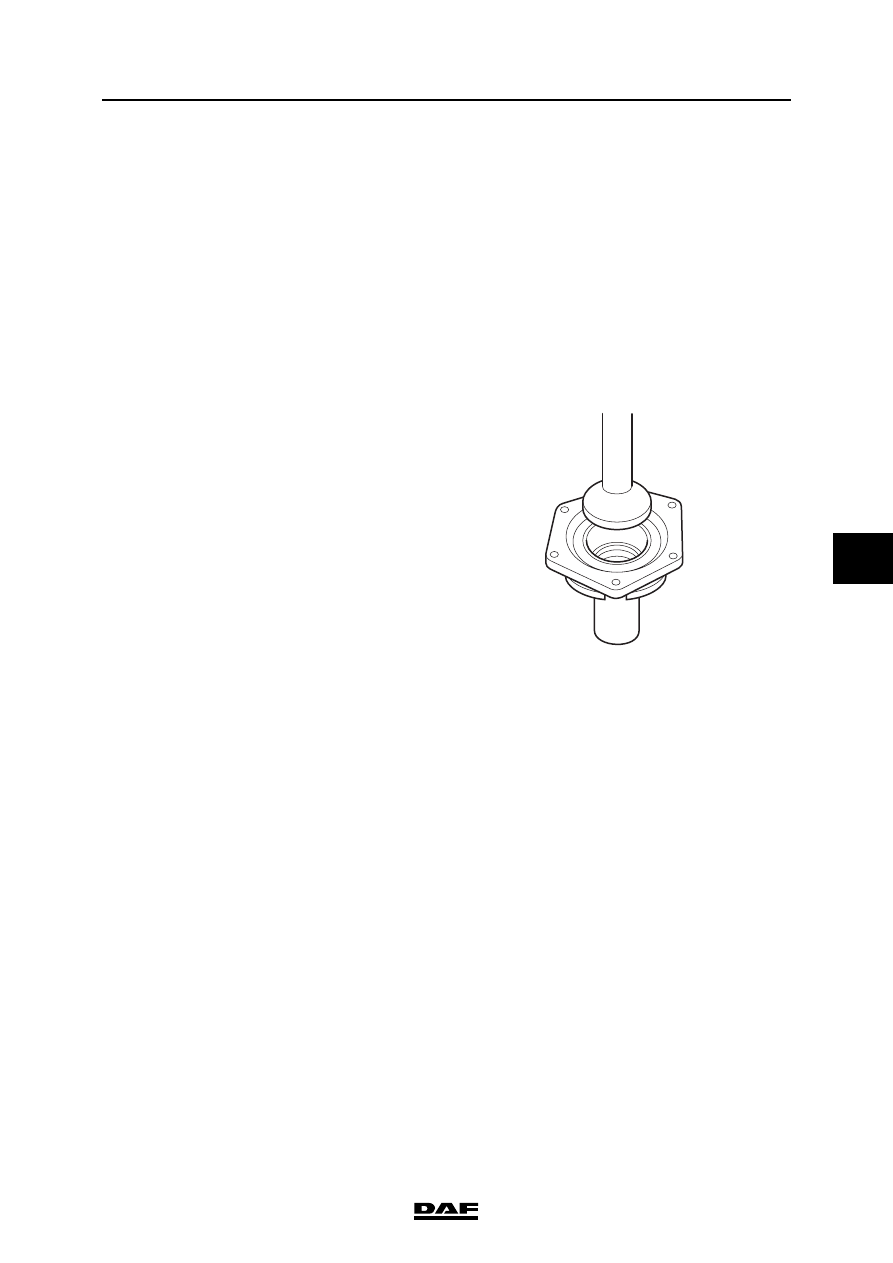

Installing gearbox front cover oil seal
1.

Fit the seal in the gearbox front cover using

special tool (DAF no. 1329354).

2.

Apply sealant to the contact surface of the

gearbox front cover. Fit the gearbox front

cover. Tighten the bolts to the specified

torque. See "Technical data".

3.

Fit the gearbox.

V301006

EATON FS/6309A GEARBOX

3-6

©

 200508

Removal and installation

6

ΛΦ45/55 series

3

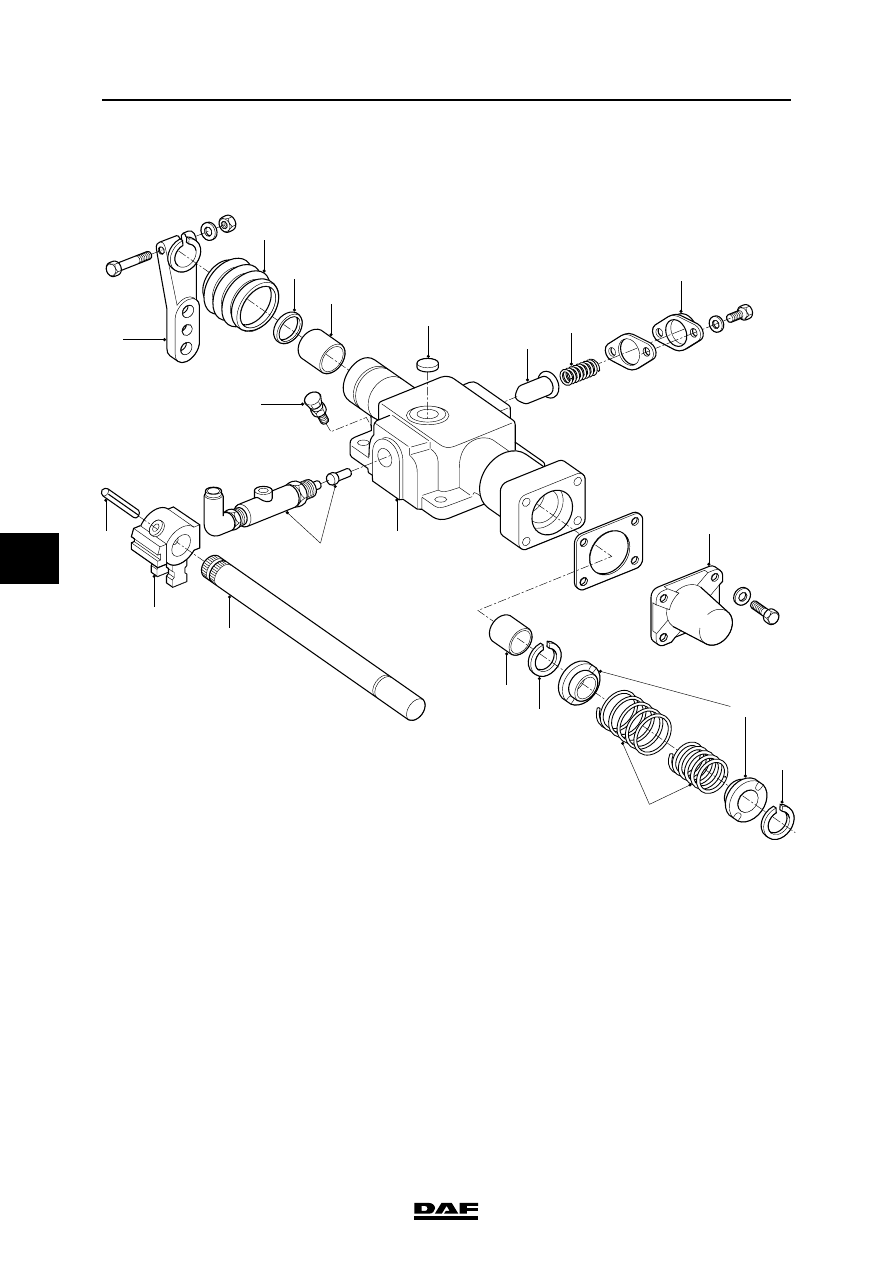

3.5 REMOVAL AND INSTALLATION, SELECTOR SHAFT OIL SEAL

Removing selector shaft oil seal

1.

Mark the position of the shifting arm (1)

relative to the selector shaft (17).

2.

Remove the selector shaft lever with the

gearbox control attached to it. If necessary,

disconnect the torque rod.

3.

Remove the rubber sleeve (2).

4.

Drain the air reservoirs and remove the air

connection from the selector shaft housing.

5.

Remove the bleed control valve and pin (16).

1

20

2

3

4

8

5

14

6

9

10

15

16

17

18

19

12

11

13

7

V3 00 475

©

 200508

3-7

Removal and installation

EATON FS/6309A GEARBOX

ΛΦ45/55 series

3

6

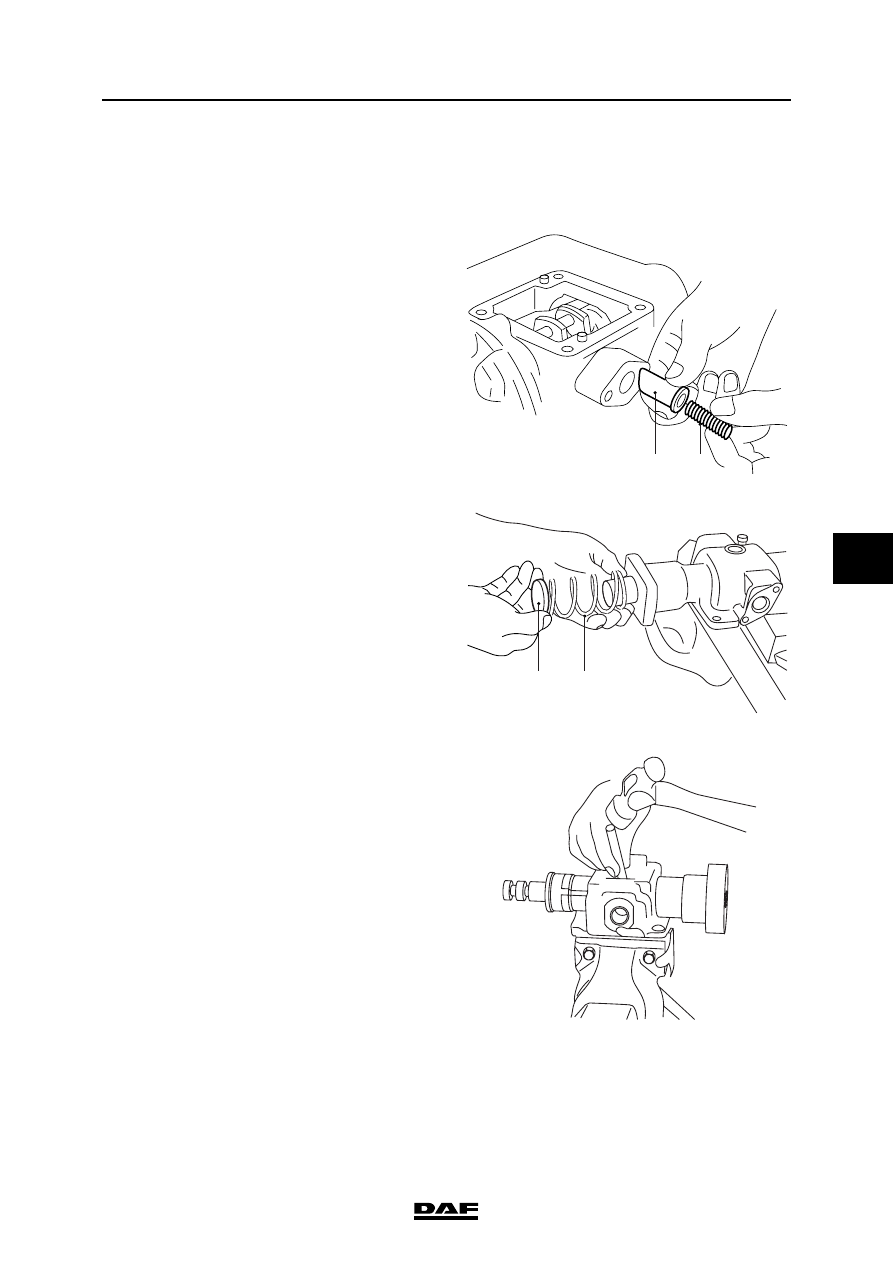

6.

Remove the attachment bolts from the

selector shaft housing (15) and remove it.

7.

Place the housing in a soft-jawed vice.

8.

Remove the retaining cover (5) and pull out

the retaining spring (6) and pin (7).

9.

Remove the bleeder (20).

10. Remove the end cover (14) and the spring

clip (13).

11. Remove the spring holders (11), the springs

(12) and the spring clip (10).

12. Turn the selector shaft housing over and

drive the plug (8) out of the housing.

V3 00 547

6

7

V3 00 506

11

12

V3 00 497

EATON FS/6309A GEARBOX

3-8

©

 200508

Removal and installation

6

ΛΦ45/55 series

3

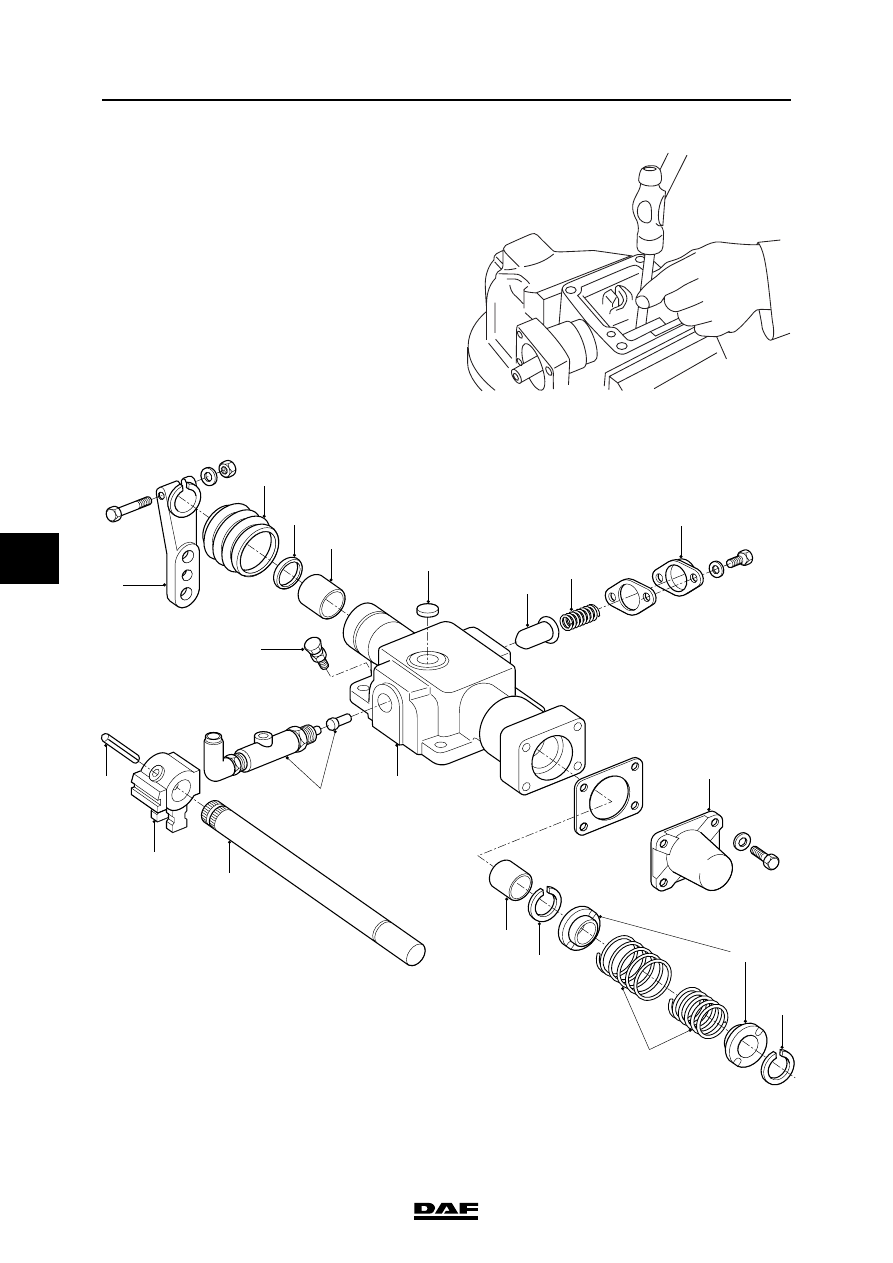

13. Turn the selector shaft housing over and

drive the pin (19) out of the selector finger

(18) and selector shaft (17) via the plug

opening. Remove the selector finger and the

selector shaft.

14. Remove the oil seal (3) from the selector

shaft housing. If necessary, the selector

shaft bearing bushes (4) and (9) can now

also be removed using a suitable puller.

Installing selector shaft oil seal

V3 00 507

1

20

2

3

4

8

5

14

6

9

10

15

16

17

18

19

12

11

13

7

V3 00 475
