DAF LF45, LF55 Series. Manual - part 215

©

 200508

1-3

Mechanical gearbox control

TECHNICAL DATA

ΛΦ45/55 series

3

0

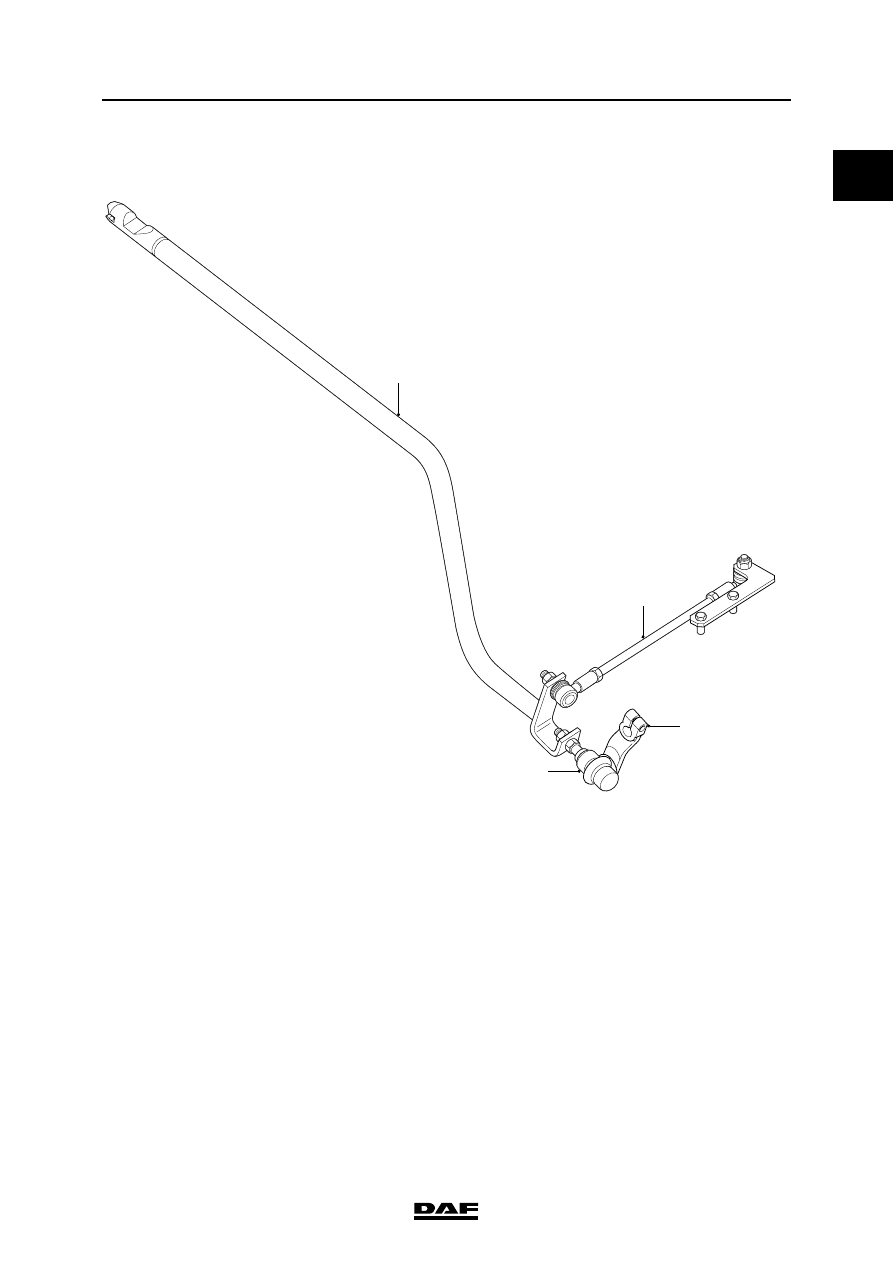

Operating mechanism,
2 adjustment options

Control rod (1)

Torque rod (2)

Ball joint (4)

Lubricant

Molykote BR2S or BR2 plus

Attachment nuts

48 Nm

Lock nuts

28 Nm

Attachment nut

48 Nm

Lock nuts

45 Nm

V3 00 567

1

2

3

4

TECHNICAL DATA

1-4

©

 200508

Mechanical gearbox control

0

ΛΦ45/55 series

3

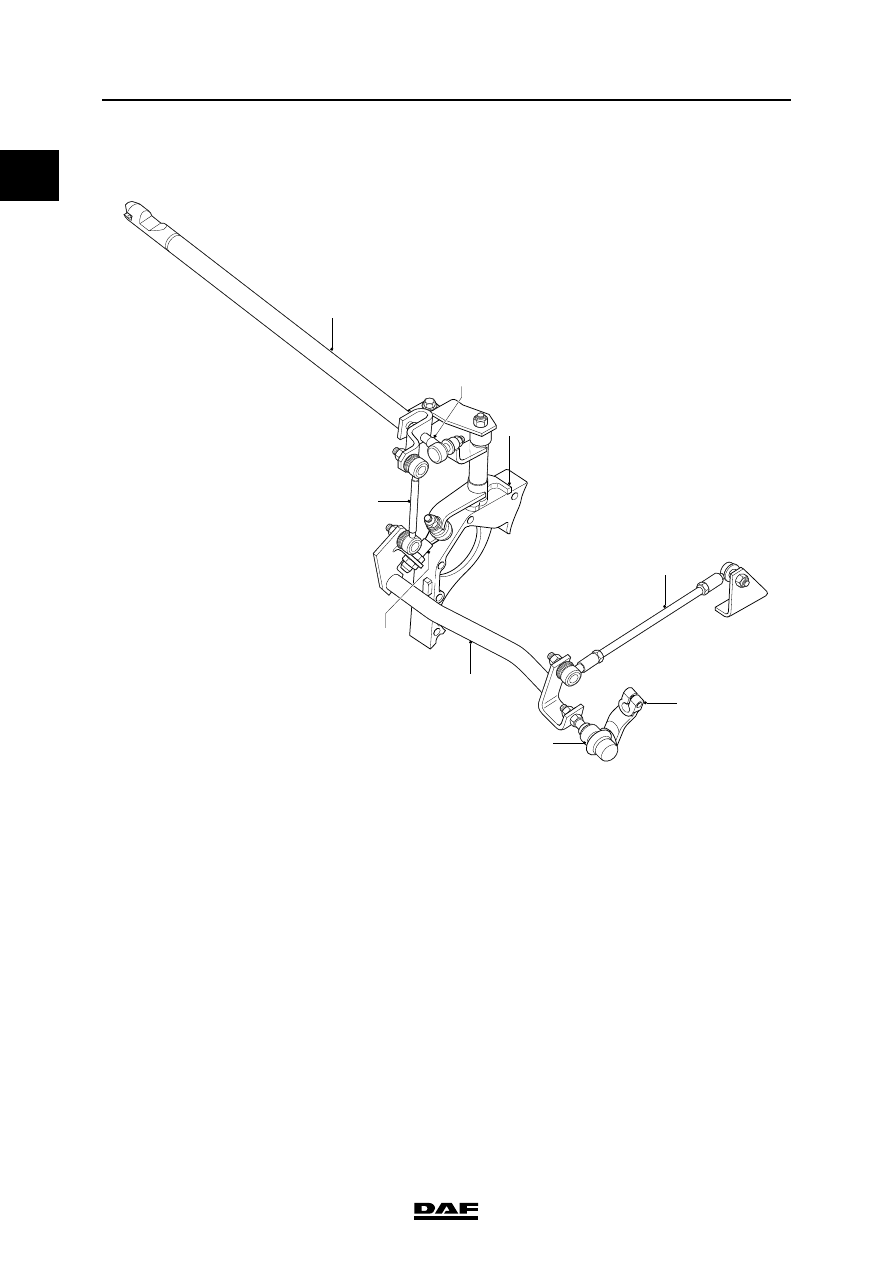

Operating mechanism,
4 adjustment options

Control rod (1)

Ball joint (2)

Torque rod (4)

Ball joint (6)

Ball joint (8)

Lubricant

Molykote BR2S or BR2 plus

Attachment nut

48 Nm

Lock nuts

48 Nm

Attachment nuts

48 Nm

Lock nuts

28 Nm

Attachment nut

48 Nm

Lock nuts

48 Nm

Attachment nuts

48 Nm

Lock nuts

48 Nm

V3 00 566

1

2

3

4

5

6

7

8

9

©

 200508

1-5

Mechanical gearbox control

TECHNICAL DATA

ΛΦ45/55 series

3

0

Torque rod (9)

Gear lever unit

Eaton switch button

(1) Use Loctite 243

Attachment nuts

48 Nm

Attachment bolts

18 Nm

(1)

Attachment nut

70 Nm

(1)

TECHNICAL DATA

1-6

©

 200508

Mechanical gearbox control

0

ΛΦ45/55 series

3
