CLUTCH
Removal and installation
5-8
5.6 REMOVAL AND INSTALLATION OF THE MASTER CYLINDER
Hydraulic fluid is toxic and can
therefore have a damaging effect
on your health. Hence avoid any
direct or indirect physical contact.
As hydraulic fluid is also a
corrosive fluid, it may damage the
paintwork of the vehicle. Avoid any
contact between hydraulic fluid and
paintwork.
Always use new and clean
hydraulic fluid which has been kept
in a sealed container and complies
with the specifications. Hydraulic
fluid which has absorbed water
(from the ambient air) may have an
adverse effect on the operation of
the clutch system. Avoid any
contact with mineral oil. Even one
drop of mineral oil in the system
will damage the seals.

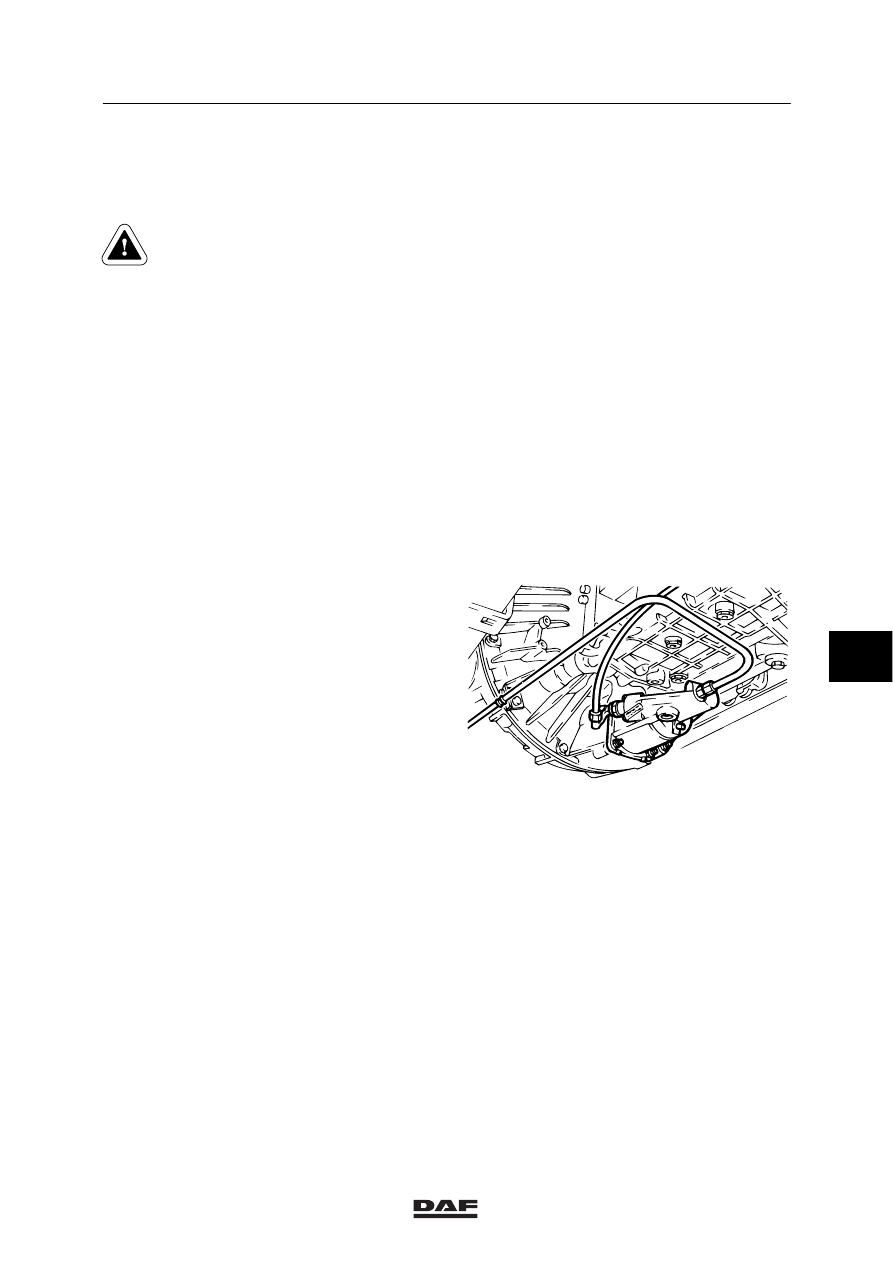

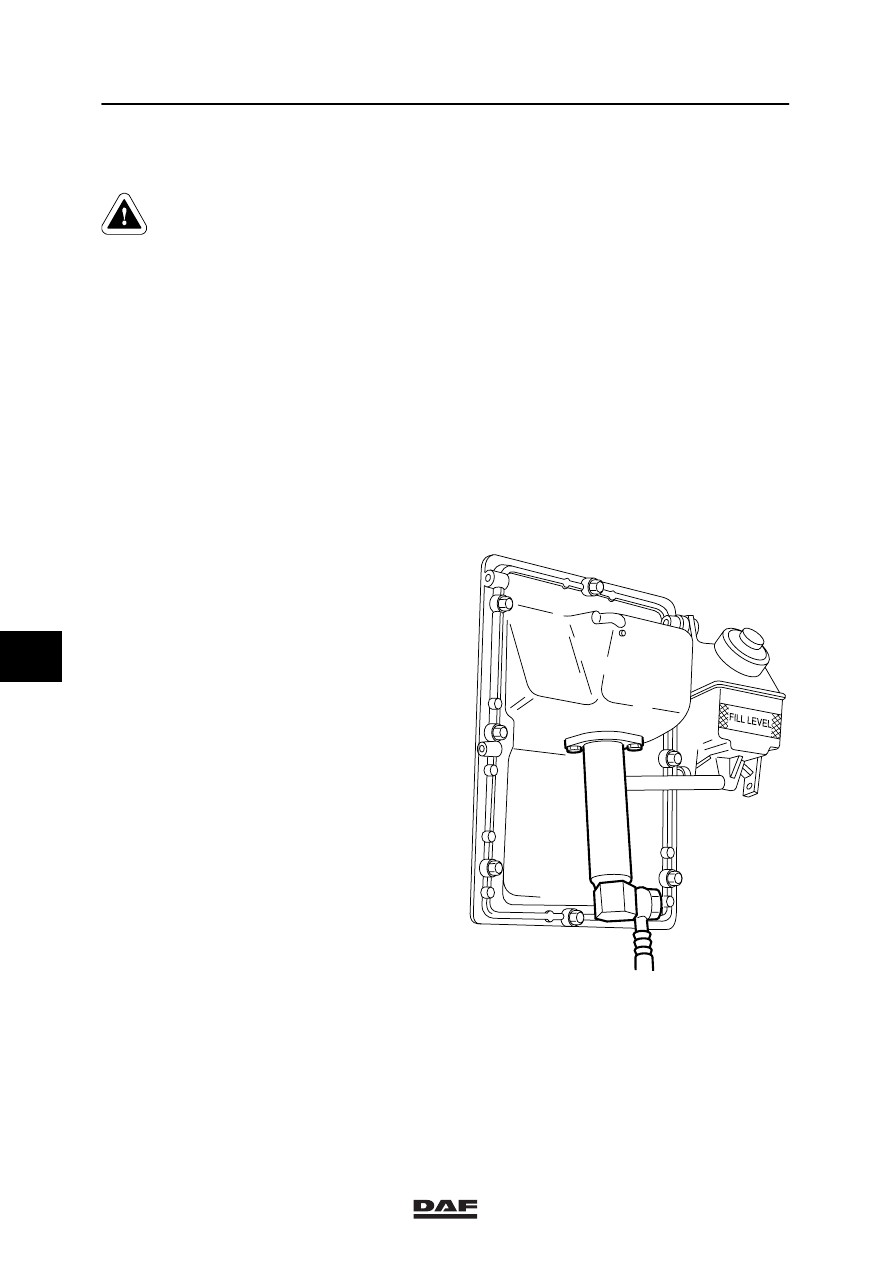

Removing the master cylinder
1.
Connect a transparent plastic hose to the
clutch servo’s bleed nipple.
2.
Open the bleed nipple (collect the fluid) and
drain the system.
3.
Remove the clutch spring from the clutch
pedal.
4.
Remove the fixing bolt from the clutch pedal
and the master cylinder.
5.
Remove the line between the reservoir and
the master cylinder.
6.
Disconnect the fluid line at the bottom of the
master cylinder.
7.
Remove the two fixing bolts from the
master cylinder and take the cylinder from
the bracket.
V300179
