PNEUMATIC GEARBOX COMPONENTS

General

1-12

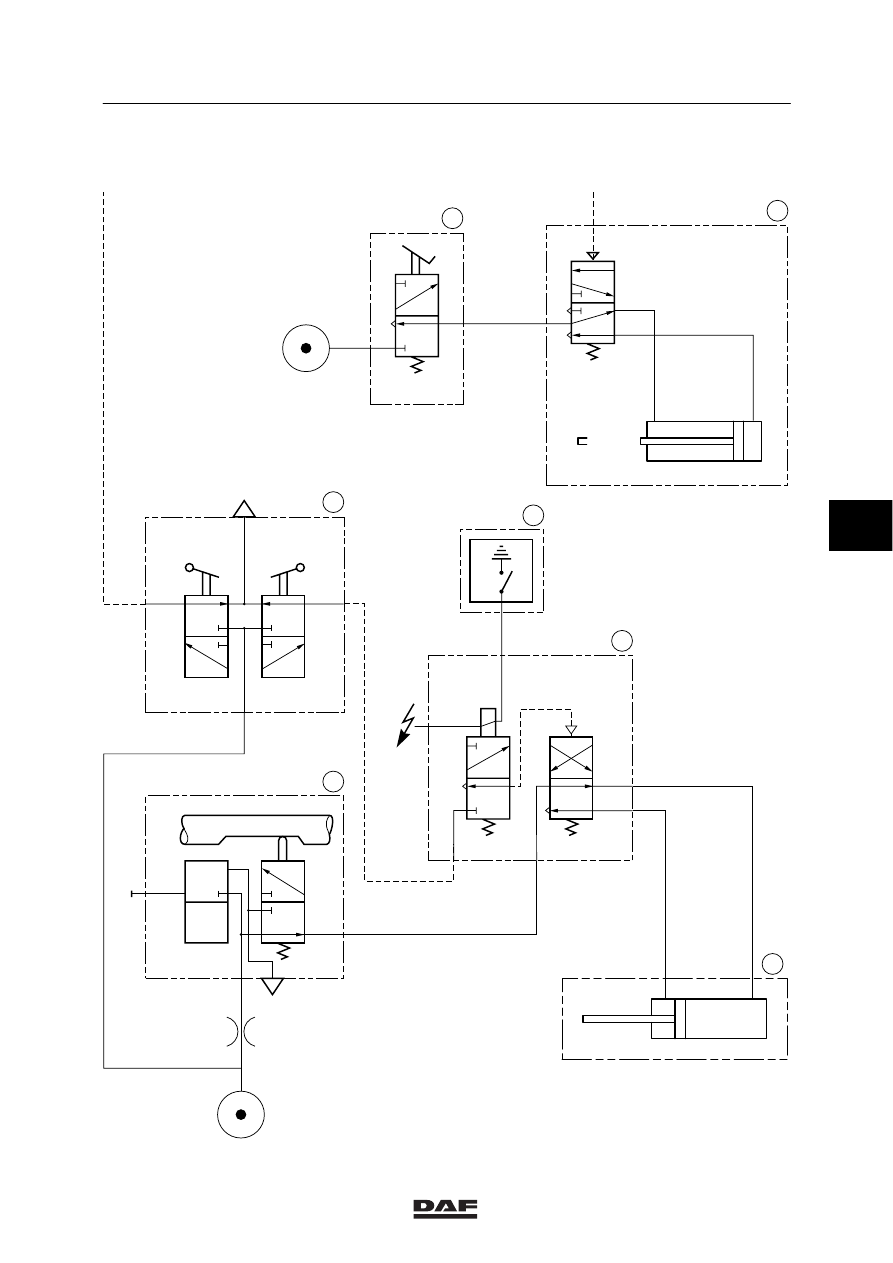

1.5 PNEUMATIC DIAGRAM OF THE GEARBOX CONTROL

Pneumatic diagram of 16 S direct input shaft

The following applies to pneumatic diagram
V300165
-

Vehicle contact switched off

-

Gearbox in neutral

-

Range switch position “high”

-

Splitter switch position “high”

-

Clutch pedal not activated

1.

Neutral position valve

2.

Gear engaging cylinder high/low group

3.

Shift-down safety valve

4.

Electronic unit for CTE

5.

Gear lever shifting valve

6.

GV valve

8.

Splitter relay valve with splitter cylinder

L

Position “low”

H

Position “high”

N

Gearbox selector shaft in neutral

V

Gearbox selector shaft engaged

5

ǹ 0002

3

General

PNEUMATIC GEARBOX COMPONENTS

1-13

Pneumatic diagram of 16 S direct input shaft

N

V

1

21

22

1

22

21

GV

GP

H

L

H

L

1

2

H

L

4

1

21

22

26

H

L

25

V300165

1

5

4

3

8

6

2

L

H

1

41

H

L

5

ǹ 0002

3

PNEUMATIC GEARBOX COMPONENTS

General

1-14

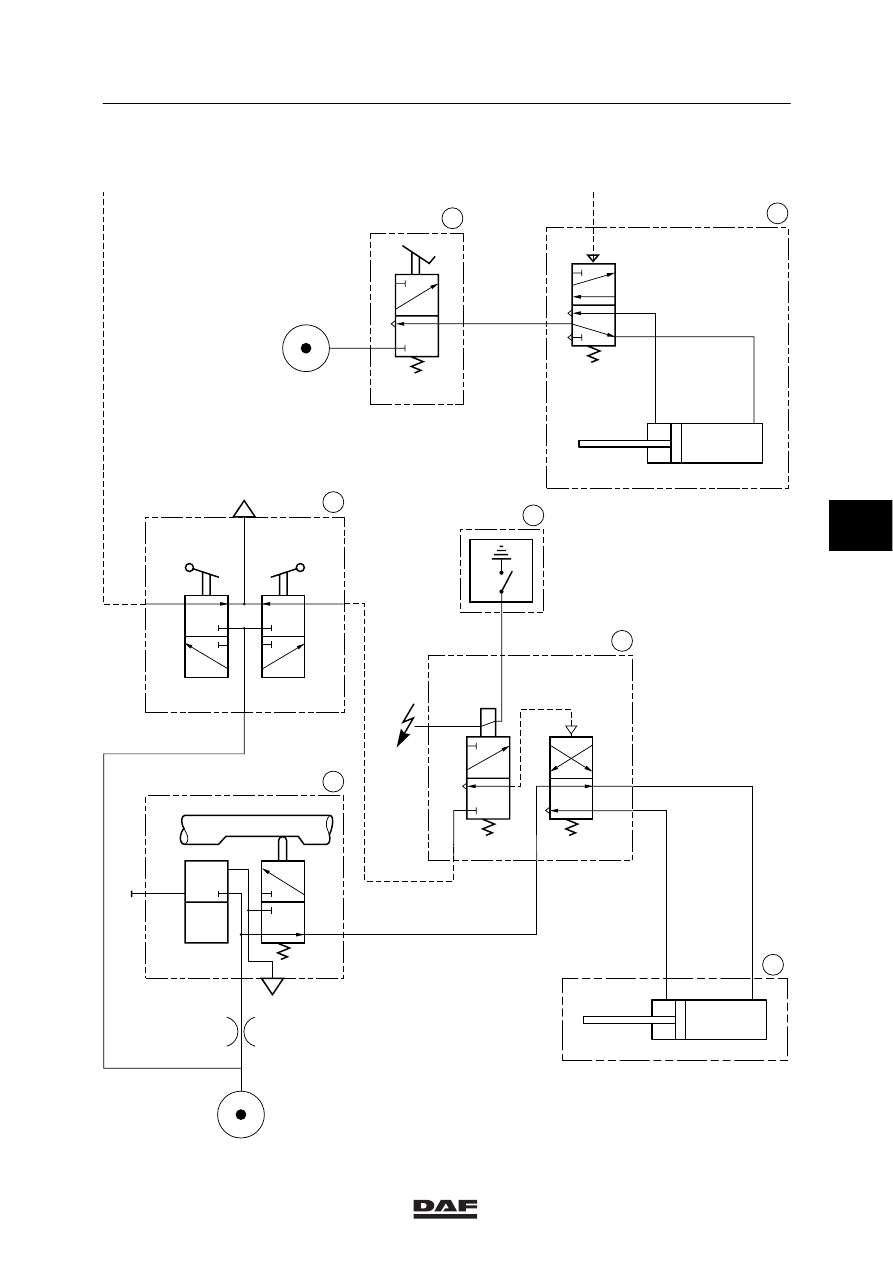

Pneumatic diagram of 16 S overdrive

The following applies to pneumatic diagram
V300166
-

Vehicle contact switched off

-

Gearbox in neutral

-

Range switch position “high”

-

Splitter switch position “high”

-

Clutch pedal not activated

1.

Neutral position valve

2.

Gear engaging cylinder high/low group

3.

Shift-down safety valve

4.

Electronic unit for CTE

5.

Gear lever shifting valve

6.

GV valve

7.

Splitter relay valve with splitter cylinder

L

Position “low”

H

Position “high”

N

Gearbox selector shaft in neutral

V

Gearbox selector shaft engaged

5

ǹ 0002

3

General

PNEUMATIC GEARBOX COMPONENTS

1-15

Pneumatic diagram of 16 S overdrive

N

V

1

21

22

1

22

21

GV

GP

H

L

H

L

L

H

1

41

H

L

1

2

H

L

4

1

21

22

V300166

1

5

4

3

7

6

26

H

L

25

2

5

ǹ 0002
