Removal and installation

XE ENGINE

4-1

4. REMOVAL AND INSTALLATION

4.1 REMOVAL AND INSTALLATION, ENGINE

Suspend the engine carefully from
the hoist, using approved lifting
gear.
Various fluids will be released when
pipes are removed. Collect these
fluids. Take care of your personal
protection and any fire hazards.

Note:
Because of the large number of vehicle
specifications, it is not feasible to exactly specify
the engine removal and installation procedures
for every vehicle.
This description only includes the main points
requiring attention.

-

Disconnect the earth lead from the battery
pole.

-

Avoid opening of fluid systems as much as
possible. If possible, remove and put aside
the engine components.

-

When removing the engine, ensure that no
parts or dirt fall into the engine, radiator or
other components. Therefore, plug all
openings.

-

Electrical wiring harnesses are easily
damaged. If damaged, they may cause
faults. Make sure these wiring harnesses
are stress-free and have been installed
away from moving parts.

-

Tighten all fixing bolts to the correct
tightening torque.

-

Do not allow the engine to rest on the oil
sump. Because the oil sump is made of
sheet material, it will be severely damaged
by the engine’s own weight.

5

ǹ 0008

2

XE ENGINE

Removal and installation

4-2

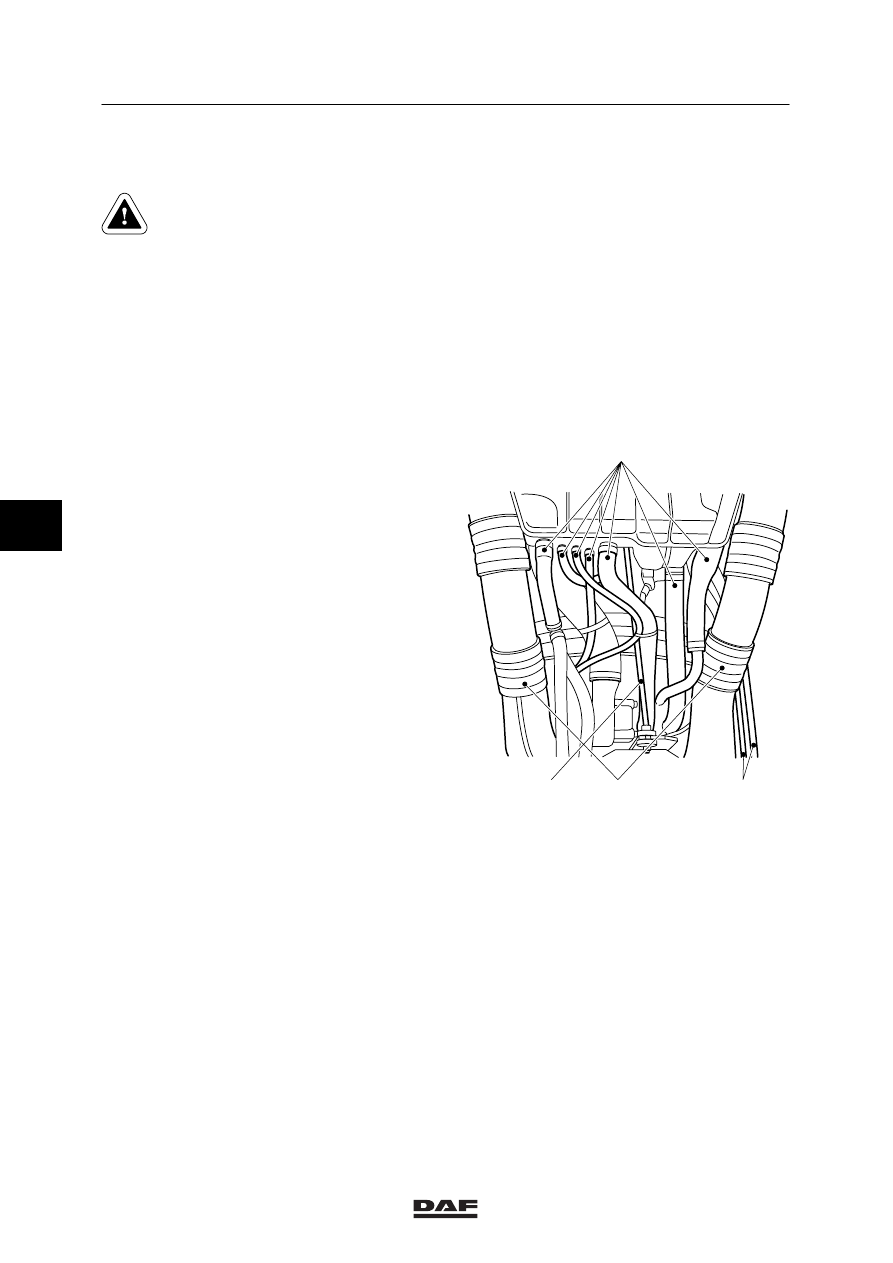

4.2 REMOVAL AND INSTALLATION, ENGINE MOUNTING

Suspend the engine carefully from
the hoist, using approved lifting
gear.

Various fluids will be released when
pipes are removed. Collect these
fluids. Take care of your personal
protection and any fire hazards.

Removing the engine mounting
1.

Disconnect the earth lead from the battery
pole.

2.

Drain the coolant.

3.

Remove the coolant hoses (A) between the
engine, the radiator and the header tank.

4.

Remove the reaction rod (B) between the
engine and the radiator.

5.

Remove the air inlet hoses (C) between the
engine and the intercooler. Plug the
openings.

6.

Remove the air-conditioning compressor, if
present, so that it can be put aside with the
pipes (D) attached.

7.

Remove the fixing nuts of the viscous fan
clutch and place the viscous fan clutch and
the fan in the wind tunnel.

8.

Disconnect the earth strip on the flywheel
housing.

9.

Properly suspend the engine in the hoist.

10. Remove the central engine mount fixing

bolts at the front and/or back of the engine.

11. Lift the engine up as much as is necessary.

12. Remove the engine mounting.

B

C

D

A

M201019

5

ǹ 0008

2

Removal and installation

XE ENGINE

4-3

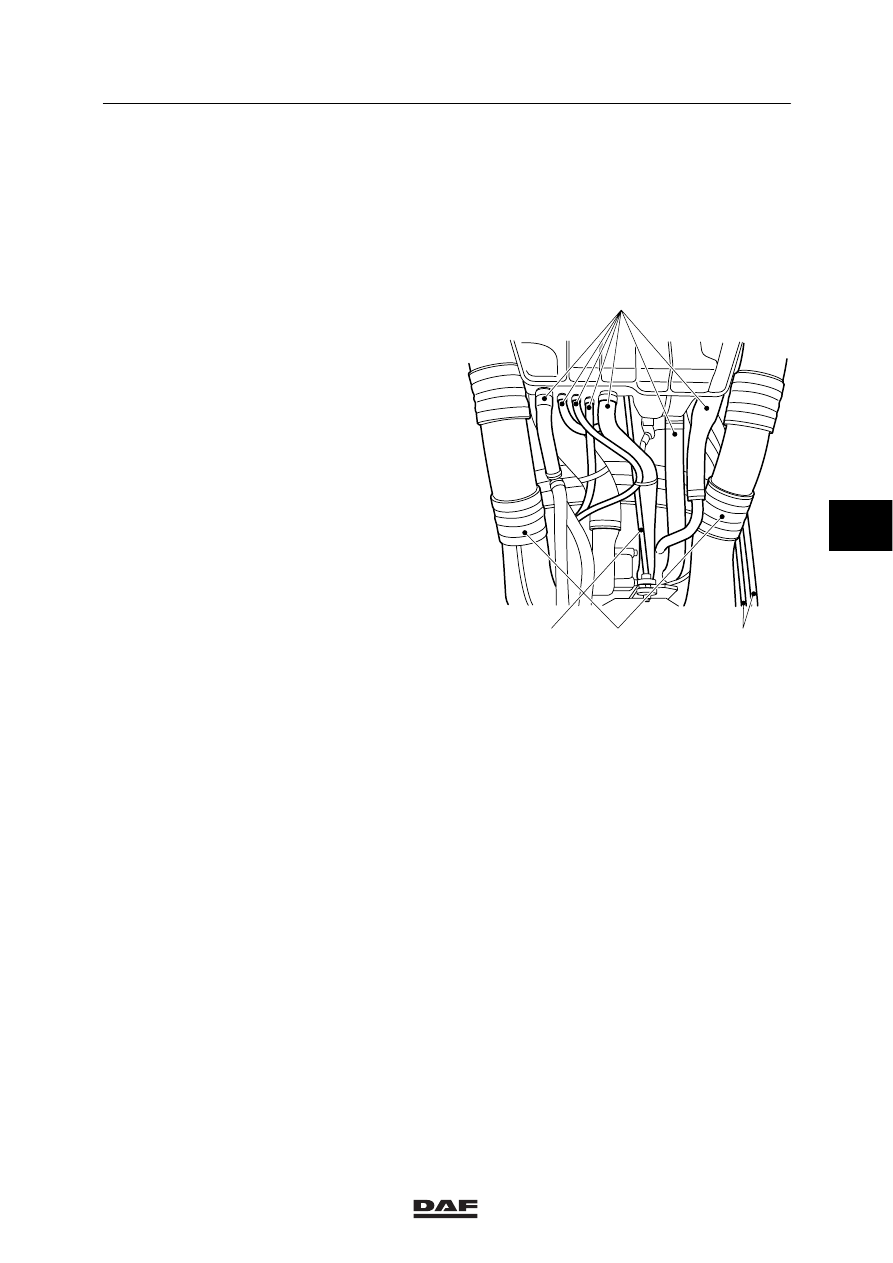

Installing the engine mounting
1.

Tighten the engine mounting fixing bolts to
the specified torque, see main group
“Technical data”.

2.

Install the viscous fan clutch and the fan.
Tighten the fixing bolts to the specified
torque. See main group “Technical data”.

3.

Install the reaction rod (B) between the
engine and the radiator.

4.

Install the air inlet hoses (C) between the
engine and the intercooler.

5.

Install the coolant hoses (A) between the
engine, the radiator and the header tank.

6.

If fitted, install the air-conditioning
compressor.

7.

Install the earth strip from the chassis to the
flywheel housing.

8.

Reconnect the earth lead to the battery.

9.

Fill the cooling system.

B

C

D

A

M201019

5

ǹ 0008

2

XE ENGINE

Removal and installation

4-4

4.3 REMOVAL AND INSTALLATION, VALVE COVER

When the engine or parts thereof
are opened, dirt may enter. This
may result in serious damage to the
engine. You should therefore clean
the engine before opening it.

Removal of the valve cover
1.

Clean the area around the valve cover.

2.

Remove the fixing bolts from the valve
cover.

3.

Remove the valve cover and the valve
cover gasket.

Installation of the valve cover
1.

Clean the sealing surface of the valve
sleeve and the valve cover.

2.

Install the valve cover, using a new valve
cover gasket.

3.

Install the attachment bolts of the valve
cover and tighten them to the specified
tightening torque, see main group
“Technical data”.

5
