INSTALLATION

(1) Push filler neck and front washer hose through

the opening in the front fender side shield. Connect
the reservoir to the body mount by lowering the res-
ervoir down.

(2) Install the two reservoir mounting screws.

Torque screws to 8.5 - 11.3 N·m (75 - 100 in. lbs.).

(3) Connect the electrical body harness connectors

to the washer pump motor and the fluid level sensor.
Slide the red lock on the connector to the closed or
locked position.

(4) Assure that washer is properly routed to pre-

vent pinching and possible inoperative washers.

(5) Install the left right front wheelhouse splash

shield (Refer to 23 - BODY/EXTERIOR/WHEEL-
HOUSE SPLASH SHIELD - INSTALLATION).

(6) Install the right front wheel and tire assembly

(Refer to 22 - TIRES/WHEELS - INSTALLATION).

(7) lower vehicle from hoist or jack stands.
(8) Install the filler tube screw. Torque screw to 8.5

- 11.3 N·m (75 - 100 in. lbs.).

(9) Connect the washer hose to the hose clip

located on the front fender side shield.

(10) Connect the washer hose at the in-line con-

nector forward of the cowl grille.

(11) Install the engine fresh air housing inside the

engine compartment (Refer to 9 - ENGINE/AIR
INTAKE

SYSTEM/AIR

CLEANER

HOUSING

INSTALLATION).

(12) Connect the battery negative cable.
(13) Verify system operation.

WIPER BLADES

REMOVAL

(1) Lift the wiper arm away from the glass.
(2) Disengage the release tab holding the wiper

blade to the wiper arm and remove the wiper blade
from the wiper arm (Fig. 5) and (Fig. 6).

CLEANING

Wiper blades exposed to the weather for a long

period of time tend to lose their wiping effectiveness.
Periodic cleaning of the wiper blade is recommended
to remove the accumulation of salt and road grime.
The wiper blades, arms and windshield should be
cleaned with a sponge or cloth and a mild detergent
or nonabrasive cleaner. If the wiper blades continue
to streak or smear, they should be replaced. The
wiper blade should run smoothly across the wind-
shield in both directions. The wiper blade should
slightly roll over center when the blade reverses
direction. A wiper blade insert that has lost flexibility
or a wiper arm that has lost spring tension, will
cause the blade to skip or chatter across the wind-
shield. If the wiper blades are new and the wiper
arm spring tension is OK and a chattering sound is
emitted from the wiper(s), the wiper blade is not roll-
ing over center. If this condition exists, (refer to 8 -
ELECTRICAL/WIPERS/WASHERS/WIPER ARMS -
ADJUSTMENTS).

INSTALLATION

(1) Position the blade onto the arm.
(2) Engage the blade to the retainer by pulling up

on the blade until the tabs snap into position (Fig. 5).

WIPER LINKAGE

REMOVAL

(1) Remove the front windshield wiper unit from

vehicle (Refer to 8 - ELECTRICAL/WIPERS/WASH-
ERS/WIPER MODULE - REMOVAL).

(2) Place the wiper unit on a suitable work sur-

face.

(3) Remove nuts holding the cowl cover brackets to

the wiper unit.

(4) Remove cowl cover brackets from the wiper

unit.

(5) Remove nuts holding linkage to the wiper unit.
(6) Remove the wiper linkage from the wiper unit.

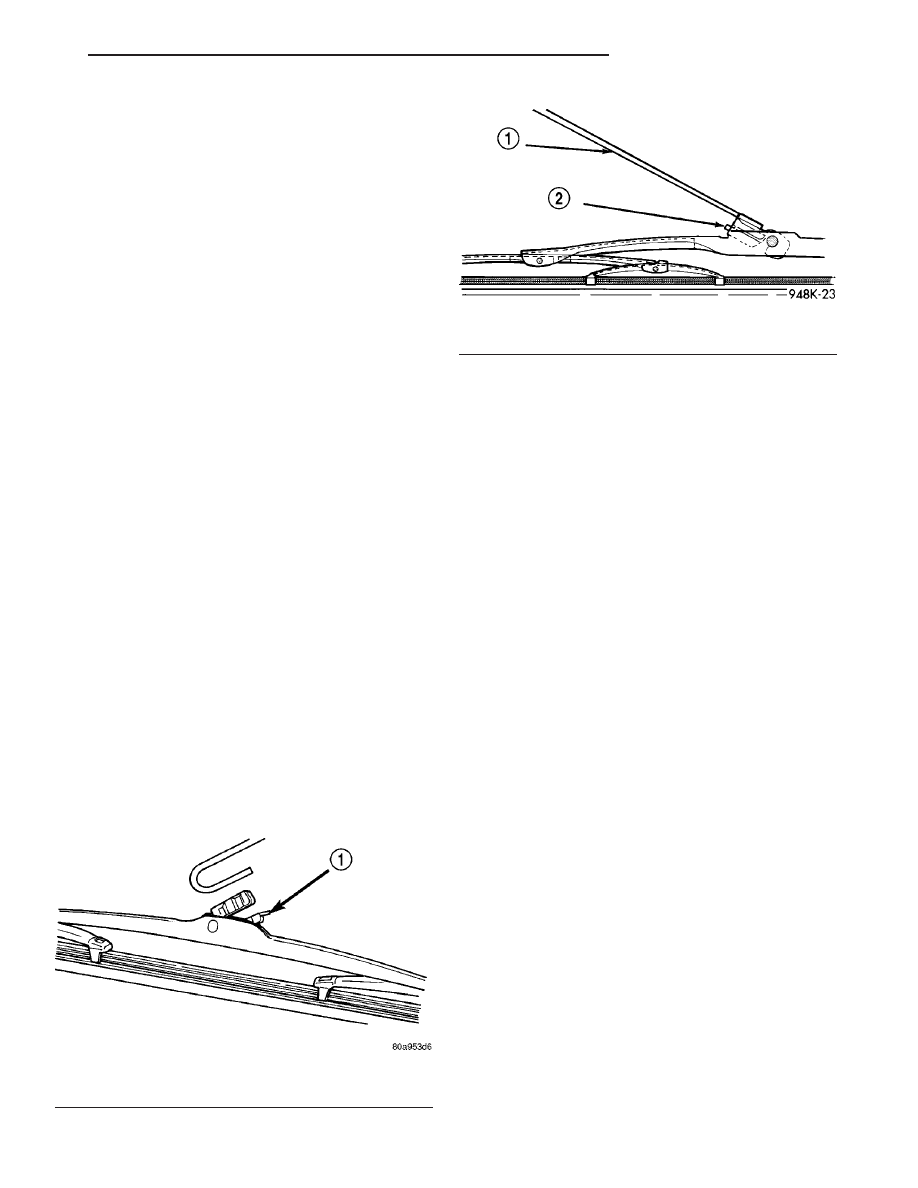

Fig. 5 WINDSHIELD WIPER BLADE

1 - RELEASE TAB

Fig. 6 REAR WIPER

1 - WIPER ARM
2 - BLADE LATCH

WIPERS/WASHERS

8R - 13

WASHER RESERVOIR (Continued)

(7) Disconnect the wire connectors from back of

the wiper motor.

INSTALLATION

(1) Connect the wire harness connector.
(2) Install the linkage on the wiper unit.
(3) Install the nut holding the linkage to the wiper

unit.

(4) Install the cowl cover brackets to the wiper

nut.

(5) Install the front wiper unit (Refer to 8 - ELEC-

TRICAL/WIPERS/WASHERS/WIPER

MODULE

INSTALLATION).

(6) Install the cowl cover.
(7) Install the wiper arms and blades.

WIPER MODULE

REMOVAL

(1) Release the hood latch and open hood.
(2) Disconnect and isolate the battery negative

cable.

(3) Remove the wiper arms.
(4) Remove the cowl cover (Refer to 23 - BODY/

EXTERIOR/COWL GRILLE - REMOVAL).

(5) Disconnect the positive lock on the wiper mod-

ule wire connector (Fig. 7).

(6) Disconnect the wiper module wire connector

from the engine compartment wire harness.

(7) Disconnect the windshield washer hose from

coupling outside the module.

(8) Disconnect the drain tubes from nipples on bot-

tom of the wiper module.

(9) Remove nuts holding wiper module to lower

windshield fence.

(10) Remove bolts holding the wiper module to the

dash panel (Fig. 8).

(11) Lift wiper module from weld-studs on lower

windshield fence.

CAUTION: Do not allow wiper module to rest on
brake master cylinder reservoir, damage to brake
system can result.

(12) Remove wiper module.

INSTALLATION

(1) Position the wiper module into the cowl.
(2) Install the bolts that secure the wiper module

to the dash (Fig. 8).

(3) Install the nuts that retain the wiper module.
(4) Connect the drain tubes to the nipples on the

wiper module.

(5) Connect the windshield washer tube.
(6) Connect the wire harness connector to the

wiper module (Fig. 8).

(7) Connect the positive lock on the wiper module

wire connector (Fig. 7).

CAUTION: Do not allow wiper module to rest on
brake master cylinder reservoir, damage to brake
system can result.

(8) Install the cowl cover (Refer to 23 - BODY/EX-

TERIOR/COWL GRILLE - INSTALLATION).

(9) Install the wiper arms and blades.
(10) Connect the battery negative cable.
(11) Close the hood.

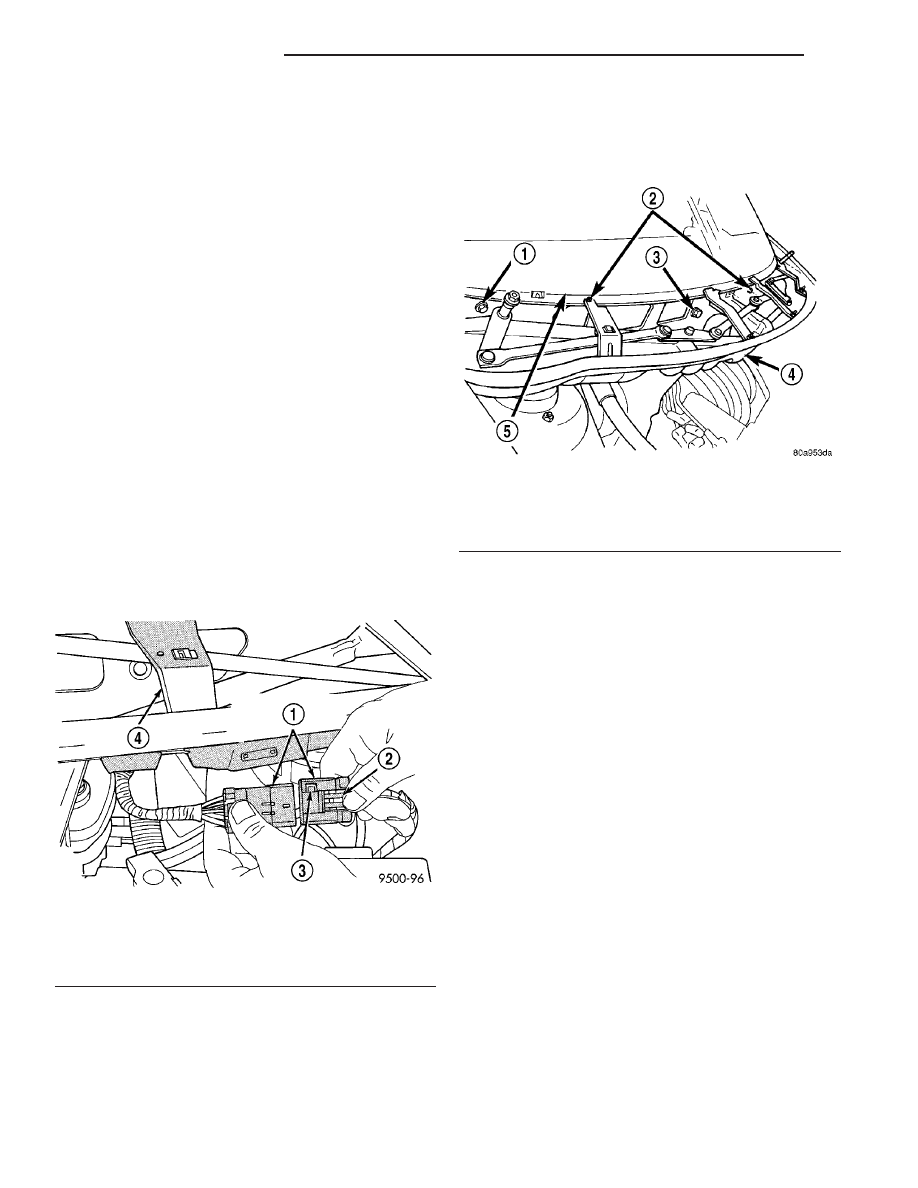

Fig. 7 WIPER MODULE WIRE CONNECTOR

1 - WIPER SYSTEM WIRE CONNECTOR
2 - LOCK TAB
3 - POSITIVE LOCK
4 - WIPER MODULE

Fig. 8 WIPER MODULE

1 - BOLT
2 - NUTS
3 - BOLT
4 - WIPER MODULE
5 - WINDSHIELD

8R - 14

WIPERS/WASHERS

WIPER LINKAGE (Continued)

NAVIGATION/TELECOMMUNICATION

TABLE OF CONTENTS

page

NAVIGATION/TELECOMMUNICATION

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 1

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

DIAGNOSIS AND TESTING

TELECOMMUNICATION

. . . . . . . . . . . . . . . . . 1

HANDS FREE MODULE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 3

NAVIGATION/
TELECOMMUNICATION

DESCRIPTION

TELECOMMUNICATIONS

A hands-free cellular system is an available option

on this vehicle. It uses Bluetooth™ technology to pro-
vide wireless communication between the operator’s
compatible

cellular

telephone

and

the

vehicle’s

on-board receiver.

The system uses voice recognition technology to

control operation. The incoming voice is broadcast
through the vehicle’s radio speakers, automatically
overriding any other audio signals on the speakers
when the hands-free system is in use. A microphone
in the rearview mirror picks up vehicle occupant’s
voices. If a call is in progress when the ignition is
switched off, the hands-free system will continue to
operate for up to 45 seconds as part of the Accessory
Relay Delay function. Thereafter, the call can con-
tinue on the hand-held telephone.

The center console front storage compartment

includes a cellular telephone holder, but the system
will communicate with a telephone that is anywhere
within the vehicle. However, covering the hand held
phone or the hands-free phone module with a metal
object may block the signal. The system will recog-
nize up to seven telephones, each of which is given a
spoken identification by the user during the setup
process. The system includes Spanish voice recogni-
tion in addition to English.

Two buttons on the rearview mirror, identified with

ISO icons, control the system: A

9phone9 button turns

the system on and off; a

9voice recognition9 (or voice

command) button prompts the hands-free system to
listen for a voice command.

OPERATION

TELECOMMUNICATION

Two buttons on the rearview mirror, identified with

ISO icons, control the system: A

9phone9 button turns

the system on and off; a

9voice recognition9 (or voice

command) button prompts the hands-free system to
listen for a voice command. The system includes the
following features:

• Phonebook - Stores telephone numbers for later

recall by name or other verbal identification, called a
voice tag, and memory location.

• Four memory locations - Home, Work, Mobile

and Pager. A maximum of 32 unique names or voice
tags may be stored at the same time, with a different
number in each of the four memory locations.

• Voice tag dialing - Dials the number associated

with a voice tag and memory location.

• Digit dialing - Dials the telephone number by

recognizing the names of the digits as they are spo-
ken.

• Receiving calls - A voice prompt notifies the user

of an incoming call. Pressing the “phone” button
answers the call.

• Privacy Mode - Switches the call to the hand-

held telephone and the hands-free system and back
again using the “voice recognition” (or “voice com-
mand”) button and a voice command, if desired.

DIAGNOSIS AND TESTING

TELECOMMUNICATION

Any diagnosis of the Telecommunication sys-

tem should begin with the use of the DRB III

diagnostic tool. For information on the use of
the DRB III

t, refer to the appropriate Diagnos-

tic Service Information.

For complete circuit diagrams, refer to the appro-

priate wiring information.

NAVIGATION/TELECOMMUNICATION

8T - 1

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

REFER

ELECTRICAL,

RESTRAINTS

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING

COLUMN,

INSTRUMENT

PANEL

COMPONENT DIAGNOSIS OR SERVICE. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

TELECOMMUNICATION SYSTEM DIAGNOSIS

CONDITION

POSSIBLE CAUSE

CORRECTION

Phone Not
Available

1. Bluetooth phone not
paired to the system.

1. Ensure that phone(s) are paired to the system.

2. Bluetooth phone not
present or turned OFF.

2. Make sure paired phone is present, turned ON and that the
Bluetooth option is enabled on the phone.

3. Bluetooth phone has
low battery.

3. At low battery levels, some phones will turn off Bluetooth
functionality. Ensure cellular phone is charged to an adequate
level.

Phone Pairing
Failed

1. Phone does not
support Hands Free
Profile

1. The Telecommunication system requires the cellular phone to
be Bluetooth™ enabled, as well as supporting the Hands Free
Profile. The customer will have to upgrade their phone to one
supporting Hands Free Profile. A list of suggested phones is
available at: http://www.chrysler.com/uconnect.

2. Phone not Bluetooth
enabled.

2. The Telecommunication system requires the cellular phone to
be Bluetooth™ enabled. A list of suggested phones is available
at: http://www.chrysler.com/uconnect.

3. PIN entered on the
phone is not the same
as PIN spoken to the
system.

3. The PIN spoken to the system must be the same PIN entered
into the phone.

4. Phone has reached
maximum number of
allowed devices paired.

4. Remove one of the previously paired devices from it’s list.

Poor Voice
Recognition

1. Microphone failure

1. Using a scan tool, check for microphone fault codes.

2. Customer not waiting
for the beep before
speaking.

2. Ensure customer is waiting for the system

beep

prior to

beginning the speech to be recognized.

3. Customer not
speaking in a smooth
normal manner.

3. Verify that the customer is attempting to use the system with a
smooth consistent voice. The system is designed to accept
normal speech spoken at a normal tone, some people tend to
speak to a computer loud and slow, which results in reduced
performance.

4. Rear view mirror not
properly attached to
mounting.

4. Mirror must be firmly mounted to the mounting location. Ensure
that mirror is tightened to the specified torque.

5. High levels of noise in
vehicle compartment

5. System performance is increased when noise conditions in the
vehicle are lowered. Ideal conditions include windows closed.

6. Object interfering with
microphone input

6. Verify that there is no object, hanging from the mirror, that
could be obstructing the microphone.

7. User not saying

send

after a pager dialing
request

7. User must say

send

at the end of a Pager Dialing request.

8T - 2

NAVIGATION/TELECOMMUNICATION

NAVIGATION/TELECOMMUNICATION (Continued)

Content .. 765 766 767 768 ..
