Chrysler RG Voyager. Manual - part 759





SEAT BELT HEIGHT
ADJUSTER - B OR C-PILLAR

REMOVAL

(1) Remove turning loop retaining bolt.
(2) Remove B or C-pillar trim cover.
(3) Remove two screws attaching shoulder belt

height adjuster to pillar.

(4) Remove height adjuster from vehicle.

INSTALLATION

(1) Place height adjuster into position.
(2) Install screws attaching shoulder belt height

adjuster to pillar.

(3) Install B or C-pillar trim cover.
(4) Install turning loop to height adjuster. Torque

anchor bolt to 39 N·m (29 ft. lbs.).

SEAT BELT HEIGHT
ADJUSTER KNOB

REMOVAL

(1) Disengage clips attaching clam shell cover to

seat belt turning loop and open cover.

(2) Using a trim tool (special tool #C-4755), gently

pry knob from seat belt height adjuster.

INSTALLATION

(1) Place seat belt height adjuster knob in position

on height adjuster.

(2) Firmly push knob on until retainers engage.
(3) Reinstall turning loop clam shell cover.
(4) Verify seat belt operation. Make sure it moves

through loop without binding.

SEAT BELT & RETRACTOR -
OUTBOARD - FRONT

REMOVAL

(1) Open door.
(2) Move seat all the way forward.
(3) Open hood.
(4) Disconnect and isolate the battery negative

cable.

WARNING: Wait two minutes for the airbag system
reserve capacitor to discharge before beginning
any airbag system or component service. Failure to
do so may result in accidental airbag deployment,
personal injury or death.

(5) Remove shoulder harness height adjuster knob

by pulling it straight away from adjuster (Fig. 48).

(6) Remove cover from seat belt turning loop (Fig.

48).

(7) Remove bolt attaching turning loop to shoulder

belt height adjuster (Fig. 48).

(8) Remove upper B-pillar trim cover (Fig. 48).

NOTE: If equipped with the Occupant Classification
System (OCS), there is a Belt Tension Sensor
located on the lower seat belt anchor on the pas-
senger front seat belt.

(9) Remove the lower seat belt anchor bolt (Fig.

49).

(10) Disconnect the electrical connector if equipped

with OCS (Fig. 49).

(11) Remove front door sill plate (Fig. 48).
(12) Remove sliding door sill plate (Fig. 48).
(13) Remove lower B-pillar trim cover (Fig. 48).
(14) Disconnect the seat belt retractor electrical

connector (Fig. 48).

(15) Remove seat belt retractor attaching bolt (Fig.

48).

(16) Remove the seat belt and retractor from vehi-

cle.

Fig. 48 SEAT BELT - OUTBOARD FRONT

1 - B-PILLAR TRIM LOWER
2 - BELT
3 - B-PILLAR TRIM UPPER
4 - HEIGHT ADJUSTER
5 - KNOB
6 - B-PILLAR TRIM LOWER
7 - FLOOR ANCHOR
8 - FLOOR ANCHOR
9 - 30° OUTBOARD
10 - RETRACTOR

RS

RESTRAINTS

8O - 37

INSTALLATION

WARNING: Inspect the condition of the shoulder
belt and lap belt. Replace any belt that is cut,
frayed, torn, or damaged in any way. Also, replace
the shoulder belt if the retractor is either damaged
or inoperative.

(1) Place seat belt and retractor into position (Fig.

48).

(2) Install bolt attaching seat belt retractor to

B-pillar (Fig. 48). Torque bolt to 39 N·m (29 ft. lbs.).

(3) Connect the seat belt retractor electrical con-

nector (Fig. 48).

(4) Install the lower B-pillar trim cover (Fig. 48).
(5) Install the sliding door sill plate (Fig. 48).
(6) Install the front door sill plate (Fig. 48).
(7) Install the lower seat belt anchor bolt (Fig. 49).

Torque bolt to 39 N·m (29 ft. lbs.).

NOTE: If equipped with the Occupant Classification
System (OCS), there is a Belt Tension Sensor
located on the lower seat belt anchor on the pas-
senger front seat belt.

(8) Connect the belt tension sensor connector (if

equipped with OCS) (Fig. 49).

(9) Install the upper B-pillar trim cover (Fig. 48).
(10) Install the bolt attaching turning loop to

shoulder belt height adjuster (Fig. 48). Torque bolt to
39 N·m (29 ft. lbs.).

(11) Install the cover to the seat belt turning loop

(Fig. 48).

(12) Install the shoulder harness height adjuster

knob by pushing it straight onto the adjuster (Fig.
48).

(13) Move seat back to approximate customer posi-

tion.

WARNING: If equipped with the OCS, do not con-
nect the battery negative cable (Refer to 8 - ELEC-
TRICAL/RESTRAINTS - DIAGNOSIS AND TESTING -
AIRBAG SYSTEM). Personal injury or death may
result if the system test is not performed first.

WARNING: If equipped with the OCS, following suc-
cessful completion of the Airbag System test proce-
dure,

the

Occupant

Classification

System

Verification Test must be done using a scan tool
and the appropriate diagnostic information.

(14) Verify vehicle and system operation.
(15) Close hood.

SEAT BELT & RETRACTOR -
FIRST ROW - OUTBOARD

REMOVAL

(1) Remove first and second row seats.
(2) Remove first row seat belt lower anchor bolt.
(3) Remove first row seat belt upper turning loop

anchor bolt.

(4) Remove liftgate sill plate.
(5) Remove upper liftgate trim.
(6) Remove second seat lower anchor bolt.
(7) Remove second seat upper turning loop anchor

bolt.

(8) Remove D-pillar trim cover.
(9) Disconnect speaker connector. The left side has

the speaker mounted in the D-pillar trim cover and
the right side will have the speaker mounted in the
rear of the quarter trim panel, but the connector is
accessible from the rear after the D-pillar trim is
removed.

(10) Remove quarter trim bolster.
(11) Remove quarter trim panel screws.
(12) Remove quarter trim panel.
(13) Remove first row seat belt and retractor

retaining bolt.

(14) Remove first row seat belt and retractor from

vehicle.

INSTALLATION

(1) Install first row seat belt and retractor. Torque

bolt to 39 N·m (29 ft. lbs.).

(2) Install quarter trim panel.

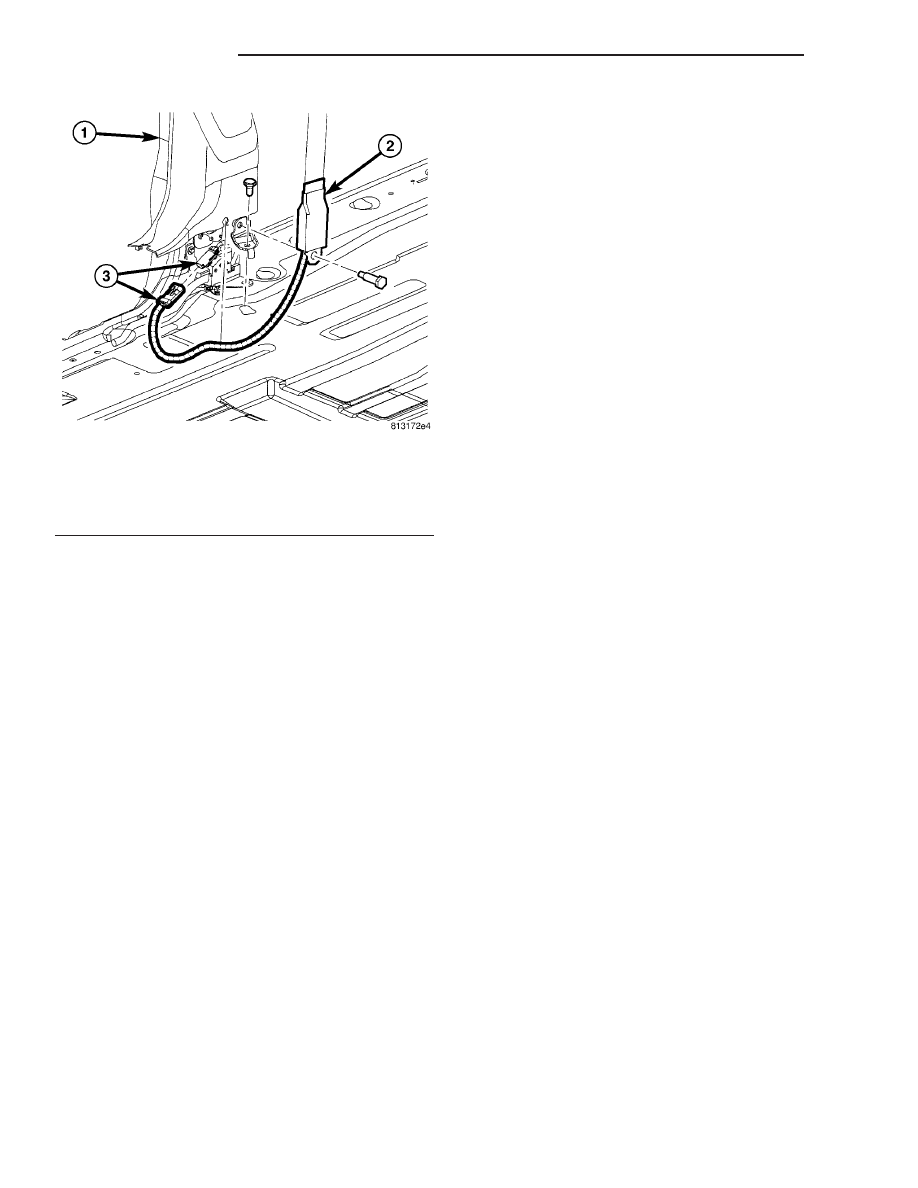

Fig. 49 BELT TENSION SENSOR/LOWER SEAT

BELT ANCHOR

1 - A-PILLAR
2 - SEAT BELT ANCHOR/BELT TENSION SENSOR
3 - BELT TENSION SENSOR CONNECTOR

8O - 38

RESTRAINTS

RS

SEAT BELT & RETRACTOR - OUTBOARD - FRONT (Continued)

(3) Install quarter trim panel screws.
(4) Install quarter trim bolster.
(5) Connect speaker connector. The left side has

the speaker mounted in the D-pillar trim cover and
the right side will have the speaker mounted in the
rear of the quarter trim panel, but the connector is
accessible from the rear after the D-pillar trim is
removed.

(6) Install D-pillar trim cover.
(7) Install second seat belt lower anchor bolt.

Torque bolt to 39 N·m (29 ft. lbs.).

(8) Install second seat belt upper turning loop

anchor bolt. Torque bolt to 39 N·m (29 ft. lbs.).

(9) Install upper liftgate trim.
(10) Install liftgate sill plate.
(11) Install first row seat belt upper turning loop

anchor bolt. Torque bolt to 39 N·m (29 ft. lbs.).

(12) Install first row seat belt lower anchor bolt.

Torque bolt to 39 N·m (29 ft. lbs.).

(13) Install first and second row seats.

SEAT BELT BUCKLE - SECOND
ROW - THREE PASSENGER
BENCH

REMOVAL

(1) Remove bolt attaching seat belt buckle to seat

rear frame rail (Fig. 50).

(2) Remove seat belt buckle from seat.

INSTALLATION

(1) Place seat belt buckle in position on seat.

(2) Install bolt to attach seat belt buckle to seat

rear frame rail. Tighten all seat belt bolts to 39 N·m
(29 ft. lbs.) torque.

SEAT BELT & RETRACTOR -
SECOND ROW - RIGHT
OUTBOARD

REMOVAL

(1) Remove first and second row seats.
(2) Remove first row seat belt lower anchor bolt.
(3) Remove first row seat belt upper anchor bolt.
(4) Remove liftgate sill plate.
(5) Remove upper liftgate trim.
(6) Remove second seat belt lower anchor bolt.
(7) Remove second seat belt upper anchor bolt.
(8) Remove D-pillar trim cover.
(9) Disconnect speaker connector. The left side has

the speaker mounted in the D-pillar trim cover and
the right side will have the speaker mounted in the
rear of the quarter trim panel, but the connector is
accessible from the rear after the D-pillar trim is
removed.

(10) Remove quarter trim bolster.
(11) Remove quarter trim panel screws.
(12) Remove quarter trim panel.
(13) Remove retractor retaining bolt.
(14) Remove second row seat belt and retractor.

INSTALLATION

(1) Install second row seat belt and retractor.

Torque bolt to 39 N·m (29 ft. lbs.).

(2) Install quarter trim panel.
(3) Install quarter trim panel screws.
(4) Install quarter trim bolster.
(5) Connect speaker connector. The left side has

the speaker mounted in the D-pillar trim cover and
the right side will have the speaker mounted in the
rear of the quarter trim panel, but the connector is
accessible from the rear after the D-pillar trim is
removed.

(6) Install D-pillar trim cover.
(7) Install second seat belt lower anchor bolt.

Torque bolt to 39 N·m (29 ft. lbs.).

(8) Install second seat belt upper turning loop

anchor bolt. Torque bolt to 39 N·m (29 ft. lbs.).

(9) Install upper liftgate trim.
(10) Install liftgate sill plate.
(11) Install first row seat belt upper turning loop

anchor bolt. Torque bolt to 39 N·m (29 ft. lbs.).

(12) Install first row seat belt lower anchor bolt.

Torque bolt to 39 N·m (29 ft. lbs.).

(13) Install first and second row seats.

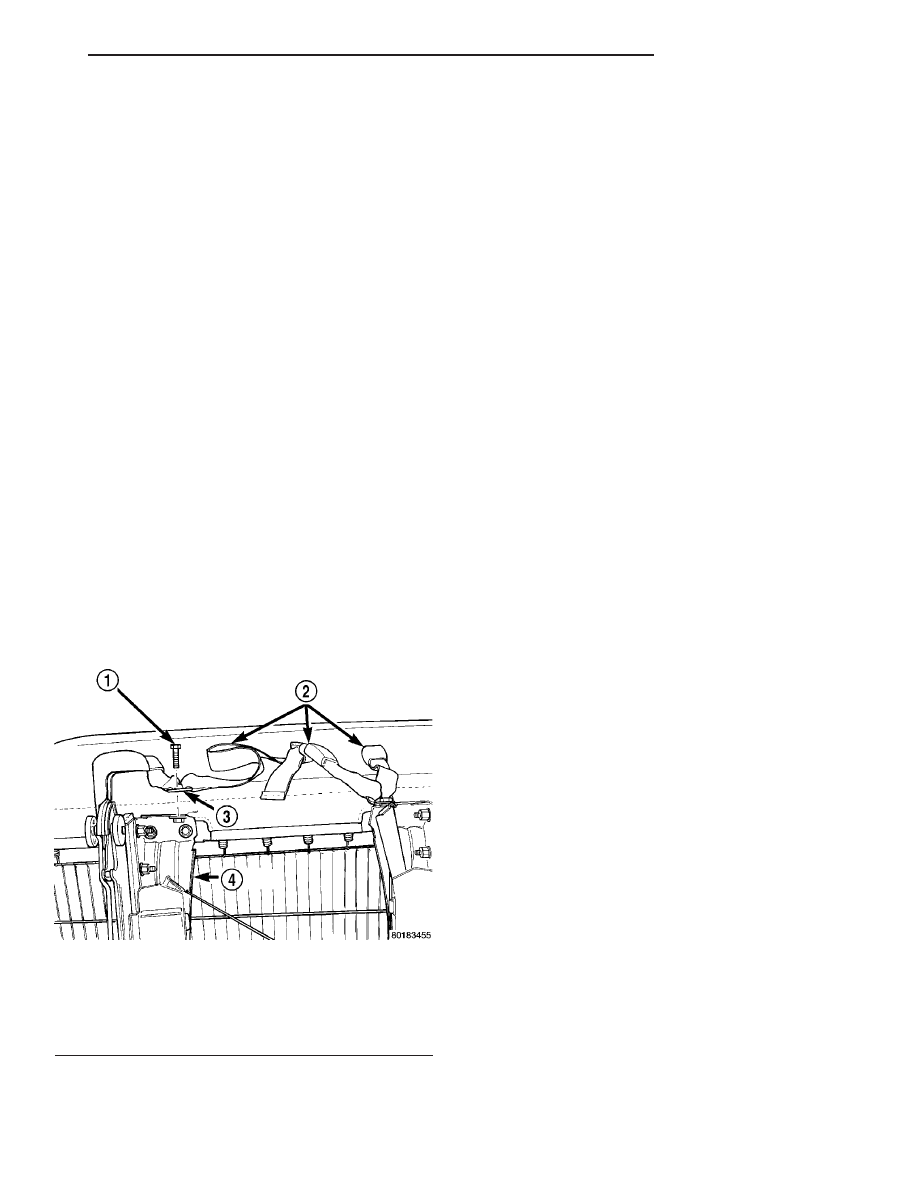

Fig. 50 SEAT BELT BUCKLE - SECOND ROW -

THREE PASSENGER BENCH

1 - ANCHOR BOLT
2 - SEAT BELTS
3 - ANCHOR
4 - RISER

RS

RESTRAINTS

8O - 39

SEAT BELT & RETRACTOR - FIRST ROW - OUTBOARD (Continued)

SEAT BELT & RETRACTOR -
SECOND ROW - RIGHT
OUTBOARD WITH REAR HVAC
- LWB

REMOVAL

(1) Remove first and second row seats.
(2) Remove first row seat belt lower anchor bolt.
(3) Remove first row seat belt upper anchor bolt.
(4) Remove liftgate sill plate.
(5) Remove upper liftgate trim.
(6) Remove second seat belt lower anchor bolt.
(7) Remove second seat belt upper anchor bolt.
(8) Remove D-pillar trim cover.
(9) Disconnect speaker connector. The left side has

the speaker mounted in the D-pillar trim cover and
the right side will have the speaker mounted in the
rear of the quarter trim panel, but the connector is
accessible from the rear after the D-pillar trim is
removed.

(10) Remove quarter trim bolster.
(11) Remove quarter trim panel screws.
(12) Remove quarter trim panel.
(13) Loosen HVAC unit enough to gain access to

seat belt retractor fasteners.

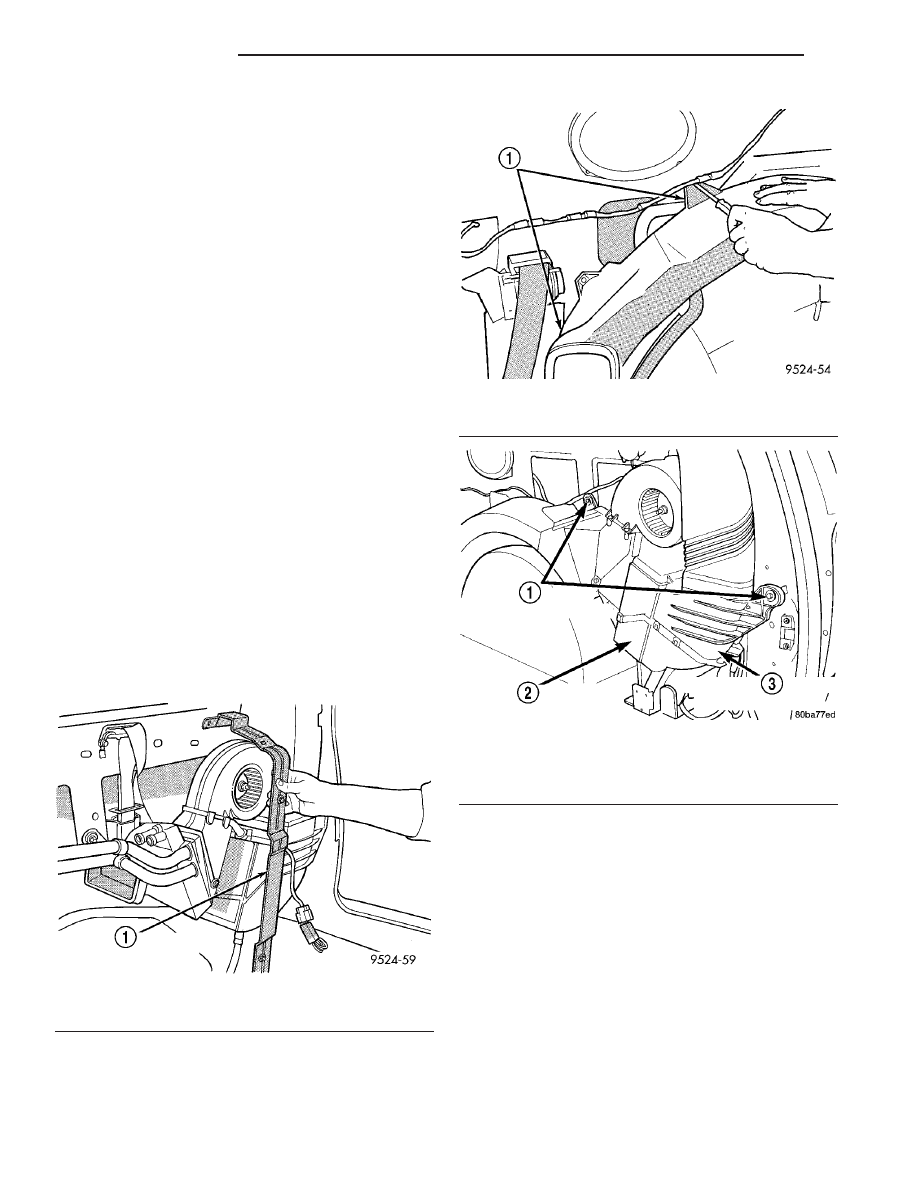

(a) Remove bracket around HVAC unit (Fig. 51).
(b) Remove air duct (Fig. 52).
(c) Remove fasteners attaching HVAC unit to

inner quarter panel (Fig. 53).

(d) Gently pry out on rear HVAC unit to gain

access to the seat belt and retractor.

(14) Remove bolts attaching seat belt guide loop to

inner quarter panel.

(15) Pull outward on HVAC unit and remove bolt

attaching retractor to inner quarter panel.

(16) Remove second row seat belt and retractor

from vehicle.

INSTALLATION

(1) Position second row seat belt and retractor to

vehicle.

(2) Pull outward on HVAC unit and install bolt

attaching retractor to inner quarter panel. Torque
bolt to 39 N·m (29 ft. lbs.).

(3) Install bolts attaching seat belt guide loop to

inner quarter panel.

(4) Install fasteners attaching HVAC unit to inner

quarter panel.

(5) Install air duct.
(6) Install trim panel retaining bracket around

HVAC unit.

(7) Install quarter trim panel.

Fig. 51 TRIM PANEL MOUNTING BRACKET

1 - TRIM PANEL MOUNTING BRACKET

Fig. 52 LOWER HEATER DUCT

1 - LOWER HEAT DUCT MOUNTING

Fig. 53 REAR HVAC MOUNTING

1 - REAR HVAC MODULE MOUNTING
2 - REAR EVAPORATOR LOWER HOUSING
3 - REAR EVAPORATOR UPPER HOUSING

8O - 40

RESTRAINTS

RS















Content   ..  757  758  759  760   ..
