sage from the OCM indicating that a load cannot be
determined in the passenger front seat, the passen-
ger airbag and seat belt tensioner deployment cir-
cuits are deactivated and the PAD indicator will be
illuminated. The indicator remains illuminated until:

• The ORC receives an occupant classification

message indicating that the passenger front seat is
empty.

• The seat is occupied by a load equal to or

greater than a fifth percentile female.

• OR, until the ignition switch is turned to the

OFF position, whichever of these three occurs first.
• Communication Error - If the ORC receives

invalid occupant classification messages or no mes-
sages from the OCM, the PAD indicator is illumi-
nated. The indicator remains illuminated until:

• The ORC receives an occupant classification

message indicating that the passenger front seat is
empty.

• The seat is occupied by a load equal to or

greater than a fifth percentile female.

• OR, until the ignition switch is turned to the

OFF position, whichever of these three occurs first.
The ORC continually monitors the occupant classi-

fication messages from the OCM to decide whether
the passenger airbag and seat belt tensioner deploy-
ment circuits should be activated or deactivated.
Note that there may be several seconds of delay
between changes in the detected occupant status and
PAD indications. This is a programmed feature of the
OCM used to prevent a flashing indicator condition
resulting from the normal shifting of occupant weight
on the passenger seat cushion. The ORC then pro-
vides the proper control output to turn the PAD indi-
cator ON or OFF.

The ORC will store a Diagnostic Trouble Code

(DTC) for any malfunction it detects. For proper
diagnosis of the OCM, the ORC, the PCI data bus, or
the electronic message inputs to the ORC that con-
trol the PAD indicator, use a scan tool and the appro-
priate diagnostic information.

REMOVAL

(1) Open hood.
(2) Disconnect and isolate the battery negative

cable.

WARNING: Wait two minutes for the airbag system
reserve capacitor to discharge before beginning
any airbag system or component service. Failure to
do so may result in accidental airbag deployment,
personal injury or death.

(3) Remove instrument panel center bezel (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL CENTER BEZEL - REMOVAL).

(4) From the back of the center bezel, depress the

two latches toward the indicator housing and push
the indicator out through the face of the center bezel.

INSTALLATION

(1) From the face of the instrument panel center

bezel, align the Passenger Airbag Disabled (PAD)
indicator housing with the mounting hole.

(2) Firmly push the indicator into the center bezel

until the two latches are fully engaged on the back of
the cap and are snapped in.

(3) Install the instrument panel center bezel (Refer

to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL CENTER BEZEL - INSTALLATION).

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

WARNING: Following successful completion of the
Airbag System test procedure, the Occupant Classi-
fication System Verification Test must be done
using a scan tool and the appropriate diagnostic
information.

(4) Close hood.
(5) Verify system and vehicle operation.

SEAT BELT BUCKLE - FRONT
INBOARD

REMOVAL

The seat belt tensioners are integral to the front

seat belt buckles. They are not serviceable and must
be replaced after a frontal impact event. The entire
front seat belt buckle assembly must be replaced as
an assembly.

(1) Open hood.
(2) Disconnect and isolate the battery negative

cable.

WARNING: Wait two minutes for the airbag system
reserve capacitor to discharge before beginning
any airbag system or component service. Failure to
do so may result in accidental airbag deployment,
personal injury or death.

(3) Remove screws attaching front inboard side

cover to seat cushion frame.

(4) Remove side cover from front seat.
(5) Disconnect the tensioner wire connector from

seat belt buckle.

RS

RESTRAINTS

8O - 33

PASSENGER AIRBAG DISABLED INDICATOR (Continued)

(6) Remove bolt attaching seat belt buckle to front

seat track.

(7) Remove buckle from seat.

INSTALLATION

The seat belt tensioners are integral to the front

seat belt buckles. They are not serviceable and must
be replaced after a frontal impact event. The entire
front seat belt buckle assembly must be replaced as
an assembly.

(1) Place buckle into position.
(2) Install bolt attaching seat belt buckle to front

seat track. Torque bolt to 39 N·m (29 ft. lbs.).

(3) Connect the seat belt tensioner electrical con-

nector.

(4) Install side cover into position.
(5) Install screws attaching front inboard side

cover to seat cushion frame.

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

WARNING: If equipped with the Occupant Classifi-
cation System (OCS) and replacing the passenger
front seat belt buckle: Following successful com-
pletion of the Airbag System test procedure, the
Occupant Classification System Verification Test
must be done using a scan tool and the appropriate
diagnostic information.

(6) Close hood.
(7) Verify system and vehicle operation.

SEAT BELT BUCKLE - FIRST
ROW INBOARD - QUAD
BUCKET

REMOVAL

QUAD BUCKET

(1) Remove seat from vehicle.
(2) Remove screws attaching inboard side cover to

seat cushion.

(3) Remove side cover from seat.
(4) Remove bolts attaching recliner bracket to seat

cushion.

(5) Remove recliner bracket from seat.
(6) Remove bolt attaching seat belt buckle to seat

track (Fig. 41).

(7) Remove buckle from vehicle.

QUAD BUCKET - FOLD IN FLOOR

(1) Fold in floor the seat not having the buckle

replaced.

(2) Remove the hinge cover retaining screw and

hinge cover.

(3) Remove the hinge retaining bolts under the

cushion cover side panel (Fig. 42).

(4) Gently lift hinge upwards to free buckle from

between the cushion frame and the hinge itself (Fig.
43).

(5) Remove buckle half from seat.

INSTALLATION

QUAD BUCKET

(1) Place buckle into position.
(2) Install bolt attaching seat belt buckle to seat

track. Torque bolt to 39 N·m (29 ft. lbs.).

(3) Install recliner bracket onto the seat.
(4) Install bolts attaching recliner bracket to seat

cushion.

(5) Install side cover from seat.
(6) Install screws attaching inboard side cover to

seat cushion.

(7) Install seat into position.

QUAD BUCKET - FOLD IN FLOOR

(1) Gently lift hinge upwards and place buckle in

between the cushion frame and the hinge itself (Fig.
43).

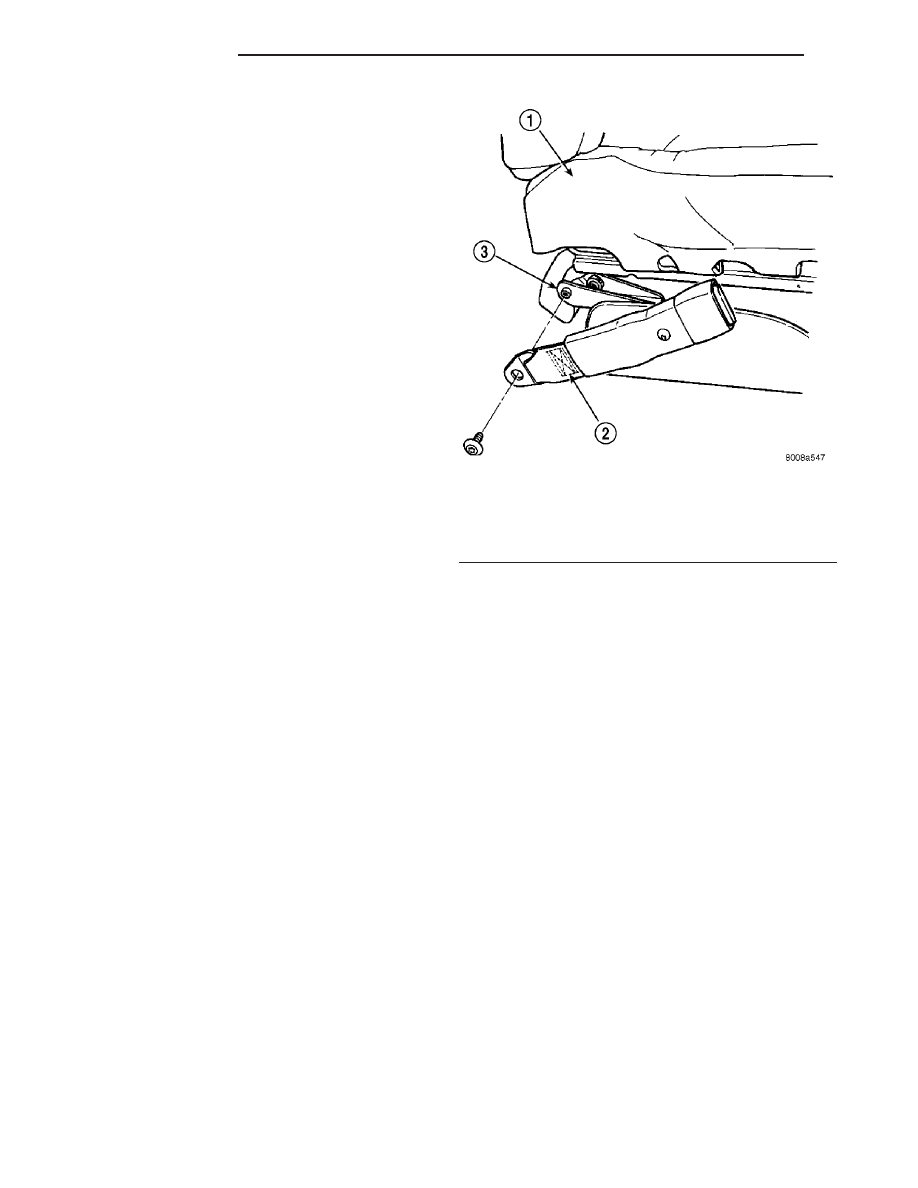

Fig. 41 1ST ROW INBOARD BUCKLE - QUAD

BUCKET

1 - SEAT CUSHION
2 - SEAT BELT BUCKLE
3 - SEAT TRACK

8O - 34

RESTRAINTS

RS

SEAT BELT BUCKLE - FRONT INBOARD (Continued)

(2) Install the hinge retaining bolts under the

cushion cover side panel (Fig. 42).

(3) Install the hinge cover retaining screw and

hinge cover.

SEAT BELT BUCKLE - FIRST
ROW - BENCH

REMOVAL

(1) Remove seat from vehicle.
(2) Remove bolt attaching inboard seat belt buckle

to seat frame (Fig. 44).

(3) Remove belt from seat.

INSTALLATION

(1) Place seat belt into position to the seat.
(2) Install bolt attaching inboard seat belt buckle

to seat frame. Tighten all seat belt anchor bolts to 39
N·m (29 ft. lbs.) torque.

(3) Install seat into position.

SEAT BELT BUCKLE - SECOND
ROW INBOARD - 50/50 BENCH

REMOVAL

SECOND ROW 50/50 BENCH

(1) Open rear liftgate.
(2) Pull handle #1 and fold seat back forward.
(3) Pull handle #2, and lift seat bottom up.
(4) Pull #3 strap and remove seat from latching

area.

(5) While looking at the bottom of the seat, locate

retaining bolt on the left side of the seat riser.
Remove retaining bolt from seat riser (Fig. 45).

(6) Pull belt through seat cushion.

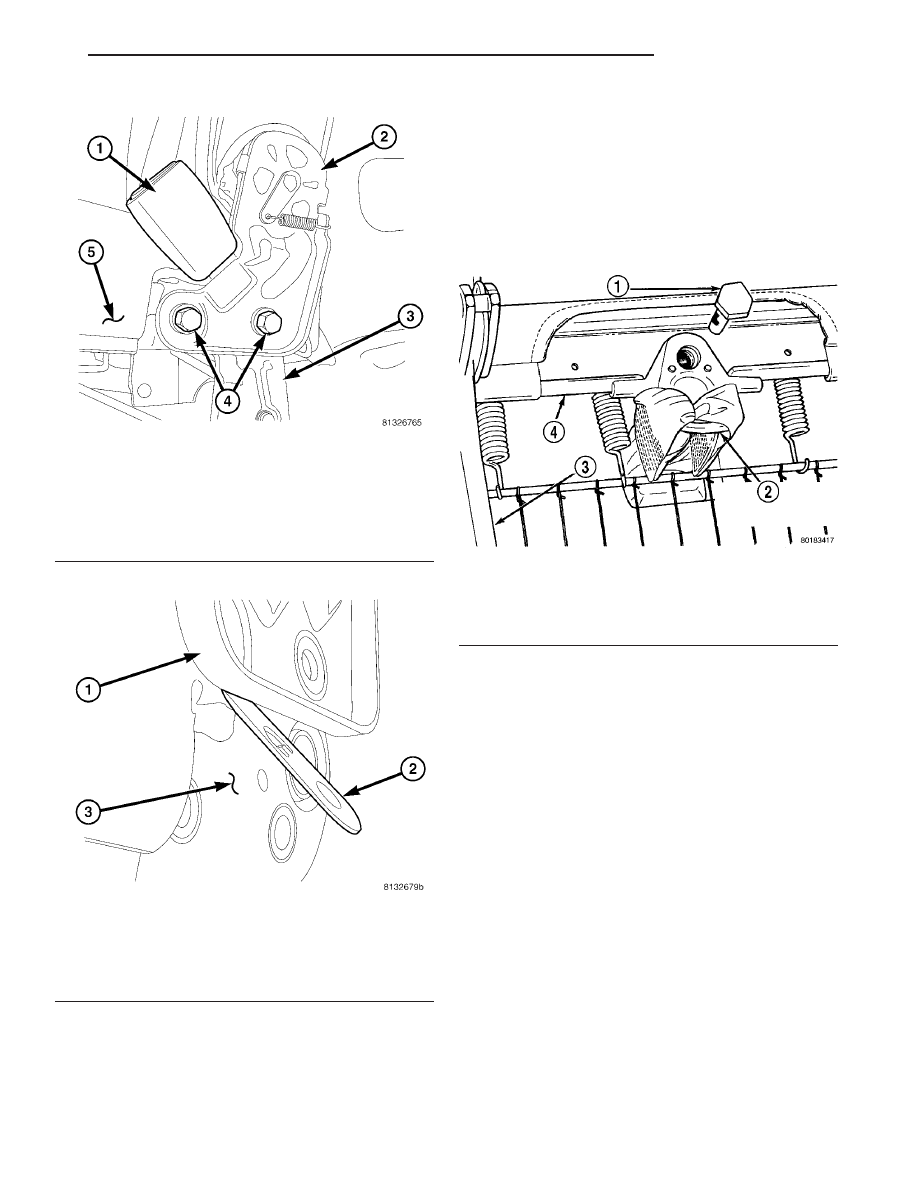

Fig. 42 1ST ROW INBOARD BUCKLE RETAINING

BOLTS - FOLD IN FLOOR

1 - SEAT BELT BUCKLE
2 - SEAT BACK INBOARD HINGE
3 - SEAT RISER
4 - INBOARD HINGE RETAINING BOLTS
5 - SEAT CUSHION COVER SIDE PANEL

Fig. 43 1ST ROW INBOARD BUCKLE - FOLD IN

FLOOR

1 - SEAT BACK HINGE
2 - SEAT BELT BUCKLE
3 - SEAT CUSHION FRAME

Fig. 44 SEAT BELT BUCKLE - FIRST ROW - BENCH

1 - ANCHOR BOLT
2 - TWO (2) PASS REAR SEAT BELT BUCKLE
3 - RISER
4 - REAR FRAME

RS

RESTRAINTS

8O - 35

SEAT BELT BUCKLE - FIRST ROW INBOARD - QUAD BUCKET (Continued)

SECOND ROW - FOLD IN FLOOR

(1) Fold in floor the seat not having the buckle

replaced.

(2) Remove the hinge cover retaining screw (Fig.

46).

(3) Pull hinge cover out just far enough to gain

access to buckle retaining nut (Fig. 47). Remove nut
and slide buckle out from under cushion cover side
panel.

INSTALLATION

(1) Push belt through seat cushion.
(2) While looking at the bottom of the seat, locate

retaining bolt hole on the left side of the seat riser.
Install retaining bolt into seat riser (Fig. 45). Torque
anchor bolt to 39 N·m (29 ft. lbs.).

(3) Place seat into track and on front anchors.
(4) Pull #3 strap and install seat onto latching

area.

(5) Pull seat assembly down firmly and snap into

track.

(6) Pull handle #1 and fold seat back rearward.
(7) Close rear liftgate.

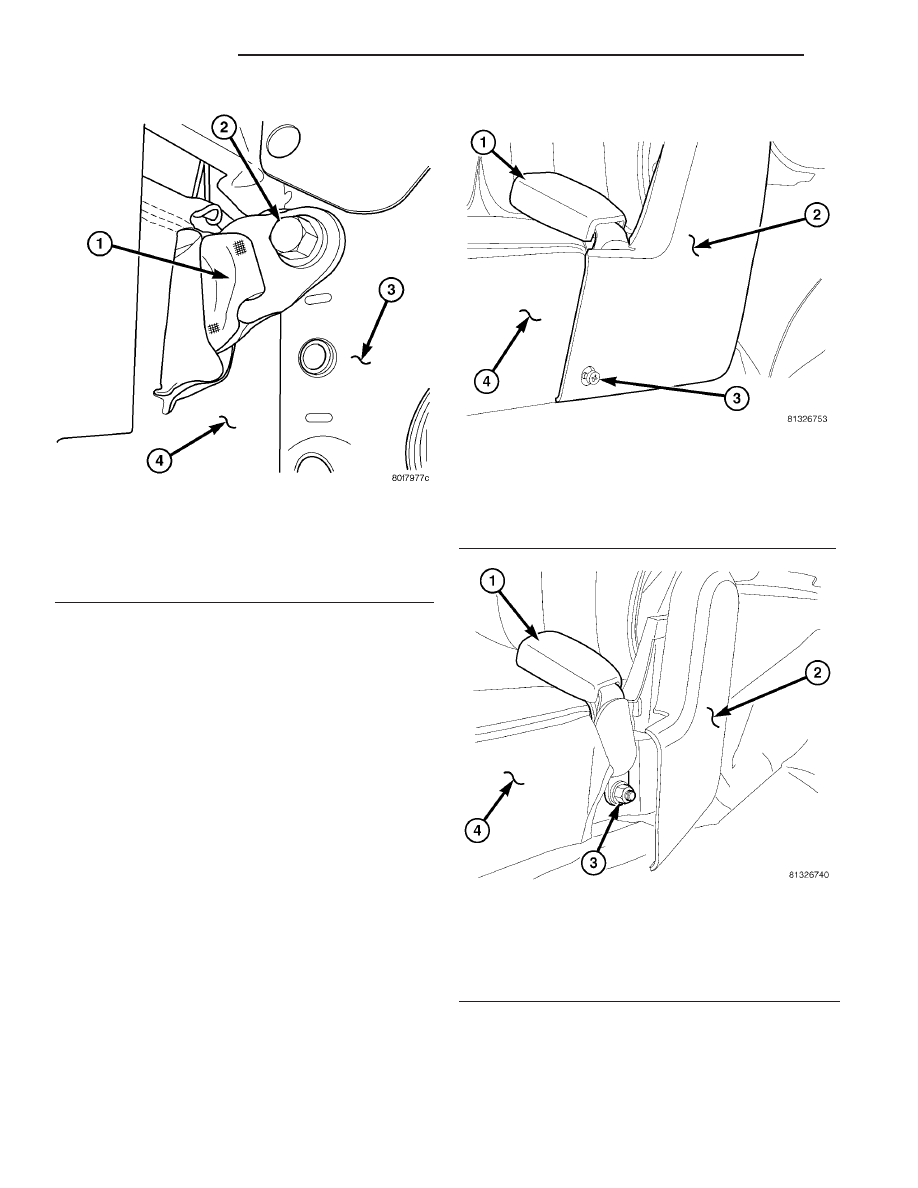

Fig. 45 SEAT BELT BUCKLE - SECOND ROW

INBOARD - 50/50 BENCH

1 - SEAT BELT BUCKLE
2 - BUCKLE RETAINING BOLT
3 - 50/50 SPLIT BENCH RISER
4 - BOTTOM OF SEAT CUSHION

Fig. 46 FIRST ROW BUCKLE - INBOARD - COVER

RETAINING SCREW

1 - SEAT BELT BUCKLE
2 - HINGE COVER
3 - HINGE COVER RETAINING SCREW
4 - CUSHION COVER SIDE PANEL

Fig. 47 FIRST ROW BUCKLE - INBOARD -

RETAINING NUT

1 - SEAT BELT BUCKLE
2 - HINGE COVER
3 - SEAT BELT BUCKLE RETAINING NUT
4 - CUSHION COVER SIDE PANEL

8O - 36

RESTRAINTS

RS

SEAT BELT BUCKLE - SECOND ROW INBOARD - 50/50 BENCH (Continued)
