Condition

Possible Causes

Correction

3. Refrigerant system
overcharged.

3. See Refrigerant System Charge in this group.
Recover the refrigerant from the refrigerant
system. Charge the refrigerant system to the
proper level, if required.

4. Air in the refrigerant
system.

4. See Refrigerant System Leaks in this group.
Test the refrigerant system for leaks. Repair,
evacuate and charge the refrigerant system, if
required.

5. Engine overheating.

5. Refer to Cooling for more information. Test the
cooling system and repair, if required.

The low side pressure is too
high, and the high side
pressure is too low.

1. Accessory drive belt
slipping.

1. Refer to Cooling for more information. Inspect
the accessory drive belt condition and tension.
Tighten or replace the accessory drive belt, if
required.

2. Faulty expansion valve.

2. See A/C Expansion Valve in this group.
Replace the expansion valve, if required.

3. Faulty compressor.

3. See A/C Compressor in this group. Replace
the compressor, if required.

The low side pressure is too
low, and the high side
pressure is too high.

1. Restricted refrigerant flow
through the refrigerant lines.

1. See Liquid, Suction, and Discharge Line in this
group. Inspect the refrigerant lines for kinks, tight
bends or improper routing. Correct the routing or
replace the refrigerant line, if required.

2. Restricted refrigerant flow
through the expansion valve.

2. See A/C Expansion Valve in this group.
Replace the expansion valve, if required.

3. Restricted refrigerant flow
through the condenser.

3. See A/C Condenser in this group. Replace the
restricted condenser, if required.

HEATER PERFORMANCE TEST

WARNING: Review safety precautions and warnings
in this group before performing this procedure
(Refer to 24 - HEATING & AIR CONDITIONING/
PLUMBING - WARNINGS) and (Refer to 24 - HEAT-
ING & AIR CONDITIONING/PLUMBING - CAUTIONS).
Failure to follow the warnings and cautions could
result in possible personal injury or death.

Check the coolant level, drive belt tension, radiator

air flow and fan operation. Start engine and allow to
warm up to normal operating temperature.

WARNING: Do not remove radiator cap when engine
is hot, personal injury can result.

If vehicle has been run recently, wait 15 minutes

before removing the radiator cap. Place a rag over
the cap and turn it to the first safety stop. Allow
pressure to escape through the overflow tube. When
the system pressure stabilizes, remove the cap com-
pletely.

MAXIMUM HEATER OUTPUT: TEST AND ACTION

Engine coolant is provided to the heater system by

two heater hoses. With the engine idling at normal
operating temperature, set the temperature control
to maximum heat, the mode control to the floor posi-
tion, and the blower in the highest speed position.
Using a test thermometer, check the temperature of
the air being discharged from the floor outlets. Com-
pare the test thermometer reading to the Heater
Temperature Reference chart.

CS

HEATING & AIR CONDITIONING

24 - 9

HEATING & AIR CONDITIONING (Continued)

HEATER TEMPERATURE REFERENCE

Ambient Temperature

Minimum Floor Outlet Temperature

Celsius

Fahrenheit

Celsius

Fahrenheit

15.5°

60°

62.2°

144°

21.1°

70°

63.8°

147°

26.6°

80°

65.5°

150°

32.2°

90°

67.2°

153°

If the floor outlet air temperature is insufficient,

check that the cooling system is operating to specifi-
cations (Refer to 7 - COOLING/ENGINE - DIAGNO-
SIS AND TESTING). Both heater hoses should be
HOT to the touch (the coolant return hose should be
slightly cooler than the supply hose). If the coolant
return hose is much cooler than the supply hose,
locate and repair the engine coolant flow obstruction
in heater system.

OBSTRUCTED COOLANT FLOW Possible locations or causes
of obstructed coolant flow are as follows:

• Pinched or kinked heater hoses.

• Improper heater hose routing.

• Plugged heater hoses or supply and return ports

at the cooling system connections.

• Plugged heater core.
If proper coolant flow through the cooling system is

verified, and heater outlet air temperature is insuffi-
cient, a mechanical problem may exist.

MECHANICAL PROBLEMS

Possible causes of insufficient heat due to mechan-

ical problems are as follows:

• Faulty engine thermostat.

• Faulty blend door actuator.

• Obstructed fresh air intake.

• Obstructed heater system outlets.

• Faulty blend-air door.

TEMPERATURE CONTROL

If the heater outlet air temperature cannot be

adjusted with the temperature control on the A/C-
heater control panel, the following could require ser-
vice:

• Faulty blend door actuator.

• Faulty A/C-heater control.

• Faulty related wiring harness or connectors.

• Faulty blend-air door.

SPECIFICATIONS

HEATING-A/C SYSTEM

A/C SYSTEM

Item

Description

Notes

A/C Compressor

Denso 10S17 (3.8L engine)
Denso 10S20 (3.5L engine)

Uses ND-8 PAG Oil

Low PSI Control

A/C Pressure Transducer

Liquid line mounted - voltage
input to powertrain control
module (PCM) - PCM opens
compressor clutch relay below
0.451 volts

High PSI Control

A/C Pressure Transducer

Liquid line mounted - input to
PCM - PCM opens compressor
clutch relay above 4.519 volts

High Pressure Relief Valve

A/C Compressor mounted -
opens at a discharge pressure
over 3445 - 4135 kPa (500 - 600
psi)

24 - 10

HEATING & AIR CONDITIONING

CS

HEATING & AIR CONDITIONING (Continued)

Item

Description

Notes

Refrigerant Charge Capacity

Refer to the A/C Underhood Specification
Label located in the engine compartment

R-134a refrigerant

A/C Clutch Coil Draw

Denso 10S17 – 3.3 amps
Denso 10S20 –
2.2 amps

@ 11.5 - 12V @ 21° C (70° F)

A/C Clutch Air Gap

0.35 - 0.60 mm (0.014 - 0.024 in.)

FASTENER TORQUE

Description

N·m

Ft. Lbs.

In. Lbs.

All Screws NOT Listed Below

2

17

A/C Compressor Bolts

33

25

A/C Compressor Mounting Bracket Bolts

115

85

A/C Compressor Shaft Nut

17.5

13

155

Condenser Mounting Bracket Bolts

5

45

Discharge Line to Condenser Nut

23

17

Discharge Line to Compressor Nut

23

17

Expansion Valve Bolts

11

100

Receiver/Drier Mounting Bracket Nuts

10

89

Floor Console Base Nuts and Bolts

5

45

Front Fascia to Closure Panel Crossmember Bolts

6

53

HVAC Housing Bracket Bolt and Nut

3

26

HVAC Housing Stud Nuts

7

62

Heater Core Tube Sealing Plate Screws

3

27

Heater Inlet Tube Bolts

10

89

Hood Latch Bolts

14

10

123

Liquid Line to Condenser Nut

23

17

Liquid Lines to Receiver/Drier Bolts

11

100

Suction Line to Compressor Nut

23

17

Suction and Liquid Line to Expansion Valve Nut

23

17

Transmission Oil Cooler Bolts

5

45

SPECIAL TOOLS

HEATING-A/C SYSTEM

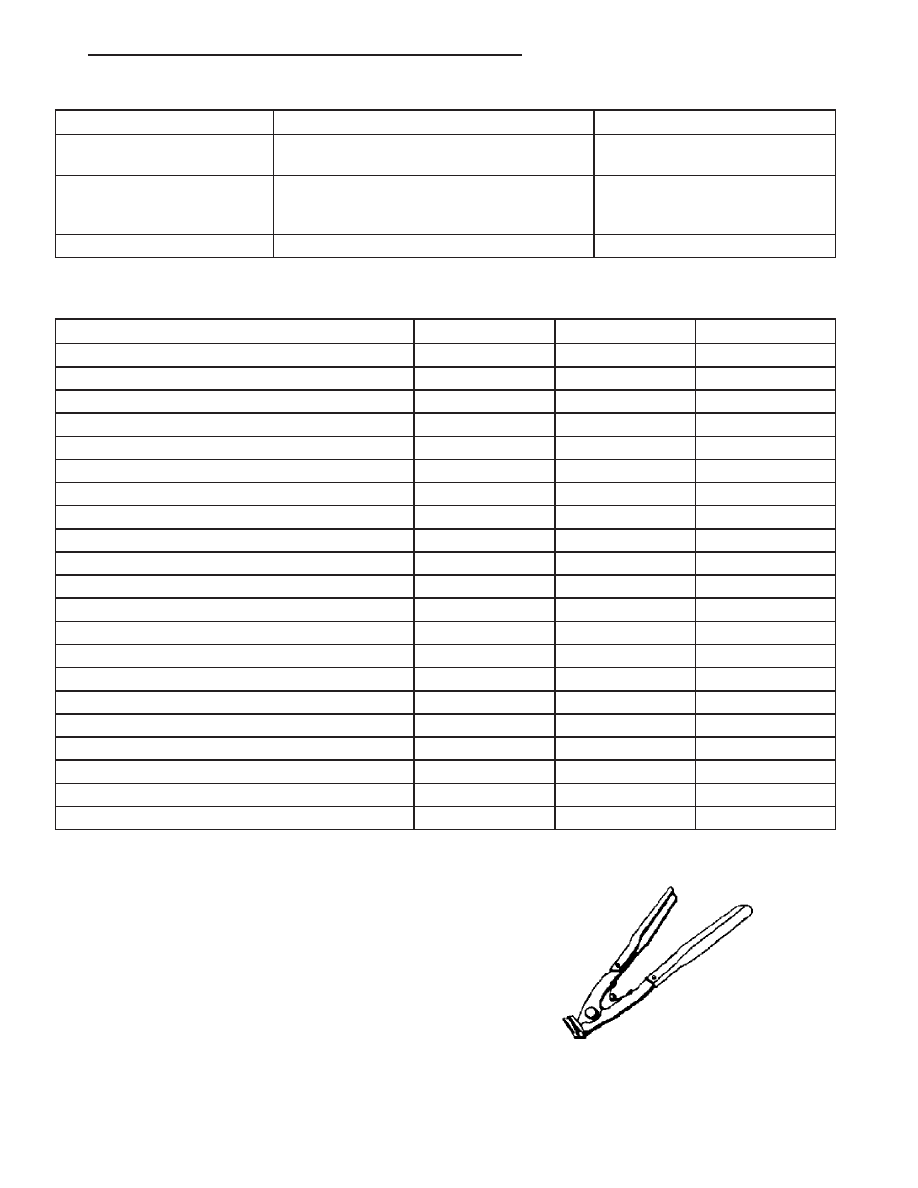

Snap Ring Pliers C-4574 (Fig. 5) are required to

service the A/C clutch and field coil.

Fig. 5

CS

HEATING & AIR CONDITIONING

24 - 11

HEATING & AIR CONDITIONING (Continued)
