INSTALLATION

(1) Place floor bracket into position.
(2) Install attaching nuts (Fig. 12).
(3) Place right and/or left floor brace into position.
(4) Install brace(s) attaching nuts.
(5) Install center console closeout panel. (Refer to

23 - BODY/INTERIOR/CENTER CONSOLE CLOSE-
OUT PANEL - INSTALLATION)

(6) Install front floor console. (Refer to 23 - BODY/

INTERIOR/FRONT FLOOR CONSOLE - INSTALLA-
TION).

INSTRUMENT PANEL END CAP

REMOVAL

(1) Open front door.
(2) Using a trim stick C-4755 or equivalent, disen-

gage the locking tabs attaching instrument panel end
cap (Fig. 13).

(3) Remove end cap.

INSTALLATION

(1) Place end cap into position.
(2) Apply press on instrument panel end cap to

engage the locking tabs (Fig. 15).

(3) Close front door.

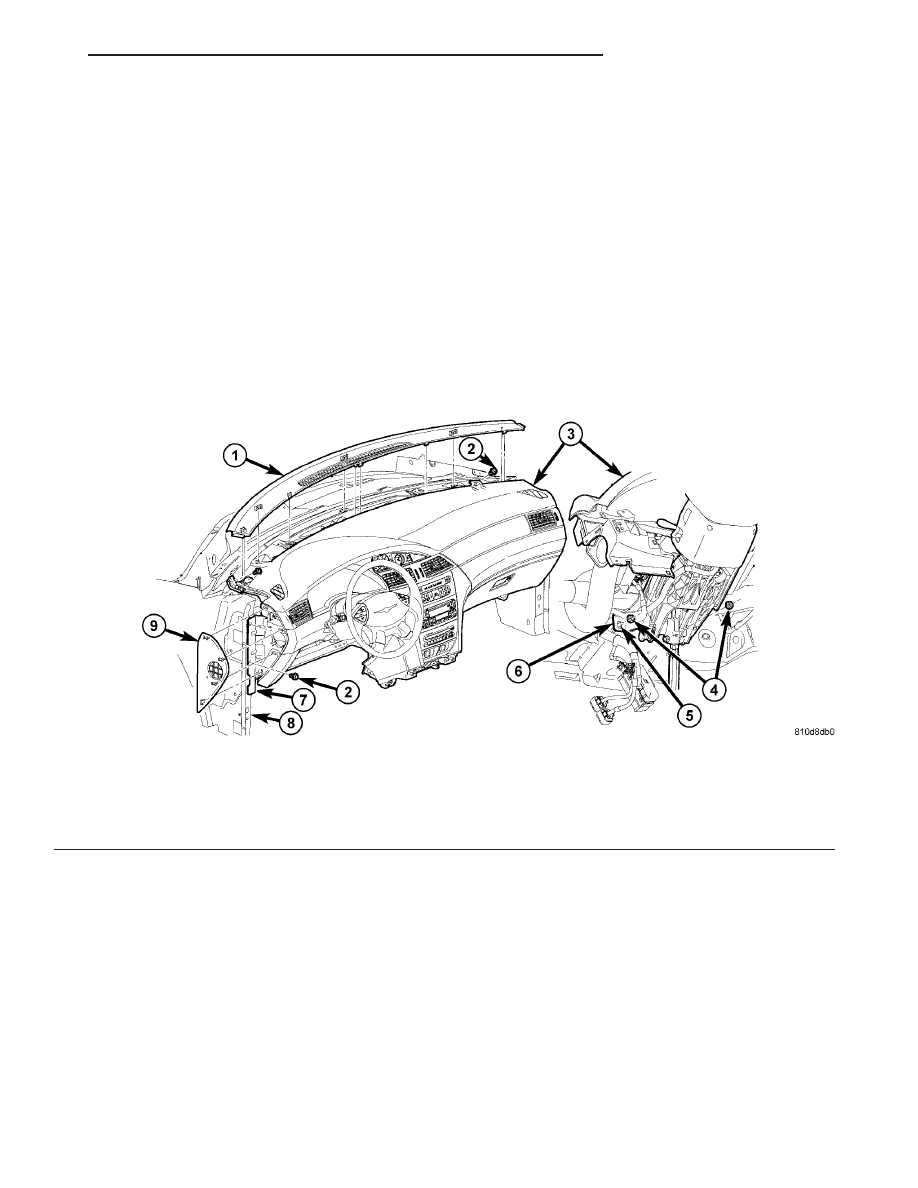

Fig. 13 TOP COVER & INSTRUMENT PANEL

1 - INSTRUMENT TOP COVER
2 - MOUNTING SCREWS
3 - INSTRUMENT PANEL
4 - ATTACHING NUTS
5 - WELD STUD

6 - STEERING COLUMN ATTACHING BRACKET
7 - INSTRUMENT PANEL SIDE COWL BRACKET
8 - COWL SIDE PANEL
9 - INSTRUMENT PANEL END CAP

INSTRUMENT PANEL

23 - 83

INSTRUMENT PANEL FLOOR BRACKET (Continued)

INSTRUMENT PANEL TOP
COVER

REMOVAL

(1) Remove A-pillar trim. (Refer to 23 - BODY/IN-

TERIOR/A-PILLAR TRIM - REMOVAL).

(2) Using a trim stick C-4755 or equivalent, disen-

gage the locking tabs attaching rear of vehicle edge
of top cover to instrument panel (Fig. 14).

NOTE: The Instrument Panel Top Cover may be
hard to unsnap from the instrument panel. Use care
not to mar, scuff, or damage the instrument panel
pad.

(3) Pull top cover upward to disengage mounting

clips attaching front of top cover.

(4) Remove top cover from vehicle by pulling rear-

ward to disengage forward clips.

INSTALLATION

(1) Place instrument panel top cover into position

(Fig. 14).

(2) Push top cover forward to engage mounting

clips front of top cover.

(3) Pulling top cover rearward to engage locking

tabs until tight against instrument panel while
applying downward hand pressure.

(4) Check for proper fit and finish.
(5) Install A-pillar trim. (Refer to 23 - BODY/IN-

TERIOR/A-PILLAR TRIM - INSTALLATION).

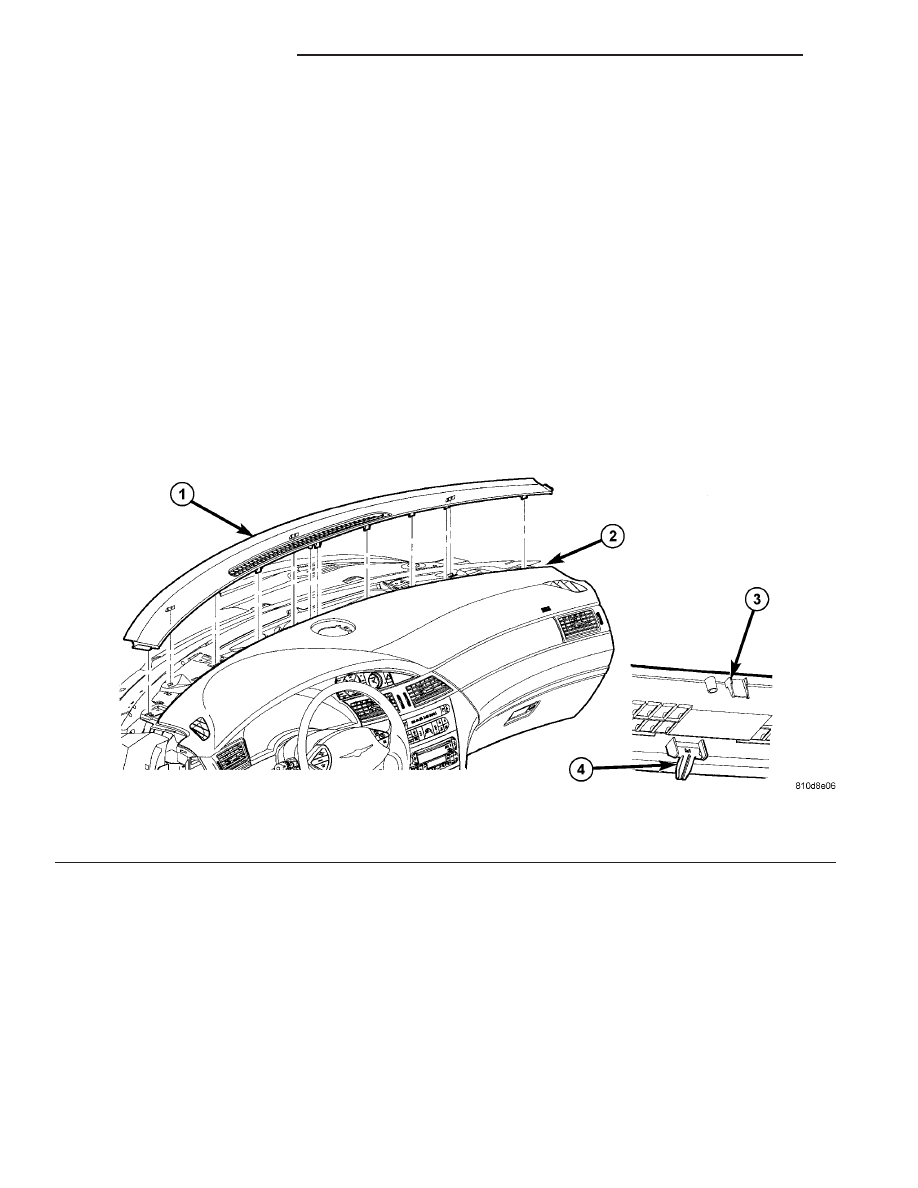

Fig. 14 INSTRUMENT PANEL TOP COVER

1 - INSTRUMENT PANEL TOP COVER
2 - AREA TO CHECK FIT AND FINISH

3 - LOCKING TABS
4 - LOCATING PIN(S)

23 - 84

INSTRUMENT PANEL

STEERING COLUMN OPENING
COVER

REMOVAL

(1) Remove the two screws attaching the steering

column opening cover to instrument panel (Fig. 15).

(2) Pull from bottom rearward to disengage clips

and remove steering column opening cover

(3) Remove the steering opening column cover

from the vehicle.

INSTALLATION

(1) Place the steering opening column cover into

position (Fig. 15).

(2) Install snap tab just left of steering column.

Engage locator tab on right. Starting from upper
right corner engage clip, at lower right squeeze clip
to lower right panel. Engage left clip.

(3) Install two screws attaching the steering col-

umn opening cover to instrument panel.

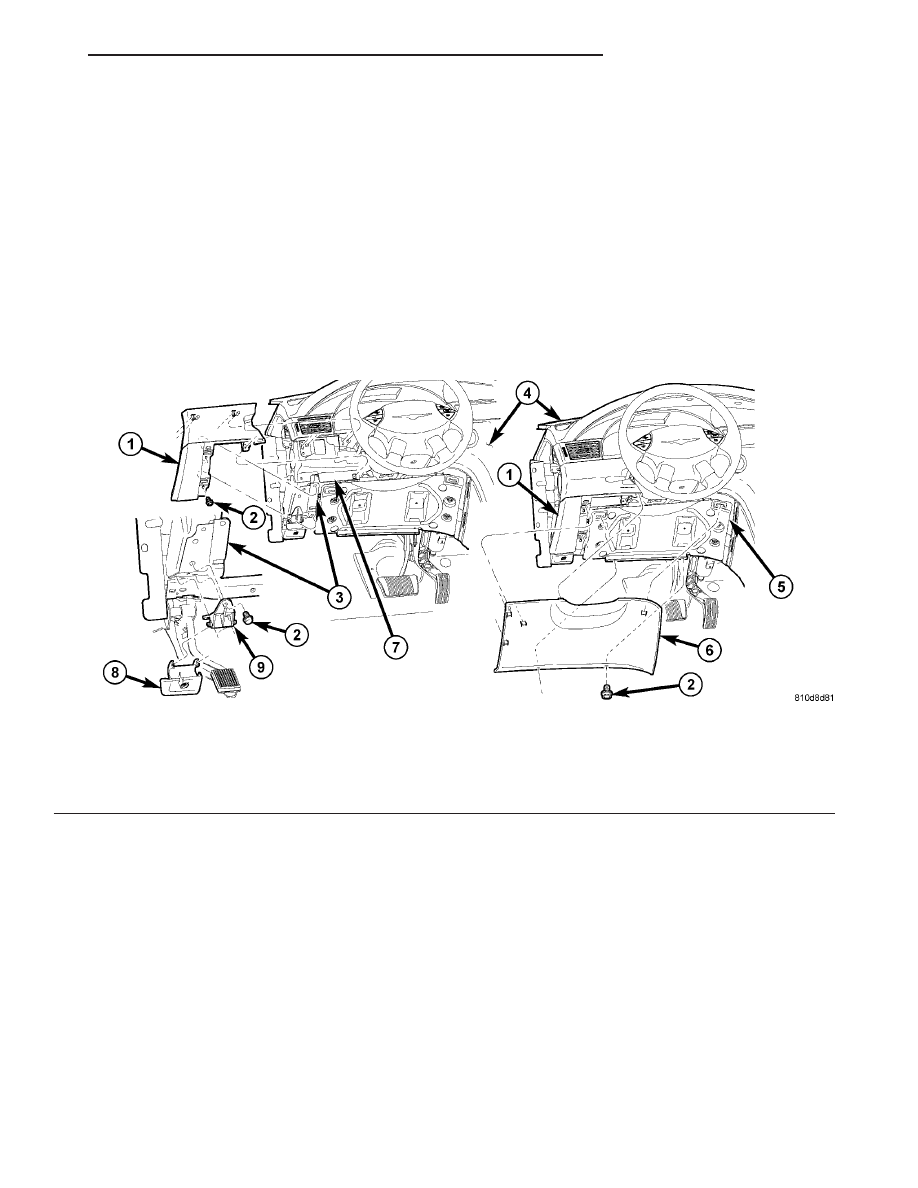

Fig. 15 PARK BRAKE RELEASE HANDLE & STEERING COLUMN OUTER COVER

1 - INSTRUMENT PANEL TRIM OUTLET PLATE
2 - ATTACHING SCREWS
3 - INSTRUMENT PANEL PARKING BRAKE RELEASE HANDLE
BRACKET
4 - INSTRUMENT PANEL

5 - INFLATABLE KNEE BLOCKER AIRBAG
6 - INSTRUMENT PANEL STEERING COLUMN OPENING COVER
7 - INSTRUMENT PANEL CLUSTER POCKET
8 - BRAKE RELEASE HANDLE
9 - BRAKE HANDLE BRACKET ASSEMBLY

INSTRUMENT PANEL

23 - 85
