(8) Install screw inside arm rest pull cup and close
remote handle trim plug (Fig. 27).
(9) Raise door glass.
(10) Close door.
WATERSHIELD
REMOVAL
(1) Remove door trim panel. (Refer to 23 - BODY/
DOORS - REAR/TRIM PANEL - REMOVAL).
NOTE: Care must be taken when routing electrical
wiring & cables thorough access holes to prevent
tearing of liner material.
(2) Route wiring, window switch, and remote han-
dle cables through watershield.
(3) Pull courtesy light wiring through watershield.
(4) Peel watershield away from adhesive around
perimeter of inner door panel (Fig. 32).
(5) Remove watershield.
INSTALLATION
(1) Place watershield into position (Fig. 32).
NOTE: Care must be taken when routing electrical
wiring & cables thorough access holes to prevent
tearing of liner material.
(2) Pull courtesy light wiring through watershield.
(3) Route wiring, switch bezel, window switch, and
remote handle cables through watershield.
(4) Insure
that
enough
adhesive
remains
to
securely retain the watershield to inner door panel.
Replace as necessary
(5) Install door trim panel. (Refer to 23 - BODY/
DOORS - REAR/TRIM PANEL - INSTALLATION).

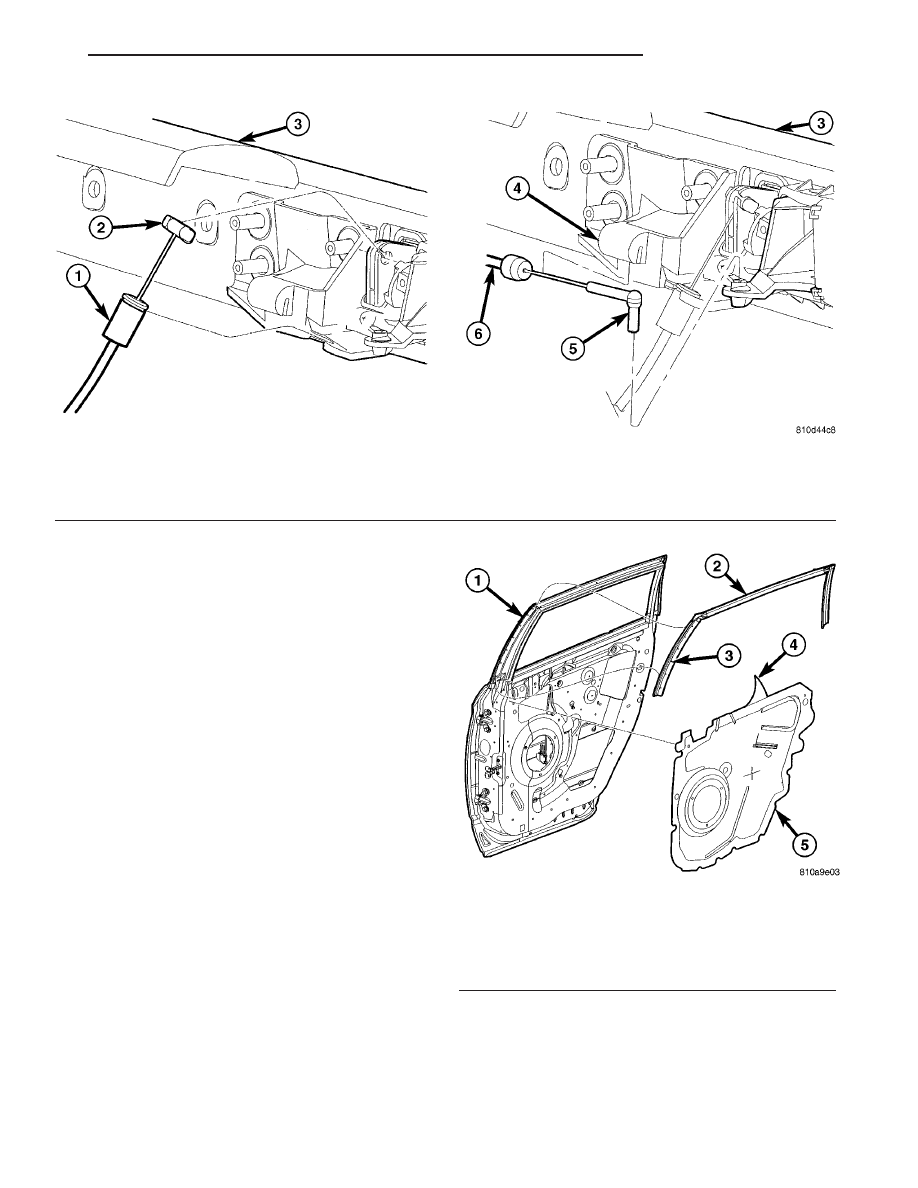

Fig. 31 REAR DOOR TRIM PANEL MECHANICAL CONNECTIONS
1 - MECHANICAL CABLE
2 - FERRULE END OF CABLE
3 - DOOR TRIM PANEL
4 - CABLE SLOT
5 - REMOTE HANDLE CABLE END
6 - REMOTE HANDLE CABLE
Fig. 32 DOOR WATERSHIELD
1 - REAR DOOR ASSEMBLY
2 - DOOR HEADER WEATHERSTRIP
3 - PUSH PINS ATTACHING WEATHERSTRIP
4 - PAPER BACKING
5 - DOOR WATERSHIELD
CS
DOORS - REAR
23 - 47
TRIM PANEL (Continued)
