rotating (Fig. 65), remove nut securing toe link at
crossmember (Fig. 66). Remove link from cam bolt,
then remove cam bolt and washer from crossmem-
ber.

(d) Remove bolt and nut mounting compression

link to crossmember (Fig. 67).

(e) Remove nut and bolt mounting tension link

to crossmember (Fig. 68).

(f) Remove nut and bolt mounting camber link

to crossmember (Fig. 68).

(g) Carefully lift knuckle with links and parking

brake cable attached as an assembly from rear sus-
pension crossmember.

(32) If necessary, remove ABS wheel speed sensor

routing clips from crossmember.

(33) Remove crossmember from jack head.

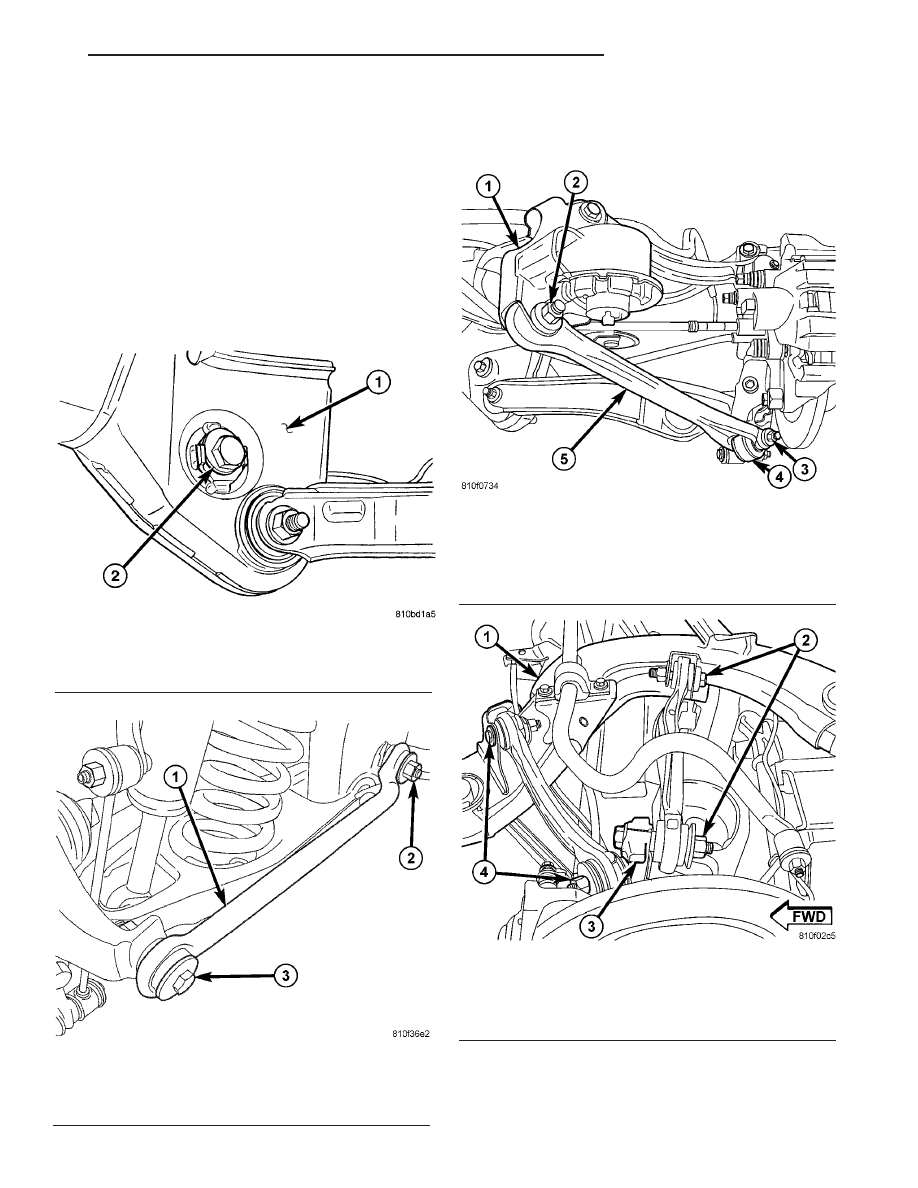

Fig. 65 Cam Bolt Securing Toe Link - Front View

1 - CAM BOLT (TOE ADJUSTMENT)
2 - FRONT OF REAR CROSSMEMBER

Fig. 66 Toe Link Mounting

1 - TOE LINK
2 - MOUNTING NUT AT CROSSMEMBER
3 - MOUNTING BOLT AT KNUCKLE

Fig. 67 Compression Link Mounting

1 - REAR SUSPENSION CROSSMEMBER
2 - MOUNTING BOLT AND NUT
3 - MOUNTING BOLT AND NUT
4 - KNUCKLE
5 - COMPRESSION LINK

Fig. 68 Camber Link And Tension Link Mounting

1 - REAR SUSPENSION CROSSMEMBER
2 - CAMBER LINK MOUNTING BOLTS
3 - KNUCKLE
4 - TENSION LINK MOUNTING BOLTS

FRAME & BUMPERS

13 - 31

REAR CROSSMEMBER (Continued)

INSTALLATION

(1) Install crossmember on jack head in the same

position in which it was removed and secure in place.

(2) If necessary, install ABS wheel speed sensor

routing clips in crossmember.

(3) Perform following to each side of rear suspen-

sion:

(a) Carefully place knuckle with links and park-

ing brake cable attached as an assembly into
mounting position on rear suspension crossmem-
ber.

(b) Install bolt and nut mounting camber link to

crossmember (Fig. 69). Do not tighten at this
time.

(d) Install bolt and nut mounting compression

link to crossmember (Fig. 70).

(e) Slide toe adjustment cam bolt through rear

crossmember from front and place cam washer
over threads on rear. Place eccentric on head of
bolt upward to 12 O’clock position. Install toe link
over end of bolt and install nut. While holding cam
bolt from rotating (Fig. 71), install nut securing toe
link to crossmember (Fig. 72). Do not fully
tighten at this time.

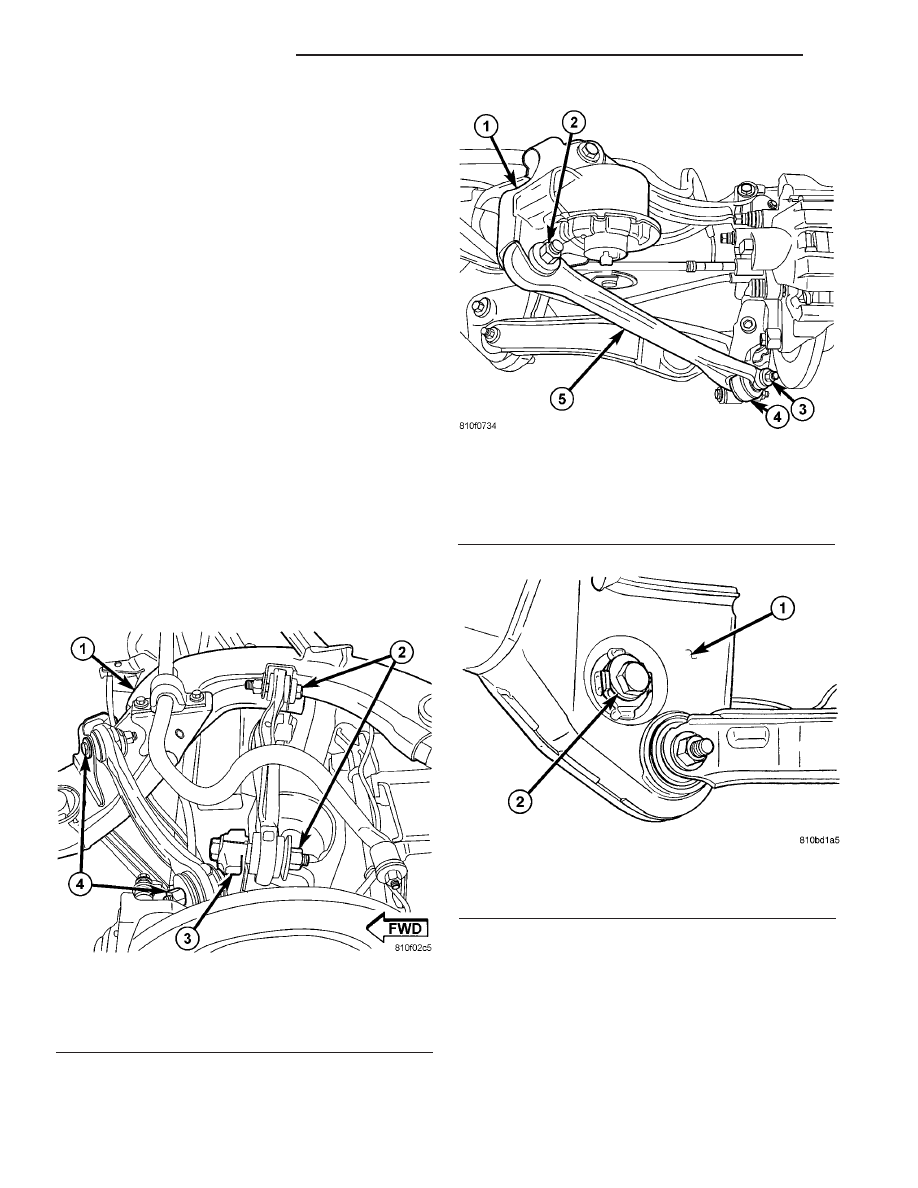

Fig. 69 Camber Link And Tension Link Mounting

1 - REAR SUSPENSION CROSSMEMBER
2 - CAMBER LINK MOUNTING BOLTS
3 - KNUCKLE
4 - TENSION LINK MOUNTING BOLTS

Fig. 70 Compression Link Mounting

1 - REAR SUSPENSION CROSSMEMBER
2 - MOUNTING BOLT AND NUT
3 - MOUNTING BOLT AND NUT
4 - KNUCKLE
5 - COMPRESSION LINK

Fig. 71 Cam Bolt Securing Toe Link - Front View

1 - CAM BOLT (TOE ADJUSTMENT)
2 - FRONT OF REAR CROSSMEMBER

13 - 32

FRAME & BUMPERS

REAR CROSSMEMBER (Continued)

(f) Install bolt and nut fastening spring link to

crossmember (Fig. 73). Do not tighten at this
time.

(g) Set current-side of rear suspension to curb

height using following tools:

(I) Place Receiver, Special Tool 9031-3, cup-

side-down over top of crossmember rear mount
bushing (Fig. 74).

(II) Place Curb Height Gage, Special Tool

9094, into shock absorber pocket in spring link
and opposite end of tool over Receiver, Special
Tool 9031-3 (Fig. 74).

(III) Install bolt through crossmember rear

mount bushing, Receiver, Special Tool 9031-3,
and Curb Height Gage, Special Tool 9094. Install
wing nut, hand tightening tools in place (Fig.
74).

(IV) Move spring link up or down as necessary

aligning lower shock bolt mounting hole with
Curb Height Gage hole, then insert pin through
both (Fig. 74).
(h) Tighten link fasteners at crossmember to fol-

lowing specifications:
• Camber Link bolt – 68 N·m (50 ft. lbs.) torque

(Fig. 69).

• Compression Link bolt – 68 N·m (50 ft. lbs.)

torque (Fig. 70).

• Spring Link bolt – 129 N·m (95 ft. lbs.) torque

(Fig. 73).

• Tension Link bolt – 68 N·m (50 ft. lbs.) torque

(Fig. 69).

• Toe Link nut – 172 N·m (127 ft. lbs.) torque (Fig.

72).

(i) Remove special tools.
(j) Install end of parking brake cable into

mounting hole in crossmember. Slide cable retainer
on end of cable housing into hole until retainer fin-
gers click into place.
(4) Install stabilizer bar with cushions and retain-

ers on crossmember.

(5) Install cushion retainer mounting bolts (Fig.

75). Do not tighten at this time.

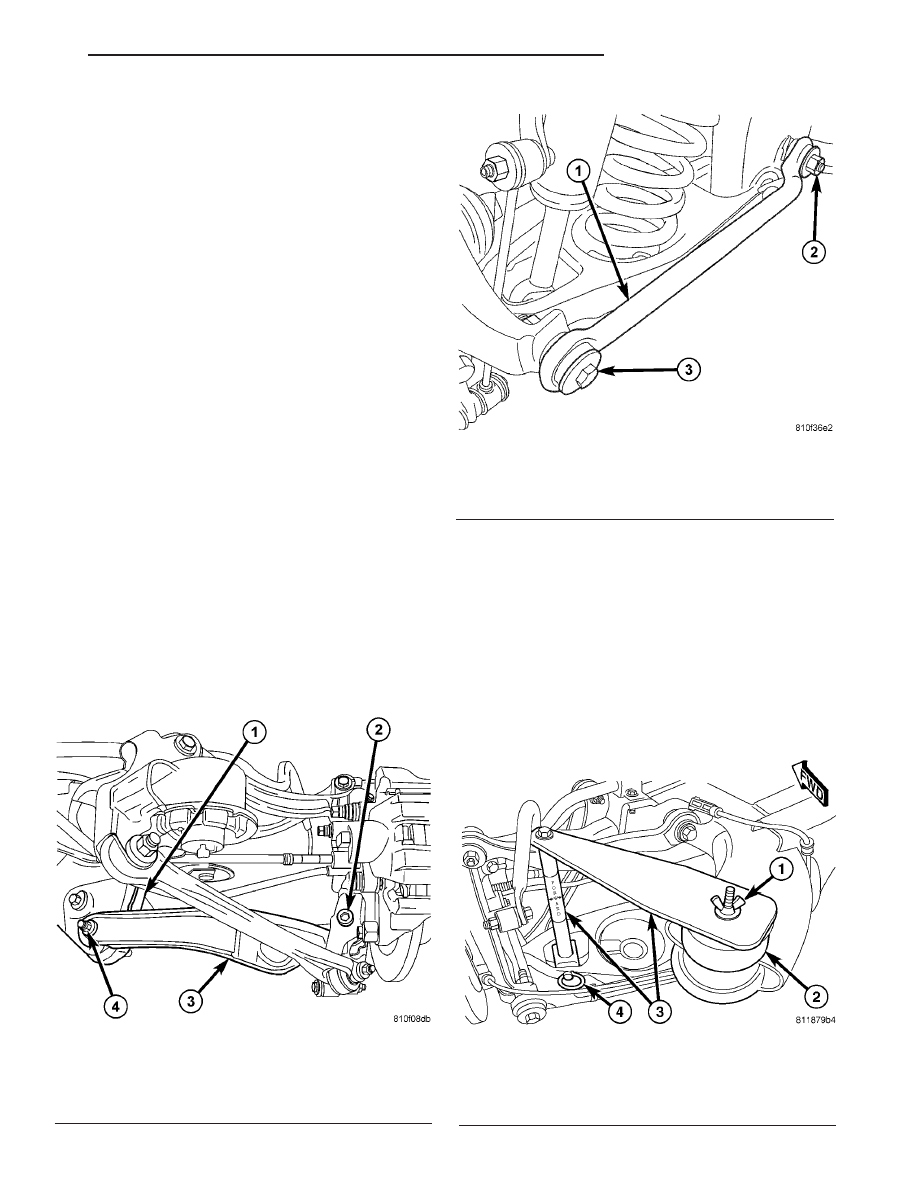

Fig. 72 Toe Link Mounting

1 - TOE LINK
2 - MOUNTING NUT AT CROSSMEMBER
3 - MOUNTING BOLT AT KNUCKLE

Fig. 73 Spring Link Mounting

1 - CROSSMEMBER
2 - MOUNTING BOLT AND NUT
3 - SPRING LINK
4 - MOUNTING BOLT AND NUT

Fig. 74 Curb Height Gage Mounted In Place

1 - WING NUT AND BOLT
2 - RECEIVER 9031-3
3 - GAGE 9094
4 - PIN

FRAME & BUMPERS

13 - 33

REAR CROSSMEMBER (Continued)

(6) Install bolt and nut fastening stabilizer bar to

each stabilizer link (Fig. 75). Do not tighten at this
time.

(7) Tighten cushion retainer mounting bolts to 61

N·m (45 ft. lbs.) torque.

(8) Raise crossmember to body mounting points. As

crossmember is raised, align shocks with pockets in
spring links.

(9) Continue to raise crossmember with jack until

crossmember mounting bolts can be installed. Install
left side crossmember mounting bolts, but not the
right side bolts (Fig. 76). It is not necessary to
tighten bolts at this point.

CAUTION: To avoid damaging other components of
vehicle, do not lower crossmember any further than
necessary to install coil spring.

(10) Slowly lower jack allowing right side of cross-

member to drop. Do not lower jack at a fast rate.
Lower jack just enough to allow spring installation.
Do not lower jack any further than necessary.

(11) Install coil spring and isolator (Fig. 77), top

end first.

NOTE: Verify that spring lower end coil is correctly
placed against abutment built into spring link.

(12) Carefully raise jack, guiding coil spring and

lower end of shock absorber into mounted positions.
Once shock absorber lower mounting hole lines up
with hole in spring link, stop jacking.

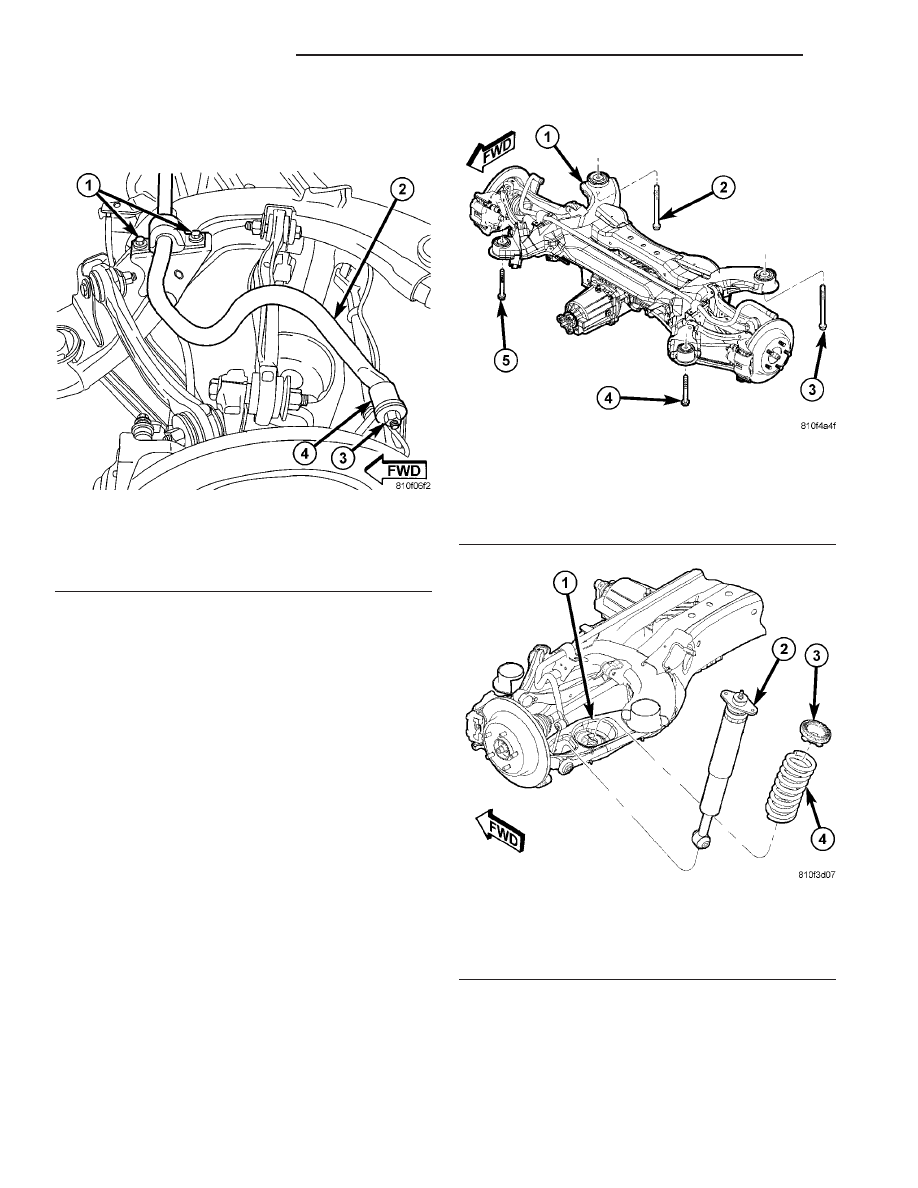

Fig. 75 Rear Stabilizer Bar Mounting

1 - RETAINER BOLTS
2 - STABILIZER BAR
3 - MOUNTING BOLT AND NUT
4 - STABILIZER LINK

Fig. 76 Rear Crossmember Mounting Bolts

1 - REAR SUSPENSION CROSSMEMBER
2 - RIGHT REAR MOUNTING BOLT
3 - LEFT REAR MOUNTING BOLT
4 - LEFT FRONT MOUNTING BOLT
5 - RIGHT FRONT MOUNTING BOLT

Fig. 77 Coil Spring And Shock Absorber

1 - SPRING LINK
2 - SHOCK ABSORBER
3 - ISOLATOR
4 - COIL SPRING

13 - 34

FRAME & BUMPERS

REAR CROSSMEMBER (Continued)
