Chrysler Pacifica. Manual - part 660

Fig.

46

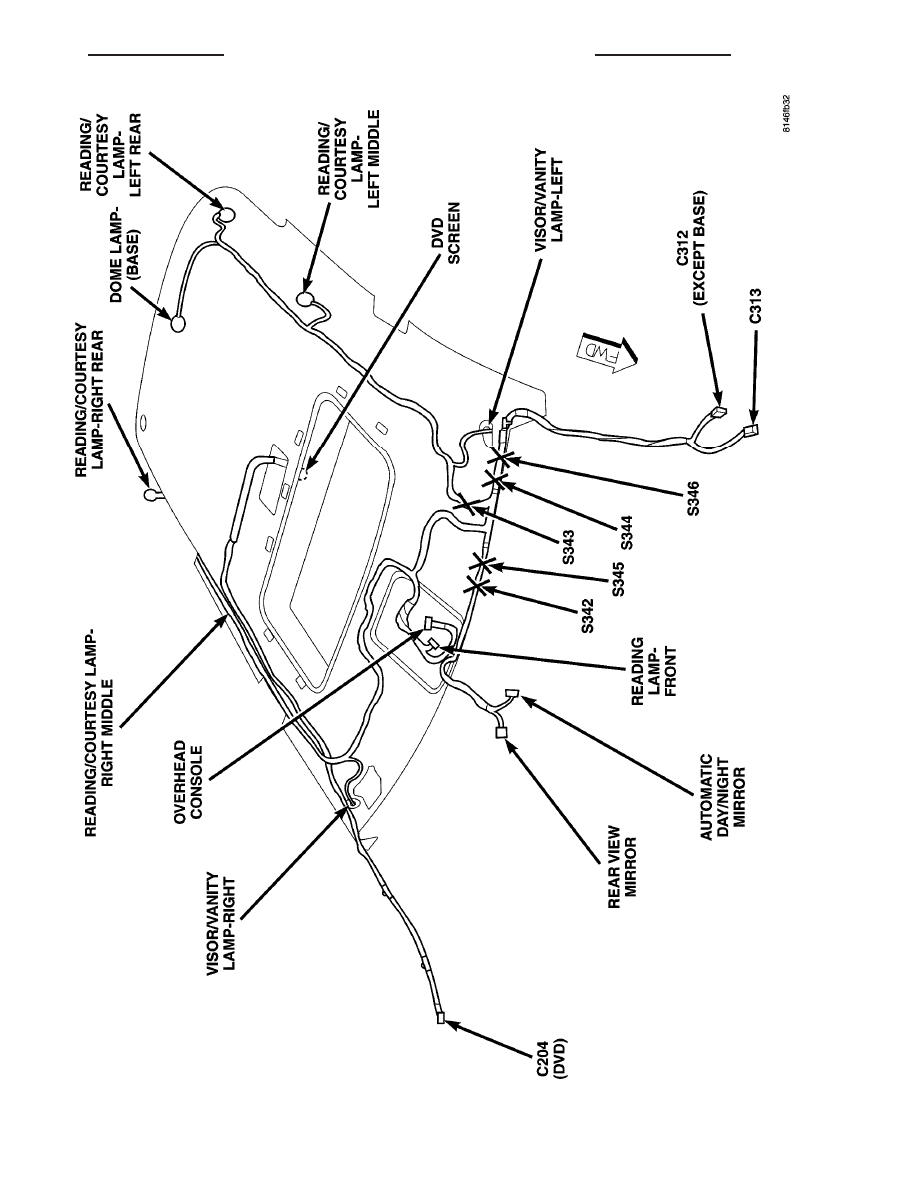

HEADLINER

CS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 57

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

47

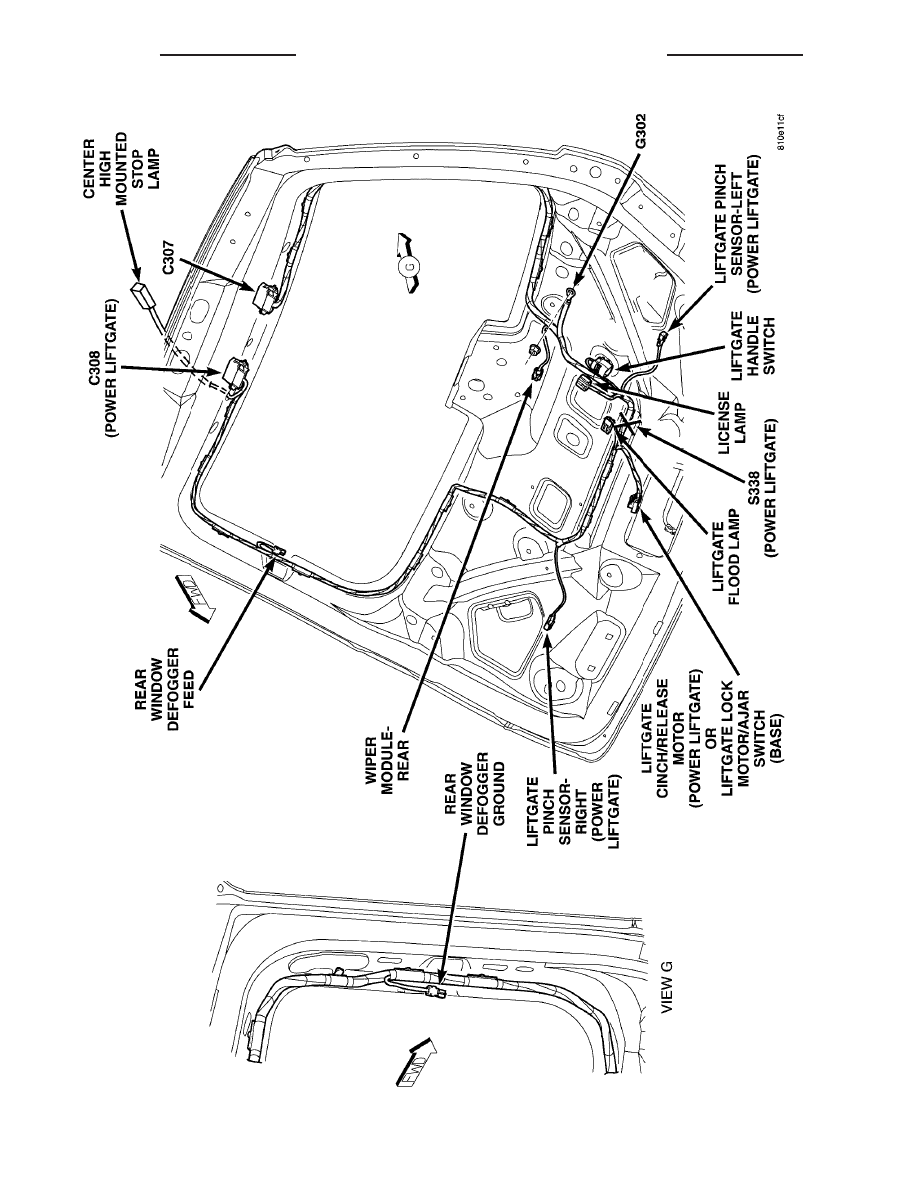

LIFTGA

TE

8W - 91 - 58

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

CS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

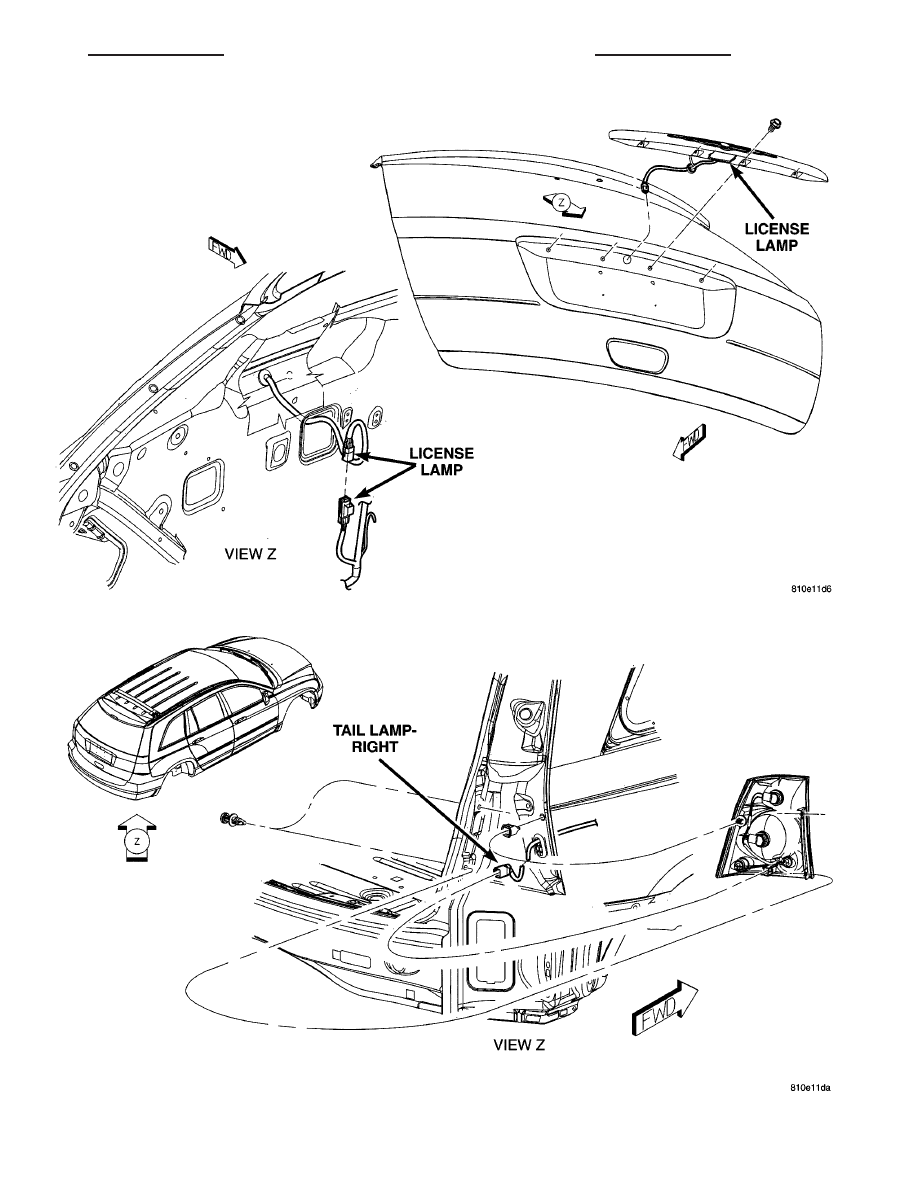

Fig. 48 LICENSE LAMP

Fig. 49 TAIL LAMP - RIGHT

CS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 59

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
