Chrysler Pacifica. Manual - part 473

front of the unit allow the use of MP3 players, video
game systems, camcorders etc.

OPERATION

Due to its compact design, the CD/DVD changer

can carry out only one operation at a time. For exam-
ple, you can not load a new disc while playing
another at the same time. Each operation happens
sequentially.

The radio unit provides control over all features of

the CD/DVD changer with the exception of the
CD/DVD load and eject functions, which are con-
trolled by buttons located on the front of the CD/DVD
changer. All features you would expect, such as Disc
Up/Down, Track Up/Down, Random and Scan are
controlled by the radio, which also displays all rele-
vant CD/DVD changer information on the radio dis-
play.

The CD/DVD changer contains a Eject button, six

disc buttons, an indicator LED for each of the six
disc positions as well as an illuminated disc opening.
The individual LED indicates whether a CD/DVD is
currently loaded in that particular chamber of the
CD/DVD changer. Pressing the individual button for
a particular chamber, then the Eject button will eject
a disc currently present in that chamber. If the
chamber is currently empty, actuating the individual
button will position that chamber to receive and load
a new disc in that chamber, once the load light stops
flashing.

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove instrument panel center bezel (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL CENTER BEZEL - REMOVAL).

(3) Remove screws holding CD/DVD changer (Fig.

7).

(4) Disconnect the wire harness connector from the

back of the CD/DVD changer.

(5) Remove the CD/DVD changer from the vehicle.

INSTALLATION

(1) Connect the wire connector to the CD/DVD

changer.

(2) Insert the CD/DVD changer into the instru-

ment panel.

NOTE: Use care when inserting CD/DVD changer so
that cable is not pinched or trapped against instru-
ment panel.

(3) Install CD/DVD changer mounting fasteners.

Tighten to 2 N·m (22 in. lbs.).

(4) Install instrument panel center bezel (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL CENTER BEZEL - INSTALLATION).

(5) Connect the battery negative cable.

INSTRUMENT PANEL
ANTENNA CABLE

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

REFER

ELECTRICAL,

RESTRAINTS

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING

COLUMN,

INSTRUMENT

PANEL

COMPONENT DIAGNOSIS OR SERVICE. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

(1) Disconnect and isolate the battery negative

cable.

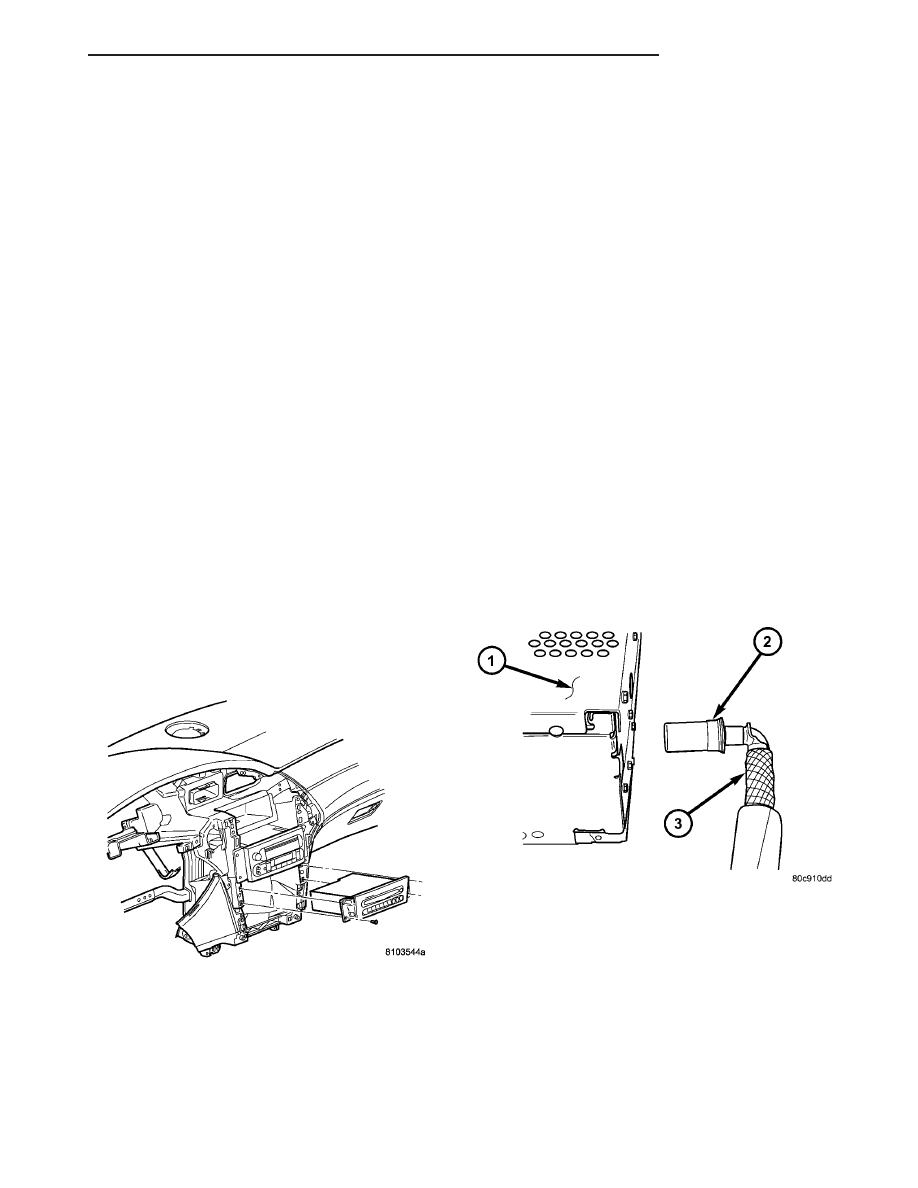

Fig. 7 CD/DVD PLAYER

Fig. 8 ANTENNA CABLE CONNECTION

AUDIO/VIDEO

8A - 11

CD/DVD CHANGER (Continued)

(2) Remove glove box.
(3) Disconnect instrument panel antenna cable

from antenna cable.

(4) Disconnect cable hanger clip from HVAC unit.
(5) Remove radio (Refer to 8 - ELECTRICAL/AU-

DIO/RADIO - REMOVAL).

CAUTION: Pulling the antenna cable straight out of
the radio without pulling on the locking antenna
connector could damage the cable or radio.

(6) Disconnect the antenna cable by pulling the

locking antenna connector away from the radio (Fig.
8).

(7) Remove cable from vehicle.

INSTALLATION

(1) Install instrument panel antenna cable to vehi-

cle.

(2) Connect cable to back of radio.
(3) Install radio (Refer to 8 - ELECTRICAL/AU-

DIO/RADIO - INSTALLATION).

(4) Connect cable hanger clip to HVAC unit.
(5) Connect instrument panel antenna cable to

antenna cable.

(6) Install glove box.
(7) Connect the battery negative cable.

QUARTER GLASS INTEGRAL
ANTENNA

DESCRIPTION

The quarter glass integral antenna element is

bonded to the right rear quarter glass and is replaced
with the glass assembly only.

OPERATION

The integral antenna receives radio frequencies

and sends them to the antenna module for amplifica-
tion.

DIAGNOSIS AND TESTING - QUARTER GLASS
INTEGRAL ANTENNA

The antenna grid pattern is divided into two sepa-

rate patterns. Each terminal connects to a separate
grid pattern, one for AM and the other for FM.

For circuit descriptions and diagrams, refer to the

appropriate wiring information. The wiring informa-
tion includes wiring diagrams, proper wire and con-
nector repair procedures, details of wire harness
routing and retention, connector pin-out information
and location views for the various wire harness con-
nectors, splices and grounds. To detect breaks in the
integral antenna elements, the following procedure is
required:

(1) Disconnect the antenna module connector from

the antenna terminals on the glass.

(2) Using an ohmmeter, place a lead on one of the

terminals and check each end of the grid pattern con-
nected to this terminal for continuity. If continuity is
not present, move one lead through the grid in pro-
gression starting at the terminal with the other lead
on the terminal until continuity is lost. Repeat pro-
cedure for the other terminal. A break in the antenna
grid can be repaired using a Mopar Rear Window
Defogger Repair Kit or equivalent.

RADIO

DESCRIPTION

Available radio receivers include:
• AM/FM/MP3/CD with CD/DVD changer control

(RAH sales code)

• AM/FM/MP3/cassette/CD/equalizer

with

CD/DVD changer control feature (RBP sales code)

OPERATION

The radio receiver operates on ignition switched

battery current that is available only when the igni-
tion switch is in the On or Accessory/Accessory Delay
positions.

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove instrument panel center bezel (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL CENTER BEZEL - REMOVAL).

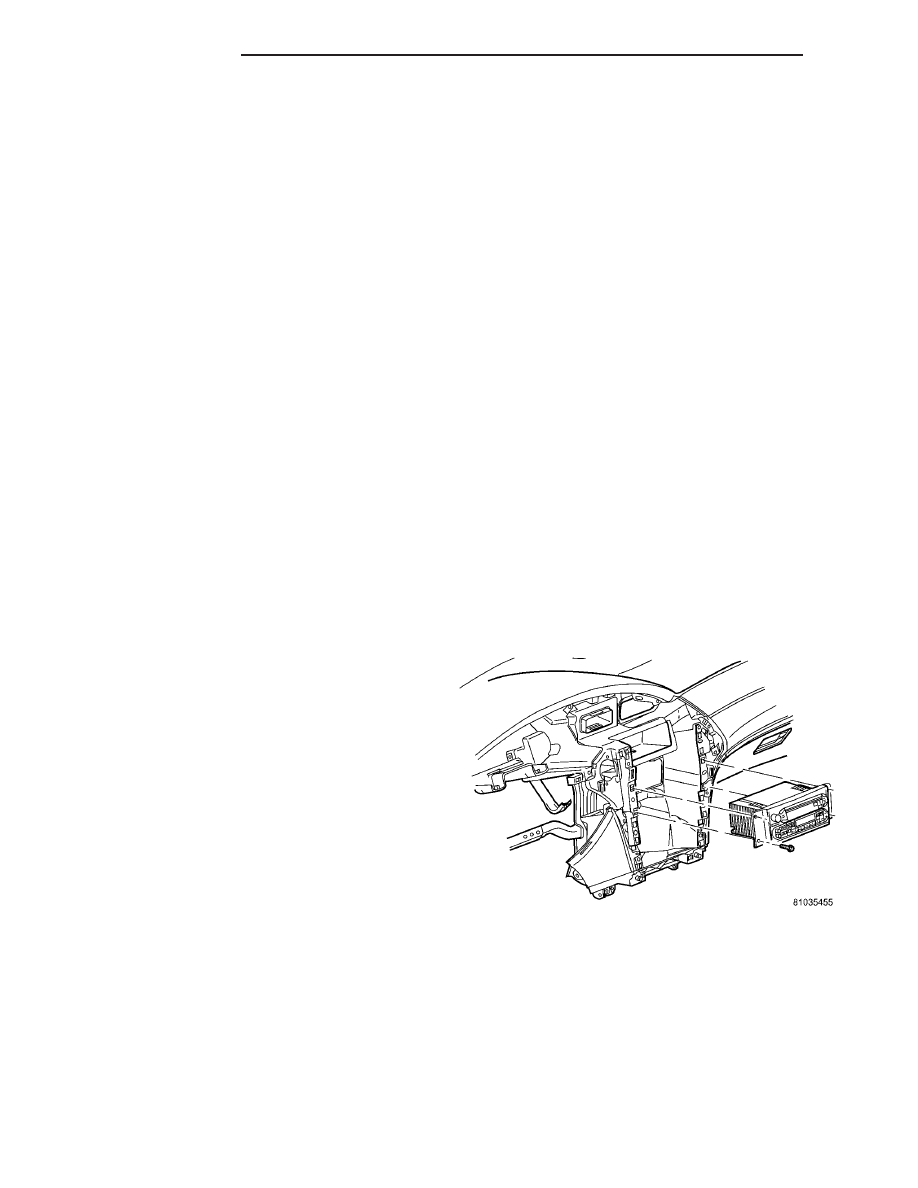

(3) Remove radio mounting screws (Fig. 9).
(4) Pull radio rearward to gain access to the back

of radio.

Fig. 9 RADIO

8A - 12

AUDIO/VIDEO

INSTRUMENT PANEL ANTENNA CABLE (Continued)

CAUTION: Pulling the antenna cable straight out of
the radio without pulling on the locking antenna
connector could damage the cable or radio.

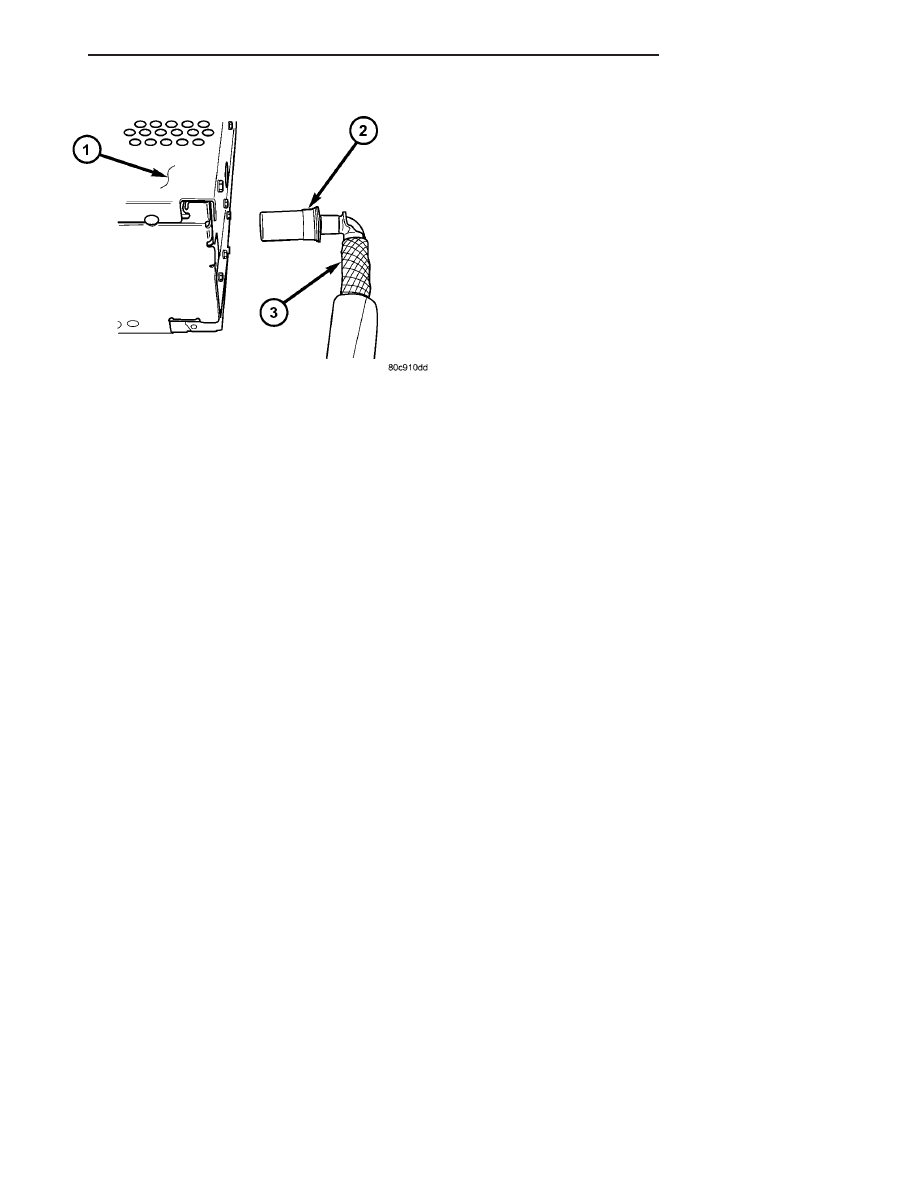

(5) Disconnect the antenna cable by pulling the

locking antenna connector away from the radio (Fig.
10).

(6) Disconnect the wire harness connectors from

the back of the radio.

INSTALLATION

(1) Connect wire harness connector and antenna

cable to back of radio.

(2) Position radio into instrument panel.
(3) Install mounting screws. Tighten to 2 N·m (22

in. lbs.).

(4) Install instrument panel center bezel (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL CENTER BEZEL - INSTALLATION).

(5) Connect battery negative cable.

RADIO NOISE SUPPRESSION
COMPONENTS

DESCRIPTION

Radio noise suppression devices are factory-in-

stalled standard equipment on this vehicle. Radio
Frequency Interference (RFI) and ElectroMagnetic
Interference (EMI) can be produced by any on-board
or external source of electromagnetic energy. These
electromagnetic energy sources can radiate electro-
magnetic signals through the air, or conduct them
through the vehicle electrical system.

When the audio system converts RFI or EMI to an

audible acoustic wave form, it is referred to as radio
noise. This undesirable radio noise is generally man-
ifested in the form of “buzzing,” “hissing,” “popping,”
“clicking,” “crackling,” and/or “whirring” sounds. In

most cases, RFI and EMI radio noise can be sup-
pressed using a combination of vehicle and compo-
nent grounding, filtering and shielding techniques.
This vehicle is equipped with factory-installed radio
noise suppression devices that were designed to min-
imize exposure to typical sources of RFI and EMI;
thereby, minimizing radio noise complaints.

Factory-installed radio noise suppression is accom-

plished primarily through circuitry or devices that
are integral to the factory-installed radios, audio
power amplifiers and other on-board electrical com-
ponents such as generators, wiper motors, blower
motors, and fuel pumps that have been found to be
potential sources of RFI or EMI. External radio noise
suppression devices that are used on this vehicle to
control RFI or EMI, and can be serviced, include the
following:

• Cylinder head-to-cover ground strap - This

length of braided ground strap (2) has an eyelet ter-
minal connector crimped to each end. One end is
secured to the engine cylinder head(s). The other is
secured to the valve cover.

• Resistor-type spark plugs - This type of spark

plug has an internal resistor connected in series
between the spark plug terminal and the center elec-
trode to help reduce the production of electromag-
netic radiation that can result in radio noise.

OPERATION

There are two common strategies that can be used

to suppress Radio Frequency Interference (RFI) and
ElectroMagnetic Interference (EMI) radio noise. The
first suppression strategy involves preventing the
production of RFI and EMI electromagnetic signals
at their sources. The second suppression strategy
involves preventing the reception of RFI and EMI
electromagnetic signals by the audio system compo-
nents.

The use of braided ground straps in key locations

is part of the RFI and EMI prevention strategy.
These ground straps ensure adequate ground paths,
particularly for high current components such as
many of those found in the starting, charging, igni-
tion, engine control and transmission control sys-
tems. An insufficient ground path for any of these
high current components may result in radio noise
caused by induced voltages created as the high cur-
rent seeks alternative ground paths through compo-
nents or circuits intended for use by, or in close
proximity to the audio system components or circuits.

Preventing the reception of RFI and EMI is accom-

plished by ensuring that the audio system compo-
nents are correctly installed in the vehicle. Loose,
corroded or improperly soldered wire harness connec-
tions, improperly routed wiring and inadequate audio
system component grounding can all contribute to

Fig. 10 ANTENNA CABLE CONNECTION

AUDIO/VIDEO

8A - 13

RADIO (Continued)

the reception of RFI and EMI. A properly grounded
antenna body and radio chassis, as well as a shielded
antenna coaxial cable with clean and tight connec-
tions will each help reduce the potential for reception
of RFI and EMI.

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

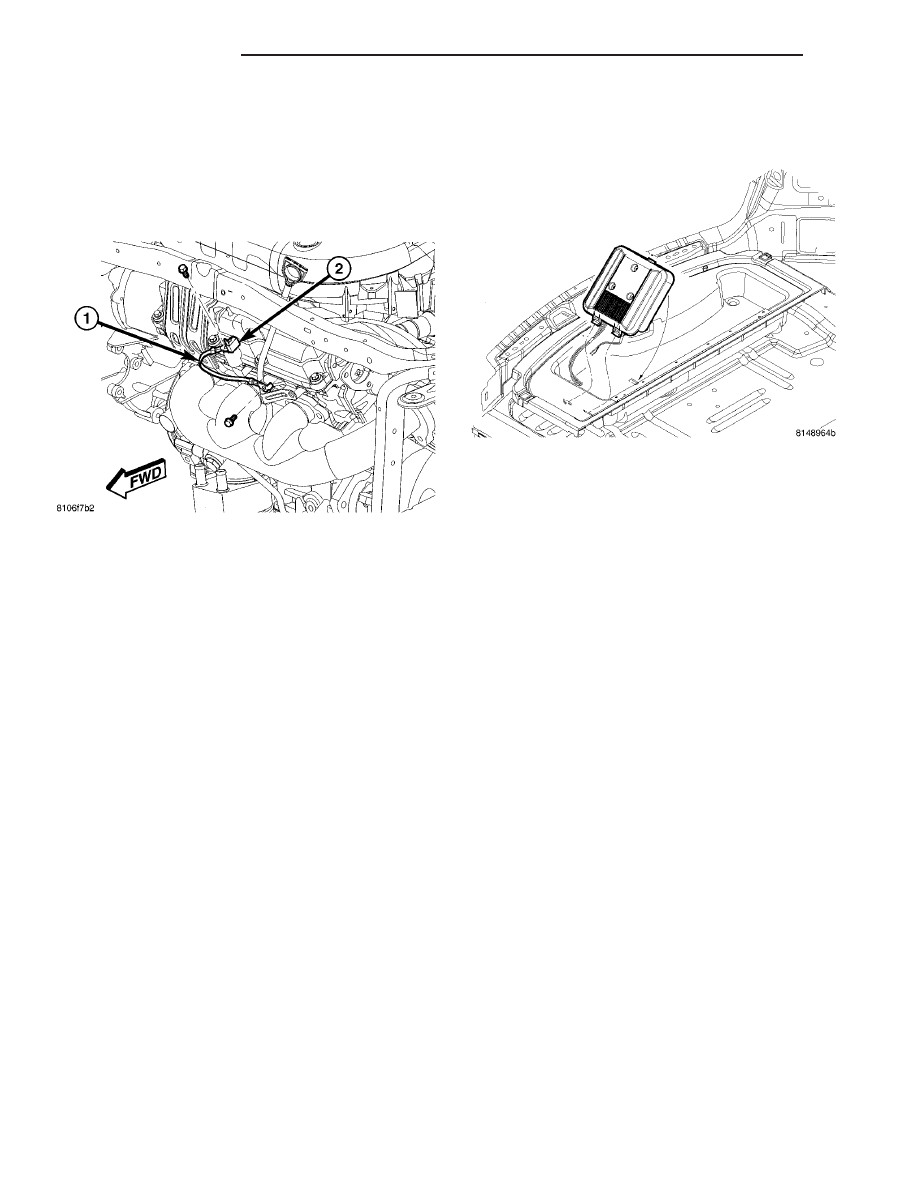

(2) Remove the mounting fasteners (Fig. 11).
(3) Remove the ground strap.

INSTALLATION

(1) Position ground strap and install mounting fas-

teners.

(2) Connect battery negative cable.

RECEIVER-SATELLITE

REMOVAL

NOTE:
If the owner’s satellite service was active before the
satellite receiver was replaced the new satellite
receiver will have to be activated. The existing sat-
ellite receiver will have to be deactivated before the
replacement satellite receiver can be activated.
To activate Sirius satellite radio service, call Sirius
at their toll-free number. Please have the following
information available when activating a system:

•

Electronic Serial Number / Sirius Identification

Number (ESN/SID) of the unit to be replaced

•

ESN/SID of the replacement receiver

•

Vehicle Owner’s name and address

•

VIN

The ESN/SID number can be obtained through the
radio display by following the steps in the satellite
radio owners manual.

The vehicle must be outside with the audio system
powered on, in the satellite radio mode, to receive
the activation signal.

(1) Disconnect and isolate the battery negative

cable.

(2) Lift the lid on the rear storage bin.
(3) Depress the inboard retaining tab on the mod-

ule cover and pull up (Fig. 12).

(4) Disconnect electrical harness connectors.
(5) Disconnect antenna harness connectors.
(6) Remove mounting fasteners and module.

INSTALLATION

•

Electronic Serial Number / Sirius Identification

Number (ESN/SID) of the unit to be replaced

•

ESN/SID of the replacement receiver

•

Vehicle Owner’s name and address

•

VIN

The ESN/SID number can be obtained through the
radio display by following the steps in the satellite
radio owners manual.
The vehicle must be outside with the audio system
powered on, in the satellite radio mode, to receive
the activation signal.

(1) Position module to cover.
(2) Install and tighten mounting fasteners.
(3) Connect antenna harness connectors.
(4) Connect electrical harness connectors.

Fig. 11 GROUND STRAP

Fig. 12 SATELLITE RECEIVER

8A - 14

AUDIO/VIDEO

RADIO NOISE SUPPRESSION COMPONENTS (Continued)

Content .. 471 472 473 474 ..
