Chrysler Pacifica. Manual - part 291

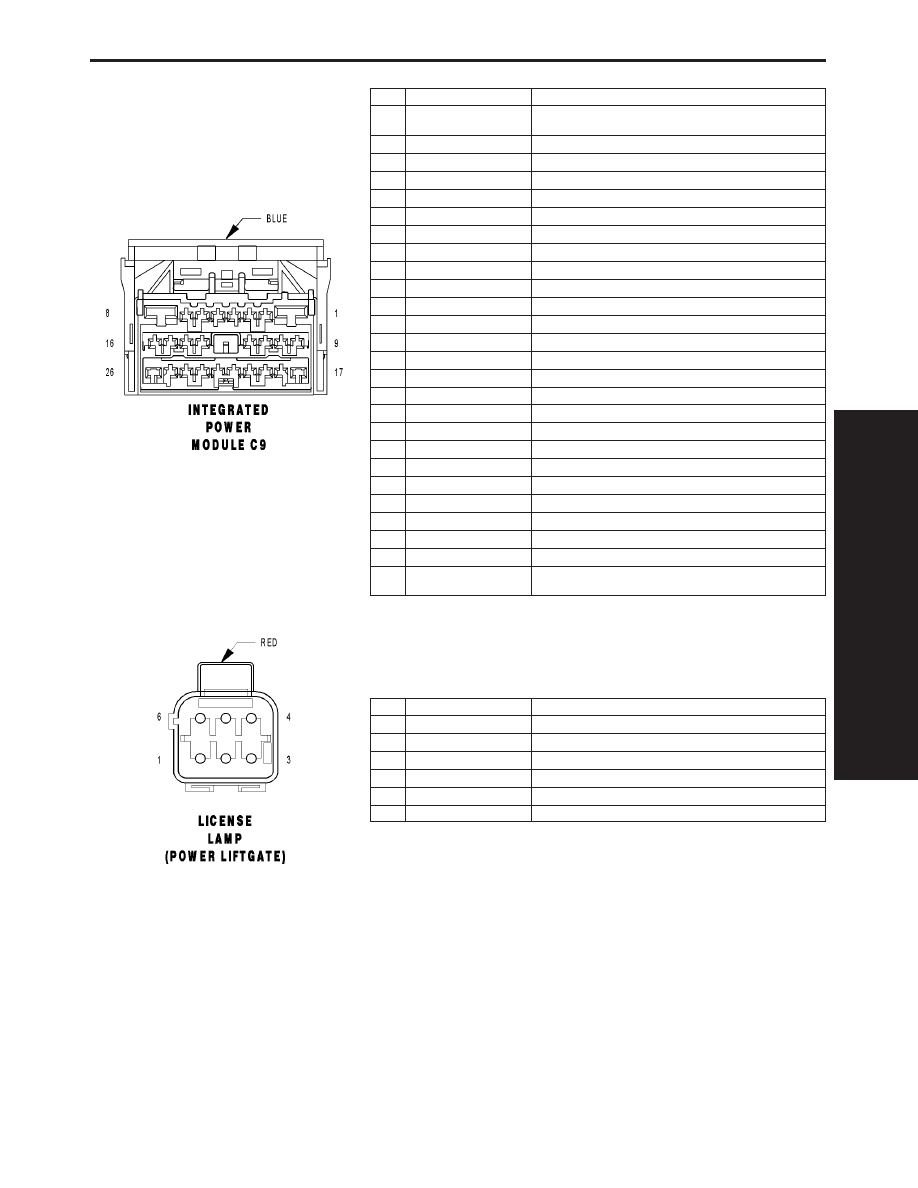

INTEGRATED POWER MODULE C9 - BLUE 26 WAY

CAV

CIRCUIT

FUNCTION

1

A115 12YL/RD (POWER
LIFTGATE)

FUSED B(+)

2

A106 20LB/RD

FUSED B(+)

3

A108 18LG/RD

FUSED B(+)

4

-

-

5

D123 20WT/BR

FLASH PROGRAM ENABLE

6

-

-

7

L71 20WT/GY

LEFT TAIL LAMP DRIVER

8

C7 12DB

FUSED FRONT BLOWER MOTOR RELAY OUTPUT

9

-

-

10

A701 18BR/RD

FUSED B(+)

11

-

-

12

-

-

13

F20 20PK/GY

IGNITION SWITCH OUTPUT (RUN-START)

14

-

-

15

-

-

16

F201 20PK/LB

ORC RUN-START DRIVER

17

-

-

18

-

-

19

F2 18PK/YL

IGNITION SWITCH OUTPUT (RUN-START)

20

L51 18WT/DG

BRAKE LAMP SWITCH OUTPUT

21

-

-

22

-

-

23

L3 18WT/VT

LICENSE LAMP DRIVER

24

N1 16DB/OR

FUEL PUMP RELAY OUTPUT

25

A105 18DB/RD

FUSED B(+)

26

F525 16TN/PK (MIDDLE
ROW HEATED SEATS)

FUSED RUN RELAY OUTPUT

LICENSE LAMP (POWER LIFTGATE) - RED 6 WAY

CAV

CIRCUIT

FUNCTION

1

L3 18WT/VT

LICENSE LAMP DRIVER

2

Z367 20BK/BR

GROUND

3

Q94 22TN/LG

LIFTGATE CHIME DRIVER

4

Z294 20BK/DG

GROUND

5

G32 22VT/LB

LIFTGATE TEMPERATURE SENSOR SIGNAL

6

Q901 20OR/VT

GROUND

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

1161

CONNECTOR PINOUTS

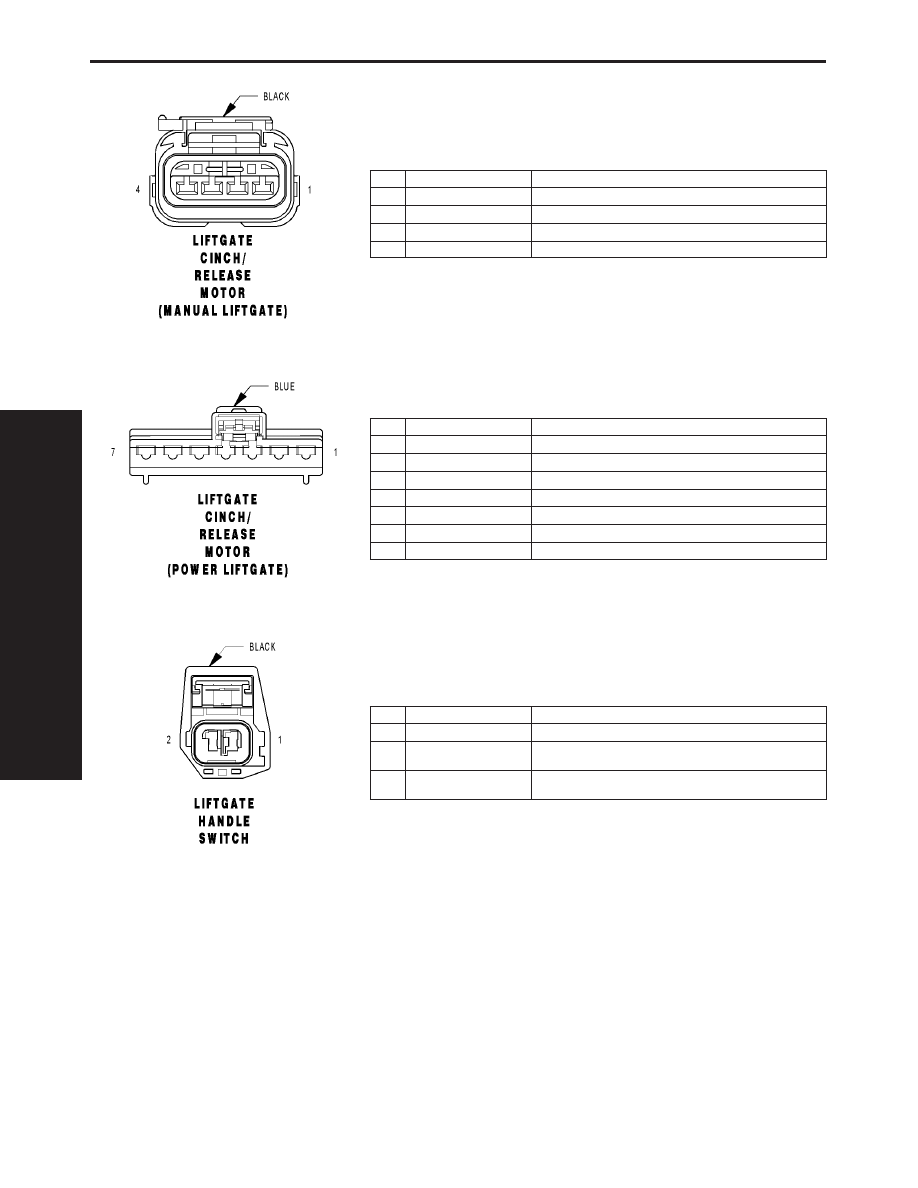

LIFTGATE CINCH/RELEASE MOTOR (MANUAL LIFTGATE) - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z78 20BK/OR

GROUND

2

G78 22VT/OR

LIFTGATE AJAR SWITCH SENSE

3

P31 18TN/YL

LIFTGATE RELEASE DRIVER

4

Z245 18BK/GY

GROUND

LIFTGATE CINCH/RELEASE MOTOR (POWER LIFTGATE) - BLUE 7 WAY

CAV

CIRCUIT

FUNCTION

1

Q901 20OR/VT

GROUND

2

G78 22VT/OR

LIFTGATE AJAR SWITCH SENSE

3

Q60 22OR/YL

LIFTGATE PAWL SWITCH SENSE

4

Z245 18BK/GY

GROUND

5

Q85 16TN/WT

LIFTGATE LATCH RELEASE DRIVER

6

Q84 16TN/GY

LIFTGATE LATCH CINCH DRIVER

7

Q83 18OR/GY

LIFTGATE LATCH CLUTCH DRIVER

LIFTGATE HANDLE SWITCH - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

P30 20TN/DG

LIFTGATE HANDLE SWITCH SENSE

2

Z87 20BK/LG (MANUAL
LIFTGATE)

GROUND

2

Q901 20OR/VT (POWER
LIFTGATE)

GROUND

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

1162

CONNECTOR PINOUTS

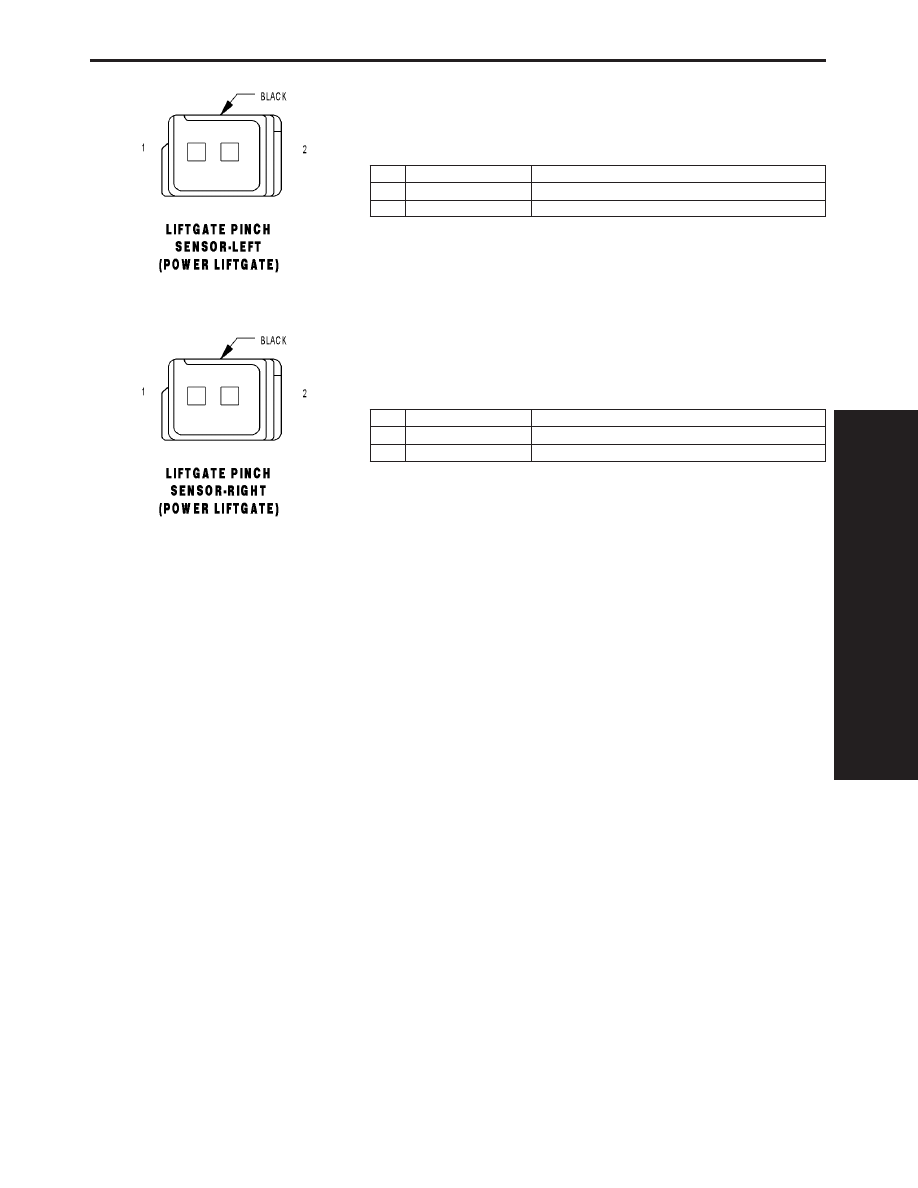

LIFTGATE PINCH SENSOR-LEFT (POWER LIFTGATE) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

Q77 20OR/DB

RIGHT PINCH SENSOR SIGNAL

2

Q75 20OR/LB

PINCH SENSOR SIGNAL

LIFTGATE PINCH SENSOR-RIGHT (POWER LIFTGATE) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

Q77 20OR/DB

RIGHT PINCH SENSOR SIGNAL

2

Q901 20OR/VT

GROUND

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

1163

CONNECTOR PINOUTS

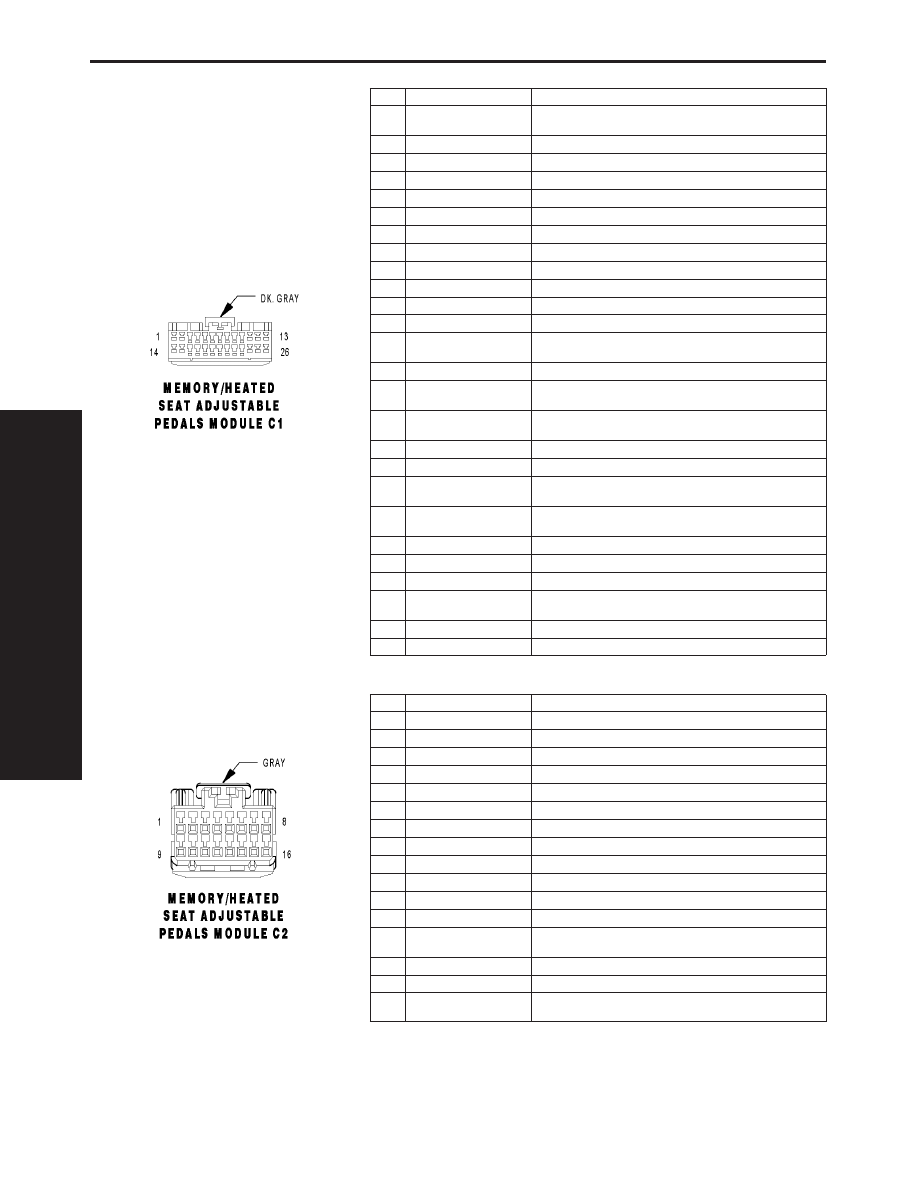

MEMORY/HEATED SEAT ADJUSTABLE PEDALS MODULE C1 - DK. GRAY 26 WAY

CAV

CIRCUIT

FUNCTION

1

P205 14LG/DB (ADJUST-
ABLE PEDALS)

ADJUSTABLE PEDALS MOTOR FORWARD

2

P44 14LG/DG

PASSENGER SEAT RECLINER UP DRIVER

3

-

-

4

-

-

5

-

-

6

-

-

7

-

-

8

-

-

9

-

-

10

-

-

11

D25 20WT/VT

PCI BUS

12

P42 14LG/GY

PASSENGER SEAT RECLINER DOWN DRIVER

13

P206 14LG/TN (ADJUST-
ABLE PEDALS)

ADJUSTABLE PEDALS MOTOR REVERSE

14

P14 14LG/OR

PASSENGER SEAT HORIZONTAL FORWARD DRIVER

15

P95 18LG/WT (FRONT
ROW HEATED SEATS)

PASSENGER SEAT HEATER B(+) DRIVER

16

G11 20VT/TN (ADJUST-
ABLE PEDALS)

ADJUSTABLE PEDALS SENSOR FEED

17

-

-

18

-

-

19

G12 22VT/BR (ADJUST-
ABLE PEDALS)

ADJUSTABLE PEDALS SENSOR SIGNAL

20

G912 20VT/WT (ADJUST-
ABLE PEDALS)

ADJUSTABLE PEDALS SENSOR RETURN

21

-

-

22

-

-

23

-

-

24

P97 18LG/YL (FRONT
ROW HEATED SEATS)

PASSENGER SEAT HEATER GROUND

25

-

-

26

P16 14LG/BR

PASSENGER SEAT HORIZONTAL REARWARD DRIVER

MEMORY/HEATED SEAT ADJUSTABLE PEDALS MODULE C2 - GRAY 16 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

-

-

3

P25 20LG/VT

DRIVER SEAT HORIZONTAL POSITION SIGNAL

4

P47 20LG/LB

DRIVER SEAT RECLINER POSITION SIGNAL

5

P26 20LG

DRIVER SEAT FRONT RISER POSITION SIGNAL

6

P27 20LG/DB

DRIVER SEAT REAR RISER POSITION SIGNAL

7

-

-

8

-

-

9

-

-

10

-

-

11

P29 20LG/WT

DRIVER SEAT POSITION SENSOR 5 VOLT SUPPLY

12

P28 20LG/BR

DRIVER SEAT POSITION SENSOR GROUND

13

P85 20LG/DG (FRONT
ROW HEATED SEATS)

DRIVER SEAT TEMPERATURE SENSOR 5 VOLT SUPPLY

14

-

-

15

-

-

16

P89 20LG/OR (FRONT
ROW HEATED SEATS)

DRIVER SEAT TEMPERATURE SENSOR INPUT

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

1164

CONNECTOR PINOUTS
