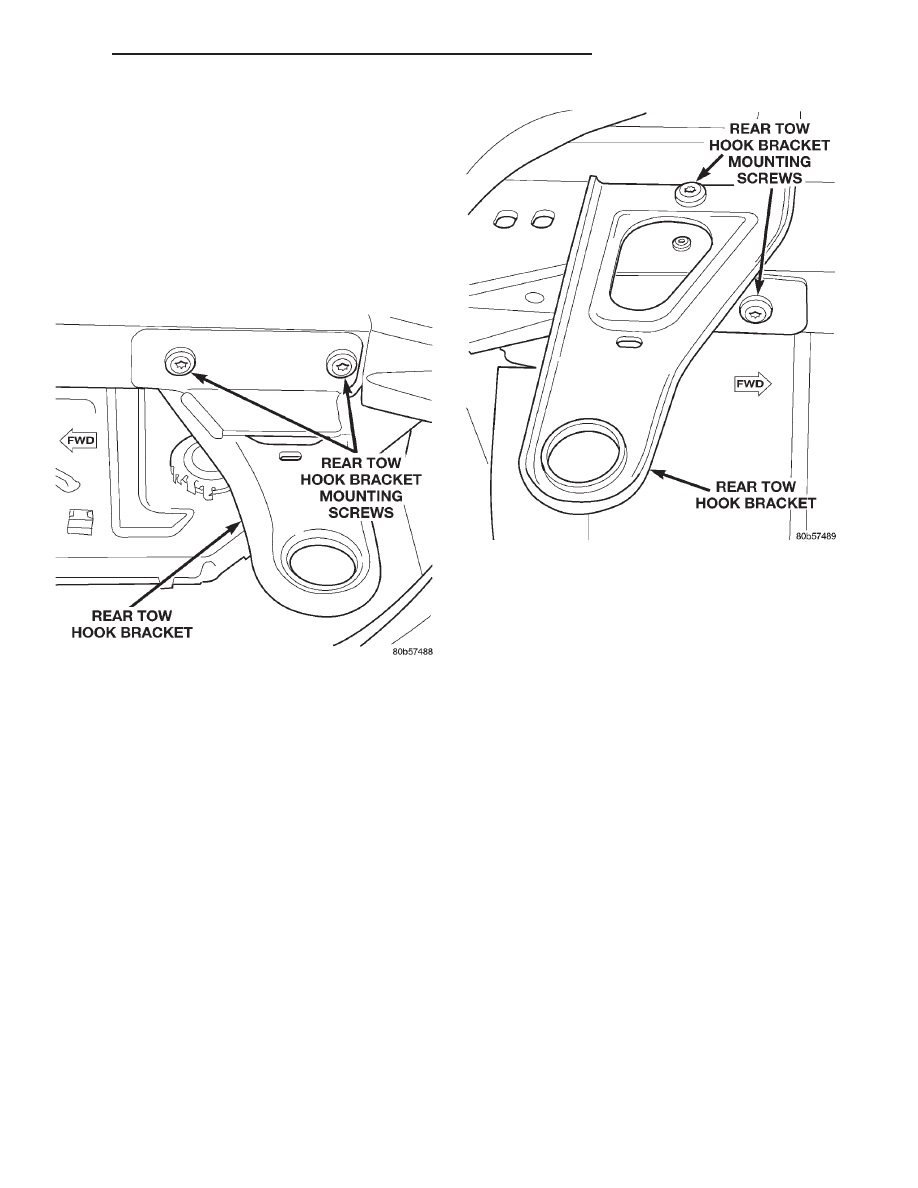

REAR TOW HOOK BRACKET REMOVAL (1) Hoist and support vehicle. Refer to Group 0, Lubrication and Maintenance, for proper lifting pro- (2) Remove bolts holding rear tow hook bracket to rear frame rail (Fig. 4) (Fig. 5). (3) Separate rear tow hook bracket from vehicle. INSTALLATION (1) Position rear tow hook bracket on vehicle. rear frame rail. (3) Lower vehicle. Fig. 4 Rear Tow Hook Bracket Fig. 5 Rear Tow Hook Bracket 300M FRAME AND BUMPERS 13 - 3 REMOVAL AND INSTALLATION (Continued) |
